Model Image
Manufacturer

Panasonic

Model Number

MCUG725

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC92SBVNZ000 AC92SBVNZ000 AGITATOR

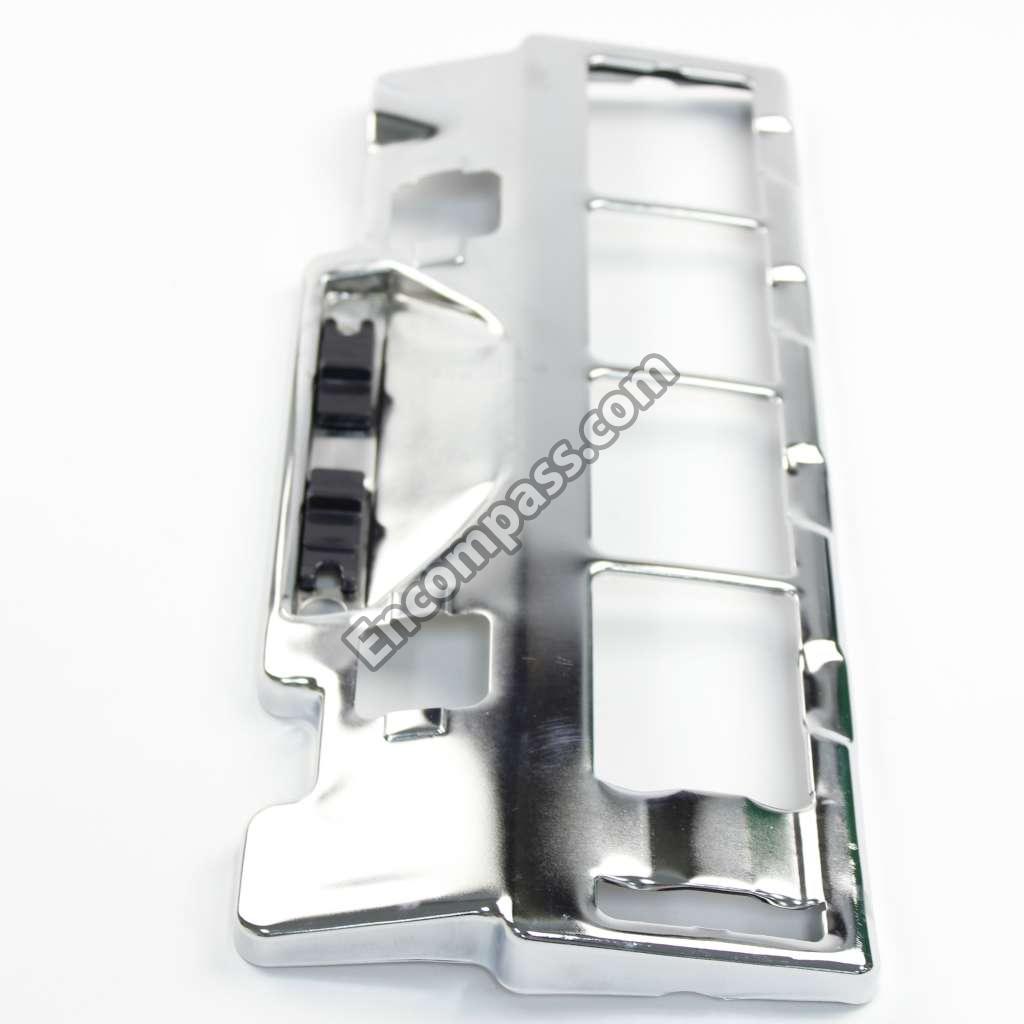

AC91ACRSZ000 AC91ACRSZ000 ASSEMBLY
MC-V155M MC-V155M BAG
MC-V270B MC-V270B BELT
AC88RYUZV07 AC88RYUZV07 BRUSH
AC85RBFT0000 AC85RBFT0000 BRUSH

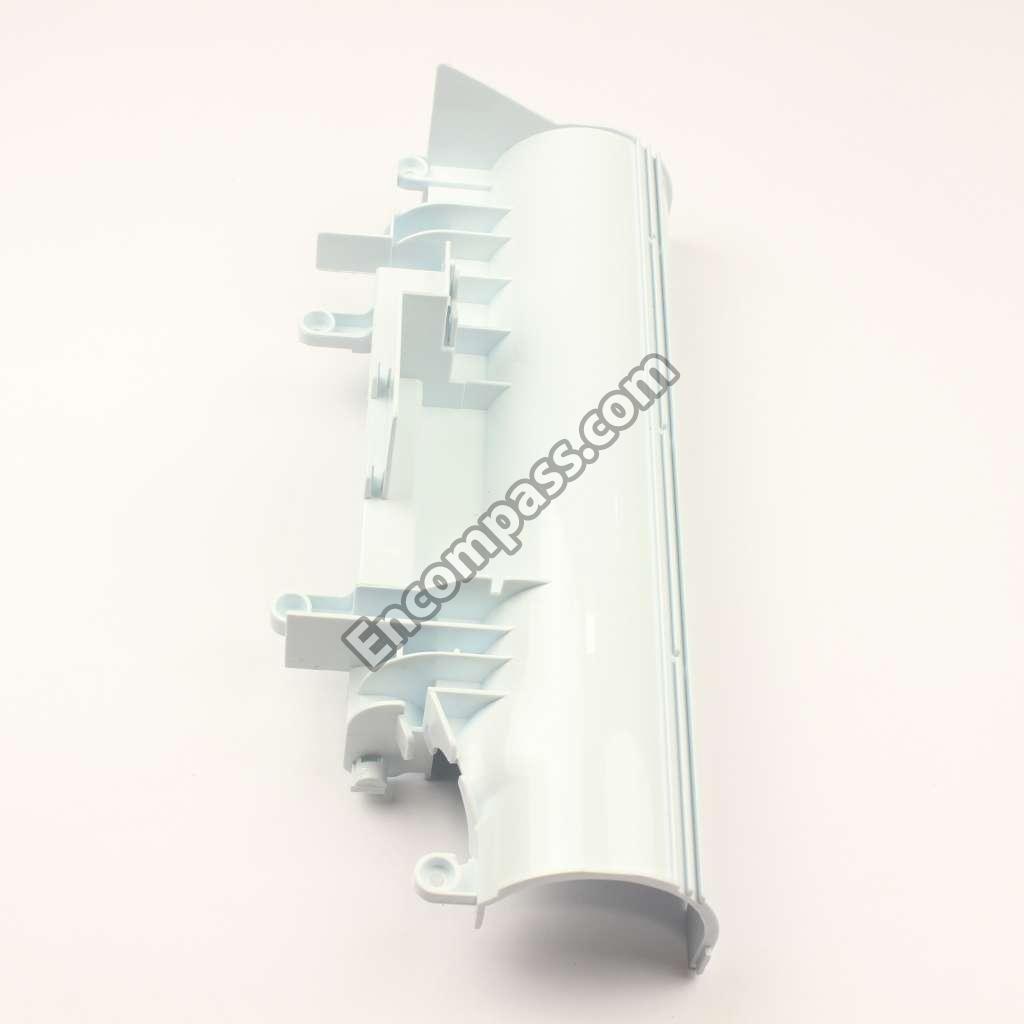

AC02ACRSZW0H AC02ACRSZW0H CABINET
AC97DBVNZ000 AC97DBVNZ000 CAP
AC96DBVNZ000 AC96DBVNZ000 CAP
AC12ACRSZW0H AC12ACRSZW0H CAP
AC09FDUVZR0W AC09FDUVZR0W CASE
AC23FBVNZ000 AC23FBVNZ000 CLIP
AC88KDKVZV07 AC88KDKVZV07 COMPARTMENT
AC97EBZXZV07 AC97EBZXZV07 CORD
AC60KDTBZR0W AC60KDTBZR0W COVER
AC11S2VZW00 AC11S2VZW00 COVER
AC03EDTBZR0W AC03EDTBZR0W COVER
AC02HYUZV07 AC02HYUZV07 COVER

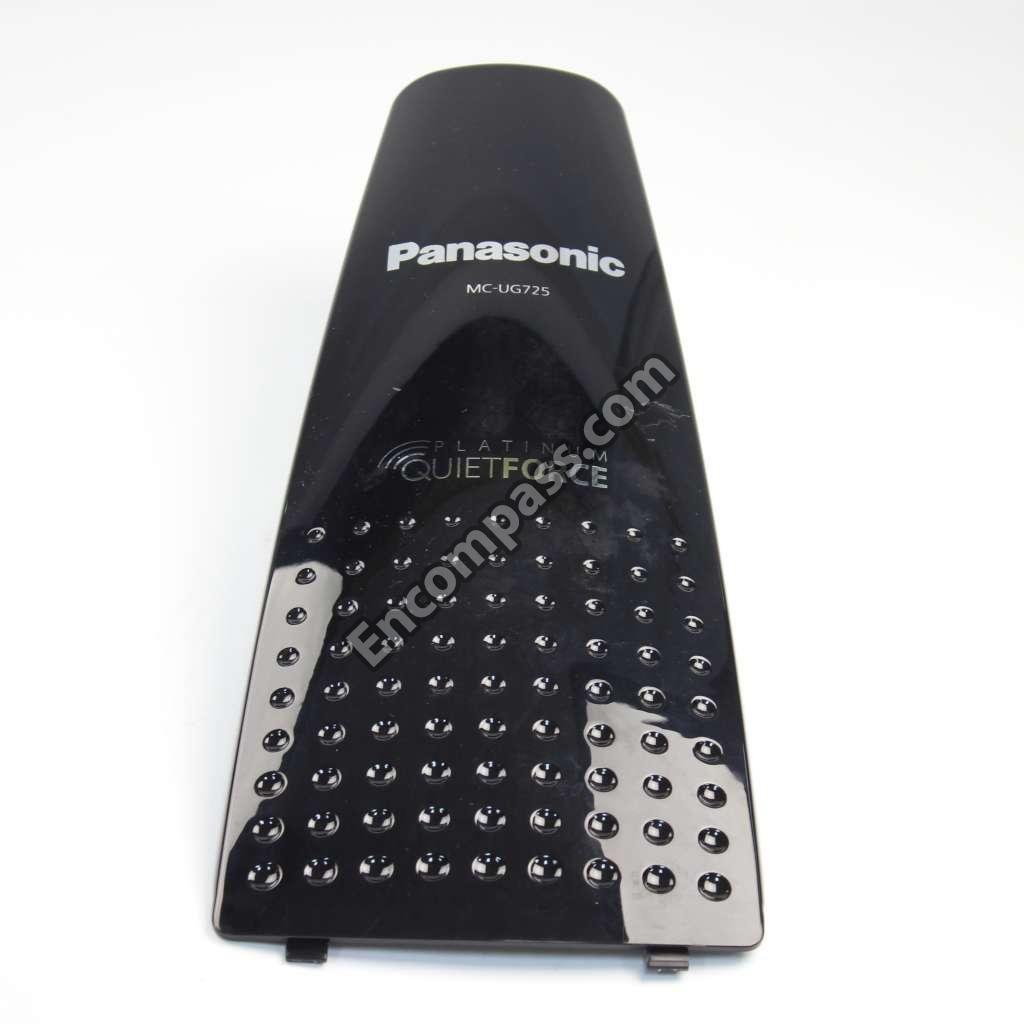

AC01HDUUZUU3 AC01HDUUZUU3 COVER
AC60RZFZV07 AC60RZFZV07 CREVICE TOOL
AC74ACRSZ000 AC74ACRSZ000 CUSHION
AC19FJPZV06 AC19FJPZV06 CUSHION
MC-V191H MC-V191H FILTER
AMC37K-V00 AMC37K-V00 FILTER
AC38KCNPZ000 AC38KCNPZ000 FILTER
AC25SBSKZ000 AC25SBSKZ000 FLANGE
AC43AAFYZ00 AC43AAFYZ00 FRAME
AC73KV0ZV06 AC73KV0ZV06 GASKET
AMC66K-V01V006 AMC66K-V01V006 GASKET
AC50BDEVZV07 AC50BDEVZV07 GRIP
AC10ACRSZV07 AC10ACRSZV07 GUARD
AC95BDKXZV07 AC95BDKXZV07 HANDLE
AC64BDKXZ000 AC64BDKXZ000 HANDLE
AC82ACRRZV07 AC82ACRRZV07 HOLDER
AC70PJPZV07 AC70PJPZV07 HOLDER
AC56RBVNZ000 AC56RBVNZ000 HOLDER
AC41SBVNZ000 AC41SBVNZ000 HOLDER
AC23PJPZV07 AC23PJPZV07 HOLDER
AC23PJP1V07 AC23PJP1V07 HOLDER
AC53RJPZV07 AC53RJPZV07 HOOK
AMC53E-V0ZV007 AMC53E-V0ZV007 HOOK
AC84PDUVZV07 AC84PDUVZV07 HOSE
AC34PAJDZV07 AC34PAJDZV07 HOSE
AC01ADUUZUU3 AC01ADUUZUU3 HOUSING
AC61LAGMZ00 AC61LAGMZ00 KIT
AMC68N-V30K AMC68N-V30K LATCH
AC92FBSKZ000 AC92FBSKZ000 MOTOR
AMP21B-17Z00 AMP21B-17Z00 NUT
AC94ZDUUZ000 AC94ZDUUZ000 PACKAGING
AC61ZDUVZ000 AC61ZDUVZ000 PACKAGING
AMC39A-2VZ00 AMC39A-2VZ00 PACKING
AC75ADSSZ000 AC75ADSSZ000 PACKING
AC74ACRRZ000 AC74ACRRZ000 PACKING
AC64HDHKZ000 AC64HDHKZ000 PACKING
AC19ADKJZ000 AC19ADKJZ000 PACKING
AC04RDTAZ000 AC04RDTAZ000 PACKING
AC02LDUVZ000 AC02LDUVZ000 PACKING
AC47A2VZV07 AC47A2VZV07 PEDAL
AC29SBVNZ000 AC29SBVNZ000 PULLEY
AXTW4_12T AXTW4_12T SCREW
AXTN4_45BFY AXTN4_45BFY SCREW
AXTN4_30BFY AXTN4_30BFY SCREW
AXTN4-20BFY AXTN4-20BFY SCREW
AXTN4_16BFY AXTN4_16BFY SCREW
AXTN4_10BFY AXTN4_10BFY SCREW
AMC73B-V0Z00 AMC73B-V0Z00 SCREW
AMC68A-V30 AMC68A-V30 SCREW
AC73BDTBZ000 AC73BDTBZ000 SCREW
AMC51A-V30 AMC51A-V30 SHAFT
AMC51A-SV0 AMC51A-SV0 SHAFT
AMC25S-V00 AMC25S-V00 SHAFT
AC57RBYYZ000 AC57RBYYZ000 SHAFT
AC16CNXZ00 AC16CNXZ00 SHAFT
AC16CDSSZ000 AC16CDSSZ000 SHAFT
AC74SBVNZ000 AC74SBVNZ000 SPACER
AC34SBYYZ000 AC34SBYYZ000 SPACER
AMC76N-F70 AMC76N-F70 SPRING
AC58AAFVZ00 AC58AAFVZ00 SPRING
AMC32K-V0Z00 AMC32K-V0Z00 SUPPORT
AC03FAFYZ000 AC03FAFYZ000 SUPPORT
AC02FCWZZ000 AC02FCWZZ000 SUPPORT
AC99GDUWZ000 AC99GDUWZ000 SUPPRESSOR
AC99GAMMZ00 AC99GAMMZ00 SUPPRESSOR
AC98EARFZ0U AC98EARFZ0U SWITCH
AMC596-702 AMC596-702 TIE
AC99PDKFZV07 AC99PDKFZV07 WAND
AC40PZGZV07 AC40PZGZV07 WAND
AXWG6E115FY AXWG6E115FY WASHER
AMC58B-F70 AMC58B-F70 WASHER
AC62FAVGZ00 AC62FAVGZ00 WASHER
AC99CBSAZV07 AC99CBSAZV07 WHEEL
AC90QNGZV06 AC90QNGZV06 WHEEL

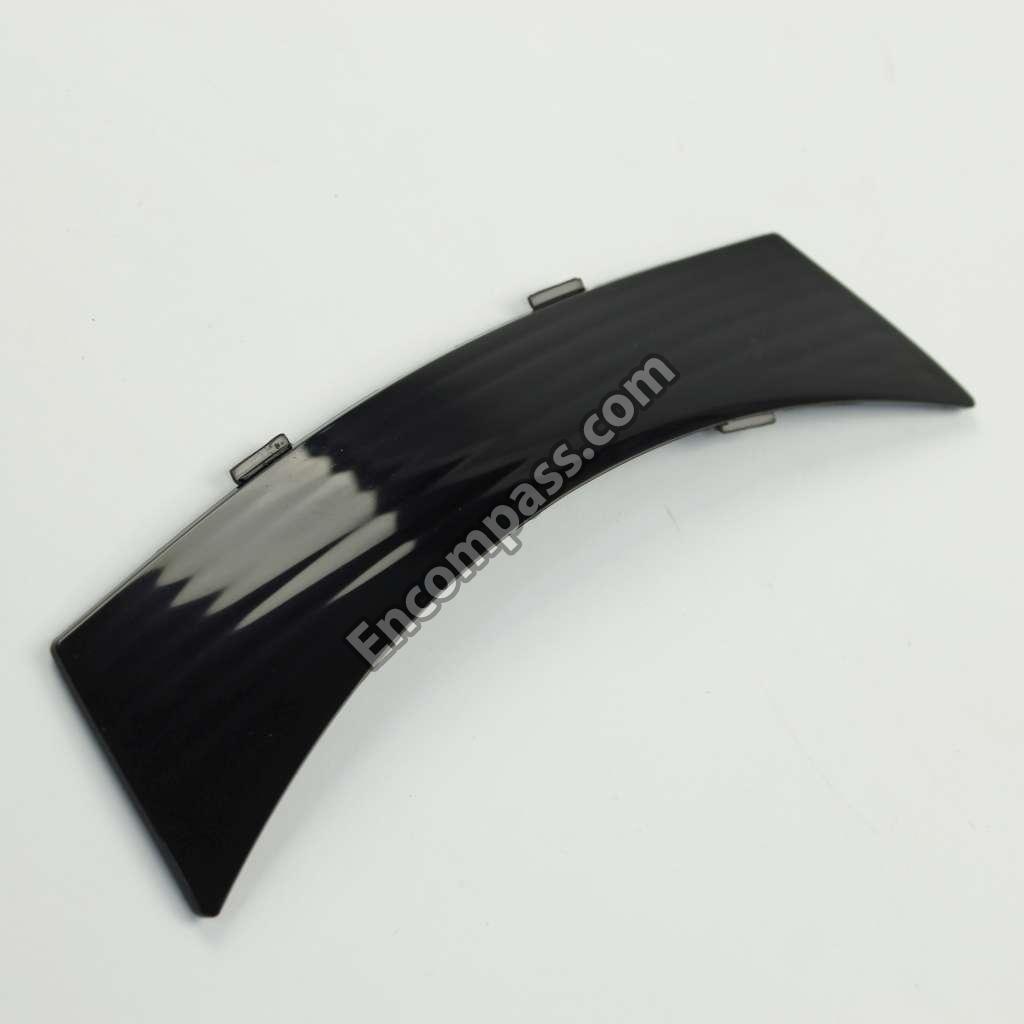

AC21HCRSZU03 AC21HCRSZU03 WINDOW
AMC37G-V200U AMC37G-V200U WIRE
AMC-1CTCE23 AMC-1CTCE23 WIRE
AC99WDEVZ000 AC99WDEVZ000 WIRE
AC38GDCNZ000 AC38GDCNZ000 WIRE
