Model Image
Manufacturer

Panasonic

Model Number

MCUL423T

Description

Vacuum - Bagged Upright

Interactive Exploded View

Parts List

Part Number Description
AC84RDRZZ000 AC84RDRZZ000 AGITATOR
AC28SDRZZ000 AC28SDRZZ000 BELT
AC88RYUZV07 AC88RYUZV07 BRUSH
AC64NDMTZM0L AC64NDMTZM0L BUTTON
AC98ADSAZV07 AC98ADSAZV07 CABINET
AC21ADSAZV07 AC21ADSAZV07 CABINET
AC12ADRZZV07 AC12ADRZZV07 CAP
AC42KDSBZU00 AC42KDSBZU00 CASE
AC85KDSBZN09 AC85KDSBZN09 COMPARTMENT
AC40KDSBZV07 AC40KDSBZV07 COMPARTMENT
AC97EDRZZ000 AC97EDRZZ000 CORD
AC60KDSAZ003 AC60KDSAZ003 COVER
AC43SAFVZ000 AC43SAFVZ000 COVER
AC41KDRZZU03 AC41KDRZZU03 COVER
AC60RZFZN09 AC60RZFZN09 CREVICE TOOL

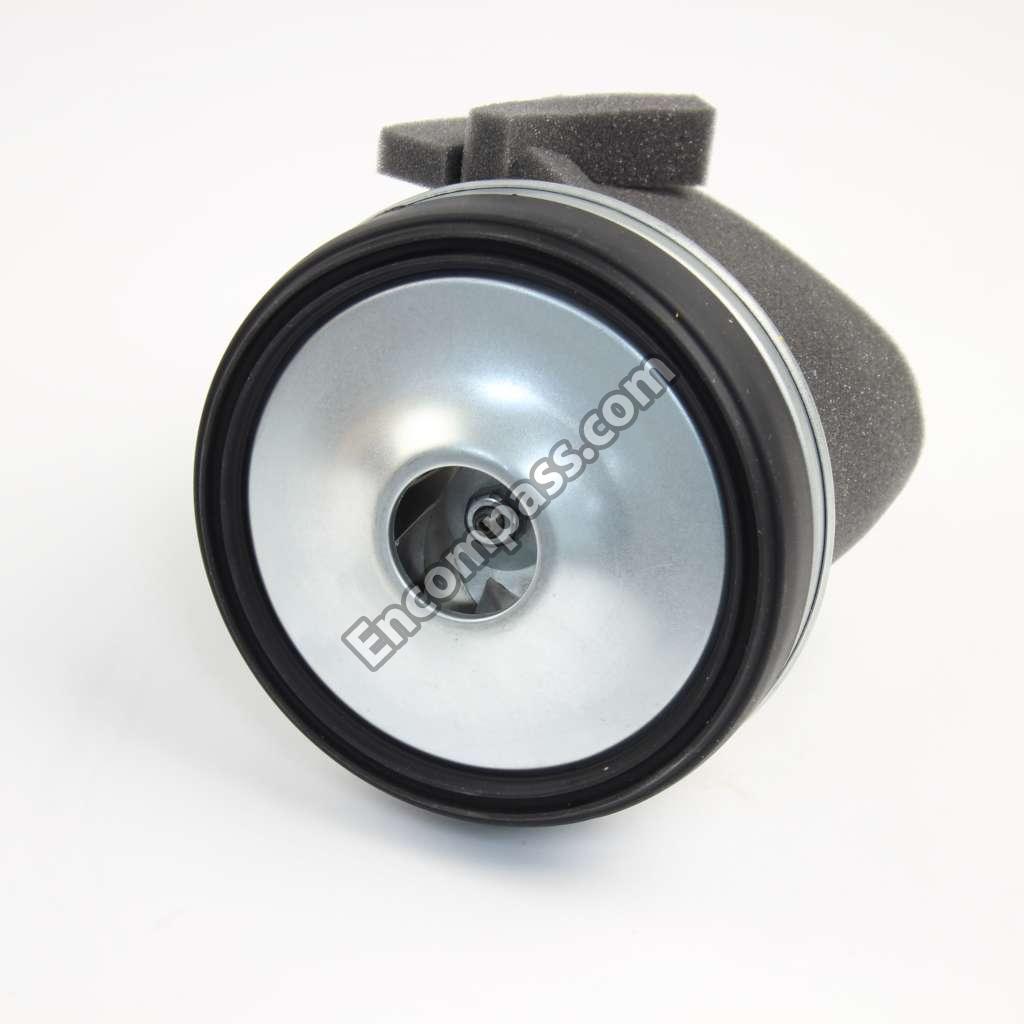

AC98FDSAZ000 AC98FDSAZ000 FAN
AC44KDMTZ000 AC44KDMTZ000 FILTER
AC38KDDJZ000 AC38KDDJZ000 FILTER

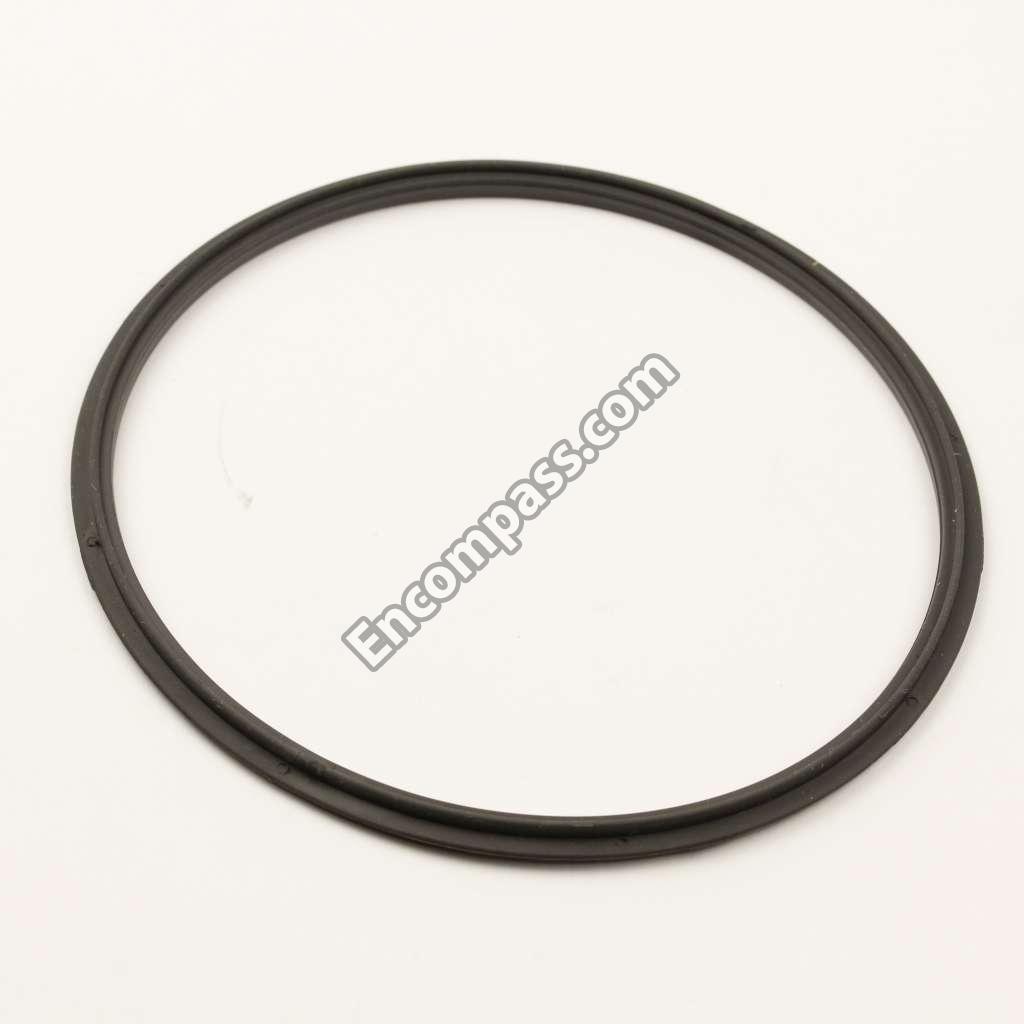

AC03LDRZZU00 AC03LDRZZU00 GASKET
AC50BDRZZN09 AC50BDRZZN09 GRIP
AC45KDSAZU00 AC45KDSAZU00 GROMMET
AC45KDRZZU00 AC45KDRZZU00 GROMMET
AC10ADRZZN09 AC10ADRZZN09 GUARD
AC39LDRZZN09 AC39LDRZZN09 GUIDE
AC95BDXPZN09 AC95BDXPZN09 HANDLE
AC64BDSAZV07 AC64BDSAZV07 HANDLE
AC14BDRZZN09 AC14BDRZZN09 HANDLE
AC78NZAZ000 AC78NZAZ000 HOLDER
AC70PDRZZV07 AC70PDRZZV07 HOLDER
AC32RDRZZV07 AC32RDRZZV07 HOLDER
AC53PDTGZV07 AC53PDTGZV07 HOOK
AMC53E-ZAZV007 AMC53E-ZAZV007 HOOK
AC84PDRZZU03 AC84PDRZZU03 HOSE
AC01ADSAZU03 AC01ADSAZU03 HOUSING

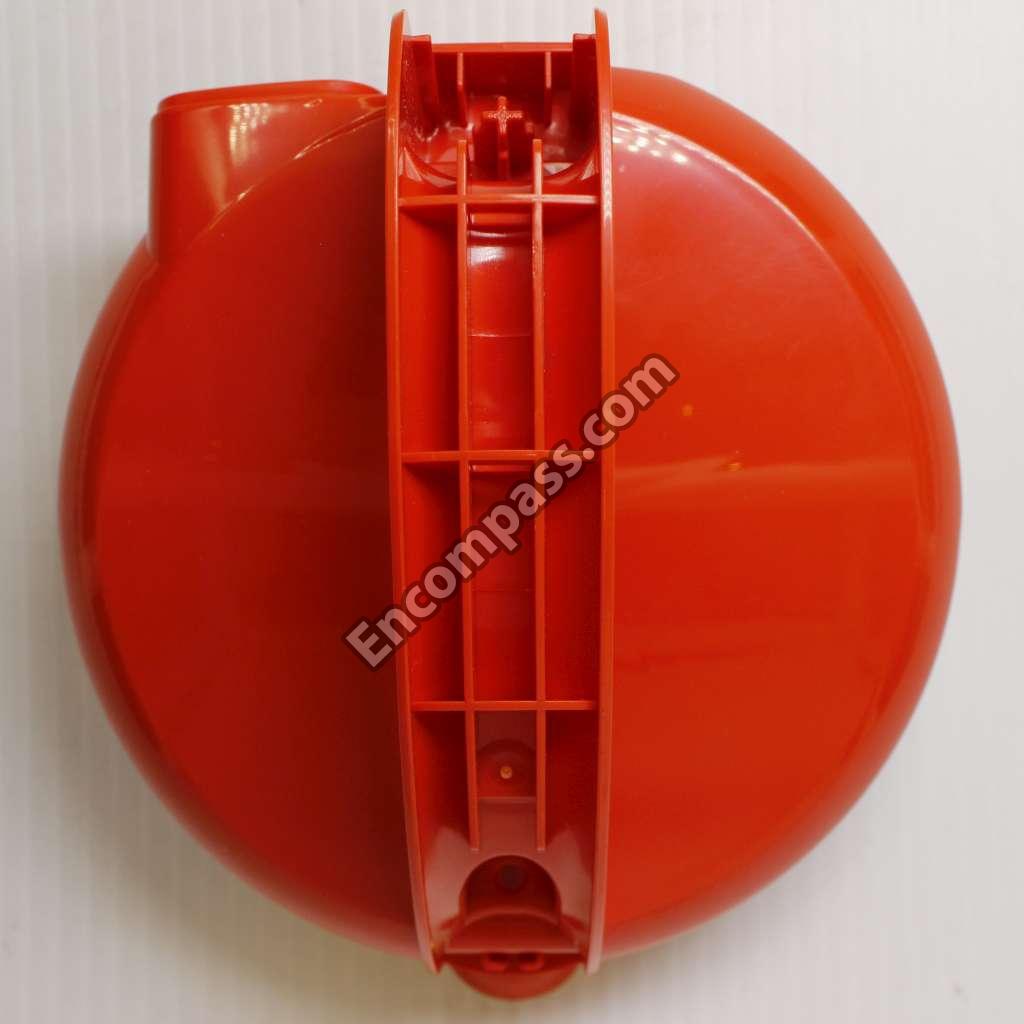

AC20HDRZZN09 AC20HDRZZN09 LID
AC92FDRZZ000 AC92FDRZZ000 MOTOR
AC94ZDRZZ000 AC94ZDRZZ000 PACKAGING
AC61ADSBZU00 AC61ADSBZU00 PACKAGING
AC73KDRZZU00 AC73KDRZZU00 PACKING
AC97LDMTZU00 AC97LDMTZU00 PARTITION
AC05EDRZZM0K AC05EDRZZM0K PEDAL
AC25KDRZZ000 AC25KDRZZ000 PLATE
AC43KDRZZN0A AC43KDRZZN0A PRE FILTER
AC76FDRZZ000 AC76FDRZZ000 PROTECTOR
AC99QCYBZV06 AC99QCYBZV06 ROLLER
AXTN4_16BFY AXTN4_16BFY SCREW
AC73BZAZ000 AC73BZAZ000 SCREW
AC73BAMAZ000 AC73BAMAZ000 SCREW
AC16CNXZ00 AC16CNXZ00 SHAFT
AMC57A-V00 AMC57A-V00 SPRING
AC58ACRYZ000 AC58ACRYZ000 SPRING
AC18DBRMZ000 AC18DBRMZ000 SPRING

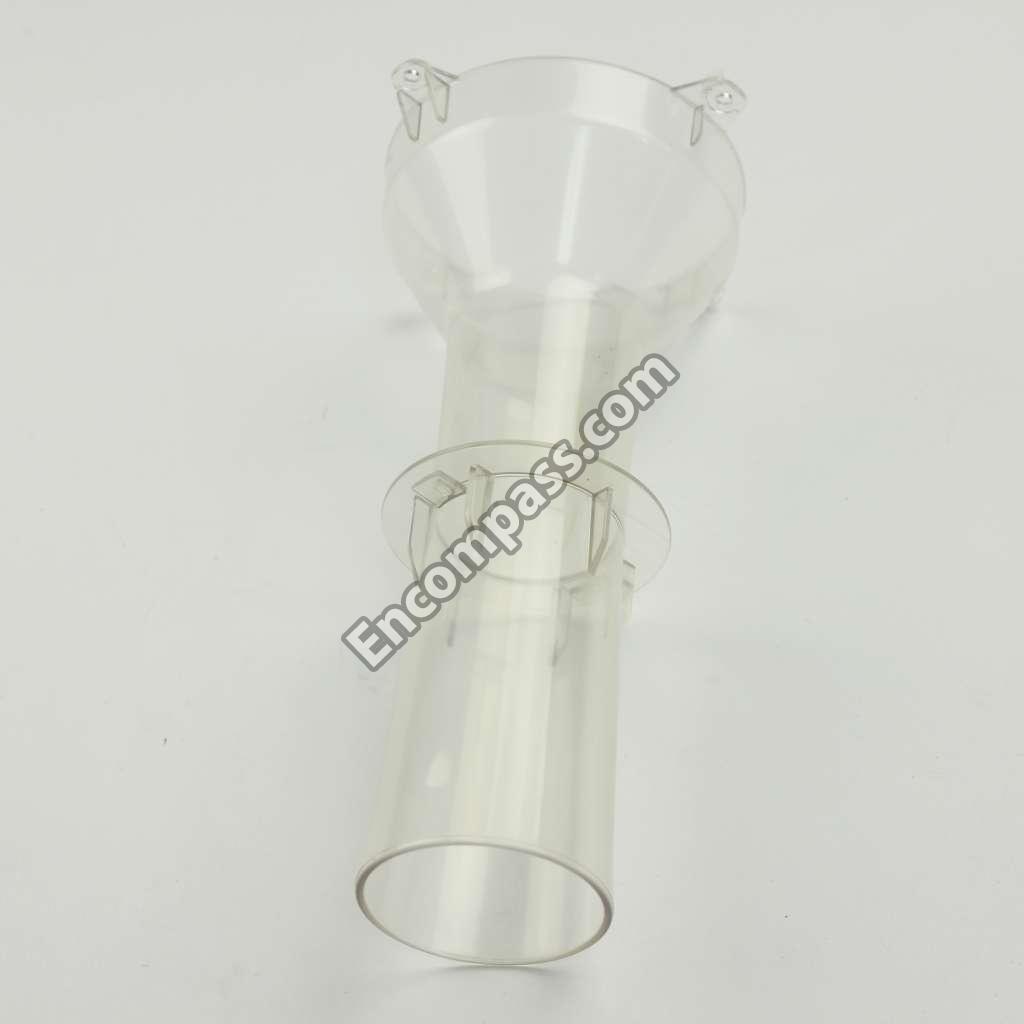

AC36KDRZZ000 AC36KDRZZ000 SUPPORT
AC03FAFVZ000 AC03FAFVZ000 SUPPORT
AC02FDRZZ000 AC02FDRZZ000 SUPPORT
AC02CDRZZV07 AC02CDRZZV07 SUPPORT
AC99GAMMZ00 AC99GAMMZ00 SUPPRESSOR
AC01EDRZZ000 AC01EDRZZ000 SWITCH
AC75KDRZZN09 AC75KDRZZN09 TERMINAL
AC80SCRZZV0N AC80SCRZZV0N TURBINE
AC40PJPZV07 AC40PJPZV07 WAND
AC01CDSAZV07 AC01CDSAZV07 WHEEL
AMC-1CTCE23 AMC-1CTCE23 WIRE
AC85WDRZZ000 AC85WDRZZ000 WIRE
AC85GDSAZ000 AC85GDSAZ000 WIRE
AC85GDRZZ000 AC85GDRZZ000 WIRE
