Model Image
Manufacturer

Panasonic

Model Number

MCUL810

Description

Bagless Upright Vacuum

Interactive Exploded View

Parts List

Part Number Description
AC34HDNYZV07 AC34HDNYZV07 ACTUATOR
AC58PDMTZV07 AC58PDMTZV07 ADAPTER
AC92SDNZZY05 AC92SDNZZY05 AGITATOR
AC39LDMUZC0Q AC39LDMUZC0Q AIR GUIDE
AC21RDNYZR03 AC21RDNYZR03 ARM
AC21RDNYZC0Q AC21RDNYZC0Q ARM
AC21RDNY1C0Q AC21RDNY1C0Q ARM

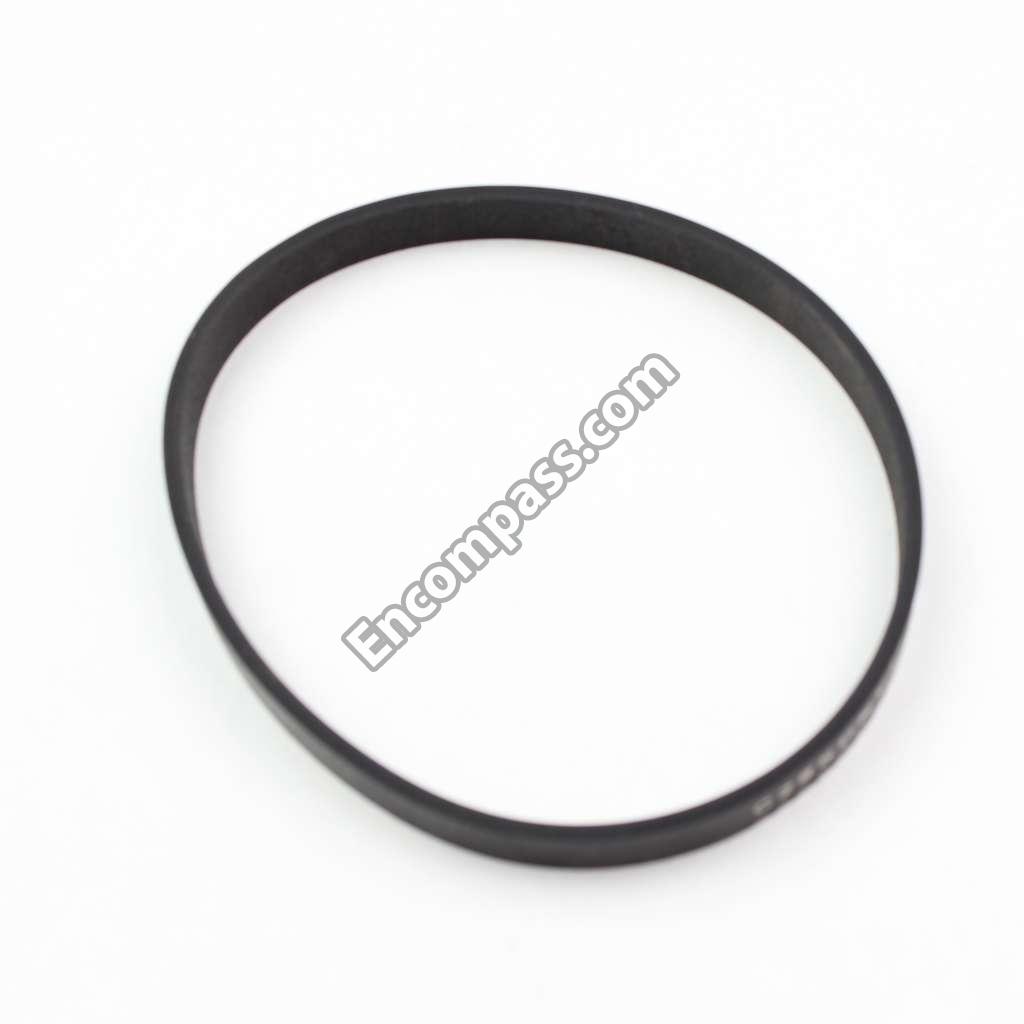

MC-V380B MC-V380B BELT
AC28SDNYZ000 AC28SDNYZ000 BELT
AC64NDMTZM0L AC64NDMTZM0L BUTTON
AC05EDNYZM0L AC05EDNYZM0L BUTTON
AC02ADNYZCUR AC02ADNYZCUR CABINET
AC02ADNYZ0U0 AC02ADNYZ0U0 CABINET
AC12ADNYZC0Q AC12ADNYZC0Q CAP
AC12ADNY1C0Q AC12ADNY1C0Q CAP
AC42KDNYZ0U0 AC42KDNYZ0U0 CASE
AC82DDNYZV07 AC82DDNYZV07 CLIP
AC23FBVNZ000 AC23FBVNZ000 CLIP
AC40KDNYZV07 AC40KDNYZV07 COMPARTMENT
AC14NDNYZC0Q AC14NDNYZC0Q CORD
AC60KDNYZUU3 AC60KDNYZUU3 COVER
AC24ADNZZM0R AC24ADNZZM0R COVER
AC24ADNYZC0Q AC24ADNYZC0Q COVER
AC24ADNY1C0Q AC24ADNY1C0Q COVER
AC19PDNYZV07 AC19PDNYZV07 COVER
AC60RCNFZV07 AC60RCNFZV07 CREVICE TOOL
AC64HARTZ000 AC64HARTZ000 CUSHION
MC-V194H MC-V194H FILTER
AC44KDPAZ000 AC44KDPAZ000 FILTER
AC44KDMTZ000 AC44KDMTZ000 FILTER
AC43KDMTZ000 AC43KDMTZ000 FILTER
AC38KDDJZ000 AC38KDDJZ000 FILTER
AC37KDPAZ000 AC37KDPAZ000 FILTER
AC37KDNYZ000 AC37KDNYZ000 FILTER
AC03LDMTZU00 AC03LDMTZU00 GASKET
AC23BDNYZV07 AC23BDNYZV07 GRIP
AC22BDNYZV07 AC22BDNYZV07 GRIP
AC22BDNYZU03 AC22BDNYZU03 GRIP
AC45KDNYZU00 AC45KDNYZU00 GROMMET
AC45KDMTZU00 AC45KDMTZU00 GROMMET
AC10ADNYZV07 AC10ADNYZV07 GUARD
AC39LDPAZC0Q AC39LDPAZC0Q GUIDE
AC39LDNYZV07 AC39LDNYZV07 GUIDE
AC39LDMUZM0L AC39LDMUZM0L GUIDE
AC14NDNYZV07 AC14NDNYZV07 GUIDE
AC95BDNYZV07 AC95BDNYZV07 HANDLE
AC95BDNYZU03 AC95BDNYZU03 HANDLE
AC14BDMTZU03 AC14BDMTZU03 HANDLE
AC01BDNYZV07 AC01BDNYZV07 HANDLE
AC78ADNYZV07 AC78ADNYZV07 HOLDER
AC70PDNYZV07 AC70PDNYZV07 HOLDER
AC91PDPAZV07 AC91PDPAZV07 HOSE
AC91PDNYZV07 AC91PDNYZV07 HOSE
AC01ADNYZU03 AC01ADNYZU03 HOUSING
AC08DDMTZV07 AC08DDMTZV07 LATCH
AC20HDPAZC0Q AC20HDPAZC0Q LID
AC20HDMTZM0L AC20HDMTZM0L LID
AC14BDMTZV07 AC14BDMTZV07 LID
AC92FDNYZ000 AC92FDNYZ000 MOTOR
AC61ZDNYZ000 AC61ZDNYZ000 PACKAGING
AC74KDMTZ000 AC74KDMTZ000 PACKING
AC74KBKHZ000 AC74KBKHZ000 PACKING
AC73KDMTZU00 AC73KDMTZU00 PACKING
AC97LDMTZU00 AC97LDMTZU00 PARTITION
AC47ADPAZV04 AC47ADPAZV04 PEDAL
AC47ADPAZM0L AC47ADPAZM0L PEDAL
AC47ADPA1V04 AC47ADPA1V04 PEDAL
AC10UDNYZV07 AC10UDNYZV07 PIN
AC27ADNYZV07 AC27ADNYZV07 PLATE
AC06ADNYZUU3 AC06ADNYZUU3 PLATE
AC06ADNY1UU3 AC06ADNY1UU3 PLATE
AC43KDMTZC0R AC43KDMTZC0R PRE FILTER
AC76FDPAZ000 AC76FDPAZ000 PROTECTOR
AC76FDMUZ000 AC76FDMUZ000 PROTECTOR
AC99NDNYZV07 AC99NDNYZV07 REEL
AXTN4_16BFY AXTN4_16BFY SCREW
AMC73B-ZAZ0000 AMC73B-ZAZ0000 SCREW
AC16CBBRZ00 AC16CBBRZ00 SHAFT
AC58FDPAZU00 AC58FDPAZU00 SHIELD
AC58FDNYZU00 AC58FDNYZU00 SHIELD
AC48KDGNZM0L AC48KDGNZM0L SLIDER
AC71KDPAZ000 AC71KDPAZ000 SPRING
AC71KDNYZ000 AC71KDNYZ000 SPRING
AC63ADNYZ000 AC63ADNYZ000 SPRING
AC23DDEVZ000 AC23DDEVZ000 SPRING
AC18DBRMZ000 AC18DBRMZ000 SPRING
AC36KDMUZC0Q AC36KDMUZC0Q SUPPORT
AC36KDMUZ000 AC36KDMUZ000 SUPPORT
AC32KDPAZU00 AC32KDPAZU00 SUPPORT
AC32KDNYZU00 AC32KDNYZU00 SUPPORT
AC03FDNYZ000 AC03FDNYZ000 SUPPORT
AC02CDNYZ000 AC02CDNYZ000 SUPPORT

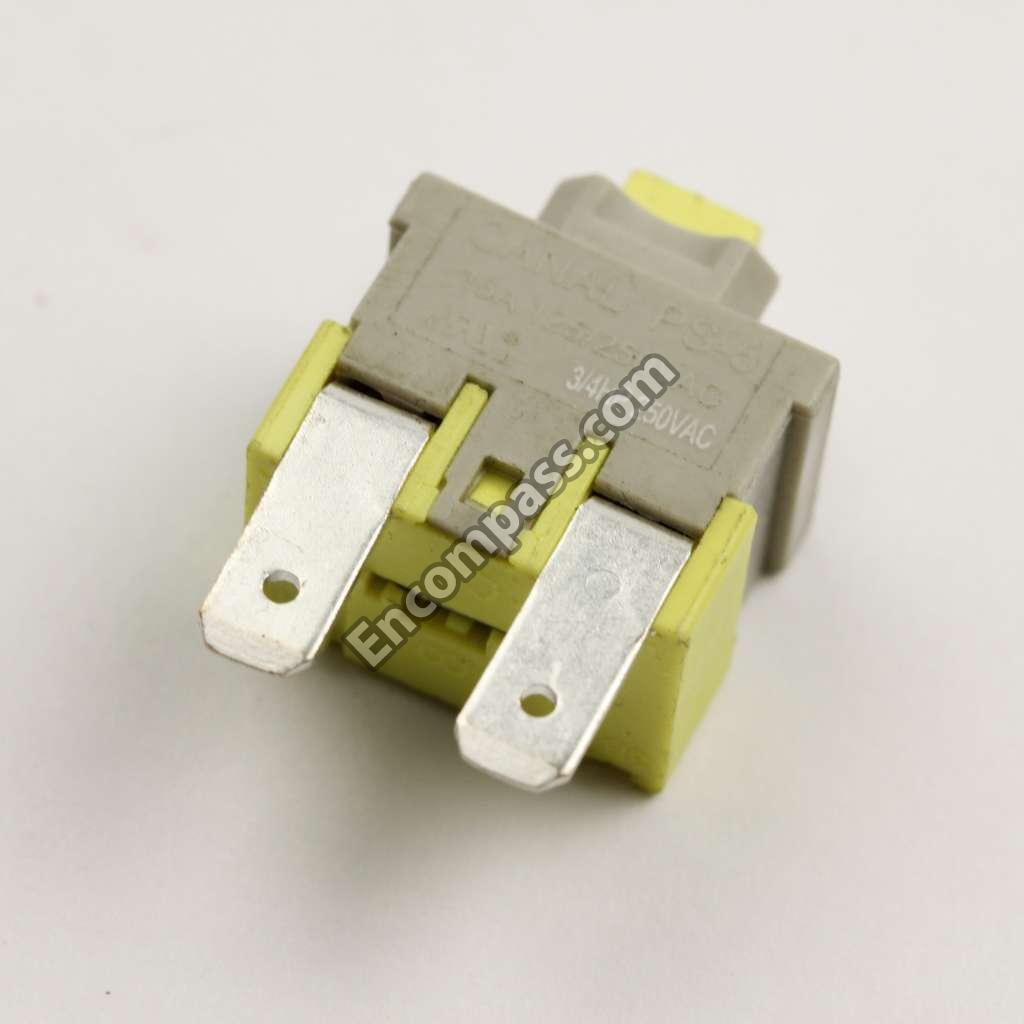

AC01EDDRZ000 AC01EDDRZ000 SWITCH
AC75KDPAZ0U0 AC75KDPAZ0U0 TERMINAL
AC75KDNYZ0U0 AC75KDNYZ0U0 TERMINAL
AC80SCRZZV0N AC80SCRZZV0N TURBINE
AC84PDMTZV07 AC84PDMTZV07 WAND
AXWG6E115FY AXWG6E115FY WASHER
AC99CDPBZV06 AC99CDPBZV06 WHEEL
AC99CDNYZV0X AC99CDNYZV0X WHEEL
AC99CDNYZU03 AC99CDNYZU03 WHEEL
AC99CCXWZV07 AC99CCXWZV07 WHEEL
AC85WDNYZ000 AC85WDNYZ000 WIRE
AC85GDPAZ000 AC85GDPAZ000 WIRE
AC85GDNZZ000 AC85GDNZZ000 WIRE
AC85GDNYZ000 AC85GDNYZ000 WIRE
