Manufacturer

Panasonic

Model Number

MCV315

Description

Commercial Vacuum

Interactive Exploded View

Parts List

Part Number	Description
AC00ZAFYZ000	AC00ZAFYZ000
AC01ABAYZYU2	AC01ABAYZYU2
AC01ZBAYZ0U	AC01ZBAYZ0U
AC60KBAYZUU1	AC60KBAYZUU1
AC84RBUMZ000	AGITATOR
AC78RAGZZU00	AGITATOR BRUSHES
AC37GTCZ00	AMC37G-TEZ0U00
AMC53B-1L0	AMC53B-1L0
AC60FRFZ00	AMC60F-RFZ0000
MC-115P	BAG
MC-V145MT	BAGS
MC-V270B	BELT
AC43SAFVZ00	BELT COVER
AMC31A-YUZV006	BUMPER
AC13DYUZV06	BUTTON
AC61KJPZV06	CAM
AC68KJMZV06	CASE
AMC02D-V300U00	CLAMP
AC40KAGZZU01	COMPARTMENT
AC54PYUZV06	CONTROL
AC93FTEZ0U	COVER
AC24HAPPZYU2	COVER
AMC03E-YU1V006	COVER
AC60RZFZVU6	CREVICE TOOL
AC88RYUZV06	DUSTING BRUSH
AC85CTCZ00	END CAP RIGHT
AMC98F-RFZ0000	FAN
AMC38K-YUZV000	FILTER

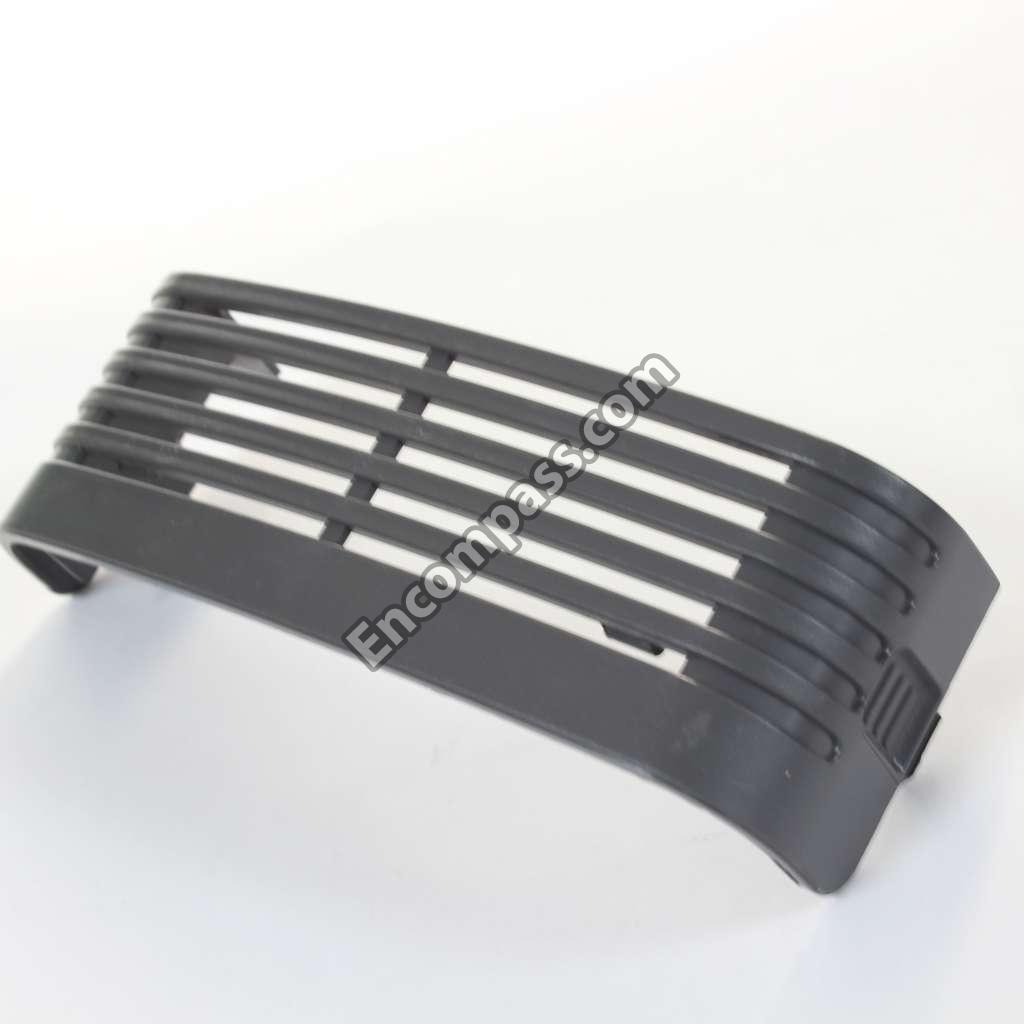

AC41KYUZV06	FILTER COVER
AMC69B-V3Z00	FITTING
AC43AAFYZ00	FRAME
AC40AYUZV00	GASKET
AC39AYUZV00	GASKET
AC10AAGZZV06	GUARD
AMC95B-TCZ0000	HANDLE
AC64BYUZU01	HANDLE
AC30KAGZZ00	HEPA EXHAUST FILTER
AC38PYUZU01	HOLDER
AC84PAGGZZV06	HOSE
AMC64H-YUZ0000	INLET
AC57HJPZV06	KNOB
AMC68N-AV0K	LATCH
AC99WARGZ00	LEAD WIRE
AC27AAFWZV06	LOWER PLATE
AC92FAPNZ00	MOTOR
AMC27F-URZ0000	MOTOR BRUSHES
AC09FAGZZV06	MOTOR CASE
AMC33F-AC00U	NUT (10)
AC01EYVZV06	ON OFF SWITCH
AC61ZBAYZ0U	PACKAGING
AC19AARKZV00	PACKING
AMC47A-2V0U	PEDAL
AMC70S-ZA10000	PIPE
AC43RYUZV07	PLATE
AC06AAJUZ00	PLATE
AC94EAPPZY02	POWER CORD
AC51E4GZU01	PROTECTOR
AXYN4_E10FFY	SCREW
AMC-XTS3_10BFY	SCREW
AXTN4-20BFY	SCREW
AXTN4_16BFY	SCREW
AMC68A-V30	SCREW
AMC68A-ZAZ0000	SCREW
AXTN4_14BFY	SCREW (10)
AMC73B-V30	SCREW (10)
AMC40D-V300U	SCREW (10)
AC37KYUZV00	SECONDARY FOAM FILTER
AMC51A-V30	SHAFT
AMC25S-V00	SHAFT
AC16CUSZ00	SHAFT
AC16CNXZ00	SHAFT
AC58AAFVZ00	SPRING
AC02HYUZV06	SUCTION INLET COVER
AMC03F-V00	SUPPORT
AC18MJMZV06	SUPPORTER
AC99GAMMZ00	SUPPRESSOR
AMC596-702	TIE
AC62RYUZV06	UPHOLSTRY TOOL
AMC62F-RFZ0000	WASHER (1/10)
AXWG6E115FY	WASHER (10)
AMC62F-AV00U	WASHER (10)
AC90QNGZV06	WHEEL
AC01CV0ZV06	WHEEL
AC74SUSZ00	WHEEL (10)
AC21HAGZZY02	WINDOW
AMC-1CTCE23	WIRE
AMC44G-TDZU000	WIRE
