Model Image
Manufacturer

Panasonic

Model Number

MCV5227

Description

Upright Vacuum

Interactive Exploded View

Parts List

Part Number Description
AC41SJMZU00 AC41SJMZU00 AC41SJMZU00
AC61LAGMZ00 AC61LAGMZ00 AC61LAGM100
AC97EADG1V06 AC97EADG1V06 AC97EADG1V06
AC99GAMMZ00 AC99GAMMZ00 AC99GAMMZ00
AC92SBYYZ000 AC92SBYYZ000 AGITATOR
AC53RJPZV06 AC53RJPZV06 AMC53R-JPZV006
MC-115P MC-115P BAG
MC-V270B MC-V270B BELT
AC85RJM1U00 AC85RJM1U00 BRUSH
AC88RYUZV06 AC88RYUZV06 BRUSH
AC96DJMZ00 AC96DJMZ00 CAP
AMC97D-JMZ0000 AMC97D-JMZ0000 CAP
AC68KJMZV06 AC68KJMZV06 CASE
AC78KBJYZV07 AC78KBJYZV07 COMPARTMENT
AMC37G-V200U AMC37G-V200U CORD
AC02HYUZV06 AC02HYUZV06 COVER
AC03EV07V06 AC03EV07V06 COVER
AMC11S-2V0W AMC11S-2V0W COVER
AC60KBJYZUU1 AC60KBJYZUU1 DUST COVER
AC92FBJXZ00 AC92FBJXZ00 FAN MOTOR
AC37KRFZ00 AC37KRFZ00 FILTER
AC99WBDNZ00 AC99WBDNZ00 FUSE
AC39AYUZV00 AC39AYUZV00 GASKET
AC40AYUZV00 AC40AYUZV00 GASKET
AMC66K-V01V006 AMC66K-V01V006 GASKET
AC73KV0ZV06 AC73KV0ZV06 GASKET

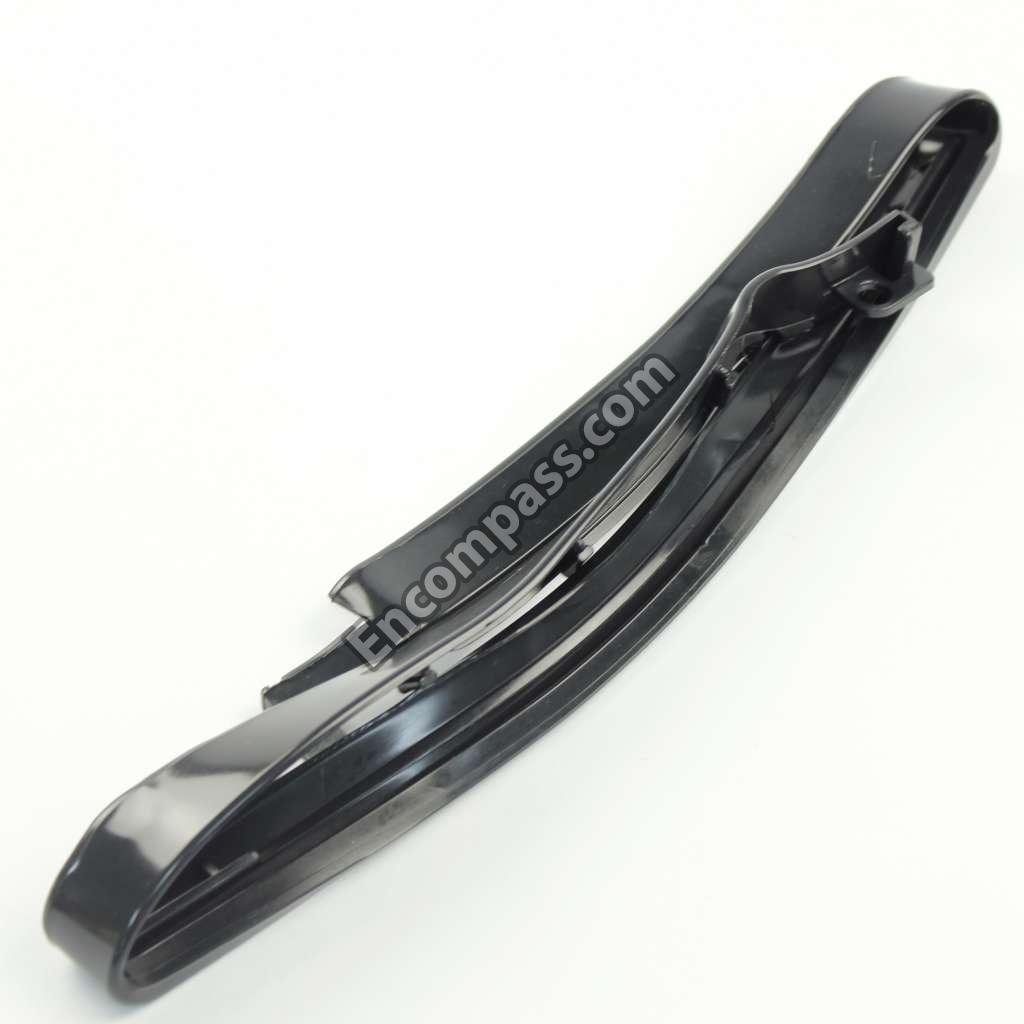

AC10A2VZV06 AC10A2VZV06 GUARD
AMC64B-V2Z00 AMC64B-V2Z00 HANDLE
AC69RAKEZ00 AC69RAKEZ00 HOLDER
AC70PJPZV07 AC70PJPZV07 HOLDER
AMC82A-2V0 AMC82A-2V0 HOLDER
AC53EV0ZV06 AC53EV0ZV06 HOOK
AC54EV0ZV06 AC54EV0ZV06 HOOK

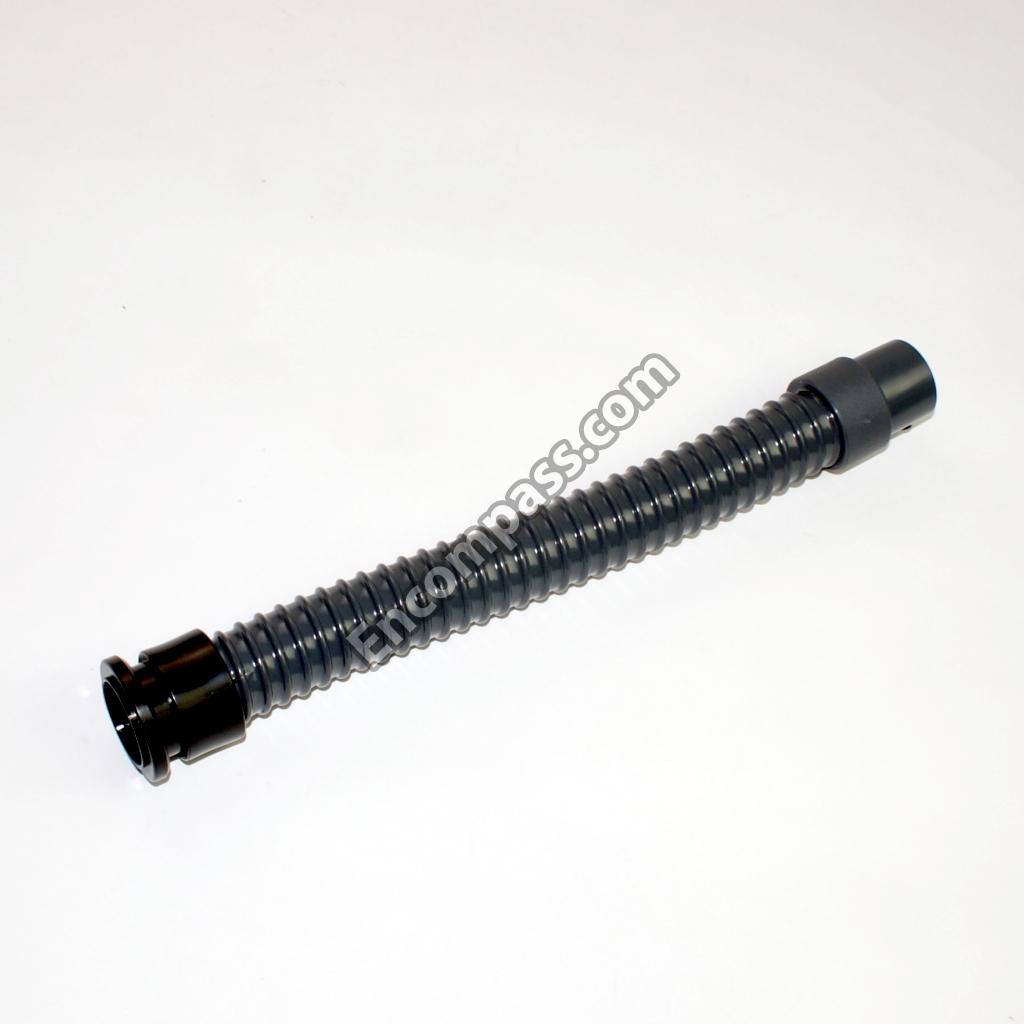

AC34PAJUZV06 AC34PAJUZV06 HOSE
AC84PJPZV06 AC84PJPZV06 HOSE

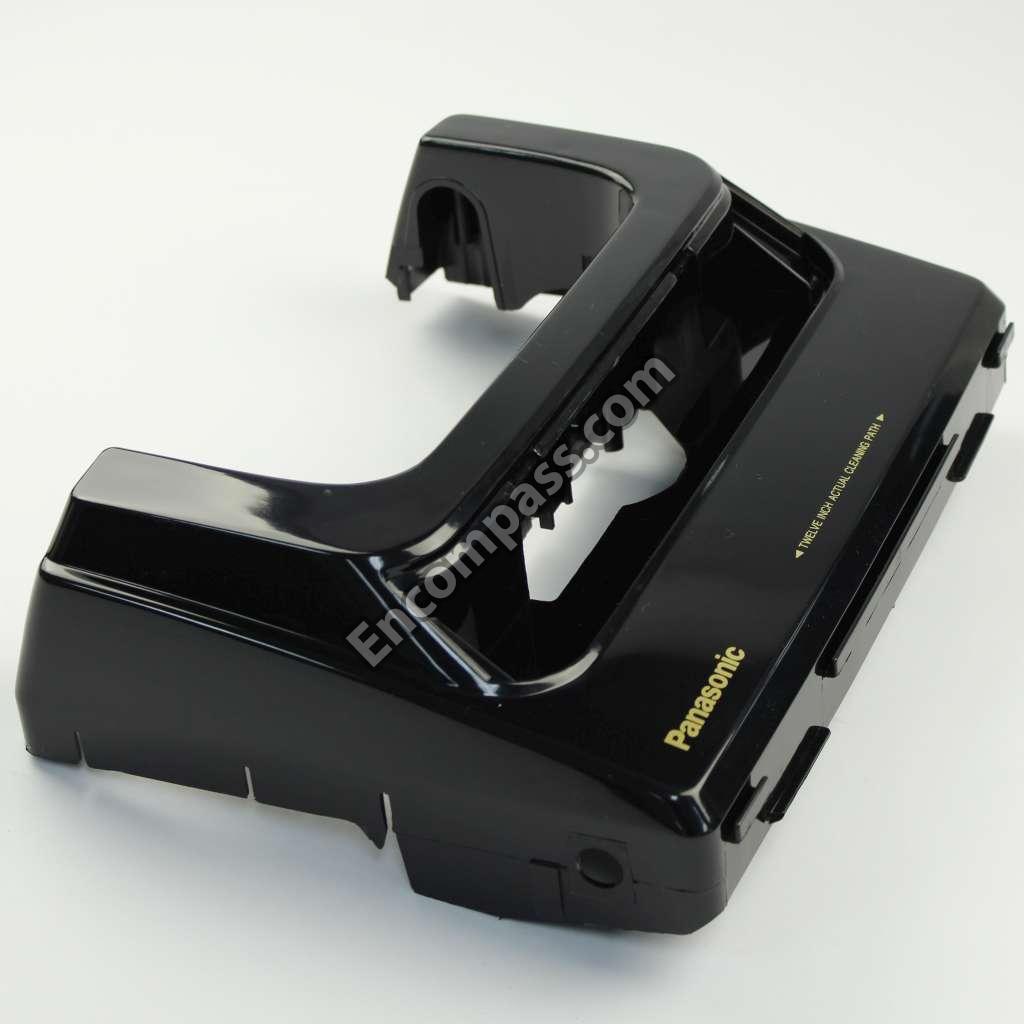

AC01AAADZUU1 AC01AAADZUU1 HOUSING
AC01ZBJYZ0U AC01ZBJYZ0U INSTRUCT BOOK
AC07ZADFZ00 AC07ZADFZ00 LABEL
AC28GADFZ00 AC28GADFZ00 LAMP
AMC68N-V30K AMC68N-V30K LATCH
AC38GARTZ00 AC38GARTZ00 LEAD WIRE
AC27AADGZ00 AC27AADGZ00 LOWER PLATE
MC-V145MT MC-V145MT MC-115P
AC09FBJYZU01 AC09FBJYZU01 MOTOR CASE
AMP21B-17Z00 AMP21B-17Z00 NUT
AC61ZBJXZ00 AC61ZBJXZ00 PACKAGING
AC19FJPZV06 AC19FJPZV06 PACKING
AMC39A-2VZ00 AMC39A-2VZ00 PACKING
AMC47A-2V0U AMC47A-2V0U PEDAL
AC91AADGZ00 AC91AADGZ00 PLATE, ASSY
AMC84H-URZW000 AMC84H-URZW000 REFLECTOR
AMC03F-V00 AMC03F-V00 RUBBER
AC68AAKEZ00 AC68AAKEZ00 SCREW
AMC68A-V30 AMC68A-V30 SCREW
AXTN4_10BFY AXTN4_10BFY SCREW
AXTN4_16BFY AXTN4_16BFY SCREW
AXTN4-20BFY AXTN4-20BFY SCREW
AXTN4_28BFY AXTN4_28BFY SCREW
AXTN4_30BFY AXTN4_30BFY SCREW (10)
AMC73B-V0Z00 AMC73B-V0Z00 SCREW (10/1)
AC16CUSZ00 AC16CUSZ00 SHAFT
AC57RV0100 AC57RV0100 SHAFT
AMC25S-V00 AMC25S-V00 SHAFT
AMC51A-SV0 AMC51A-SV0 SHAFT
AC93HURZ00 AC93HURZ00 SOCKET
AMC74S-Z100G AMC74S-Z100G SPACER
AMC76N-F70 AMC76N-F70 SPRING
AMC32K-V0Z00 AMC32K-V0Z00 SUPPORT
AC18MJMZV06 AC18MJMZV06 SUPPORTER
AMC596-702 AMC596-702 TIE
AC60RZFZVU6 AC60RZFZVU6 TOOL
AC40PJPZV06 AC40PJPZV06 WAND
AC40PZG1V06 AC40PZG1V06 WAND
AMC-XWA5BFY AMC-XWA5BFY WASHER
AMC58B-F70 AMC58B-F70 WASHER
AXWG6E115FY AXWG6E115FY WASHER (10)
AMC01C-V00U AMC01C-V00U WHEEL
AC74SUSZ00 AC74SUSZ00 WHEEL (10)
AMC21H-2X0 AMC21H-2X0 WINDOW
AMC-1CTCE23 AMC-1CTCE23 WIRE
