Model Image
Manufacturer

Panasonic

Model Number

MCV5278

Description

Upright Vacuum-plati

Interactive Exploded View

Parts List

Part Number Description
AC00ZAFYZ000 AC00ZAFYZ000 AC00ZAFYZ000
AC61LAGMZ00 AC61LAGMZ00 AC61LAGM100
AMC97E-AEEZV006 AMC97E-AEEZV006 AC97EAEE1V06

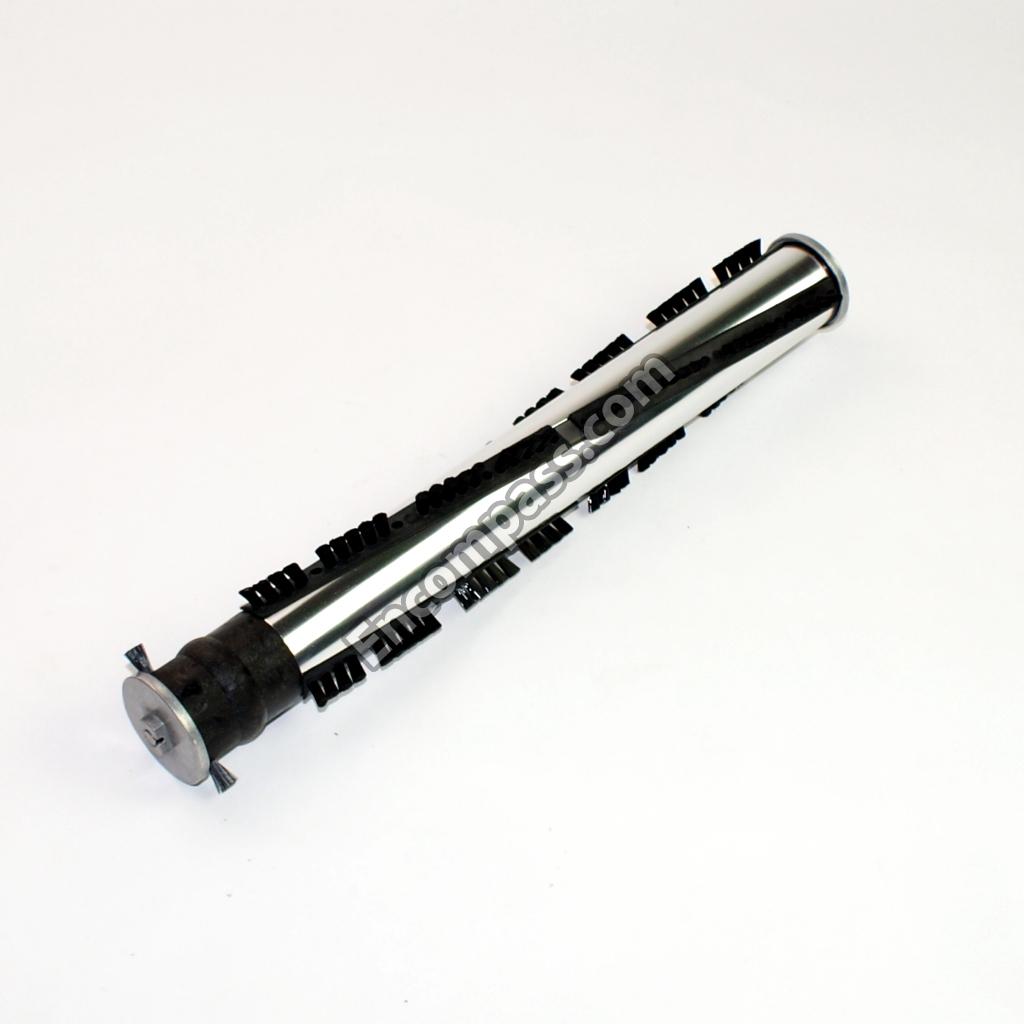

AC92SBVNZ000 AC92SBVNZ000 AGITATOR
AMC03M-68ZR0 AMC03M-68ZR0 AMC03M-68ZR0
AMC04M-RFZ0000 AMC04M-RFZ0000 AMC04M-RFZ0000
MC-V145MT MC-V145MT BAG
MC-115P MC-115P BAG
MC-V270B MC-V270B BELT
AC15MVZ00 AC15MVZ00 BODY
AC88RYUZV06 AC88RYUZV06 BRUSH
AC85RBFT0000 AC85RBFT0000 BRUSH SET
AMC17M-V2Z00 AMC17M-V2Z00 CAP
AC96DBVNZ000 AC96DBVNZ000 CAP
AC97DBVNZ000 AC97DBVNZ000 CAP
AC09FBFT1M09 AC09FBFT1M09 CASE
AC23FBVNZ000 AC23FBVNZ000 CLIP
AC78KBFTZV07 AC78KBFTZV07 COMPARTMENT
AMC37G-V200U AMC37G-V200U CORD
AC02HYUZV06 AC02HYUZV06 COVER
AC03EV07V06 AC03EV07V06 COVER
AC43SAFVZ00 AC43SAFVZ00 COVER
AC60KBYXZMU9 AC60KBYXZMU9 COVER
AC37KAAEZ00 AC37KAAEZ00 FILTER
AC44KBVNZ000 AC44KBVNZ000 FILTER
AMC66K-V01V006 AMC66K-V01V006 GASKET
AC73KV0ZV06 AC73KV0ZV06 GASKET
AC10AAGZZV07 AC10AAGZZV07 GUARD
AC41FATCZ00 AC41FATCZ00 GUIDE
AC64BVIZV07 AC64BVIZV07 HANDLE
AC95BJPZV06 AC95BJPZV06 HANDLE ASSY
AC23PJPZV07 AC23PJPZV07 HOLDER
AC69RAKEZ00 AC69RAKEZ00 HOLDER
AC41SBVNZ000 AC41SBVNZ000 HOLDER
AC56RBVNZ000 AC56RBVNZ000 HOLDER
AC70PJPZV07 AC70PJPZV07 HOLDER
AMC53E-V0ZV007 AMC53E-V0ZV007 HOOK
AC53RJPZV07 AC53RJPZV07 HOOK
AC54EV0ZV06 AC54EV0ZV06 HOOK
AC34PAJDZV06 AC34PAJDZV06 HOSE
AC84PJPZV06 AC84PJPZV06 HOSE
AC01ABYZZMU9 AC01ABYZZMU9 HOUSING
AC01ABYXZMU9 AC01ABYXZMU9 HOUSING
AC01ZBYXZ000 AC01ZBYXZ000 INSTRUCT BOOK
AC28GADFZ00 AC28GADFZ00 LAMP
AMC68N-AV0K AMC68N-AV0K LATCH
AC38GARTZ00 AC38GARTZ00 LEAD WIRE
AC98WAUDZ00 AC98WAUDZ00 LEAD WIRE
AC24HAFVZM09 AC24HAFVZM09 LIGHT COVER
AC27AATEZV07 AC27AATEZV07 LOWER PLATE
AC92FBFTZ00 AC92FBFTZ00 MOTOR
AMP21B-17Z00 AMP21B-17Z00 NUT
MCV5278_EX MCV5278_EX OTC VACUUM (DISCONTINUED)
AC61ZBYXZ000 AC61ZBYXZ000 PACKAGING ITEM (DISCONTINUED)
AC04RAFWZ000 AC04RAFWZ000 PACKING
AC19AARKZV00 AC19AARKZV00 PACKING
AC19FARSZV06 AC19FARSZV06 PACKING
AC40AARSZV00 AC40AARSZV00 PACKING
AMC09M-L30 AMC09M-L30 PACKING
AMC09FBFT1M09 AMC09FBFT1M09 PACKING
AMC47A-2V0U AMC47A-2V0U PEDAL
AC06AAJUZ00 AC06AAJUZ00 PLATE
AC91AATEZV07 AC91AATEZV07 PLATE, ASSY
AC29SBVNZ000 AC29SBVNZ000 PULLEY
AC92BAFWZU01 AC92BAFWZU01 RELEASE
AC68AAKEZ00 AC68AAKEZ00 SCREW
AMC68A-ZAZ0000 AMC68A-ZAZ0000 SCREW
AMC68A-V30 AMC68A-V30 SCREW
AXTN4_10BFY AXTN4_10BFY SCREW
AXTN4_16BFY AXTN4_16BFY SCREW
AXTN4-20BFY AXTN4-20BFY SCREW
AMC-XTS3_10BFY AMC-XTS3_10BFY SCREW
AXTN4_14BFY AXTN4_14BFY SCREW (10)
AXTN4_30BFY AXTN4_30BFY SCREW (10)
AMC73B-V0Z00 AMC73B-V0Z00 SCREW (10/1)
AC16CUSZ00 AC16CUSZ00 SHAFT
AMC25S-V00 AMC25S-V00 SHAFT
AMC51A-V30 AMC51A-V30 SHAFT
AC16CNXZ00 AC16CNXZ00 SHAFT
AC57RBYYZ000 AC57RBYYZ000 SHAFT
AC93HURZ00 AC93HURZ00 SOCKET
AC53MAKEZ00 AC53MAKEZ00 SPACER
AC34SBYYZ000 AC34SBYYZ000 SPACER
AC74SBVNZ000 AC74SBVNZ000 SPACER
AC58AAFVZ00 AC58AAFVZ00 SPRING
AC81HAGZZ00 AC81HAGZZ00 SPRING
AMC76N-F70 AMC76N-F70 SPRING
AC70NYUZ00 AC70NYUZ00 SPRING
AC53KAFVZ00 AC53KAFVZ00 SUPPORT
AMC32K-V0Z00 AMC32K-V0Z00 SUPPORT
AMC03F-V00 AMC03F-V00 SUPPORT
AC99GAMMZ00 AC99GAMMZ00 SUPPRESSOR
AMC596-702 AMC596-702 TIE
AC60RZFZVU6 AC60RZFZVU6 TOOL
AC40PJPZV06 AC40PJPZV06 WAND
AC40PZG1V06 AC40PZG1V06 WAND
AMC58B-F70 AMC58B-F70 WASHER
AXWG6E115FY AXWG6E115FY WASHER (10)
AC90QNGZV06 AC90QNGZV06 WHEEL
AC01CAGZZV06 AC01CAGZZV06 WHEEL
AC74SUSZ00 AC74SUSZ00 WHEEL (10)
AC21HAFVZ00 AC21HAFVZ00 WINDOW
AMC-1CTCE23 AMC-1CTCE23 WIRE
