Model Image
Manufacturer

Panasonic

Model Number

MCV7348

Description

Upright Vacuum-plat.

Interactive Exploded View

Parts List

Part Number Description
AC00ZAFYZ000 AC00ZAFYZ000 AC00ZAFYZ000
AC01ZBFTZ0U AC01ZBFTZ0U AC01ZBFTZ0U
AC41SJMZU00 AC41SJMZU00 AC41SJMZU00
AC61LAGMZ00 AC61LAGMZ00 AC61LAGM100

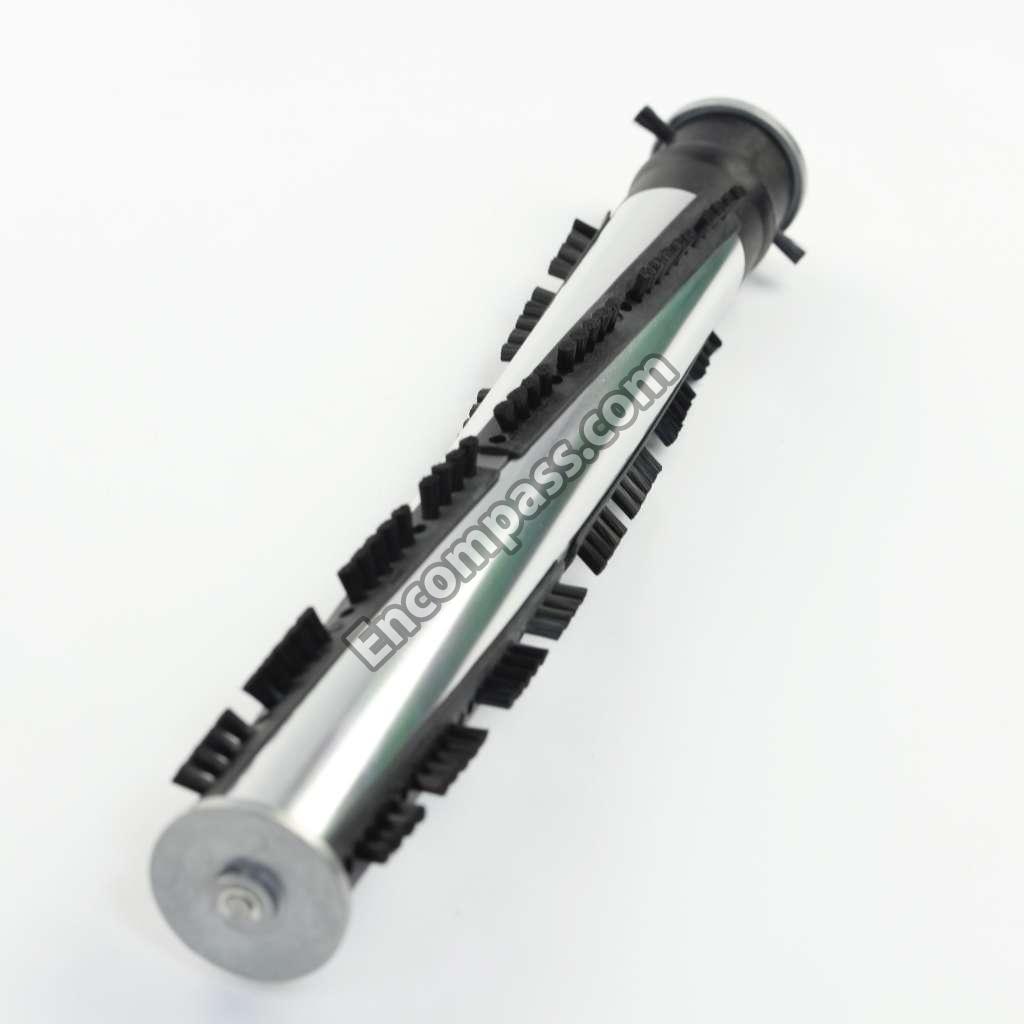

AC92SATE100 AC92SATE100 AGITATOR
AC85RARGZ00 AC85RARGZ00 AGITATOR BRUSHES
AMC04M-RFZ0000 AMC04M-RFZ0000 AMC04M-RFZ0000
AC53RJPZV06 AC53RJPZV06 AMC53R-JPZV006
AC84RJMZ00 AC84RJMZ00 AMC84R-JMZ0000
MC-115P MC-115P BAG
MC-V145MT MC-V145MT BAGS
MC-V270B MC-V270B BELT
AC43SAFVZ00 AC43SAFVZ00 BELT COVER
AC15MVZ00 AC15MVZ00 BODY
AMC17M-V2Z00 AMC17M-V2Z00 CAP
AC88KBFTZV06 AC88KBFTZV06 COMPARTMENT
AMC37G-V200U AMC37G-V200U CORD
AC03EV07V06 AC03EV07V06 COVER
AC24HAFVZU01 AC24HAFVZU01 COVER
AC42AAFY2V07 AC42AAFY2V07 COVER
AC60RZFZVU6 AC60RZFZVU6 CREVICE TOOL
AC60KBFTZGU9 AC60KBFTZGU9 DUST COVER
AC88RYUZV06 AC88RYUZV06 DUSTING BRUSH
AC96DJMZ00 AC96DJMZ00 END CAP RIGHT
AMC97D-JMZ0000 AMC97D-JMZ0000 END CAPLEFT
AMC66K-V01V006 AMC66K-V01V006 GASKET
AC73KV0ZV06 AC73KV0ZV06 GASKET
AC10AAGZZV07 AC10AAGZZV07 GUARD
AC41FATCZ00 AC41FATCZ00 GUIDE
AMC64B-V2Z00 AMC64B-V2Z00 HANDLE
AC53EV0ZV06 AC53EV0ZV06 HOOK
AC54EV0ZV06 AC54EV0ZV06 HOOK
AC84PJPZV06 AC84PJPZV06 HOSE
AC34PAJDZV06 AC34PAJDZV06 HOSE
AMC03M-68ZR0 AMC03M-68ZR0 INDICATOR
AMC68N-AV0K AMC68N-AV0K LATCH
AC38GARTZ00 AC38GARTZ00 LEAD WIRE
AC98WAUDZ00 AC98WAUDZ00 LEAD WIRE
AC28GADFZ00 AC28GADFZ00 LIGHT
AC27AATEZV07 AC27AATEZV07 LOWER PLATE
AC91AATEZV07 AC91AATEZV07 LOWER PLATE ASSEMBLY
AC92FARUZ00 AC92FARUZ00 MOTOR
AC69RAKEZ00 AC69RAKEZ00 MOTOR BRUSHES
AC09FBFTZG09 AC09FBFTZG09 MOTOR CASE
AC01ABFTZGU9 AC01ABFTZGU9 NOZZLE HOUSING
AMP21B-17Z00 AMP21B-17Z00 NUT
MCV7348_EX MCV7348_EX OTC VACUUM
MCV7348_1ST MCV7348_1ST OTC VACUUM
AC61ZBFTZ0U AC61ZBFTZ0U PACKAGING
AC04RAFWZ000 AC04RAFWZ000 PACKING
AC19AARKZV00 AC19AARKZV00 PACKING
AC19FARSZV06 AC19FARSZV06 PACKING
AC40AARSZV00 AC40AARSZV00 PACKING
AMC09M-L30 AMC09M-L30 PACKING
AMC47A-2V0U AMC47A-2V0U PEDAL
AC06AAJUZ00 AC06AAJUZ00 PLATE
AMC97E-AEEZV006 AMC97E-AEEZV006 POWER CORD
AC29SARGZ00 AC29SARGZ00 PULLEY
AC92BAFWZU01 AC92BAFWZU01 RELEASE
AC68AAKEZ00 AC68AAKEZ00 SCREW
AMC68A-ZAZ0000 AMC68A-ZAZ0000 SCREW
AMC68A-V30 AMC68A-V30 SCREW
AXTN4_10BFY AXTN4_10BFY SCREW
AXTN4_16BFY AXTN4_16BFY SCREW
AXTN4-20BFY AXTN4-20BFY SCREW
AMC-XTS3_10BFY AMC-XTS3_10BFY SCREW
AXYN4_10FFY AXYN4_10FFY SCREW
AXTN4_14BFY AXTN4_14BFY SCREW (10)
AXTN4_30BFY AXTN4_30BFY SCREW (10)
AMC73B-V0Z00 AMC73B-V0Z00 SCREW (10/1)
AC37KAAEZ00 AC37KAAEZ00 SECONDARY FOAM FILTER
AC16CNXZ00 AC16CNXZ00 SHAFT
AC16CUSZ00 AC16CUSZ00 SHAFT
AC57RATEZ00 AC57RATEZ00 SHAFT
AMC25S-V00 AMC25S-V00 SHAFT
AMC51A-V30 AMC51A-V30 SHAFT
AC93HURZ00 AC93HURZ00 SOCKET
AC53MAKEZ00 AC53MAKEZ00 SPACER
AC74SATEZ00 AC74SATEZ00 SPACER
AC58AAFVZ00 AC58AAFVZ00 SPRING
AC81HAGZZ00 AC81HAGZZ00 SPRING
AMC76N-F70 AMC76N-F70 SPRING
AC70NYUZ00 AC70NYUZ00 SPRING
AC02HYUZV06 AC02HYUZV06 SUCTION INLET COVER
AC53KAFVZ00 AC53KAFVZ00 SUPPORT
AMC32K-V0Z00 AMC32K-V0Z00 SUPPORT
AMC03F-V00 AMC03F-V00 SUPPORT
AC99GAMMZ00 AC99GAMMZ00 SUPPRESSOR
AMC596-702 AMC596-702 TIE
AC40PJPZV06 AC40PJPZV06 WAND
AC40PZG1V06 AC40PZG1V06 WAND
AMC58B-F70 AMC58B-F70 WASHER
AXWG6E115FY AXWG6E115FY WASHER (10)
AC90QNGZV06 AC90QNGZV06 WHEEL
AMC01C-V00U AMC01C-V00U WHEEL
AC74SUSZ00 AC74SUSZ00 WHEEL (10)
AC21HAFVZ00 AC21HAFVZ00 WINDOW
AMC-1CTCE23 AMC-1CTCE23 WIRE
