Model Image
Manufacturer

Panasonic

Model Number

MCV73551

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC00ZAFYZ000 AC00ZAFYZ000 AC00ZAFYZ000

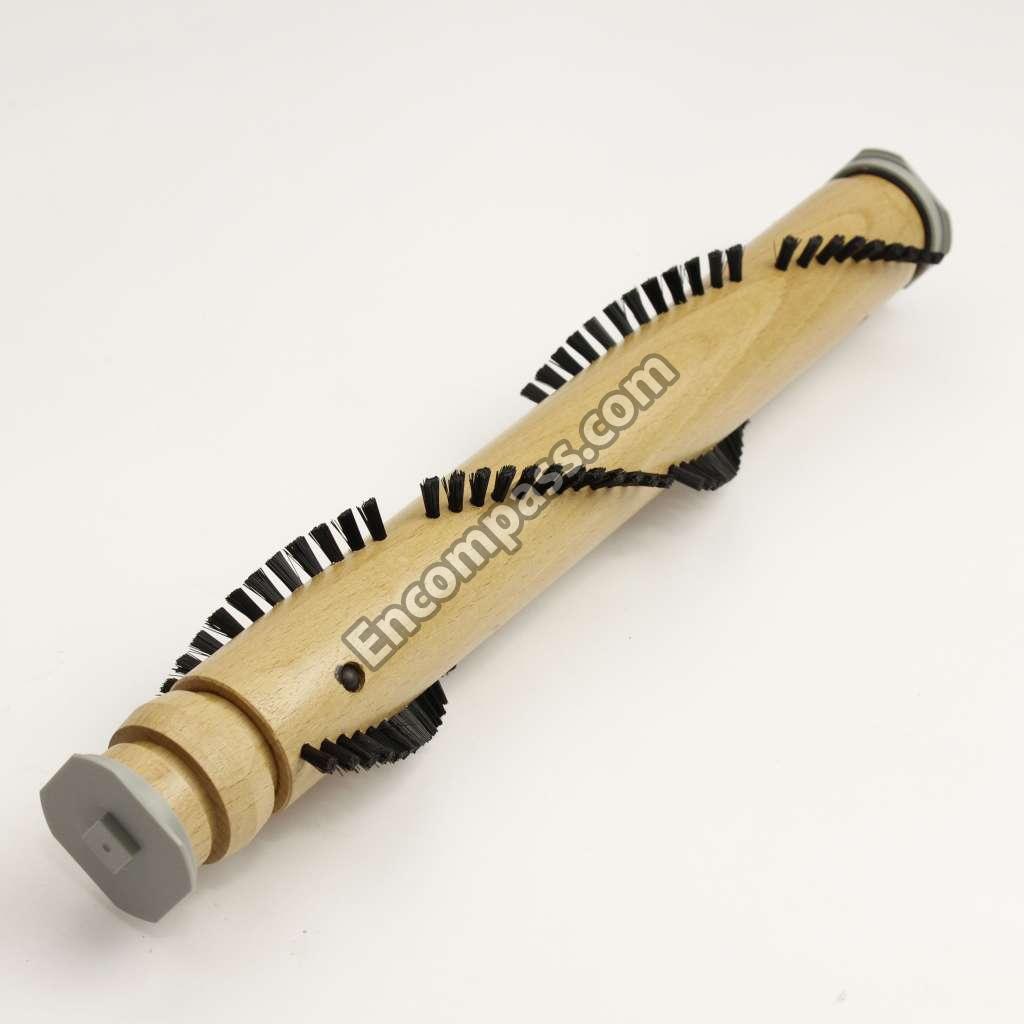

AC84RAKDZ0U AC84RAKDZ0U AGITATOR
AC60FRFZ00 AC60FRFZ00 AMC60F-RFZ0000
MC-115PT MC-115PT BAGS
MC-V270B MC-V270B BELT
AC43SAFVZ00 AC43SAFVZ00 BELT COVER
AC09FAFXZP01 AC09FAFXZP01 CASE
AMC53F-JPZ0000 AMC53F-JPZ0000 CASE
AC68KJMZV06 AC68KJMZV06 CASE
AMC02D-V300U00 AMC02D-V300U00 CLAMP
AC78KAFWZV07 AC78KAFWZV07 COMPARTMENT
AMC37G-V200U AMC37G-V200U CORD
AC24HAFVZP01 AC24HAFVZP01 COVER
AC28MZAZV07 AC28MZAZV07 COVER
AC42AAFXZV07 AC42AAFXZV07 COVER
AC03EAFWZP01 AC03EAFWZP01 COVER
AC60RZFZVU6 AC60RZFZVU6 CREVICE TOOL
AC60KAFXZPU1 AC60KAFXZPU1 DUST COVER
AC88RYUZV06 AC88RYUZV06 DUSTING BRUSH
AC85CZFZ0U AC85CZFZ0U END CAP RIGHT
AC40PZG1V06 AC40PZG1V06 EXTENSION WAND
AMC98F-JPZ0000 AMC98F-JPZ0000 FAN
AC43AAFYZ00 AC43AAFYZ00 FRAME
AC39AYUZV00 AC39AYUZV00 GASKET
AC40AYUZV00 AC40AYUZV00 GASKET
AC95BAFXZP01 AC95BAFXZP01 HANDLE
AMC30K-ZAZ0000 AMC30K-ZAZ0000 HEPA EXHAUST FILTER
AMC29F-ZAZV007 AMC29F-ZAZV007 HOLDER
AMC70P-AEKZV007 AMC70P-AEKZV007 HOLDER
AMC53E-ZAZV007 AMC53E-ZAZV007 HOOK
AMC64H-YUZ0000 AMC64H-YUZ0000 INLET
AC69GAFXZV07 AC69GAFXZV07 KNOB
AC04EAFWZU01 AC04EAFWZU01 KNOB
AC33MAFWZ00 AC33MAFWZ00 LENS
AC15EZAZ00 AC15EZAZ00 LEVER
AMC28G-F100U AMC28G-F100U LIGHT
AC91AAKW2V07 AC91AAKW2V07 LOWER PLATE ASSEMBLY
MC-115P MC-115P MC-115P
AC92FAFWZ00 AC92FAFWZ00 MOTOR
AMC27F-URZ0000 AMC27F-URZ0000 MOTOR BRUSHES
AC01AAFX2PU1 AC01AAFX2PU1 NOZZLE HOUSING
AMC33F-AC00U AMC33F-AC00U NUT (10)
AC98EAFVZ00 AC98EAFVZ00 ON OFF SWITCH
AC61ZAFXZ0U AC61ZAFXZ0U PACKAGING
AC19AAFVZV00 AC19AAFVZV00 PACKING
AC19AAFXZV00 AC19AAFXZV00 PACKING
AC66NAFVZV07 AC66NAFVZV07 PACKING
AC02LAFVZ00 AC02LAFVZ00 PACKING
AC04RAFWZ000 AC04RAFWZ000 PACKING
AC46ZAFWZ00 AC46ZAFWZ00 PARTITION
AMC47A-2V0U AMC47A-2V0U PEDAL
AC06AAJUZ00 AC06AAJUZ00 PLATE
AC21TAFWZU01 AC21TAFWZU01 PLATE
AMC97E-AEEZV006 AMC97E-AEEZV006 POWER CORD
AC43PAFXZV07 AC43PAFXZV07 RING
AC68AAFYZ00 AC68AAFYZ00 SCREW
AMC68A-ZAZ0000 AMC68A-ZAZ0000 SCREW
AXTN4_16BFY AXTN4_16BFY SCREW
AXTN4-20BFY AXTN4-20BFY SCREW
AXYN4_E10FFY AXYN4_E10FFY SCREW
AMC73B-ZAZ0000 AMC73B-ZAZ0000 SCREW (10)
AMC40D-V300U AMC40D-V300U SCREW (10)
AXTN3_8BFY AXTN3_8BFY SCREW (10)
AXTN4_14BFY AXTN4_14BFY SCREW (10)
AC37KZAZ00 AC37KZAZ00 SECONDARY FOAM FILTER
AC16CNXZ00 AC16CNXZ00 SHAFT
AC16CUSZ00 AC16CUSZ00 SHAFT
AMC25S-V00 AMC25S-V00 SHAFT
AMC51A-V30 AMC51A-V30 SHAFT
AC93HURZ00 AC93HURZ00 SOCKET
AC57AAFWZ00 AC57AAFWZ00 SPRING
AC58AAFVZ00 AC58AAFVZ00 SPRING
AC70KAFXZ00 AC70KAFXZ00 SPRING
AC70KJMZ00 AC70KJMZ00 SPRING
AC81HAGZZ00 AC81HAGZZ00 SPRING
AC02HYUZV06 AC02HYUZV06 SUCTION INLET COVER
AC11KAFWZK0C AC11KAFWZK0C SUPPORT
AC53KJPZW03 AC53KJPZW03 SUPPORT
AMC03F-V00 AMC03F-V00 SUPPORT
AC18MJMZV06 AC18MJMZV06 SUPPORTER
AC32KZAZV07 AC32KZAZV07 SUPPORTER
AMC99G-L310X AMC99G-L310X SUPPRESSOR
AMC596-702 AMC596-702 TIE
AC62RYUZV06 AC62RYUZV06 UPHOLSTRY TOOL
AC09UAFYZ00 AC09UAFYZ00 WASHER
AMC62F-RFZ0000 AMC62F-RFZ0000 WASHER (1/10)
AMC62F-AV00U AMC62F-AV00U WASHER (10)
AMC681-424 AMC681-424 WASHER (10)
AXWG6E115FY AXWG6E115FY WASHER (10)
AC90QNGZV06 AC90QNGZV06 WHEEL
AMC01C-V00U AMC01C-V00U WHEEL
AC74SUSZ00 AC74SUSZ00 WHEEL (10)
AC21HAFVZ00 AC21HAFVZ00 WINDOW
AMC44G-TDZU000 AMC44G-TDZU000 WIRE
AMC-1CTCE23 AMC-1CTCE23 WIRE
