Model Image
Manufacturer

Panasonic

Model Number

MCV7600

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC00ZAFYZ000 AC00ZAFYZ000 AC00ZAFYZ000
AC84RCKPZ000 AC84RCKPZ000 AGITATOR
AC80SCNFZV07 AC80SCNFZV07 ATTACHMENT
AXWG6E115FY AXWG6E115FY AXWG6E115FY
MC-V145MT MC-V145MT BAG
MC-V270B MC-V270B BELT
AC02ACNFZV07 AC02ACNFZV07 BODY
AC02ACRSZW0H AC02ACRSZW0H BODY
AC81JCKPZV06 AC81JCKPZV06 BODY
AC63RBKHZV06 AC63RBKHZV06 BRUSH
AC28GBKHZ000 AC28GBKHZ000 BULB
AC61KBKGZ000 AC61KBKGZ000 CAM
AC12ACNFZV07 AC12ACNFZV07 CAP
AC12ACRSZW0H AC12ACRSZW0H CAP
AC09FARTZB0Z AC09FARTZB0Z CASE
AC09FCKPZV06 AC09FCKPZV06 CASE
AC42KCRUZVUT AC42KCRUZVUT CASE
AC40KBKGZC06 AC40KBKGZC06 COMPARTMENT
AC97EBZXZV06 AC97EBZXZV06 CORD
AC11S2VZW00 AC11S2VZW00 COVER
AC41KBKHZVUN AC41KBKHZVUN COVER
AC42AAFYZV06 AC42AAFYZV06 COVER
AC60KBKHZV06 AC60KBKHZV06 COVER
AC74PCRUZVUN AC74PCRUZVUN COVER
AC76BBKGZV06 AC76BBKGZV06 COVER
AC93FBUXZ000 AC93FBUXZ000 COVER
AC15KBKHZV06 AC15KBKHZV06 FASTENER
AC37KBKGZ000 AC37KBKGZ000 FILTER
AC38KBKHZ000 AC38KBKHZ000 FILTER
AC38KCNPZ000 AC38KCNPZ000 FILTER
MC-V199H MC-V199H FILTER
AC10ACKPZV06 AC10ACKPZV06 GUARD
AC10ACRSZV07 AC10ACRSZV07 GUARD
AC43SAFXZ000 AC43SAFXZ000 GUARD
AC61HCKPZV06 AC61HCKPZV06 GUIDE
AC95BCRSZV07 AC95BCRSZV07 HANDLE
AC11DBKHZU01 AC11DBKHZU01 HOLDER
AC70PCKPZV06 AC70PCKPZV06 HOLDER
AC53EBKHZV06 AC53EBKHZV06 HOOK
AC34PCKRZV06 AC34PCKRZV06 HOSE
AC84PCKPZV06 AC84PCKPZV06 HOSE
AC01ACRUZCU6 AC01ACRUZCU6 HOUSING
AC01ZCRUZ000 AC01ZCRUZ000 INSTRUCT BOOK
AC04EBKFZCU6 AC04EBKFZCU6 KNOB
AC35KBKHZV06 AC35KBKHZV06 KNOB
AC21TBUXZ000 AC21TBUXZ000 LABEL
AMC68N-AV0K AMC68N-AV0K LATCH
AC99WBDNZ000 AC99WBDNZ000 LEAD WIRE
AC21HBKHZ000 AC21HBKHZ000 LENS
AC13BBKHZ000 AC13BBKHZ000 LID
AC27ACKPZV06 AC27ACKPZV06 LOWER PLATE
AC92FBSKZ000 AC92FBSKZ000 MOTOR
AC92FCHRZ000 AC92FCHRZ000 MOTOR
AC20HBKHZV06 AC20HBKHZV06 PACKAGING ITEM
AC04RANPZV06 AC04RANPZV06 PACKING
AC11ACRSZ000 AC11ACRSZ000 PACKING
AC19HBKHZ000 AC19HBKHZ000 PACKING
AC74ACRRZ000 AC74ACRRZ000 PACKING
AC74ACRSZ000 AC74ACRSZ000 PACKING
AC91ACRSZ000 AC91ACRSZ000 PLATE
AC30QCKPZV06 AC30QCKPZV06 PLUG
AC84HBZTZ000 AC84HBZTZ000 REFLECTOR
AC92BAMAZ000 AC92BAMAZ000 RELEASE
AC93QAGZZV06 AC93QAGZZV06 ROLLER
AMC68A-V30 AMC68A-V30 SCREW
AXTN4_10BFY AXTN4_10BFY SCREW
AXTN4_16BFP AXTN4_16BFP SCREW
AXTN4_16BFY AXTN4_16BFY SCREW
AC16CNXZ00 AC16CNXZ00 SHAFT
AC16CUSZ00 AC16CUSZ00 SHAFT
AMC51A-V30 AMC51A-V30 SHAFT
AC93HBKHZ000 AC93HBKHZ000 SOCKET

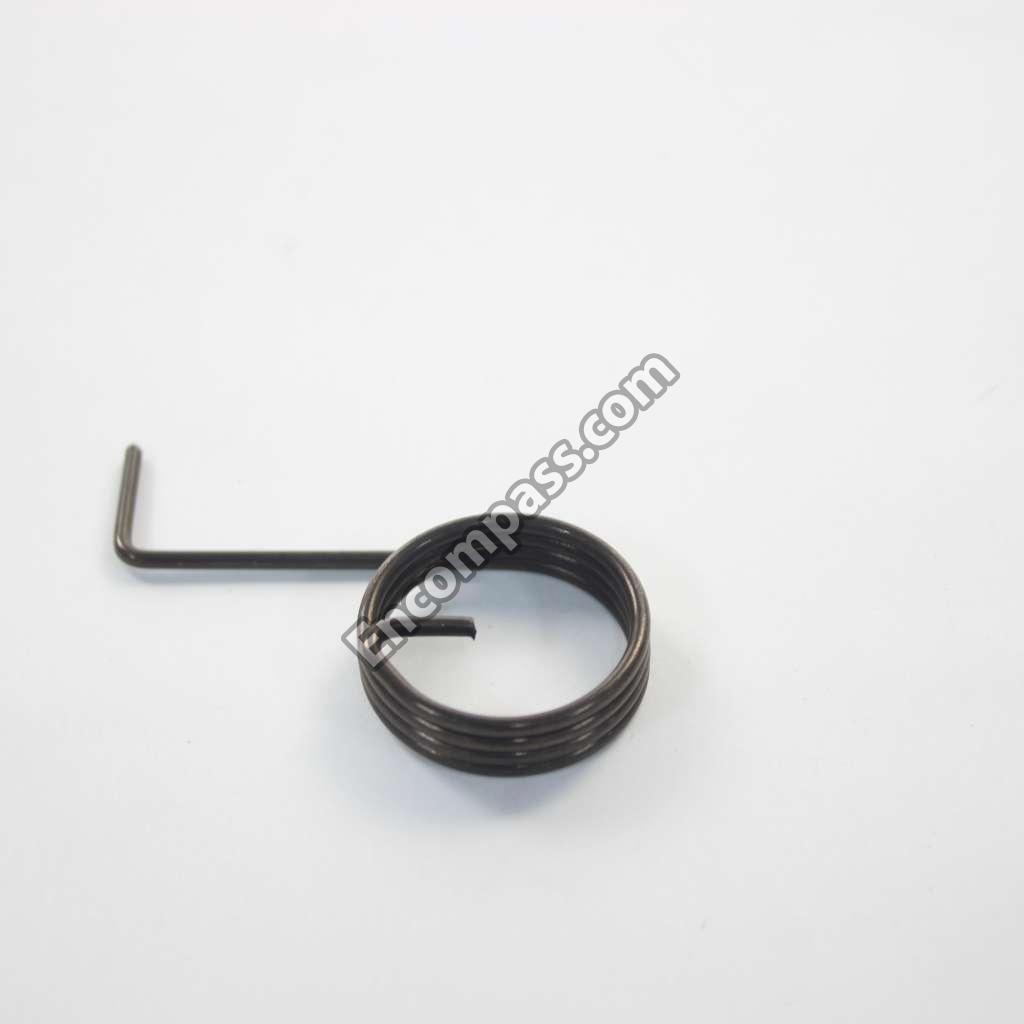

AC40RCKPZ000 AC40RCKPZ000 SPRING
AC70KAMAZW00 AC70KAMAZW00 SPRING
AMC70N-V3Z00 AMC70N-V3Z00 SPRING (1/2)
AC53BBKHZU01 AC53BBKHZU01 SUPPORT
AMC03F-V00 AMC03F-V00 SUPPORT
AC60RZFZVU6 AC60RZFZVU6 TOOL
AC40PBRLZV06 AC40PBRLZV06 WAND
AC90QNGZV06 AC90QNGZV06 WHEEL
AC99CBSAZV06 AC99CBSAZV06 WHEEL
AC74SUSZ00 AC74SUSZ00 WHEEL (10)
AC21HCRSZ000 AC21HCRSZ000 WINDOW
AC43GAWYZ000 AC43GAWYZ000 WIRE
AC67VBWEZ000 AC67VBWEZ000 WIRE
AC68VBWEZ000 AC68VBWEZ000 WIRE
AMC-1CTCE23 AMC-1CTCE23 WIRE
