Model Image
Manufacturer

Panasonic

Model Number

MCV7720

Description

Upright Vacuum Cleaner

Interactive Exploded View

Parts List

Part Number Description
AC00ZAFYZ000 AC00ZAFYZ000 AC00ZAFYZ000
AC84RCKPZ000 AC84RCKPZ000 AGITATOR

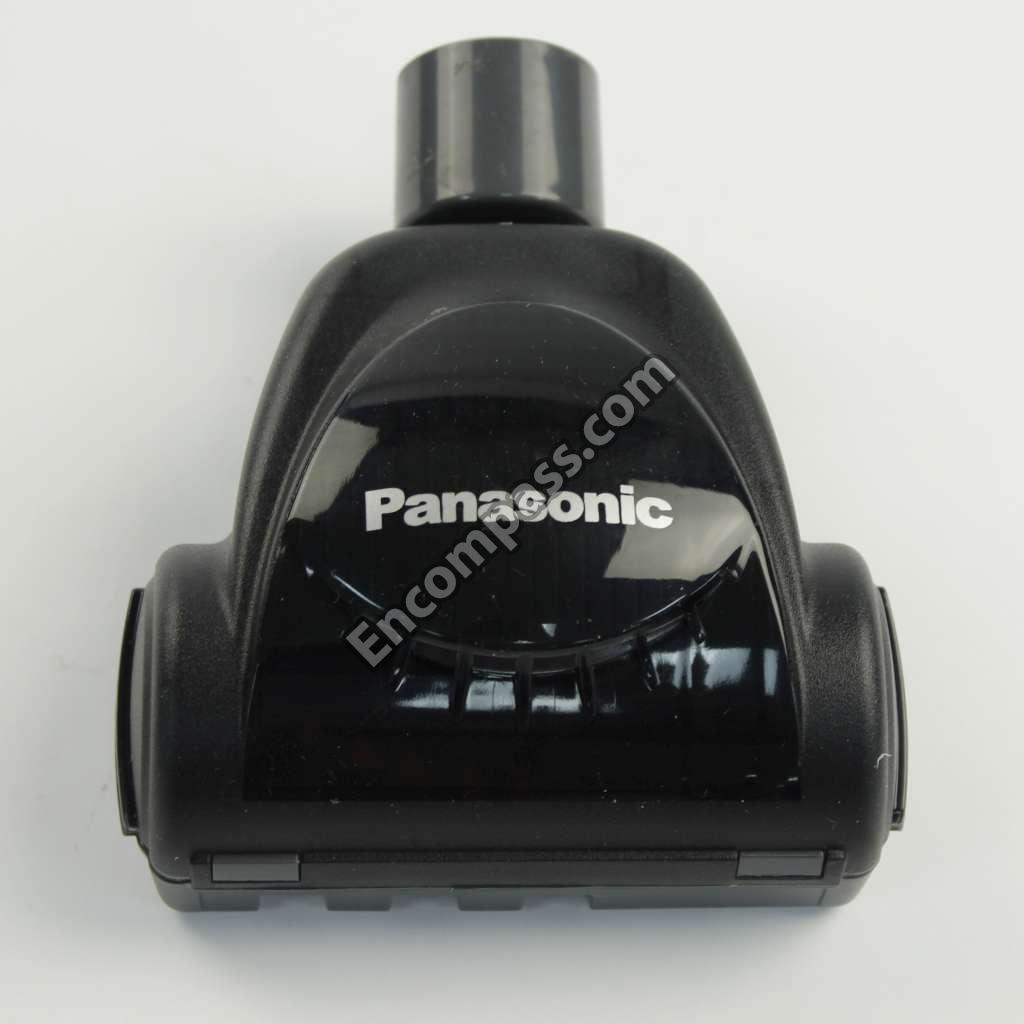

AC80SCNFZV07 AC80SCNFZV07 ATTACHMENT
MC-V270B MC-V270B BELT
AC02ACNFZV07 AC02ACNFZV07 BODY
AC30FAMAZ000 AC30FAMAZ000 BRACKET
AC88RCNFZV06 AC88RCNFZV06 BRUSH
AC96RCNFZV06 AC96RCNFZV06 BRUSH
AC28GBKHZ000 AC28GBKHZ000 BULB
AC13DCNFZV02 AC13DCNFZV02 BUTTON
AC66PCNFZV07 AC66PCNFZV07 CADDY
AC12ACNFZV07 AC12ACNFZV07 CAP
AC09FCNFZM0C AC09FCNFZM0C CASE
AC42KCNFZ0U0 AC42KCNFZ0U0 CASE
AC40KCNFZV07 AC40KCNFZV07 COMPARTMENT
AC85KCNFZ000 AC85KCNFZ000 COMPARTMENT
AC45VCNFZ000 AC45VCNFZ000 CONNECTOR
AC97EBZXZV06 AC97EBZXZV06 CORD
AC06BCNFZVU7 AC06BCNFZVU7 COVER
AC41KCNFZVU7 AC41KCNFZVU7 COVER
AC41KCNFZ0U0 AC41KCNFZ0U0 COVER
AC42AAFYZV06 AC42AAFYZV06 COVER
AC48HCNFZV07 AC48HCNFZV07 COVER
AC60KCNFZM0C AC60KCNFZM0C COVER
AC63FCNFZV07 AC63FCNFZV07 COVER
AC68KAJDZV07 AC68KAJDZV07 COVER
AC93FCNFZ000 AC93FCNFZ000 COVER
AC47VCSRZ000 AC47VCSRZ000 DISPLAY
AC37KBKGZ000 AC37KBKGZ000 FILTER
AC38KBRMZ000 AC38KBRMZ000 FILTER
AC95KBRN3000 AC95KBRN3000 FILTER
AC50BCNFZV07 AC50BCNFZV07 GRIP
AC10ACKPZV06 AC10ACKPZV06 GUARD
AC10ACKPZV07 AC10ACKPZV07 GUARD
AC43SAFXZ000 AC43SAFXZ000 GUARD
AC98VCNFZ000 AC98VCNFZ000 GUIDE
AC01BCNFZV07 AC01BCNFZV07 HANDLE
AC23PCNFZV07 AC23PCNFZV07 HOLDER
AC32RCNFZV07 AC32RCNFZV07 HOLDER
AMC53E-ZAZV007 AMC53E-ZAZV007 HOOK
AC34PCNFZV06 AC34PCNFZV06 HOSE
AC01ACNFZM0C AC01ACNFZM0C HOUSING
AC01ZCNFZ000 AC01ZCNFZ000 INSTRUCT BOOK
AC35KBRMZV02 AC35KBRMZV02 KNOB
AC24ZCNFZ000 AC24ZCNFZ000 LABEL
AC31ZCNFZ000 AC31ZCNFZ000 LABEL
AMC68N-AV0K AMC68N-AV0K LATCH
AC02HCNFZV07 AC02HCNFZV07 LID
AC98HCNFZV07 AC98HCNFZV07 LID
AC92FBSK1000 AC92FBSK1000 MOTOR
AC61ZCNFZ000 AC61ZCNFZ000 PACKAGING ITEM
AC04RANPZV06 AC04RANPZV06 PACKING
AC74KBKHZ000 AC74KBKHZ000 PACKING
AC74KCNFZ000 AC74KCNFZ000 PACKING
AC85VCJYZ000 AC85VCJYZ000 PC BOARD
AC89VCNFZ000 AC89VCNFZ000 PC BOARD
AC70QCNFZV02 AC70QCNFZV02 PEDAL
AC27ACKPZV07 AC27ACKPZV07 PLATE
AC29QBKHZV06 AC29QBKHZV06 PLUG
AC69KJMZV07 AC69KJMZV07 PROTECTOR
AC43PAFXZV06 AC43PAFXZV06 RING
AC93QAGZZV06 AC93QAGZZV06 ROLLER
AMC68A-V30 AMC68A-V30 SCREW
AXTN4_10BFY AXTN4_10BFY SCREW
AXTN4_16BFY AXTN4_16BFY SCREW
AC74ECNFZV07 AC74ECNFZV07 SEAL
AC74ECNGZ000 AC74ECNGZ000 SEAL
AC16CNXZ00 AC16CNXZ00 SHAFT
AC16CUSZ00 AC16CUSZ00 SHAFT
AMC51A-V30 AMC51A-V30 SHAFT
AC48KCNFZV02 AC48KCNFZV02 SLIDER
AC93HBYMZ000 AC93HBYMZ000 SOCKET
AC40RCNFZ000 AC40RCNFZ000 SPRING
AC57AAFWZ00 AC57AAFWZ00 SPRING
AC58AAFVZ00 AC58AAFVZ00 SPRING
AC70KAMAZW00 AC70KAMAZW00 SPRING
AC03FCNFZ000 AC03FCNFZ000 SUPPORT
AC13ACNFZV07 AC13ACNFZV07 SUPPORT
AC14ACNFZV07 AC14ACNFZV07 SUPPORT
AMC03F-V00 AMC03F-V00 SUPPORT
AC86WCJNZ000 AC86WCJNZ000 SWITCH
AC60RCNFZV06 AC60RCNFZV06 TOOL
AC99WBZHZ000 AC99WBZHZ000 UNIT
AXWG6E115FY AXWG6E115FY WASHER (10)
AC99CBSAZV06 AC99CBSAZV06 WHEEL
AC74SUSZ00 AC74SUSZ00 WHEEL (10)
AC08MCSRZ000 AC08MCSRZ000 WINDOW
AC21HCNFZ000 AC21HCNFZ000 WINDOW
AC38GBXZZ000 AC38GBXZZ000 WIRE
AC43GBRGZ000 AC43GBRGZ000 WIRE
AC43GCNFZ000 AC43GCNFZ000 WIRE
AC48GCKAZ000 AC48GCKAZ000 WIRE
AC48GCNFZ000 AC48GCNFZ000 WIRE
AC48GCNGZ000 AC48GCNGZ000 WIRE
AC99WCNFZ000 AC99WCNFZ000 WIRE
AMC-1CTCE23 AMC-1CTCE23 WIRE
