Panasonic

Model Number

NE1257R

Description

Commercial Microwave

Interactive Exploded View

Parts List

Part Number Description
ERDS1FJ151 ERDS1FJ151 *NLA* RESISTOR
2SD1991AQSTA 2SD1991AQSTA 2SD1991AQSTA
A00033960AP A00033960AP A00033960AP
A00064000AP A00064000AP A00064000AP
ANE0352-3280 ANE0352-3280 A0352-3280
A202R3320GP A202R3320GP A202R3320GP
A61524210AA A61524210AA A61524210AP

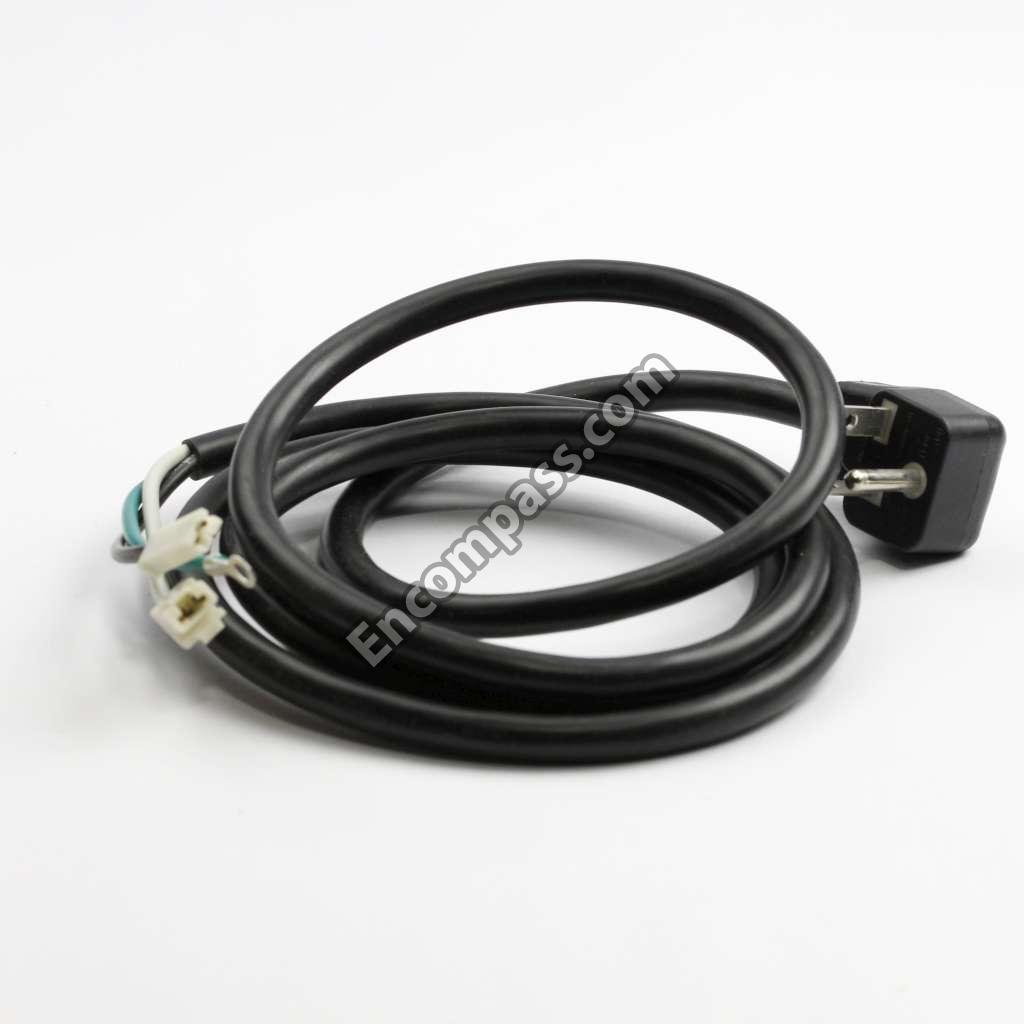

A900C3650AP A900C3650AP AC CORD
AEEMHLEM21S AEEMHLEM21S AEEMHLEM21S
AEG5J1EM18B AEG5J1EM18B AEG5J1EG18B
ANE11268U0AP ANE11268U0AP ANE11268U0AP
F301F6P00AP F301F6P00AP ANE300R8U0AP
ANE32398U0AP ANE32398U0AP ANE30208U0AP
ANE801N8U0AP ANE801N8U0AP ANE801N8U0AP
A202K-3850 A202K-3850 ANTENNA
A800L3310QP A800L3310QP BASE
A100A-3280 A100A-3280 BASE
A603L3960AR A603L3960AR BOARD
ANE61888U1AP ANE61888U1AP BRACKET
A1134-3280 A1134-3280 BRACKET
ANE91448U0AP ANE91448U0AP BRACKET
ANE66268U0AP ANE66268U0AP BRACKET
ANE66038U0AP ANE66038U0AP BRACKET
ANE62298U0AP ANE62298U0AP BRACKET
ANE61158U0AP ANE61158U0AP BRACKET
ANE50328U0AP ANE50328U0AP BRACKET
ANE11668U0AP ANE11668U0AP BRACKET
ANE01268U0AP ANE01268U0AP BRACKET
ANE9027510RN ANE9027510RN BUSHING
EFBRL37C20 EFBRL37C20 BUZZER
A604K0000AP A604K0000AP CABLE
A6590-3280 A6590-3280 CABLE
ECEA1HKA2R2I ECEA1HKA2R2I CAPACITOR
ECBT1H101K ECBT1H101K CAPACITOR
ECBT1E103MR ECBT1E103MR CAPACITOR
ERD50FJ332 ERD50FJ332 CAPACITOR
ECA1HM471B ECA1HM471B CAPACITOR
ECA1HM221B ECA1HM221B CAPACITOR
AECF50F104Z AECF50F104Z CAPACITOR
ANE91658V0AP ANE91658V0AP CLIP
ANE91628U0AP ANE91628U0AP CLIP
ANE91438U0AP ANE91438U0AP CLIP
ANE90828U0AP ANE90828U0AP CLIP
AEEM09FDZBTM AEEM09FDZBTM CONNECTOR
AEEMMF03F06W AEEMMF03F06W CONNECTOR
AEEMMF01F05W AEEMMF01F05W CONNECTOR
AEEMMF01F05R AEEMMF01F05R CONNECTOR
AEEMF00703W AEEMF00703W CONNECTOR
AEEMMF00703R AEEMMF00703R CONNECTOR
AEEMMF00D04W AEEMMF00D04W CONNECTOR
AEEMMD24910W AEEMMD24910W CONNECTOR
AEEMMD04907W AEEMMD04907W CONNECTOR
AEEMMD04907R AEEMMD04907R CONNECTOR
A6688-3180 A6688-3180 COVER
ANE11548U0AP ANE11548U0AP COVER
ANE10288U0AP ANE10288U0AP COVER
ANE10268U0AP ANE10268U0AP COVER
ANE41038U0AP ANE41038U0AP CUSHION
ANE1062-8U0 ANE1062-8U0 CUSHION
ANE0962000AV ANE0962000AV CUSHION
ANE0962000AP ANE0962000AP CUSHION
ANE000Z000AD ANE000Z000AD CUSHION
ANE000Z000AB ANE000Z000AB CUSHION
ANE000Z000AA ANE000Z000AA CUSHION
MA700-TA MA700-TA DIODE
MA700A MA700A DIODE
MA196-_TA5_ MA196-_TA5_ DIODE
A62023960AP A62023960AP DIODE
A606W3960AP A606W3960AP DIODE
A606V3960AP A606V3960AP DIODE
AEDZ5R6ES2T1 AEDZ5R6ES2T1 DIODE
AEDZ4R7ES3T1 AEDZ4R7ES3T1 DIODE
AEDZ24ES3T1 AEDZ24ES3T1 DIODE
AEDZ13ES2T1 AEDZ13ES2T1 DIODE
AEDNERA1502 AEDNERA1502 DIODE
ANE30858U0AP ANE30858U0AP DOOR
ANE301A8U0AP ANE301A8U0AP DOOR A
ANE301Q8U0AP ANE301Q8U0AP DOOR E

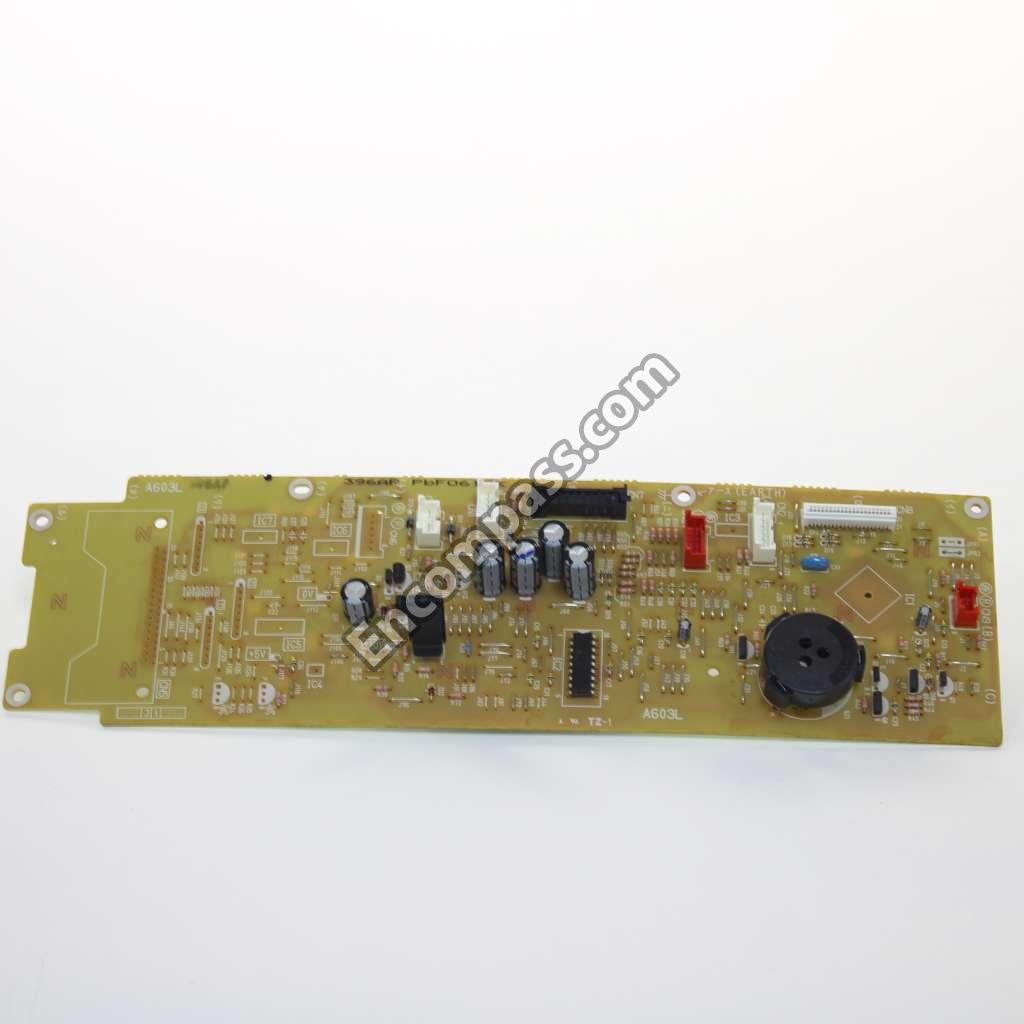

A603L3960AP A603L3960AP DP CIRCUIT
ECEAUCK100 ECEAUCK100 ECEA1CK100
ECKD2H332KB9 ECKD2H332KB9 ECKD2H332KB5
ERDSTJ151 ERDSTJ151 ERD25FJ151K
ERDS1FJ681 ERDS1FJ681 ERD25TJ681V
ERDS2FJ823 ERDS2FJ823 ERD25TJ823V
ERDS2TJ102 ERDS2TJ102 ERDS2FJ102
ERDS2FJ152 ERDS2FJ152 ERDS2TJ152
ERDS2TJ220TD ERDS2TJ220TD ERDS2TJ220
ERDS2TJ333T ERDS2TJ333T ERDS2TJ333
ERDS2TJ390 ERDS2TJ390 ERDS2TJ390
ERDS2TJ470 ERDS2TJ470 ERDS2TJ470
ERDS2TJ472TD ERDS2TJ472TD ERDS2TJ472
ANE80018U0AP ANE80018U0AP ESCUTCHEON
ANE80068U0AP ANE80068U0AP ESCUTCHEON
ANE80028U0AP ANE80028U0AP ESCUTCHEON
ANE01058U0AP ANE01058U0AP FILLER
ANE01048U0AP ANE01048U0AP FILLER
A400B-3280 A400B-3280 FILTER
A1008-3280 A1008-3280 FOOT
A1007-3280 A1007-3280 FOOT
ANE30038U0AP ANE30038U0AP FRAME
A62303960AP A62303960AP FUSE
A4024-3180 A4024-3180 GUIDE
ANE40268U0AP ANE40268U0AP GUIDE
ANE40258U0AP ANE40258U0AP GUIDE
A60903650AP A60903650AP H.V. CAPACITOR
AEGHPH0124BS AEGHPH0124BS HEAT SINK
ANE30078U0AP ANE30078U0AP HINGE
A6585-3280 A6585-3280 HOLDER
A62314000AP A62314000AP HOLDER
A3020-3853 A3020-3853 HOOK
AN6752 AN6752 IC
AEIC38122283 AEIC38122283 IC
AEICU2004GR2 AEICU2004GR2 IC
AEICP25011HL AEICP25011HL IC
AEICAT24C16N AEICAT24C16N IC
A04203960AP A04203960AP INSTRUCT BOOK
A3019-3850 A3019-3850 KEY
A3018-3850 A3018-3850 KEY
A05243960AP A05243960AP LABEL
A0056-3500 A0056-3500 LABEL
A00333960AP A00333960AP LABEL
ANE0245X00AP ANE0245X00AP LABEL
360835-125 360835-125 LABEL
ANE0150110AG ANE0150110AG LABEL
ANE0072L20AP ANE0072L20AP LABEL
ANE6030540AP ANE6030540AP LAMP
A301H-3850 A301H-3850 LEVER
2M210-M1KLP 2M210-M1KLP MAGNETRON
2M210M1C 2M210M1C MAGNETRON
A6144-3E10 A6144-3E10 MOTOR
A6144-3E20 A6144-3E20 MOTOR
A400A3650AP A400A3650AP MOTOR
A200A-3280S A200A-3280S OVEN
ANE00878U0AP ANE00878U0AP PACKAGING
A01023960AP A01023960AP PACKAGING
A01083310GP A01083310GP PACKING
A31863960AP A31863960AP PANEL
A100Q-3280 A100Q-3280 PANEL
ANE10098UAPS ANE10098UAPS PANEL
A603M3310GPR A603M3310GPR PC BOARD
ANE30562Q0AP ANE30562Q0AP PIN
A2011-3280S A2011-3280S PLATE
AEBG5B18P-1 AEBG5B18P-1 RELAY
AEBG5B1E18 AEBG5B1E18 RELAY
ERD10TLJ332 ERD10TLJ332 RESISTOR
ERD25TJ184 ERD25TJ184 RESISTOR
ERDS2TJ104 ERDS2TJ104 RESISTOR
ERDS2FJ103 ERDS2FJ103 RESISTOR
ERDS2FJ103T ERDS2FJ103T RESISTOR
ERDS1TJ434T ERDS1TJ434T RESISTOR
EF0GC4194T4 EF0GC4194T4 RESONATOR
ANE10498U0AP ANE10498U0AP RUBBER
ANE0911000MG ANE0911000MG RUBBER
ANE0901000CD ANE0901000CD RUBBER
A3145-3500 A3145-3500 SCREEN
ANE31468U0AP ANE31468U0AP SCREEN
XY04_EE12F XY04_EE12F SCREW
XYN3_F25S XYN3_F25S SCREW
XYEA4_C16TS XYEA4_C16TS SCREW
XYEA5_C16TJ XYEA5_C16TJ SCREW
XTW3_8B XTW3_8B SCREW
XTWANE3_8EX XTWANE3_8EX SCREW
XTT4_8EJ XTT4_8EJ SCREW
XTEANE5_10BJ XTEANE5_10BJ SCREW
XTC4_12BK XTC4_12BK SCREW
XTC4_10FC XTC4_10FC SCREW
XTC4_10BC XTC4_10BC SCREW
A4091-3280 A4091-3280 SCREW
A601L5150AP A601L5150AP SENSOR
ANE60408U0AP ANE60408U0AP SHEET
ANE8337-3280 ANE8337-3280 SHEET
A6338-3280 A6338-3280 SHEET
A60713310BP A60713310BP SHEET
A6070-3280 A6070-3280 SHEET
A01453230BP A01453230BP SHEET
F01078K00AP F01078K00AP SHEET
AEN60408U0AP AEN60408U0AP SHEET
ANE010T8U0AP ANE010T8U0AP SHELF
A61524210AP A61524210AP SOCKET
ANE82518U0AP ANE82518U0AP SPACER
A3138-3470 A3138-3470 SPACER
A31373F90BP A31373F90BP SPACER
A3136-3470 A3136-3470 SPACER
ANE82878Y0BP ANE82878Y0BP SPACER
ANE82848U2AP ANE82848U2AP SPACER
ANE65458U0AP ANE65458U0AP SPACER
ANE65448U0AP ANE65448U0AP SPACER
ANE6238X20AP ANE6238X20AP SPACER
ANE3081P60AP ANE3081P60AP SPACER
ANE21208U0AP ANE21208U0AP SPACER
ANE11748U0AP ANE11748U0AP SPACER
ANE32628U1AP ANE32628U1AP SPRING
ANE30218U0AP ANE30218U0AP SPRING
ANE9035P90AP ANE9035P90AP STOPPER
ANE11408A0AG ANE11408A0AG STOPPER
A64793310QP A64793310QP SWITCH
ANE61784L0AG ANE61784L0AG SWITCH
ANE61424L0AG ANE61424L0AG SWITCH
ANE6142-F60 ANE6142-F60 SWITCH
ANE61458U0AP ANE61458U0AP THERMAL CUTOUT

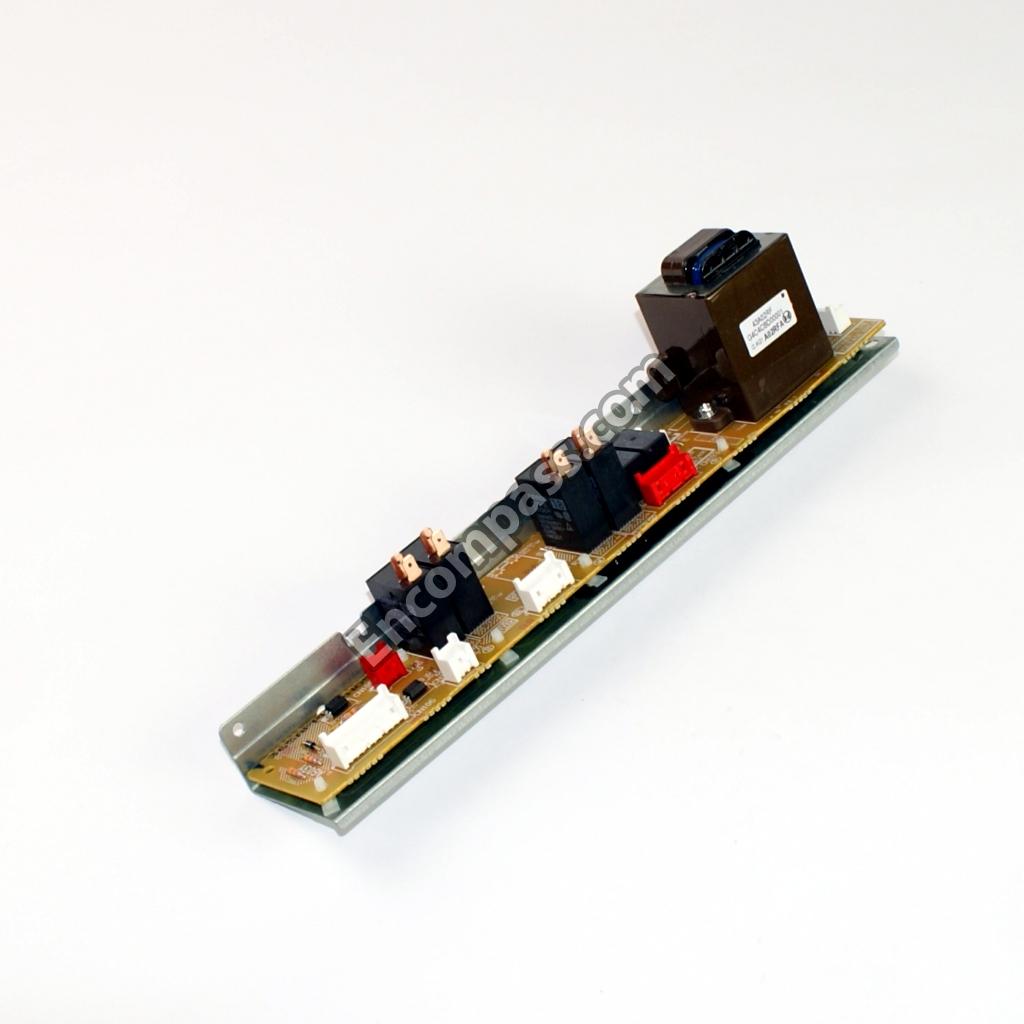

A692M3650AP A692M3650AP TRANSFORMER
B621C3650AP B621C3650AP TRANSFORMER
UN421F-_TA_ UN421F-_TA_ TRANSISTOR
UN4115-_TA_ UN4115-_TA_ TRANSISTOR
UN4111-_TA_ UN4111-_TA_ TRANSISTOR
2SD2012 2SD2012 TRANSISTOR
2SA720RRTA 2SA720RRTA TRANSISTOR
UN421F-TA UN421F-TA TRANSISTOR
UN4115-TA UN4115-TA TRANSISTOR
UN4115 UN4115 TRANSISTOR
UN4111-TA UN4111-TA TRANSISTOR
UN4111AITA UN4111AITA TRANSISTOR
A64563080AP A64563080AP TUBE
A61393230BP A61393230BP TUBE
ERZV10D112 ERZV10D112 VARISTOR
XWC4BPN XWC4BPN WASHER
A6408-3280 A6408-3280 WASHER
360835-095 360835-095 WASHER
A03553960AR A03553960AR WIRE
A030H3960AP A030H3960AP WIRE HARNESS
A030A3960AP A030A3960AP WIRE HARNESS
