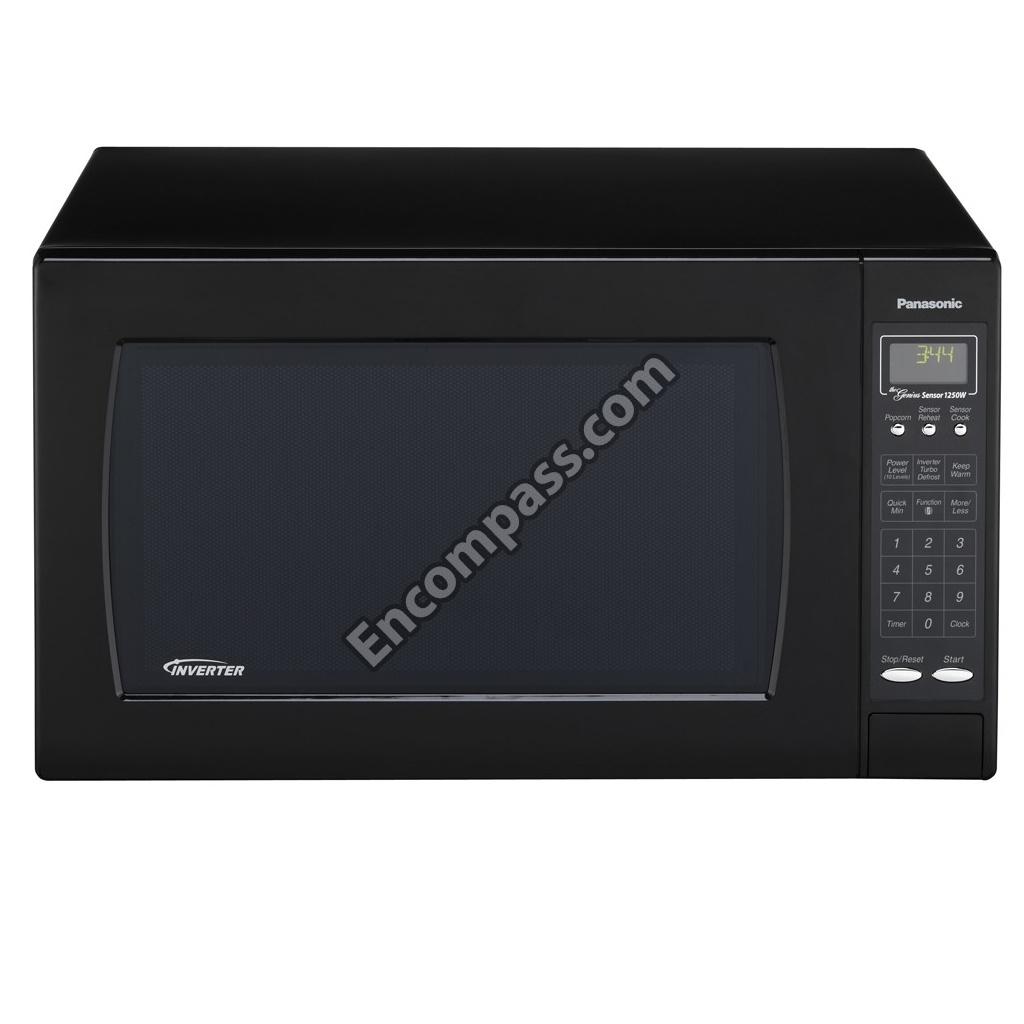

Model Image
Manufacturer

Panasonic

Model Number

NNH965BF

Description

Microwave Oven 2.2cuft

Interactive Exploded View

Parts List

Part Number Description
F900C4T00AP F900C4T00AP AC CORD
F40254W00AP F40254W00AP AIR GUIDE
F10016P40AP F10016P40AP BASE
F40084T00AP F40084T00AP BLADE
F110D5W20BAP F110D5W20BAP BODY
F82575W00AP F82575W00AP BRACKET
F65856K50AP F65856K50AP BRACKET
F82987D60KAP F82987D60KAP BUTTON
F80726G40BAP F80726G40BAP BUTTON
AEFBAT2001WQ AEFBAT2001WQ BUZZER
F66164W20AP F66164W20AP CABLE
F1H1H1010005 F1H1H1010005 CAPACITOR
F90804W00AP F90804W00AP CLIP
K1MN15B00083 K1MN15B00083 CONNECTOR
K1MN15A00045 K1MN15A00045 CONNECTOR
AEEMXH01505W AEEMXH01505W CONNECTOR
K1KA04AA0086 K1KA04AA0086 CONNECTOR
AEEMF00703W AEEMF00703W CONNECTOR
F06014M00APS F06014M00APS COOKING TRAY (W/LABEL)
F66175E40XN F66175E40XN COVER
F65434W00AP F65434W00AP COVER
F20555K00AP F20555K00AP COVER
B0BA5R600016 B0BA5R600016 DIODE
B0AACK000004 B0AACK000004 DIODE
AESZMTZJ5R6B AESZMTZJ5R6B DIODE
B0EAKV000093 B0EAKV000093 DIODE
L5AAAFD00022 L5AAAFD00022 DISPLAY
F30016G40BAP F30016G40BAP DOOR
F30854U00AP F30854U00AP DOOR C
F302K4U00AP F302K4U00AP DOOR E
F31454U00AP F31454U00AP DOOR SCREEN
F603Y5W00AP F603Y5W00AP DP CIRCUIT
F80347B00BAP F80347B00BAP ESCUTCHEON
F01055J00AP F01055J00AP FILLER (DISCONTINUED)
F01045J00AP F01045J00AP FILLER (DISCONTINUED)
F692Y8F00APX F692Y8F00APX FILTER
F10084T00APS F10084T00APS FOOT
F62308F20AP F62308F20AP FUSE, 18A
F64508660AP F64508660AP GUIDE
F40264T60APG F40264T60APG GUIDE
F030A7B70AP F030A7B70AP HARNESS
F30206G30CP F30206G30CP HOOK
AEICUPC358G2 AEICUPC358G2 IC
MN101C54CFP MN101C54CFP IC
F00037C51AP INSTRUCT BOOK
F606Y8X00AP F606Y8X00AP INVERTER
F606Y6G00CP F606Y6G00CP INVERTER
F30186P40CP F30186P40CP KEY
F690L8F20AP F690L8F20AP KIT
F03347D60AP F03347D60AP LABEL
F00337D00AP F00337D00AP LABEL
F00336K50CP F00336K50CP LABEL
B00066260AP B00066260AP LABEL
F00065G40AP F00065G40AP LABEL
F030E6G30AP F030E6G30AP LEAD WIRE
F82565W00AP F82565W00AP LEVER
F31386G30CP F31386G30CP LEVER
F31376G30CP F31376G30CP LEVER
F31366G30CP F31366G30CP LEVER
2M261-M32KLP 2M261-M32KLP MAGNETRON
NN-SD967S NN-SD967S MICROWAVE OVEN
F63265G60AP F63265G60AP MOTOR
F400A8F00AP F400A8F00AP MOTOR
F400A5Y00AP F400A5Y00AP MOTOR
F00077B00BAP F00077B00BAP NAME PLATE
F41445W00AP F41445W00AP ORIFICE
NN-SN977S NN-SN977S OVEN
F200A8D00AP F200A8D00AP OVEN

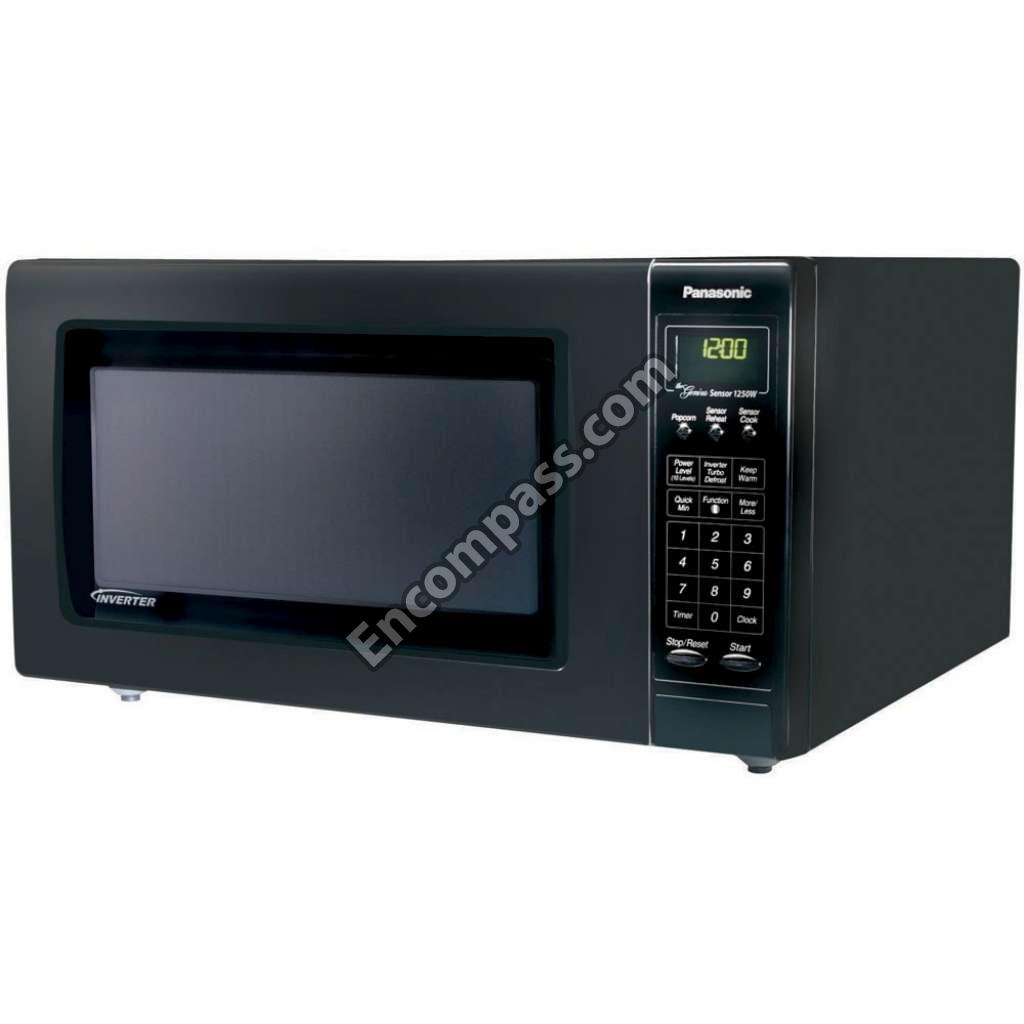

NN-H965BF NN-H965BF OVEN
NN-H965WFB NN-H965WFB OVEN
NN-P994SF NN-P994SF OVEN
F01028P40BAP F01028P40BAP PACKAGING
F01084M00AP F01084M00AP PACKAGING
F01064W00AP F01064W00AP PACKAGING
F01074U00AP F01074U00AP PACKAGING ITEM
F603L8P40AP F603L8P40AP PC BOARD
F66626G10AP F66626G10AP PLATE
PL-110X110 PL-110X110 PRC
BX-MWO940 BX-MWO940 PRC
BX-MWOPLATE BX-MWOPLATE PRC
F61456N60AP F61456N60AP PROTECTOR
K6B1AZA00013 K6B1AZA00013 RELAY
K6B1AZA00016 K6B1AZA00016 RELAY
F612EBK00AP F612EBK00AP REPLACEMENT LAMP
F290D9330AP F290D9330AP ROLLER
F31468P40BAP F31468P40BAP SCREEN
F31467B00BAP F31467B00BAP SCREEN
XTWFA4_12T XTWFA4_12T SCREW
XTTANE4_12A XTTANE4_12A SCREW
J607S4M00AP J607S4M00AP SENSOR
F21315Y00AP F21315Y00AP SHAFT
F01924U00AP F01924U00AP SHEET
F80375K00AP F80375K00AP SPRING
F30214000AP F30214000AP SPRING
F11406G00AP F11406G00AP STOPPER
F61785U30XN F61785U30XN SWITCH
J61415G10XN J61415G10XN SWITCH
F61415U30XN F61415U30XN SWITCH

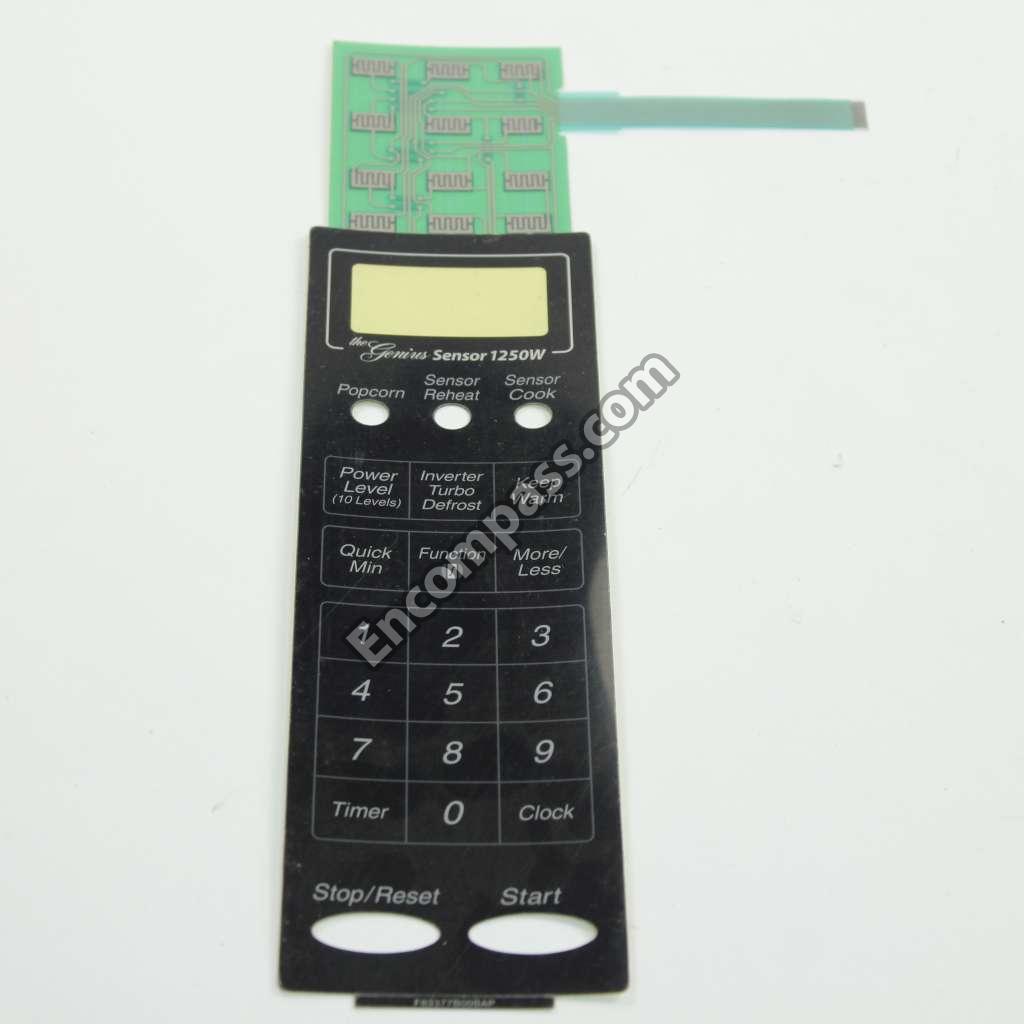

F630Y7B00BAP F630Y7B00BAP SWITCH
EVQ11L05R EVQ11L05R SWITCH
G4C2AAD00005 G4C2AAD00005 TRANSFORMER
2SD1859TV2Q 2SD1859TV2Q TRANSISTOR
B1GDCFJJ0002 B1GDCFJJ0002 TRANSISTOR
AESC23JKE AESC23JKE TRANSISTOR
B1BAAJ000003 B1BAAJ000003 TRANSISTOR
B1ABCF000010 B1ABCF000010 TRANSISTOR
F06014M00AP F06014M00AP TRAY
D3CA6103A017 D3CA6103A017 VARISTOR
AERZ271KD10A AERZ271KD10A VARISTOR
F2177-F80 F2177-F80 WASHER
F03537B60AP F03537B60AP WIRE
