Model Image
Manufacturer

Panasonic

Model Number

NNS262WF

Description

Microwave Oven/otr

Interactive Exploded View

Parts List

Part Number Description
F400K5H00APG F400K5H00APG ADAPTER
F110D5H10HAP F110D5H10HAP BODY
F01485H00AP F01485H00AP BRACKET
F80725H10HAP F80725H10HAP BUTTON
AEFBTFM571 AEFBTFM571 BUZZER

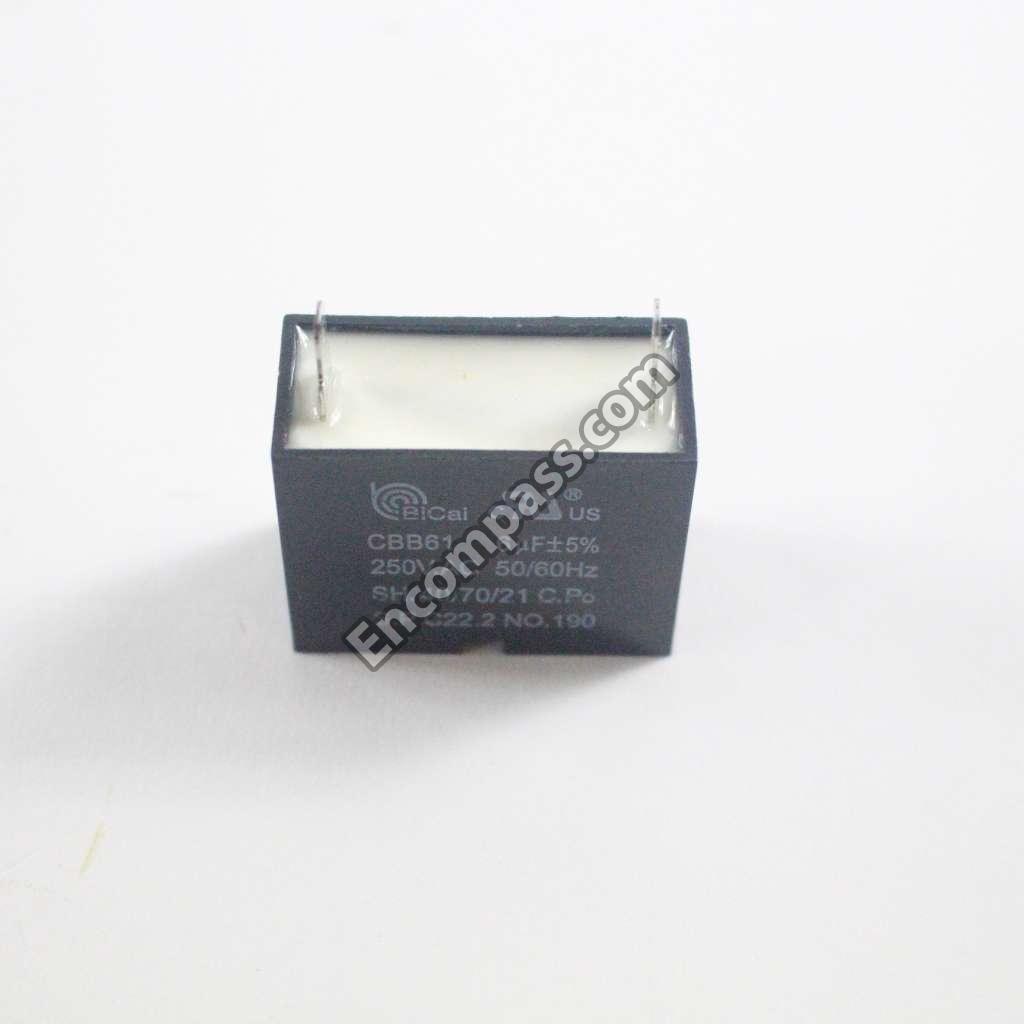

F66986Z90AP F66986Z90AP CAPACITOR
F201H5H00AP F201H5H00AP CASE
F42485H00AP F42485H00AP CASE
F90804W00AP F90804W00AP CLIP
AEEMXH00703B AEEMXH00703B CONNECTOR
AEEMXH00703W AEEMXH00703W CONNECTOR
AEEMXH01H05W AEEMXH01H05W CONNECTOR
AEEMXH05507W AEEMXH05507W CONNECTOR
AEEMXH55515W AEEMXH55515W CONNECTOR
AEEM10FDZBTM AEEM10FDZBTM CONNECTOR
F900C5H00AP F900C5H00AP CORD
F01065H00AP F01065H00AP COVER
F16035H00AP F16035H00AP COVER
F20115H00AP F20115H00AP COVER
F607V5H00AP F607V5H00AP COVER
F66175E40XN F66175E40XN COVER
F30855H00AP F30855H00AP DOOR
F302K5H00AP F302K5H00AP DOOR
F80025H00AP F80025H00AP ESCUTCHEON
F80345H10HAP F80345H10HAP ESCUTCHEON
F40085H00AP F40085H00AP FAN
F42505H00AP F42505H00AP FAN
F400B5V10AP F400B5V10AP FILTER
F62308F00AP F62308F00AP FUSE
F101V5H10HAP F101V5H10HAP GRILLE
F40245H00AP F40245H00AP GUIDE
F40255H00AP F40255H00AP GUIDE
F44775H00AP F44775H00AP GUIDE
F48435H00AP F48435H00AP GUIDE
F030A5H00AP F030A5H00AP HARNESS
F62315G10XN F62315G10XN HOLDER
F63175H10HAP F63175H10HAP HOLDER
F393C6Z00CP F393C6Z00CP HOOK
AEICBU2090F AEICBU2090F IC
AEICU2004GR AEICU2004GR IC
AEIC78L05J-T AEIC78L05J-T IC
AEIC78M15AHF AEIC78M15AHF IC
F61456N60AP F61456N60AP IC
F61456F20AP F61456F20AP IC
UPC358G2 UPC358G2 IC
F00035H00AP F00035H00AP INSTRUCT BOOK
F03135H00AP F03135H00AP INSTRUCT BOOK
A606Y4T00AP A606Y4T00AP INVERTER
F30186P40CP F30186P40CP KEY
F00205H00AP F00205H00AP LABEL
F00336F00AP F00336F00AP LABEL
F00565H00AP F00565H00AP LABEL
F01705H10AP F01705H10AP LABEL
F01725H00AP F01725H00AP LABEL
F02459660AP F02459660AP LABEL
F60305H00AP F60305H00AP LAMP
F612E5H00AP F612E5H00AP LAMP
F82565H00AP F82565H00AP LEVER
E3136-8000BP E3136-8000BP LEVER (DISCONTINUED)
E31384830AP E31384830AP LEVER (DISCONTINUED)
2M261-M32KLP 2M261-M32KLP MAGNETRON
F401W5H00AP F401W5H00AP MOTOR
F42676Z80AP F42676Z80AP MOTOR
F490Y6Z00AP F490Y6Z00AP MOTOR
F61446Z00AP F61446Z00AP MOTOR
F63266Z80AP F63266Z80AP MOTOR
NNS262WF_EX NNS262WF_EX OTC MICROWAVE (DISCONTINUED)
F201A5H00AP F201A5H00AP OVEN
F01025H10HAP F01025H10HAP PACKAGING ITEM
F01045H00AP F01045H00AP PACKAGING ITEM
F01085H00AP F01085H00AP PACKAGING ITEM
F01175H00AP F01175H00AP PACKAGING ITEM
F02185H00AP F02185H00AP PACKAGING ITEM
F00075H10HAP F00075H10HAP PLATE
F100T5H00APG F100T5H00APG PLATE
F41575H00AP F41575H00AP PLATE
F41585H00AP F41585H00AP PLATE
F42175H00AP F42175H00AP PLATE
F42205H00AP F42205H00AP PLATE
F61845H00AP F61845H00AP PLATE
F64375H00AP F64375H00AP PLATE
F81275H00APG F81275H00APG PLATE
F06025H00AP F06025H00AP RACK
AEGG5G1A18 AEGG5G1A18 RELAY
K6B1AZA00013 K6B1AZA00013 RELAY
F290D5Q00AP F290D5Q00AP RING
F31455H00AP F31455H00AP SCREEN
F601L5H00AP F601L5H00AP SENSOR
F21314W00AP F21314W00AP SHAFT
F21314Y00XN F21314Y00XN SHAFT
F01075H00AP F01075H00AP SHEET
F01925H00AP F01925H00AP SHEET
F61525H00AP F61525H00AP SOCKET
F20155H00AP F20155H00AP SPOON
F30214000AP F30214000AP SPRING
F80375K00AP F80375K00AP SPRING
F20025H00AP F20025H00AP SUPPORT
F20165H00AP F20165H00AP SUPPORT
G4C3AAD00006 G4C3AAD00006 TRANSFORMER
A06015H00AP A06015H00AP TRAY
AERZ271KD10A AERZ271KD10A VARISTOR
AEVTZ6TLT103 AEVTZ6TLT103 VARISTOR
F62385H00AP F62385H00AP WASHER
F030E5H00AP F030E5H00AP WIRE
F03535H00AP F03535H00AP WIRE
