Model Image
Manufacturer

Panasonic

Model Number

NNS563WF

Description

Microwave Oven

Interactive Exploded View

Parts List

Part Number Description
F10015Y00AP F10015Y00AP BASE
F110D5Y30HAP F110D5Y30HAP BODY
AEFBAT2001 AEFBAT2001 BUZZER
F67005U40XN F67005U40XN CONNECTOR
F66175L00AP F66175L00AP CONNECTOR
AEEMXH01505W AEEMXH01505W CONNECTOR
K1KA04AA0086 K1KA04AA0086 CONNECTOR
AEEMF00703W AEEMF00703W CONNECTOR
F900C4T00AP F900C4T00AP CORD
F65434W00AP F65434W00AP COVER
F20555L00AP F20555L00AP COVER
AESZMTZJ5R6B AESZMTZJ5R6B DIODE
F302K5L00AP F302K5L00AP DOOR
F30015Y30HAP F30015Y30HAP DOOR
F30854T00AP F30854T00AP DOOR C
F31456V60XP F31456V60XP DOOR SCREEN
F692Y8F00APX F692Y8F00APX DP CIRCUIT
F80345L00HAP F80345L00HAP ESCUTCHEON
F40084T10AP F40084T10AP FAN
F01055L00AP F01055L00AP FILLER (DISCONTINUED)
F10084T00APS F10084T00APS FOOT
F62308F00AP F62308F00AP FUSE
F64508660AP F64508660AP GUIDE
F40254T00AP F40254T00AP GUIDE
F030A5Y30AP F030A5Y30AP HARNESS
F30208790XN F30208790XN HOOK
UPC358G2 UPC358G2 IC
F00035Y30AP F00035Y30AP INSTRUCT BOOK
F00035Y30CP F00035Y30CP INSTRUCT BOOK
F01705Y30CP F01705Y30CP LABEL
F00339660AP F00339660AP LABEL
F00067600CP F00067600CP LABEL
F00065G40AP F00065G40AP LABEL
F00337D00RP F00337D00RP LABEL
F612E5Y30AP F612E5Y30AP LAMP
F030E4T00CP F030E4T00CP LEAD WIRE
F31378790XN F31378790XN LEVER
MN101C589EA MN101C589EA LSI

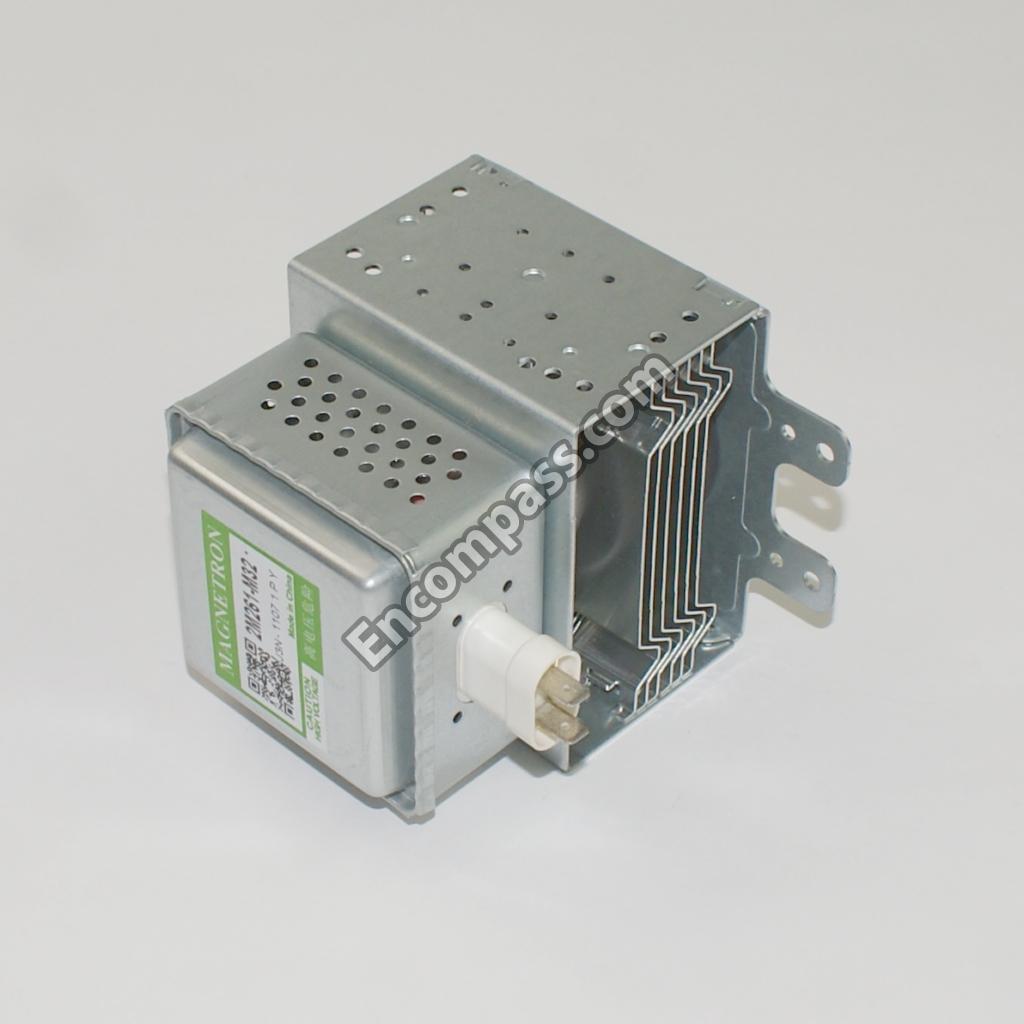

2M261-M32JY 2M261-M32JY MAGNETRON
2M261-M32KLP 2M261-M32KLP MAGNETRON
F63265G60AP F63265G60AP MOTOR
F400A5Y00AP F400A5Y00AP MOTOR
F66264T00CP F66264T00CP MOUNT
F41445Y00AP F41445Y00AP ORIFICE
F200A8F00AP F200A8F00AP OVEN
F01078100XN F01078100XN PACKAGING
F01068100XN F01068100XN PACKAGING
F01045T20RP F01045T20RP PACKAGING ITEM
F01025Y30HCP F01025Y30HCP PACKAGING ITEM
F01085T20RP F01085T20RP PACKAGING ITEM (DISCONTINUED)
F603L5Y30AP F603L5Y30AP PC BOARD
F66625Y00AP F66625Y00AP PLATE
F00075Y30HCP F00075Y30HCP PLATE
AEGG5G1A18 AEGG5G1A18 RELAY
K6B1AZA00013 K6B1AZA00013 RELAY
AESS133T-77 AESS133T-77 RESISTOR
F290D9330AP F290D9330AP ROLLER
F31465Y30HAP F31465Y30HAP SCREEN
XTTFA4_6BN XTTFA4_6BN SCREW
A607S4T00AP A607S4T00AP SENSOR
F21315Y00AP F21315Y00AP SHAFT
F3097-5L00 F3097-5L00 SPRING
F30214000AP F30214000AP SPRING
F30216P40AG F30216P40AG SPRING
F630Y5Y30HAP F630Y5Y30HAP SWITCH
F61785U30XN F61785U30XN SWITCH
J61415G10XN J61415G10XN SWITCH
F61415U30XN F61415U30XN SWITCH
B61454U00AP B61454U00AP THERMAL CUTOUT
G4C2AAD00005 G4C2AAD00005 TRANSFORMER
2SD1859TV2Q 2SD1859TV2Q TRANSISTOR
B1ABCF000010 B1ABCF000010 TRANSISTOR
F06014T00AP F06014T00AP TRAY
D3CA6103A017 D3CA6103A017 VARISTOR
AERZ271KD10A AERZ271KD10A VARISTOR
AERZ102KD10A AERZ102KD10A VARISTOR
F2177-F80 F2177-F80 WASHER
F03535Y00AP F03535Y00AP WIRE
F030E5L00AP F030E5L00AP WIRE
