Model Image
Manufacturer

Panasonic

Model Number

NNSD654B

Description

Microwave

Interactive Exploded View

Parts List

Part Number Description
NN-SD654B NN-SD654B 1.2 CU. FT.-1200 WATTS COOKING
F80189Y40AP F80189Y40AP BACK STOP
F10019Y00AP F10019Y00AP BASE
F65859Y00AP F65859Y00AP BRACKET
F65439Y00AP F65439Y00AP BRACKET
F11619Y00AP F11619Y00AP BRACKET
F891P9Y10BAP F891P9Y10BAP BUTTON
F891P9Y00HAP F891P9Y00HAP BUTTON
L0DDEA000014 L0DDEA000014 BUZZER
F10099Y00BAP F10099Y00BAP CABINET
F900C9Y00AP F900C9Y00AP CABLE
F66167D00AP F66167D00AP CABLE
F0C2H284A022 F0C2H284A022 CAPACITOR
F0C2E455A336 F0C2E455A336 CAPACITOR
F5020W100AP F5020W100AP COIL
F66175W00AP F66175W00AP COVER
F64499Y00AP F64499Y00AP COVER
F20559Y00AP F20559Y00AP COVER
F30859Y00AP F30859Y00AP DOOR
F302K9X70EP F302K9X70EP DOOR
EVEJ1HF2224M EVEJ1HF2224M ENCODER
F607X9S00CP F607X9S00CP FILTER
F10089W40HPS F10089W40HPS FOOT
F62308F00AP F62308F00AP FUSE
F64508660AP F64508660AP GUIDE
F40259Y00AP F40259Y00AP GUIDE
F030A9Y00AP F030A9Y00AP HARNESS
F30069X70EP F30069X70EP HINGE
F30209X70EP F30209X70EP HOOK
F606Y9X90AP F606Y9X90AP INVERTER
F30189Y00AP F30189Y00AP KEY
F21559Y10QP F21559Y10QP LABEL
F03349Y40AP F03349Y40AP LABEL
F02459660AP F02459660AP LABEL
F00339Y00AP F00339Y00AP LABEL
F00067C50AP F00067C50AP LABEL
F00064W70AP F00064W70AP LABEL
F612E9Y00AP F612E9Y00AP LAMP
F82569Y00AP F82569Y00AP LEVER
2M261-M39R 2M261-M39R MAGNETRON
F63265G60AP F63265G60AP MOTOR
F400A9Y30AP F400A9Y30AP MOTOR
F40089Y00AP F40089Y00AP MOTOR
F41449Y00AP F41449Y00AP ORIFICE
F200A9Y10HAP F200A9Y10HAP OVEN
F01068100XN F01068100XN PACKAGING
F01059Y00AP F01059Y00AP PACKAGING
F01049Y00AP F01049Y00AP PACKAGING

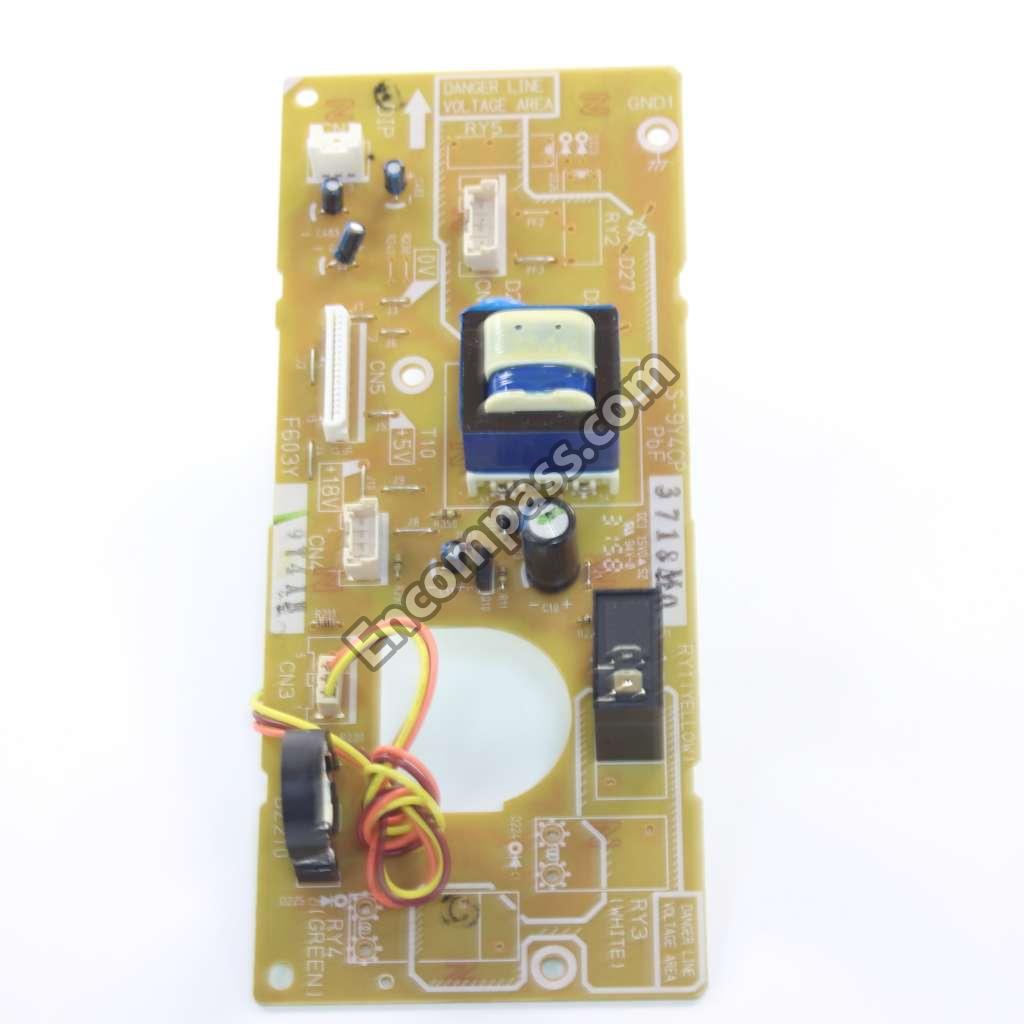

F603Y9Y40AB F603Y9Y40AB PC BOARD
F81279Y40AP F81279Y40AP PLATE
F66629Y00AP F66629Y00AP PLATE
F61456N60AP F61456N60AP PROTECTOR
K6B1AYY00130 K6B1AYY00130 RELAY
F290D6W50XP F290D6W50XP RING
F31459Y00AP F31459Y00AP SCREEN
J607S4T00AP J607S4T00AP SENSOR
F21319Y00AP F21319Y00AP SHAFT
F67525E40XN F67525E40XN SHEET
F01099Y00AP F01099Y00AP SHEET
F31389X70EP F31389X70EP SPACER
F31379X70EP F31379X70EP SPACER
F31369X70EP F31369X70EP SPACER
F80375K00AP F80375K00AP SPRING
F30214000AP F30214000AP SPRING
F11409W00XP F11409W00XP STOPPER
J61415G10XN J61415G10XN SWITCH
F61785U30XN F61785U30XN SWITCH
F61415U30XN F61415U30XN SWITCH
EVQ11L05R EVQ11L05R SWITCH
G4C2AAD00006 G4C2AAD00006 TRANSFORMER
F609A8X00AP F609A8X00AP TRANSFORMER
B1JAGV000017 B1JAGV000017 TRANSISTOR
E06014N30BP E06014N30BP TRAY
F030E9Y00AP F030E9Y00AP WIRE
