Model Image
Manufacturer

Panasonic

Model Number

NNSN651B

Description

Microwave

Interactive Exploded View

Parts List

Part Number Description
F66139Y20AP F66139Y20AP BACKSTOP
F10019Y00AP F10019Y00AP BASE
F11619Y00AP F11619Y00AP BRACKET
F65439Y00AP F65439Y00AP BRACKET
F65859Y00AP F65859Y00AP BRACKET
F891P9Y10BAP F891P9Y10BAP BUTTON
L0DDEA000014 L0DDEA000014 BUZZER
F10099Y00BAP F10099Y00BAP CABINET
F10099Y00HAP F10099Y00HAP CABINET
F10099Y00BCP F10099Y00BCP CABINET BODY (AUH/AYH)
F900C4T00AP F900C4T00AP CABLE
F2A1C220B624 F2A1C220B624 CAPACITOR
F2A1H1R0B574 F2A1H1R0B574 CAPACITOR
F2A1H2R2B574 F2A1H2R2B574 CAPACITOR
F2A1H471B575 F2A1H471B575 CAPACITOR
F2A1HR47B574 F2A1HR47B574 CAPACITOR
E06014N30BP E06014N30BP COOKING TRAY
F20559Y00AP F20559Y00AP COVER
F64499Y00AP F64499Y00AP COVER
F82849Y00AP F82849Y00AP CUSHION RUBBER (AUH/AYH)
B0AACK000004 B0AACK000004 DIODE
B0BA5R600016 B0BA5R600016 DIODE
B0EAKV000093 B0EAKV000093 DIODE
F302A9Y10BAP F302A9Y10BAP DOOR
F302A9Y10HCP F302A9Y10HCP DOOR
F302K9X70EPS F302K9X70EPS DOOR
F30859Y00AP F30859Y00AP DOOR
F302K9X70EP F302K9X70EP DOOR EU
F891P9Y00HAP F891P9Y00HAP DOOR OPENING BUTTON
F80349Y10BAP F80349Y10BAP ESCUTCHEON
F80349Y10HAP F80349Y10HAP ESCUTCHEON
F400A9Y30AP F400A9Y30AP FAN MOTOR
F607X9S00CP F607X9S00CP FILTER
F10089W40HPS F10089W40HPS FOOT
F62308F00AP F62308F00AP FUSE
F40259Y00AP F40259Y00AP GUIDE
F64508660AP F64508660AP GUIDE
F030A9Y00AP F030A9Y00AP HARNESS
F30069Y00AP F30069Y00AP HINGE
F66179Y20AP F66179Y20AP HOLDER
F30209X70EP F30209X70EP HOOK
F31369X70EP F31369X70EP HOOK SPACER A
F31379X70EP F31379X70EP HOOK SPACER B
F31389X70EP F31389X70EP HOOK SPACER C
C0ABBA000230 C0ABBA000230 IC
MN69F009AC1 MN69F009AC1 IC
F606Y8X00AP F606Y8X00AP INVERTER
F606Y8X00CP F606Y8X00CP INVERTER
F606Y9X90AP F606Y9X90AP INVERTER
F30189Y00AP F30189Y00AP KEY
F00067C50AP F00067C50AP LABEL
B00066260AP B00066260AP LABEL
F00079Y00BAB F00079Y00BAB LABEL
F00079Y00BAP F00079Y00BAP LABEL
F00339Y00AP F00339Y00AP LABEL
F02459660AP F02459660AP LABEL
F03349Y00AP F03349Y00AP LABEL
F21559Y10QP F21559Y10QP LABEL
F612E9Y00AP F612E9Y00AP LAMP
L5AYAYY00096 L5AYAYY00096 LCD
F030ABQ70AP F030ABQ70AP LEAD WIRE HARNESS
F82569Y00AP F82569Y00AP LEVER

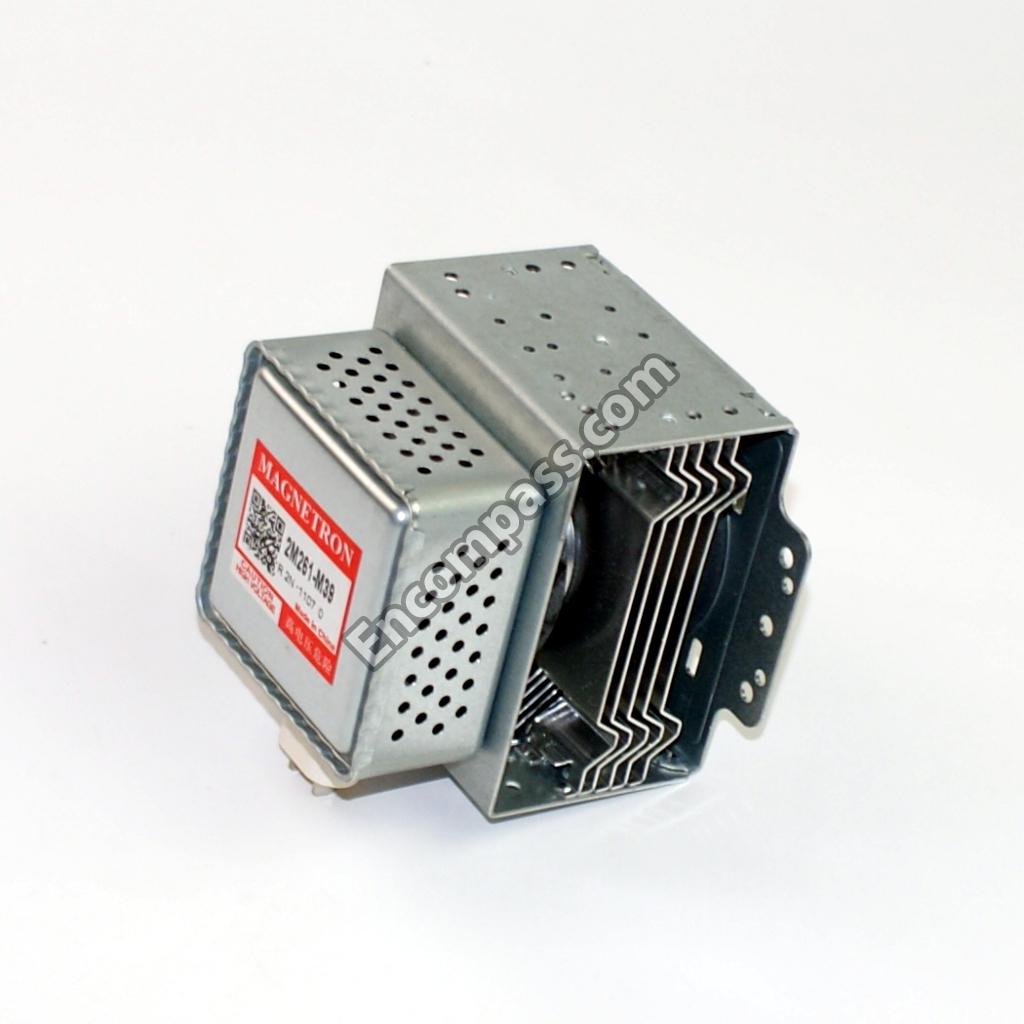

2M261-M39R 2M261-M39R MAGNETRON
F630Y9Y00BAU F630Y9Y00BAU MEMBRANE SWITCH (AUH/AYH
NN-SN651B NN-SN651B MICROWAVE OVEN
F40089Y00AP F40089Y00AP MOTOR
F400A9Y10AP F400A9Y10AP MOTOR
F63265G60AP F63265G60AP MOTOR
F00079Y00BAU F00079Y00BAU NAME PLATE (AUH)
F41449Y00AP F41449Y00AP ORIFICE
F200ABT30HAP F200ABT30HAP OVEN
F200A9Y10HAP F200A9Y10HAP OVEN
F01029Y00BAB F01029Y00BAB PACKAGING
F01029Y00BAD F01029Y00BAD PACKAGING
F01029Y00BAP F01029Y00BAP PACKAGING
F01049Y00AP F01049Y00AP PACKAGING
F01059Y00AP F01059Y00AP PACKAGING
F01068100XN F01068100XN PACKAGING
F603L9Y00AB F603L9Y00AB PC BOARD
F603L9Y00AP F603L9Y00AP PC BOARD

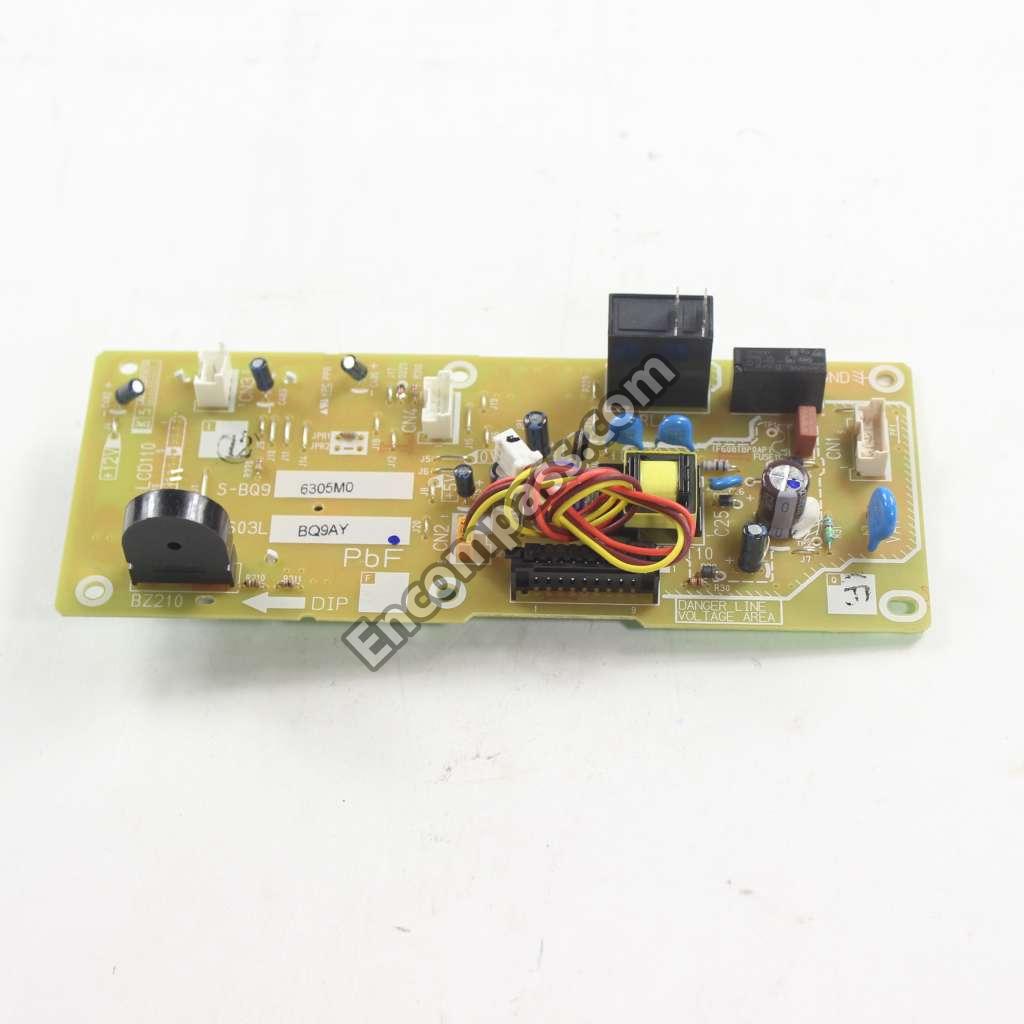

F603LBQ90AY F603LBQ90AY PC BOARD W/COMPONENT (AU
F66629Y00AP F66629Y00AP PLATE
F81279Y00AP F81279Y00AP PLATE
F61456N60AP F61456N60AP PROTECTOR
K6B1AZA00016 K6B1AZA00016 RELAY
F290D6W50XP F290D6W50XP RING
F31459Y00AP F31459Y00AP SCREEN
XTWFL4_12T XTWFL4_12T SCREW
XTWBFE4_8D XTWBFE4_8D SCREW
XTW4_12T XTW4_12T SCREW
XTWFA4_12T XTWFA4_12T SCREW
J607S4T00AP J607S4T00AP SENSOR
F21319Y00AP F21319Y00AP SHAFT
F01099Y00AP F01099Y00AP SHEET
F01078J00XN F01078J00XN SHEET
F01924T00AP F01924T00AP SHEET
F67525E20XN F67525E20XN SHEET
F30216P40AG F30216P40AG SPRING
F80375K00AP F80375K00AP SPRING
F11409W00XP F11409W00XP STOPPER
F61415U30XN F61415U30XN SWITCH
J61415G10XN J61415G10XN SWITCH
F61785U30XN F61785U30XN SWITCH
F630Y9Y00BAP F630Y9Y00BAP SWITCH
F630Y9Y00HAP F630Y9Y00HAP SWITCH
XTTBFE4T10A0 XTTBFE4T10A0 TAPPING SCREW
G4C2AAD00005 G4C2AAD00005 TRANSFORMER
B1BAAJ000003 B1BAAJ000003 TRANSISTOR
F06015Q00AP F06015Q00AP TRAY
F30069X70EP F30069X70EP UPPER HINGE
D4EAY271A036 D4EAY271A036 VARISTOR
F030E9Y00AP F030E9Y00AP WIRE
