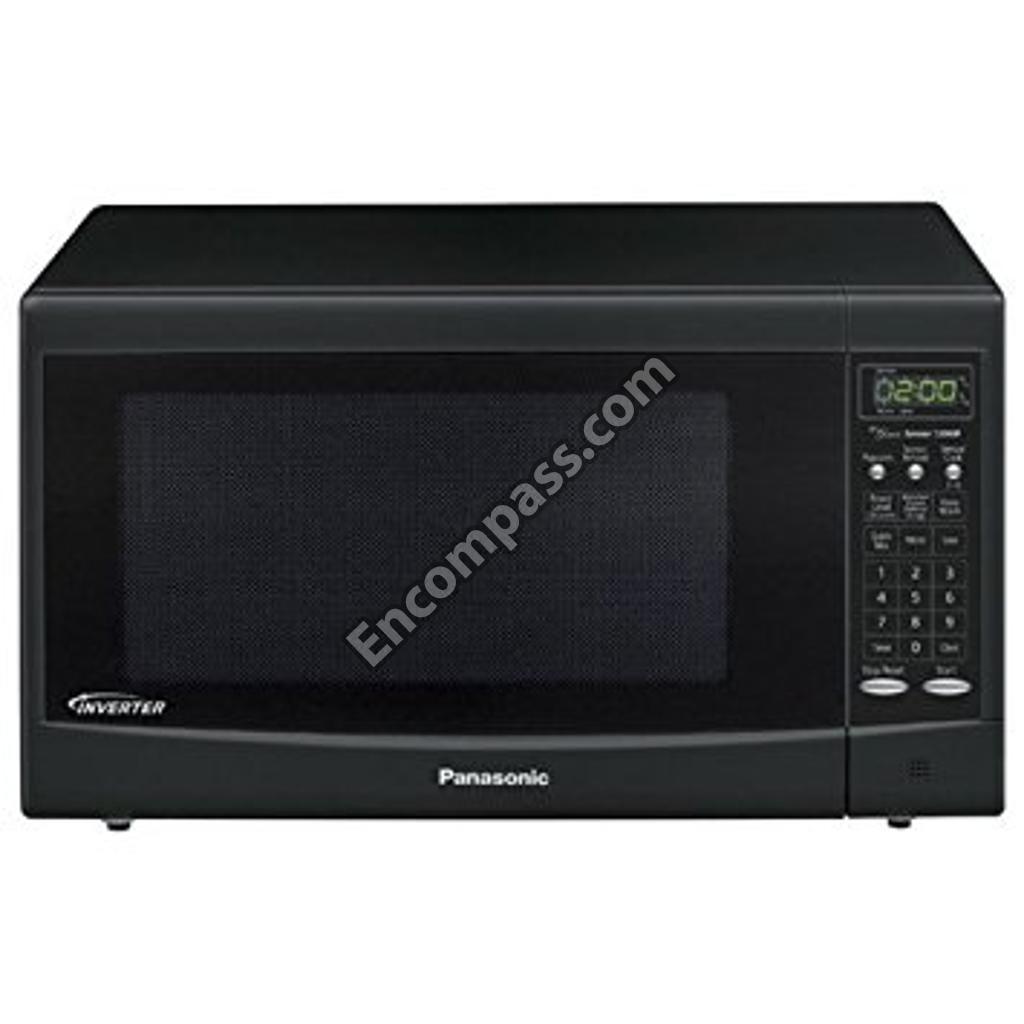

Model Image
Manufacturer

Panasonic

Model Number

NNSN667B

Description

Microwave Oven 1.2cu

Interactive Exploded View

Parts List

Part Number Description
F900C4T00AP F900C4T00AP AC CORD
F10016K10APG F10016K10APG BASE
F80348M60BAP F80348M60BAP BASE
F80348M60HAP F80348M60HAP BASE
F40084T00AP F40084T00AP BLADE
F110D5Y30BAP F110D5Y30BAP BODY
F110D5Y30HAP F110D5Y30HAP BODY
F65856K50AP F65856K50AP BRACKET
F80728M60BAP F80728M60BAP BUTTON
F80728M60HAP F80728M60HAP BUTTON
F82988M60KAP F82988M60KAP BUTTON
AEFBAT2001 AEFBAT2001 BUZZER
F66164W20AP F66164W20AP CABLE
ECWF2455N644 ECWF2455N644 CAPACITOR
ECWF5284N300 ECWF5284N300 CAPACITOR
F50206G00AP F50206G00AP COIL
F01067F00AP F01067F00AP COVER
F20555L00AP F20555L00AP COVER
F65434W00AP F65434W00AP COVER
F66177D60AP F66177D60AP COVER
B0FBBS000001 B0FBBS000001 DIODE
L5AAAEC00061 L5AAAEC00061 DISPLAY
F302A8M60BAP F302A8M60BAP DOOR
F302A8M60HAP F302A8M60HAP DOOR
F302K5L00AP F302K5L00AP DOOR
F301A8M40SAP F301A8M40SAP DOOR A
F30854T00AP F30854T00AP DOOR C
F31456V60XP F31456V60XP DOOR SCREEN
F01055L00AP F01055L00AP FILLER (DISCONTINUED)
F692Y8F00APX F692Y8F00APX FILTER
F10084T00APS F10084T00APS FOOT
F62308F00AP F62308F00AP FUSE
F40257D00APG F40257D00APG GUIDE
F40264T60APG F40264T60APG GUIDE
F64508660AP F64508660AP GUIDE
F030A7D10AP F030A7D10AP HARNESS
F30206G30CP F30206G30CP HOOK
MN101C78AEC MN101C78AEC IC
F00038M80AP F00038M80AP INSTRUCT BOOK
F606Y8X00AP F606Y8X00AP INVERTER
F30186P40CP F30186P40CP KEY
F00065G40AP F00065G40AP LABEL
F00067C50AP F00067C50AP LABEL
B00066260AP B00066260AP LABEL
F00338F00AP F00338F00AP LABEL
F03347D60AP F03347D60AP LABEL
F82566K10AP F82566K10AP LEVER
2M261-M32KLP 2M261-M32KLP MAGNETRON
NN-SN667B NN-SN667B MICROWAVE OVEN
NN-SN667W NN-SN667W MICROWAVE OVEN
F400A8F00AP F400A8F00AP MOTOR
F63265G60AP F63265G60AP MOTOR
F41445Y00AP F41445Y00AP ORIFICE
F200A8F00AP F200A8F00AP OVEN
F01068100XN F01068100XN PACKAGING
F01046K50AP F01046K50AP PACKAGING ITEM
F01028M60BAP F01028M60BAP PACKING
F01028M60HAP F01028M60HAP PACKING
F603L8M60AP F603L8M60AP PC BOARD
F603Y7D60AP F603Y7D60AP PC BOARD
F00078M60BAP F00078M60BAP PLATE
F00078M60HAP F00078M60HAP PLATE
F66626K50AP F66626K50AP PLATE
F61456N60AP F61456N60AP PROTECTOR
K6B1AZA00016 K6B1AZA00016 RELAY
F612E5U40AP F612E5U40AP REPLACEMENT LAMP
F290D9330AP F290D9330AP ROLLER
XTTFA4_6BN XTTFA4_6BN SCREW
XTWFA4_12T XTWFA4_12T SCREW
XTCAFA4_12AFW XTCAFA4_12AFW SCREW (DISCONTINUED)
J607S4T00AP J607S4T00AP SENSOR
F21315Y00AP F21315Y00AP SHAFT
F01078J00XN F01078J00XN SHEET
F01924T00AP F01924T00AP SHEET
F31366G30CP F31366G30CP SPACER
F31376G30CP F31376G30CP SPACER
F31386G30CP F31386G30CP SPACER
F30214000AP F30214000AP SPRING
F80375K00AP F80375K00AP SPRING
F30216P40AG F30216P40AG SPRING
EVQ11L05R EVQ11L05R SWITCH
F61785U30XN F61785U30XN SWITCH
F630Y8M60BAP F630Y8M60BAP SWITCH
F630Y8M60HAP F630Y8M60HAP SWITCH
F61415U30XN F61415U30XN SWITCH
J61415G10XN J61415G10XN SWITCH
A609A8M00AP A609A8M00AP TRANSFORMER
G4C2AAD00005 G4C2AAD00005 TRANSFORMER
B1JAGV000017 B1JAGV000017 TRANSISTOR
F06014T00AP F06014T00AP TRAY
F2177-F80 F2177-F80 WASHER
F030E5L00AP F030E5L00AP WIRE
F03537D00AP F03537D00AP WIRE
