Model Image
Manufacturer

Panasonic

Model Number

NNT664SF

Description

Microwave Oven 1.2 C

Interactive Exploded View

Parts List

Part Number Description
F900C4T60CP F900C4T60CP AC CORD
F10016K10AP F10016K10AP BASE
F800L5Y00BAP F800L5Y00BAP BASE
F10016K10APG F10016K10APG BASE
F40084T00AP F40084T00AP BLADE
F110D5Y30SAP F110D5Y30SAP BODY
F65856K50AP F65856K50AP BRACKET
F80725Y00SAP F80725Y00SAP BUTTON
AEF0S800MG06 AEF0S800MG06 BUZZER
AEFBAT2001 AEFBAT2001 BUZZER
L0DDEA000014 L0DDEA000014 BUZZER
AECETK1V471B AECETK1V471B CAPACITOR
AECETS1H010B AECETS1H010B CAPACITOR
AECETS1HR47B AECETS1HR47B CAPACITOR
ECWF2455N614 ECWF2455N614 CAPACITOR
ECWF5324N310 ECWF5324N310 CAPACITOR
ECWH30562JUA ECWH30562JUA CAPACITOR
ECWH30822JUA ECWH30822JUA CAPACITOR
F1H1H103A897 F1H1H103A897 CAPACITOR
F50206G00AP F50206G00AP COIL
AEEM09FDZBTM AEEM09FDZBTM CONNECTOR
AEEMF00703W AEEMF00703W CONNECTOR
K1KA04AA0086 K1KA04AA0086 CONNECTOR
AEEMXH01505W AEEMXH01505W CONNECTOR
K1KA03A00300 K1KA03A00300 CONNECTOR
K1MN09AA0040 K1MN09AA0040 CONNECTOR
F65434W00AP F65434W00AP COVER
F66174U20AP F66174U20AP COVER
F01067F00AP F01067F00AP COVER
AESS133T-77 AESS133T-77 DIODE
AESZMTZJ5R6B AESZMTZJ5R6B DIODE
B0BA5R600016 B0BA5R600016 DIODE
B0EAKT000025 B0EAKT000025 DIODE
B0FBAZ000001 B0FBAZ000001 DIODE
B0FBBS000001 B0FBBS000001 DIODE
ERZV10D621CS ERZV10D621CS DIODE
AEDDHJ5U20XN AEDDHJ5U20XN DISPLAY
MN101C589EN MN101C589EN DISPLAY
L5AAAEC00057 L5AAAEC00057 DISPLAY
F302A5Y00SAP F302A5Y00SAP DOOR
F302K5L00AP F302K5L00AP DOOR
F30854T00AP F30854T00AP DOOR C
F31456V60XP F31456V60XP DOOR SCREEN
F603L6K30AP F603L6K30AP DP CIRCUIT
F603L7D40AP F603L7D40AP DP CIRCUIT
F01055L00AP F01055L00AP FILLER (DISCONTINUED)
F10084T00APS F10084T00APS FOOT
F62308F00AP F62308F00AP FUSE
F40254T00AP F40254T00AP GUIDE
F40264T60APG F40264T60APG GUIDE
F64508660AP F64508660AP GUIDE
F40257D00APG F40257D00APG GUIDE
F030A6K50AP F030A6K50AP HARNESS
F030A7D10AP F030A7D10AP HARNESS
F62315G10XN F62315G10XN HOLDER
F30206G30CP F30206G30CP HOOK
UPC358G2 UPC358G2 IC
C0ABBZ000017 C0ABBZ000017 IC
MN101C78ADD MN101C78ADD IC
F00036K50AP INSTRUCT BOOK
F606Y6G00CP F606Y6G00CP INVERTER
F30186P40CP F30186P40CP KEY
F690L8F00AP F690L8F00AP KIT
F00064W70AP F00064W70AP LABEL
F00065G40AP F00065G40AP LABEL
F00339660AP F00339660AP LABEL
F02459660AP F02459660AP LABEL
F00337D00RP F00337D00RP LABEL
F00076Z40APT F00076Z40APT LABEL
F00337D00AP F00337D00AP LABEL
F03345Y30AP F03345Y30AP LABEL

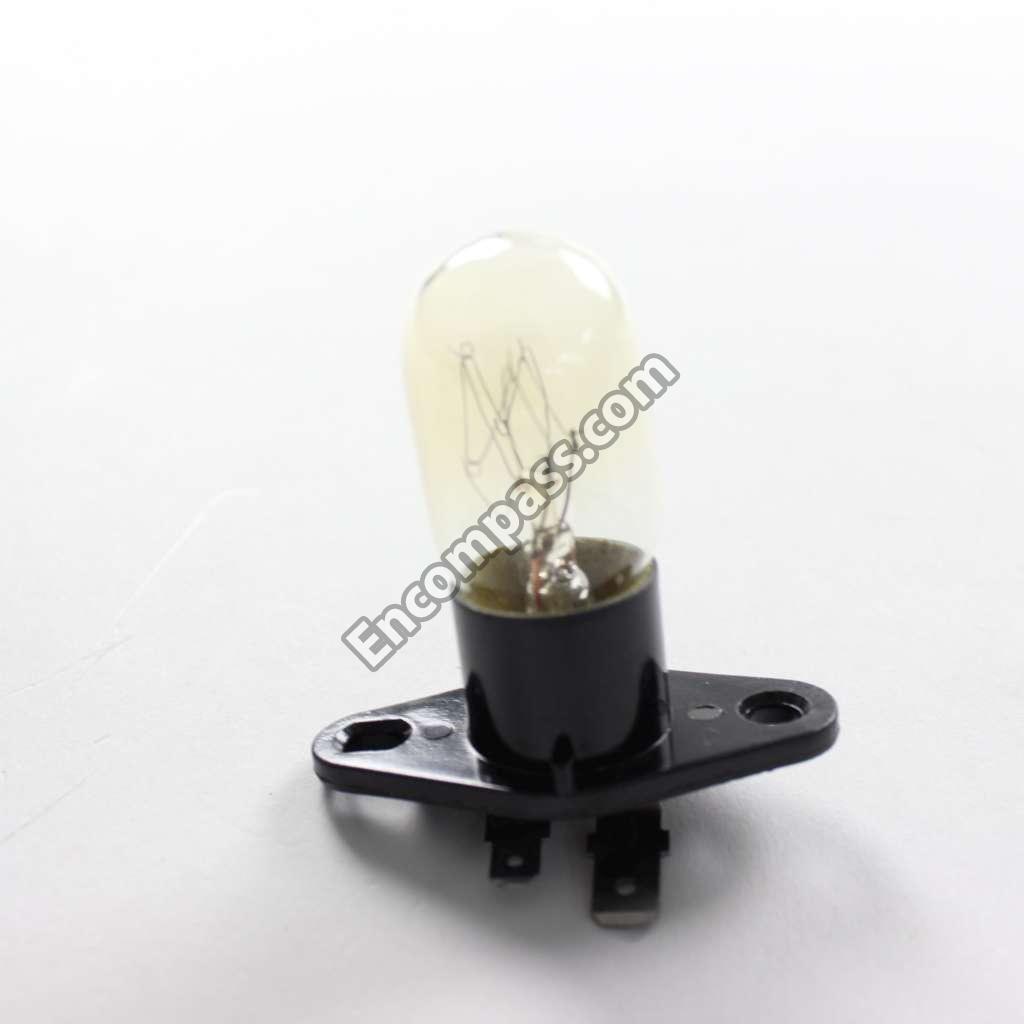

F612E5Y30AP F612E5Y30AP LAMP
F612E5U40AP F612E5U40AP LAMP
F03536K50CP F03536K50CP LEAD WIRE
F82565Y00AP F82565Y00AP LEVER
2M261-M32KLP 2M261-M32KLP MAGNETRON
F400A5Y00AP F400A5Y00AP MOTOR
F63265G60AP F63265G60AP MOTOR
F400A8F00AP F400A8F00AP MOTOR
F00076K30AP F00076K30AP NAME PLATE
F41445Y00AP F41445Y00AP ORIFICE
EFOEC8004A4 EFOEC8004A4 OSCILLATOR
NN-SD697S NN-SD697S OVEN
F200A8F00AP F200A8F00AP OVEN
F01068100XN F01068100XN PACKAGING
F01078100XN F01078100XN PACKAGING
F01026K30SAP F01026K30SAP PACKAGING ITEM
F01046K50AP F01046K50AP PACKAGING ITEM
F01027A10SAP F01027A10SAP PACKAGING ITEM
F90095X00AP F90095X00AP PANEL
F66626K50AP F66626K50AP PLATE
F61456N60AP F61456N60AP PROTECTOR
K6B1AZA00016 K6B1AZA00016 RELAY
F290D9330AP F290D9330AP ROLLER
F31465Y20BAP F31465Y20BAP SCREEN
XTCAFL4_12AFS XTCAFL4_12AFS SCREW
XTTAFE4T12A0 XTTAFE4T12A0 SCREW
XTTFA4_6BN XTTFA4_6BN SCREW
J607S4T00AP J607S4T00AP SENSOR
F21315Y00AP F21315Y00AP SHAFT
F01924T00AP F01924T00AP SHEET
F31366G30CP F31366G30CP SPACER
F31376G30CP F31376G30CP SPACER
F31386G30CP F31386G30CP SPACER
F30214000AP F30214000AP SPRING
F80375K00AP F80375K00AP SPRING
F30216P40AG F30216P40AG SPRING
F61415U30XN F61415U30XN SWITCH
J61415G10XN J61415G10XN SWITCH
F61785U30XN F61785U30XN SWITCH

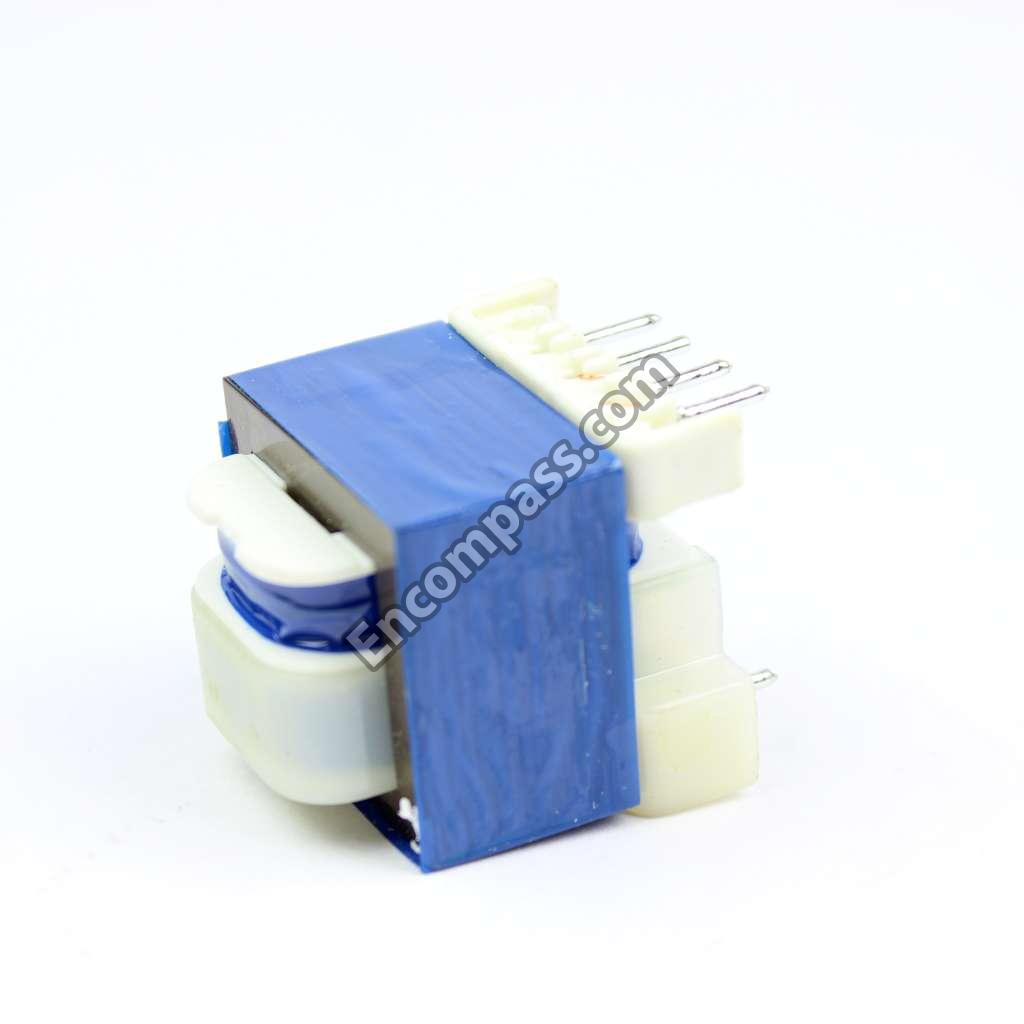

G4C2AAD00005 G4C2AAD00005 TRANSFORMER
A609A6G00CP A609A6G00CP TRANSFORMER
F692Y8F00APX F692Y8F00APX TRANSFORMER
G4C2AAD00006 G4C2AAD00006 TRANSFORMER
B1ABCF000010 B1ABCF000010 TRANSISTOR
2SD1859TV2Q 2SD1859TV2Q TRANSISTOR
B1BAAJ000003 B1BAAJ000003 TRANSISTOR
B1GBCFEL0002 B1GBCFEL0002 TRANSISTOR
B1JAGV000008 B1JAGV000008 TRANSISTOR
UNR211100L UNR211100L TRANSISTOR
F06014T00AP F06014T00AP TRAY
AERZ271KD10A AERZ271KD10A VARISTOR
D3CA6103A017 D3CA6103A017 VARISTOR
F2177-F80 F2177-F80 WASHER
F20555L00AP F20555L00AP WAVEGUIDE COVER
F030E5L00AP F030E5L00AP WIRE
F03537D00AP F03537D00AP WIRE
