Model Image
Manufacturer

Panasonic

Model Number

PT61DLX26

Description

61" Dlp Tv

Interactive Exploded View

Parts List

Part Number Description
LSMA0923 LSMA0923 ANGLE
LSMA0924 LSMA0924 ANGLE
LSXA0736 LSXA0736 ANGLE
LSXA0738 LSXA0738 ANGLE
LSGB0056 LSGB0056 BADGE
LSKU0042 LSKU0042 BASE
LSVE0019 LSVE0019 BASE
LSXA0816-HB LSXA0816-HB BLOCK
LSGU0721 LSGU0721 BUTTON
LSGU0726 LSGU0726 BUTTON
LSGQ0212 LSGQ0212 CABLE
LSJA0577 LSJA0577 CABLE
LSJA0578 LSJA0578 CABLE
LSJA0580 LSJA0580 CABLE
LSJA0589 LSJA0589 CABLE
LSJA0591 LSJA0591 CABLE
LSSC0866 LSSC0866 CASE
TMME047 TMME047 CLAMP
TMM16452 TMM16452 CLAMP
LSGQ0176 LSGQ0176 CLAMPER
K1KA07BA0061 K1KA07BA0061 CONNECTOR
K1KA08BA0061 K1KA08BA0061 CONNECTOR
K1KA12BA0062 K1KA12BA0062 CONNECTOR
J0KG00000012 J0KG00000012 CORE
LSEP3160C LSEP3160C COVER
LSGV0131 LSGV0131 COVER
LSXA0819 LSXA0819 COVER
LSYF0597 LSYF0597 COVER
LSYF0598 LSYF0598 COVER
LSYF0605 LSYF0605 COVER
LSYK1832 LSYK1832 COVER
LSGH0071 LSGH0071 CUSHION
LSMF0484 LSMF0484 CUSHION
LSMF0526 LSMF0526 CUSHION
LSMF0527 LSMF0527 CUSHION
LSMF0528 LSMF0528 CUSHION
LSMF0529 LSMF0529 CUSHION
LSPN0747 LSPN0747 CUSHION
B3AGA0000072 B3AGA0000072 DIODE
LSMP0540 LSMP0540 DUCT
ECEA1CKA470B ECEA1CKA470B ECEA0JKS470L
ERJ3GEYJ471V ERJ3GEYJ471V ERJ3GEYG471
ERJ3GEYJ101 ERJ3GEYJ101 ERJ3GEYJ101
ERJ3GEYJ272 ERJ3GEYJ272 ERJ3GEYJ272
ERJ3GEYJ562 ERJ3GEYJ562 ERJ3GEYJ562
ERJ6GEYJ184 ERJ6GEYJ184 ERJ6GEYJ184
LSYK1875 LSYK1875 ESCUTCHEON
L6FAYYYH0015 L6FAYYYH0015 FAN
LSQF1061 LSQF1061 FAN BAG
LSLQ0307 LSLQ0307 FERRITE CORE
19PTDLX76 19PTDLX76 FIRMWARE
RRTDLX26-76 RRTDLX26-76 FIRMWARE
LSKA0031-1 LSKA0031-1 FOOT
LSJA0583 LSJA0583 FUSE
TMME075 TMME075 GUARD
LSJH0093 LSJH0093 HOLDER
LSYF0602 LSYF0602 HOLDER
LSYF0603 LSYF0603 HOLDER
LSQT1061A LSQT1061A INSTRUCT BOOK
TZSC03078 TZSC03078 KIT
LSKC0008 LSKC0008 LATCH (DISCONTINUED)
B3AAA0000943 B3AAA0000943 LED
B3AEA0000090 B3AEA0000090 LED
LSGP0531 LSGP0531 LENS
LSKW0253 LSKW0253 ORNAMENT
LSPF0111 LSPF0111 PACKAGING
LSPG2214 LSPG2214 PACKAGING
LSPN0705 LSPN0705 PACKAGING
LSPN0708 LSPN0708 PACKAGING
LSPN0711 LSPN0711 PACKAGING
LSPN0714 LSPN0714 PACKAGING
LSPN0729 LSPN0729 PACKAGING
LSEP3199B LSEP3199B PC BOARD
LSEP3200B LSEP3200B PC BOARD
LSEP3201B LSEP3201B PC BOARD
LSEP3203A LSEP3203A PC BOARD
LSEP3206A LSEP3206A PC BOARD
LSEP3207G LSEP3207G PC BOARD
LSXA0818 LSXA0818 PC BOARD
LSGL0499 LSGL0499 PIECE
LSGL0500 LSGL0500 PIECE
LSMC0150 LSMC0150 PLATE
LSSC0877 LSSC0877 PLATE
LSSC0923 LSSC0923 PLATE
PNA4618M14VT PNA4618M14VT RECEIVER

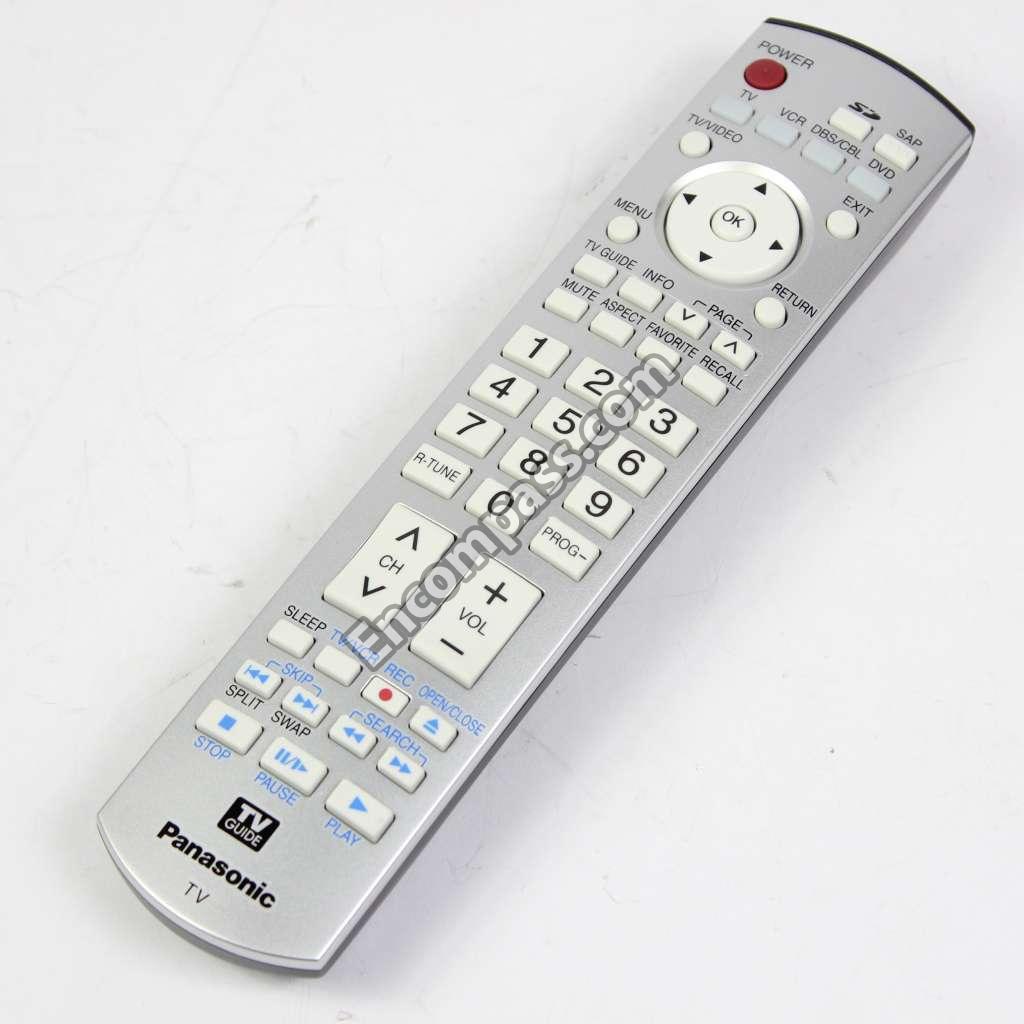

EUR7737Z10 EUR7737Z10 REMOTE CONTROL
TY-LA2006 TY-LA2006 REPLACEMENT LAMP
ERJ3GEYJ103V ERJ3GEYJ103V RESISTOR
ERJ3GEYG152 ERJ3GEYG152 RESISTOR
ERJ3GEYJ183V ERJ3GEYJ183V RESISTOR
ERJ3GEYJ561V ERJ3GEYJ561V RESISTOR
ERJ3GEYJ681 ERJ3GEYJ681 RESISTOR
ERJ3GEJ750V ERJ3GEJ750V RESISTOR
ERJ3GEYJR00V ERJ3GEYJR00V RESISTOR
ERJ3GEYJ122 ERJ3GEYJ122 RN4B2AY122J
LSGP0532 LSGP0532 SCREEN
LSYK1825 LSYK1825 SCREEN
LSHD0099-FJ LSHD0099-FJ SCREW
XTV3_10JFJ XTV3_10JFJ SCREW
XTV3_30JFJ XTV3_30JFJ SCREW
XTV3_35GFJ XTV3_35GFJ SCREW
XTV3_8FFJ XTV3_8FFJ SCREW
XTV3_8GFJ XTV3_8GFJ SCREW
XTV3_8JFJ XTV3_8JFJ SCREW
XTV4_12AFJ XTV4_12AFJ SCREW
XTV4_16AFJ XTV4_16AFJ SCREW
XTV4_16AFJK XTV4_16AFJK SCREW
XTW3_8TFJ XTW3_8TFJ SCREW
XYE3_FJ8 XYE3_FJ8 SCREW
XYN2_J6FJ XYN2_J6FJ SCREW
XYN3_F8FJK XYN3_F8FJK SCREW
XYN3_K8 XYN3_K8 SCREW (10)
XYN3_F14FJ XYN3_F14FJ SCREW (10) (DISCONTINUED)
LSGH0075 LSGH0075 SHEET
LSMF0435 LSMF0435 SHEET
LSMF0469 LSMF0469 SHEET
VMFS0116 VMFS0116 SHEET
K1U412A00008 K1U412A00008 SOCKET
LSGH0074 LSGH0074 SPACER
LSMF0500 LSMF0500 SPACER
LSMF0505 LSMF0505 SPACER
LSMS0311 LSMS0311 SPACER
EAB10120A EAB10120A SPEAKER
EAS15S18A EAS15S18A SPEAKER
LSMB0321 LSMB0321 SPRING
LSMC0151 LSMC0151 SPRING
EVQ11G05R EVQ11G05R SWITCH
K0L1BA000114 K0L1BA000114 SWITCH
T18S T18S T18S
LSGQ0179 LSGQ0179 TAPE
LSDL0354 LSDL0354 TEST TOOL
B1ABCF000020 B1ABCF000020 TRANSISTOR
B1ABCF000112 B1ABCF000112 TRANSISTOR
B1ADCF000075 B1ADCF000075 TRANSISTOR
2SB1218A 2SB1218A TRANSISTOR
2SD1819AWL 2SD1819AWL TRANSISTOR
LSMG0159 LSMG0159 WASHER
LSMG0169 LSMG0169 WASHER
TMM14414 TMM14414 WEDGE
