Model Image
Manufacturer

Panasonic

Model Number

PTD3500U

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
PTD35001CT PTD35001CT 1 YR CONTRACT
TPDF1311 TPDF1311 ACCESSARY PACKI
TBLB3081 TBLB3081 ADJUSTER (DISCONTINUED)
TUCX5206 TUCX5206 BASE PLATE
TXFKF99PZEZ TXFKF99PZEZ BOTTOM COVER
TENC5321 TENC5321 BUTTON SUPPORT
EEFCD0K330R EEFCD0K330R CAPACITOR
EEVHP1E4R7R EEVHP1E4R7R CAPACITOR
ECJ1XC1H121J ECJ1XC1H121J CAPACITOR
F2D1C1010005 F2D1C1010005 CAPACITOR AL
TPCB84302 TPCB84302 CARTON
ELJFA100JFB ELJFA100JFB CHIP COIL
ELKE101FA ELKE101FA COIL

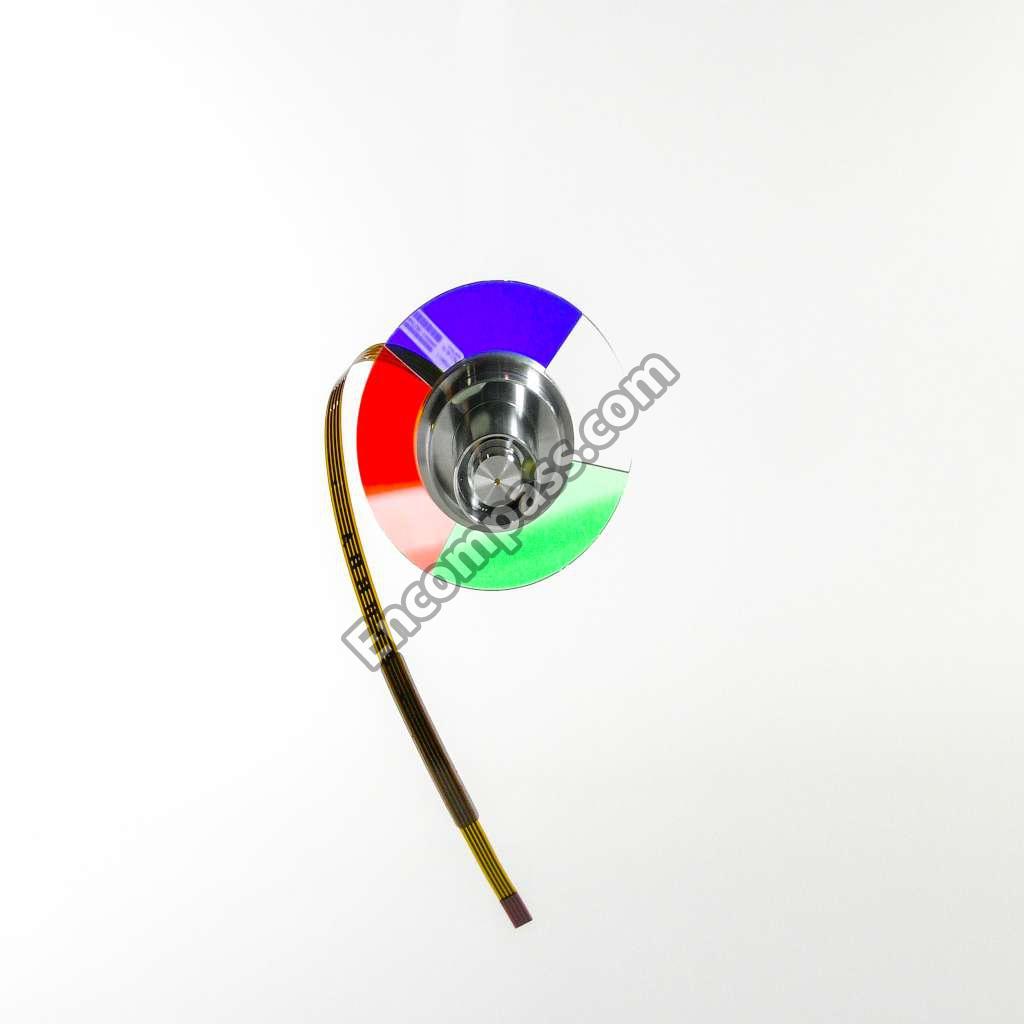

TZSH12023 TZSH12023 COLOR WHEEL
TZSH04054 TZSH04054 COLOR WHEEL
K2HC204B0002 K2HC204B0002 CONNECTOR
K2HA408B0084 K2HA408B0084 CONNECTOR
K2AH3B000016 K2AH3B000016 CONNECTOR
K1QBB2AB0018 K1QBB2AB0018 CONNECTOR
K1MN18B00062 K1MN18B00062 CONNECTOR
K1MN16B00012 K1MN16B00012 CONNECTOR
K1MN04B00008 K1MN04B00008 CONNECTOR
K1KA14BA0051 K1KA14BA0051 CONNECTOR
K1KA11BA0086 K1KA11BA0086 CONNECTOR
K1KA08BA0086 K1KA08BA0086 CONNECTOR
K1KA08B00005 K1KA08B00005 CONNECTOR
K1KA04AA0104 K1KA04AA0104 CONNECTOR
K1KA03BA0086 K1KA03BA0086 CONNECTOR
K1KA03AA0104 K1KA03AA0104 CONNECTOR
K1KA02AA0104 K1KA02AA0104 CONNECTOR
K1FB124B0026 K1FB124B0026 CONNECTOR
K1FB109B0070 K1FB109B0070 CONNECTOR
TBXA47101 TBXA47101 CONTROL BUTTON
TSX1483 TSX1483 CORD
TSK1018 TSK1018 CORE
TSKA168 TSKA168 CORE
TXJFM7VKA3 TXJFM7VKA3 COUPLER
TXJ_T1VKA3 TXJ_T1VKA3 COUPLER
TXJ_R1VKA3 TXJ_R1VKA3 COUPLER (A1-R1)
TXJA40VKA3 TXJA40VKA3 COUPLER (A40-FM
TXJPB5VKA3 TXJPB5VKA3 COUPLER (A43-PB
TXJ_A5VKA3A TXJ_A5VKA3A COUPLER (A5-BAL
TXJPA2VKA3A TXJPA2VKA3A COUPLER (PA2-TE
TXJPB1VKA3 TXJPB1VKA3 COUPLER (PB1-PA
TXJPB3VKA3 TXJPB3VKA3 COUPLER (PB3-CN
TXJPB6VKA3 TXJPB6VKA3 COUPLER (PB6-FM
TXJFM5VKA3 TXJFM5VKA3 COUPLER(FM5-CW1
H1A6605B0004 H1A6605B0004 CRYSTAL OSCILLA
H1A6005B0012 H1A6005B0012 CRYSTAL OSCILLA
TPDA1186 TPDA1186 CUSHION 1
TPDA1187 TPDA1187 CUSHION 2
L6FCJC9H0009 L6FCJC9H0009 DC FAN MOTOR1.
L6FAPEHH0008 L6FAPEHH0008 DC FAN MOTOR2.
L6FCLECH0005 L6FCLECH0005 DC FAN MOTOR3W
LNJ308G8TRA LNJ308G8TRA DIODE
TXZKG06VKA3 TXZKG06VKA3 DMD BLOCK ASSY
F4D276050004 F4D276050004 DOUBLE LAYER CA
TEEC5206 TEEC5206 DUCT (DMD)
TEEC5204 TEEC5204 DUCT 1
TEEC5205 TEEC5205 DUCT 2
TKPA96501 TKPA96501 DUCT COVER
TMKX958 TMKX958 DUCT SHEET
TUCC6061 TUCC6061 EARTH METAL(K-P
TGAX034-1 TGAX034-1 ELECTRIC SHIFT
J0JCC0000364 J0JCC0000364 EMI FILTER
TXFSE02VKA3 TXFSE02VKA3 FAIL SAFE SWITC
TEEC5207 TEEC5207 FAN DUCT
TMKG600 TMKG600 FAN SEAL
TENC5323 TENC5323 FAN SUPPORT PLA
TKNE053 TKNE053 FILTER
J0JDC0000083 J0JDC0000083 FILTER
J0HABB000021 J0HABB000021 FILTER
J0HAAC000045 J0HAAC000045 FILTER
TSXL506 TSXL506 FLEXIBLE CABLE
TSXL475 TSXL475 FLEXIBLE CABLE
TSXL534 TSXL534 FLEXIBLE CABLE
TXJ_E3VJW2 TXJ_E3VJW2 GROUND LEAD
TQDJ18027 TQDJ18027 GUARANTEE CARD
TENC5334 TENC5334 GUIDE PLATE
BCR20V4 BCR20V4 HOLDER
TBXA44601 TBXA44601 HORIZONTAL ADJU
TC74LCX574TL TC74LCX574TL IC
C3ABQJ000023 C3ABQJ000023 IC
C1AB00002281 C1AB00002281 IC
C1AB00001868 C1AB00001868 IC
C1AB00001466 C1AB00001466 IC
C0JBAZ002115 C0JBAZ002115 IC
C0JBAZ001437 C0JBAZ001437 IC
C0JBAS000206 C0JBAS000206 IC
C0JBAB000290 C0JBAB000290 IC
C0DBZFG00058 C0DBZFG00058 IC
C0DBEGD00002 C0DBEGD00002 IC
C5CB00000060 C5CB00000060 IC (DISCONTINUED)
C1AB00002017 C1AB00002017 IC (DISCONTINUED)
C0DBCFG00011 C0DBCFG00011 IC (DISCONTINUED)
C0CBCAG00007 C0CBCAG00007 IC (DISCONTINUED)
C3EBLC000034 C3EBLC000034 IC 256K EEP RO
C3BBFC000321 C3BBFC000321 IC 256K S RAM
C2DBMY000002 C2DBMY000002 IC 32BIT MICRO
C3EBEC000054 C3EBEC000054 IC 4K EEP ROM
C1ZBZ0002603 C1ZBZ0002603 IC CMOS GATE A
C0JBAR000415 C0JBAR000415 IC CMOS STANDA
C0JBAE000336 C0JBAE000336 IC CMOS STANDA
C0JBAA000377 C0JBAA000377 IC CMOS STANDA
C1BB00001099 C1BB00001099 IC LINEAR
C0GBG0000053 C0GBG0000053 IC LINEAR
C0GBA0000035 C0GBA0000035 IC LINEAR
C0EBB0000145 C0EBB0000145 IC LINEAR
C0CBCBF00005 C0CBCBF00005 IC LINEAR
C0ZBZ0001200 C0ZBZ0001200 IC LOGIC (OTHE
C0ZBZ0001199 C0ZBZ0001199 IC LOGIC (OTHE
C0JBAZ002560 C0JBAZ002560 IC LOGIC (OTHE
C0JBAZ000801 C0JBAZ000801 IC PERIPHERAL
TXJ_E1VKA3 TXJ_E1VKA3 INLET EARTH LEA
TQBJ0178 TQBJ0178 INSTRUCT BOOK
TMKX953 TMKX953 INSULATION SHEE
TMKX914 TMKX914 INSULATION SHEE
K2LC108B0064 K2LC108B0064 JACK
TXFKP99PZEZ TXFKP99PZEZ LAMP COVER(ASSY
TMKX912 TMKX912 LAMP FAN DUCT C
TXJ_E5VJW2A TXJ_E5VJW2A LEAD WIRE
TXFSE01VKA3 TXFSE01VKA3 LEAD WIRE (WITH
TKKC5220 TKKC5220 LED PLATE
TBLG3042 TBLG3042 LEG
TKGF0127 TKGF0127 LENS
TKKL5244-1 TKKL5244-1 LENS COVER
TEKX030 TEKX030 LENS EXCHANGE L
TEEC0033-2 TEEC0033-2 LENS EXCHANGE U
TEEC5168-1 TEEC5168-1 LENS GUIDE
TBXA44501 TBXA44501 LENS RELEASE BU
XYN2_C3FJK XYN2_C3FJK MACHINE SCREWS
XQN2_C2FJK XQN2_C2FJK MACHINE SCREWS
TBMG040 TBMG040 MODEL NAME PLAT
TBMG042 TBMG042 MODEL NO. LABEL
TXZLG01VLA3R TXZLG01VLA3R OPTICAL BLOCK
H0J250500042 H0J250500042 OSCILLATOR (DISCONTINUED)
TMME240 TMME240 P.C.B SPACER
TZSH12021 TZSH12021 PC BOARD
TXNCW1VKA3 TXNCW1VKA3 PC BOARD W/COMP
TXN_T1VKA3 TXN_T1VKA3 PC BOARD W/COMP
TXN_R1VKA3 TXN_R1VKA3 PC BOARD W/COMP
TXAUX03VKA3 TXAUX03VKA3 PC BOARD W/COMP
TXAUX02VKA3 TXAUX02VKA3 PC BOARD W/COMP
TXAUX01VKA3 TXAUX01VKA3 PCB W/COMPONENT
B3NBB0000005 B3NBB0000005 PHOTO INTERRUPT
TMXC017 TMXC017 PLATE
TENC5329 TENC5329 PLATE
TUCC6066 TUCC6066 POWER SHIELD PL
TMKG482 TMKG482 PROTECTION DUST
TMKG481 TMKG481 PROTECTION DUST
TKKC5194 TKKC5194 REMOTE CONTROL
B3RAD0000100 B3RAD0000100 REMOTE CONTROLL
ETLAD35L ETLAD35L REPLACEMENT LAMP
ETLAD35 ETLAD35 REPLACEMENT LAMP
ERJ6GEYG391 ERJ6GEYG391 RESISTOR
ERJ6ENF6201 ERJ6ENF6201 RESISTOR
ERJ6ENF51R0 ERJ6ENF51R0 RESISTOR
ERJ6ENF4300 ERJ6ENF4300 RESISTOR
ERJ6ENF33R0 ERJ6ENF33R0 RESISTOR
ERJ6ENF2701V ERJ6ENF2701V RESISTOR
ERJ6ENF1200V ERJ6ENF1200V RESISTOR
ERJ6ENF1000V ERJ6ENF1000V RESISTOR
ERJ3GEYJ134V ERJ3GEYJ134V RESISTOR
ERD25VJ1R0T ERD25VJ1R0T RESISTOR
VSC5845 VSC5845 RESISTOR-RESIST
EXB38V124JV EXB38V124JV RESISTOR-RESIST
XYN3_J35FJ XYN3_J35FJ SCREW
XYN2_J6FJ XYN2_J6FJ SCREW
XSN3_8FJ XSN3_8FJ SCREW
XSB4_10FC XSB4_10FC SCREW
XSB3_6FZ XSB3_6FZ SCREW
TPEH187-1 TPEH187-1 SET COVER
TMKG353 TMKG353 SHEET (DISCONTINUED)
TMKX910 TMKX910 SHEET (DUCT)
TMKG598 TMKG598 SHEET 2
TMKG599 TMKG599 SHEET 3
TUCC6073 TUCC6073 SHIELD CASE 2 (
TMKX936 TMKX936 SHIELD CASE BAC
TMKX908 TMKX908 SHIELD SHEET
TMME245 TMME245 SPACER
TENC5322 TENC5322 SW SUPPORT PLAT
K0AAKA000006 K0AAKA000006 SWITCH
TMKX952 TMKX952 TAPE
XYC3_JJ12FJ XYC3_JJ12FJ TAPPING SCREW W
XTN4_45BFJ XTN4_45BFJ TAPPING SCREWS
XTN3_4FFJ XTN3_4FFJ TAPPING SCREWS
XTN3_25GFJ XTN3_25GFJ TAPPING SCREWS
K1QBB3AB0007 K1QBB3AB0007 TERMINAL
K1CB205B0006 K1CB205B0006 TERMINAL
TXFPA01VKA3 TXFPA01VKA3 TERMINAL COVER
TKZF5041 TKZF5041 TERMINAL PLATE
XYN3_F18FJ XYN3_F18FJ TERMINAL SCREW
XSB2_8FJ XSB2_8FJ TERMINAL SCREW
D4CDH4930004 D4CDH4930004 THERMISTOR(OPTI
2SD10300TL 2SD10300TL TRANSISTOR
2SD1979STX 2SD1979STX TRANSISTORSI 0
EZJZ0V171AA EZJZ0V171AA VARISTOR
