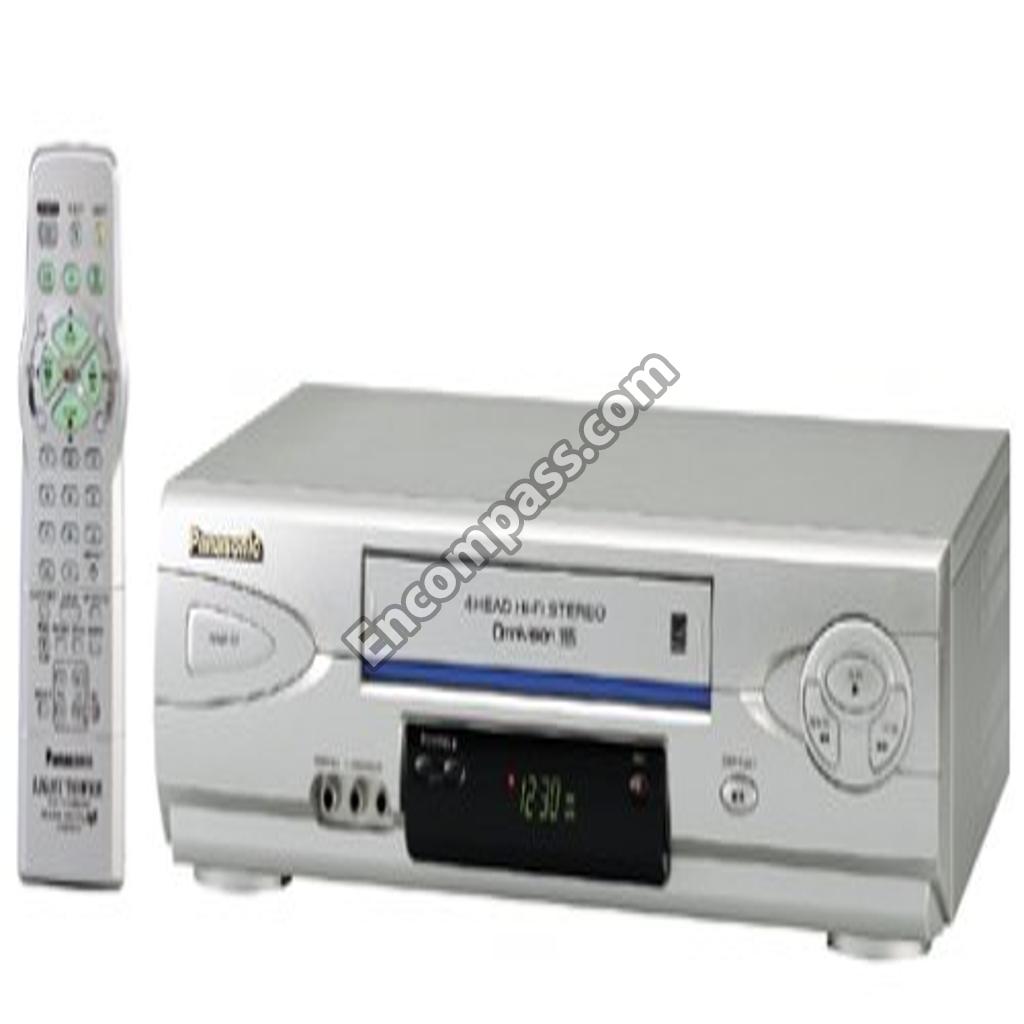

Model Image
Manufacturer

Panasonic

Model Number

PVV4624S

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
0N3161-QR 0N3161-QR 0N3161-QR
2SD601-RS 2SD601-RS 2SD601A-R
LSSC0678 LSSC0678 ANGLE
VXL3121 VXL3121 ARM
VXL3111 VXL3111 ARM
VXL3110 VXL3110 ARM
VXL3108 VXL3108 ARM
VXL3107 VXL3107 ARM
VML3632 VML3632 ARM
VML3626 VML3626 ARM
VDB1431 VDB1431 ARM
VMD4987 VMD4987 BEARING
VDV0391-2 VDV0391-2 BELT
VYPS7159 VYPS7159 BRACKET
LSJA0372 LSJA0372 CABLE
LSJW0060 LSJW0060 CABLE
VMX3377 VMX3377 CAP
F2A2D8200003 F2A2D8200003 CAP
ECJ1VC1H020C ECJ1VC1H020C CAP
ECJ1VB1H681K ECJ1VB1H681K CAP
ECEC1HKS010 ECEC1HKS010 CAPACITOR
VCESAM0J331I VCESAM0J331I CAPACITOR
F2A2D8200001 F2A2D8200001 CAPACITOR
F1A3A472A010 F1A3A472A010 CAPACITOR
F0CAF104A021 F0CAF104A021 CAPACITOR
EEUFF1E471B EEUFF1E471B CAPACITOR
ECUE1H103ZFV ECUE1H103ZFV CAPACITOR
ECUE1C104ZFV ECUE1C104ZFV CAPACITOR
ECQB1H223JF3 ECQB1H223JF3 CAPACITOR
ECQV1H104JZ3M ECQV1H104JZ3M CAPACITOR
ECQB1H103KF ECQB1H103KF CAPACITOR
ECQB1562JF ECQB1562JF CAPACITOR
ECJ2VC1H101J ECJ2VC1H101J CAPACITOR
ECJ2VB1E104K ECJ2VB1E104K CAPACITOR
ECJ1XF1H103Z ECJ1XF1H103Z CAPACITOR
ECJ1VF1E104Z ECJ1VF1E104Z CAPACITOR
ECJ1VF1C224Z ECJ1VF1C224Z CAPACITOR
F1H1C1040004 F1H1C1040004 CAPACITOR
ECJ1XF1A105Z ECJ1XF1A105Z CAPACITOR
ECJ1VC1H820J ECJ1VC1H820J CAPACITOR
ECJ1XC1H331J ECJ1XC1H331J CAPACITOR
ECJ1XC1H330J ECJ1XC1H330J CAPACITOR
ECJ1VC1H270J ECJ1VC1H270J CAPACITOR
ECJ1VC1H220J ECJ1VC1H220J CAPACITOR
ECJ1XC1H180J ECJ1XC1H180J CAPACITOR
ECJ1XC1H151J ECJ1XC1H151J CAPACITOR
ECJ1XC1H150J ECJ1XC1H150J CAPACITOR
ECUX1H101JCV ECUX1H101JCV CAPACITOR
ECJ1VB1H561K ECJ1VB1H561K CAPACITOR
ECJ1XB1H472K ECJ1XB1H472K CAPACITOR
ECJ1VB1H471K ECJ1VB1H471K CAPACITOR
ECJ1VB1H392K ECJ1VB1H392K CAPACITOR
ECJ1VB1H333K ECJ1VB1H333K CAPACITOR
ECJ1VB1H223K ECJ1VB1H223K CAPACITOR
ECJ1VB1H182K ECJ1VB1H182K CAPACITOR
ECJ1XB1H153K ECJ1XB1H153K CAPACITOR
ECJ1VB1H152K ECJ1VB1H152K CAPACITOR
ECJ1VB1H103K ECJ1VB1H103K CAPACITOR
ECJ1VB1H102K ECJ1VB1H102K CAPACITOR
ECJ1VB1E333K ECJ1VB1E333K CAPACITOR
ECJ1VB1E223K ECJ1VB1E223K CAPACITOR
ECJ1VB1E104K ECJ1VB1E104K CAPACITOR
ECUM1E103KBV ECUM1E103KBV CAPACITOR
ECJ1VB1C563K ECJ1VB1C563K CAPACITOR
ECJ1VB1C223K ECJ1VB1C223K CAPACITOR
ECJ1XB1C104K ECJ1XB1C104K CAPACITOR
ECJ1VB1A224K ECJ1VB1A224K CAPACITOR
ECJ1VB0J474K ECJ1VB0J474K CAPACITOR
VCESR2D820XE VCESR2D820XE CAPACITOR
ECEA1PEE331 ECEA1PEE331 CAPACITOR
ECEA1HKAR47B ECEA1HKAR47B CAPACITOR
E50HU54R7M E50HU54R7M CAPACITOR
ECBT1HKA3R3B ECBT1HKA3R3B CAPACITOR
ECEA1CK220 ECEA1CK220 CAPACITOR
ECEA1CKA470B ECEA1CKA470B CAPACITOR
ECEA1CKA330B ECEA1CKA330B CAPACITOR
ECEA1CKA220 ECEA1CKA220 CAPACITOR
ECEA0JKN220I ECEA0JKN220I CAPACITOR
ERJ2GEJ223X ERJ2GEJ223X CAPACITOR
ECEA0JKA221 ECEA0JKA221 CAPACITOR
ECA1HM470I ECA1HM470I CAPACITOR
ECA1EM331B ECA1EM331B CAPACITOR
ECA1EM221B ECA1EM221B CAPACITOR
ECA1EM101I ECA1EM101I CAPACITOR
ECEA1CKS101B ECEA1CKS101B CAPACITOR
ECEA0JKS220I ECEA0JKS220I CAPACITOR
ECEA0JKS330 ECEA0JKS330 CAPACITOR
ECEA1CU101 ECEA1CU101 CAPACITOR
F1H1A105A025 F1H1A105A025 CAPACITOR
ECJ1VC1H151J ECJ1VC1H151J CAPACITOR
ECKATS332ME8 ECKATS332ME8 CAPACITOR
ECKF1H103ZF ECKF1H103ZF CAPACITOR
F2A0J331A283 F2A0J331A283 CAPACITOR (DISCONTINUED)
VEM0800 VEM0800 CAPSTAN
LSXY0541 LSXY0541 CASSETTE UP
VXP2168 VXP2168 CLUTCH
VXP2133-2 VXP2133-2 CLUTCH
VLQSAB7D100K VLQSAB7D100K COIL
J1ZZA0000001 J1ZZA0000001 COIL
G1C120JA0036 G1C120JA0036 COIL
G0C4R7JA0019 G0C4R7JA0019 COIL
G0C1R5KA0030 G0C1R5KA0030 COIL
G0A220G00018 G0A220G00018 COIL
ELEXT680KE04 ELEXT680KE04 COIL
ELEXT560KE04 ELEXT560KE04 COIL
ELEXT330KE04 ELEXT330KE04 COIL
ELEXT150KE04 ELEXT150KE04 COIL
ELEXT101KE04 ELEXT101KE04 COIL
ELESN471KA ELESN471KA COIL
ELESN470KA ELESN470KA COIL
K1MZ02A00003 K1MZ02A00003 CONNECTOR
K1MN09A00029 K1MN09A00029 CONNECTOR
K1MN07A00017 K1MN07A00017 CONNECTOR
K1MN06A00030 K1MN06A00030 CONNECTOR
K1KA08A00290 K1KA08A00290 CONNECTOR
K1KA02A00375 K1KA02A00375 CONNECTOR
LSKM1039 LSKM1039 COVER
EUR77EC0903B EUR77EC0903B COVER (DISCONTINUED)
VEKS9440 VEKS9440 DIODE
MAZ4120NLF MAZ4120NLF DIODE
MAZ4110NHF MAZ4110NHF DIODE
MAZ4047NMF MAZ4047NMF DIODE
MA4036M MA4036M DIODE
MA2C18500E MA2C18500E DIODE
TVS1N4148V TVS1N4148V DIODE
DB105G DB105G DIODE
B1AAQB000002 B1AAQB000002 DIODE
B0JANG000006 B0JANG000006 DIODE
B0JANE000022 B0JANE000022 DIODE
B0JANE000011 B0JANE000011 DIODE
B0JANE000028 B0JANE000028 DIODE
B0JAME000049 B0JAME000049 DIODE
B0JAME000082 B0JAME000082 DIODE
B0JAGE000001 B0JAGE000001 DIODE
B0HAMP000069 B0HAMP000069 DIODE
B0HAMP000061 B0HAMP000061 DIODE
B0HAJP000007 B0HAJP000007 DIODE
B0HAHP000014 B0HAHP000014 DIODE
B0EBKR000030 B0EBKR000030 DIODE
B0EBKR000003 B0EBKR000003 DIODE
ERA15-01V3 ERA15-01V3 DIODE
B0AACK000004 B0AACK000004 DIODE
YEAD1SS133 YEAD1SS133 DIODE
B3NAA0000073 B3NAA0000073 DIODE
ECEA0JEE101B ECEA0JEE101B ECEA0JEE101B
ECEA0JU102 ECEA0JU102 ECEA0JU102
ECEAUCK100 ECEAUCK100 ECEA1CK100
ECEA1HKA2R2I ECEA1HKA2R2I ECEA1HKS2R2
SCEA2DU820X SCEA2DU820X ECEA2DU820YE
ECKF1H103ZF5 ECKF1H103ZF5 ECKF1H103ZF
ELESN101KA ELESN101KA ELESE101K
ERDS2FJ100 ERDS2FJ100 ERD25FJ100P
ERDS2EJ121 ERDS2EJ121 ERD25FJ121K
ERDSTJ151 ERDSTJ151 ERD25FJ151K
ERDS2TJ750TD ERDS2TJ750TD ERD25FJ750
ERDS2TJ473 ERDS2TJ473 ERD25TJ473
ERDS2FJ123 ERDS2FJ123 ERDS2FJ123
ERDS2TJ680 ERDS2TJ680 ERDS2FJ680
ERDS2TJ105 ERDS2TJ105 ERDS2TJ105
ERDS2FJ152 ERDS2FJ152 ERDS2TJ152
ERDS2TJ153TD ERDS2TJ153TD ERDS2TJ153T
ERD10TLJ332 ERD10TLJ332 ERDS2TJ332T
RC07-330K5 RC07-330K5 ERDS2TJ334
ERDS2TJ470 ERDS2TJ470 ERDS2TJ470
ERDS2FJ560 ERDS2FJ560 ERDS2TJ560
ERJ3GEYJ333 ERJ3GEYJ333 ERJ3GEYG333
ERJ3GEYJ471V ERJ3GEYJ471V ERJ3GEYG471
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ101 ERJ3GEYJ101 ERJ3GEYJ101
D0GB181JA057 D0GB181JA057 ERJ3GEYJ181
ERJ3GEYJ1R5 ERJ3GEYJ1R5 ERJ3GEYJ1R5
ERJ3GEYJ271V ERJ3GEYJ271V ERJ3GEYJ221
ERJ3GEYJ272 ERJ3GEYJ272 ERJ3GEYJ272
D0GB393JA041 D0GB393JA041 ERJ3GEYJ393
ERJ3GEYJ562 ERJ3GEYJ562 ERJ3GEYJ562
ERJ6GEY0R00A ERJ6GEY0R00A ERJ6GEY0R00V
ERJ6GEYG222 ERJ6GEYG222 ERJ6GEYG103
ERJ6GEYG681 ERJ6GEYG681 ERJ6GEYJ681
J0HBLD000001 J0HBLD000001 FILTER
G0B183E00002 G0B183E00002 FILTER
LSJW0061 LSJW0061 FLEXIBLE CABLE
LSKA0012 LSKA0012 FOOT
VXA7311 VXA7311 GEAR
VDG1637 VDG1637 GEAR
VDG1512 VDG1512 GEAR
VDG1511 VDG1511 GEAR
VDG1510 VDG1510 GEAR
VKFS0081 VKFS0081 GREASE
HG-308 HG-308 GREASE
LSEH0008 LSEH0008 HEAD
L1AZ00000004 L1AZ00000004 HEAD
VFK27 VFK27 HEAD CLEANER
VXA7110 VXA7110 HOLDER
VXA7106 VXA7106 HOLDER
VXA7105 VXA7105 HOLDER
VMD4983 VMD4983 HOLDER
RJR0169T RJR0169T HOLDER
LSEQ0716 LSEQ0716 IC
C2CBHF000329 C2CBHF000329 IC
C1AB00002002 C1AB00002002 IC
C1AB00001915 C1AB00001915 IC
C1AB00001767 C1AB00001767 IC
C0EBH0000172 C0EBH0000172 IC
C0DAEMZ00001 C0DAEMZ00001 IC
AN3663FBP-V AN3663FBP-V IC
G0C271JA0019 G0C271JA0019 INDUCTOR
LSQF0765 LSQF0765 INSTRUCT BOOK
K2HA608B0002 K2HA608B0002 JACK
K2HA306B0058 K2HA306B0058 JACK
VEM0751 VEM0751 KIT
B3EA00000072 B3EA00000072 LED
VXL3124 VXL3124 LEVER
VML3624 VML3624 LEVER
LSML0367 LSML0367 LEVER
VEM0796 VEM0796 MOTOR
VEM0794 VEM0794 MOTOR
VMD4252 VMD4252 OPENER
H0D357400068 H0D357400068 OSCILLATOR
H0D120500017 H0D120500017 OSCILLATOR
PVV4624S_EX PVV4624S_EX OTC VIDEO
LSPN0460 LSPN0460 PACKAGING
LSPN0459 LSPN0459 PACKAGING
LSPG1655 LSPG1655 PACKAGING
VYPS7161 VYPS7161 PANEL
LSGP0382 LSGP0382 PANEL
B3CJZ0000004 B3CJZ0000004 PANEL
LSEP2131HB LSEP2131HB PC BOARD
VMD4985 VMD4985 PLATE
VMD4255 VMD4255 PLATE
VMA0L25 VMA0L25 PLATE
LSSC0677 LSSC0677 PLATE
LSJA0348 LSJA0348 PLUG
VMD4253 VMD4253 PRISM
LSSQ0407 LSSQ0407 REMOTE CONTROL
VRESC2TK275C VRESC2TK275C RESISTOR
ERX1SJR33P ERX1SJR33P RESISTOR
ERJ6GEYK4R7 ERJ6GEYK4R7 RESISTOR
ERJ6GEYJ471V ERJ6GEYJ471V RESISTOR
ERJ6GMYG221 ERJ6GMYG221 RESISTOR
ERJ6GEYJ122V ERJ6GEYJ122V RESISTOR
ERJ6GEYG104 ERJ6GEYG104 RESISTOR
ERJ3GEYJ822V ERJ3GEYJ822V RESISTOR
ERJ3GEJ750V ERJ3GEJ750V RESISTOR
ERJ3GEYJ685V ERJ3GEYJ685V RESISTOR
ERJ3GEYJ682V ERJ3GEYJ682V RESISTOR
ERJ3GEYJ681 ERJ3GEYJ681 RESISTOR
ERJ3GEYJ561V ERJ3GEYJ561V RESISTOR
ERJ3GEYJ475V ERJ3GEYJ475V RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYJ392V ERJ3GEYJ392V RESISTOR
ERJ3GEYJ391V ERJ3GEYJ391V RESISTOR
ERJ3GEYJ334V ERJ3GEYJ334V RESISTOR
ERJ3GEYJ332V ERJ3GEYJ332V RESISTOR
ERJ3GEYJ273 ERJ3GEYJ273 RESISTOR
ERJ3GEYJ223V ERJ3GEYJ223V RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ1R2V ERJ3GEYJ1R2V RESISTOR
ERJ3GEYJ183V ERJ3GEYJ183V RESISTOR
ERJ3GEYJ182V ERJ3GEYJ182V RESISTOR
ERJ3GEYJ153V ERJ3GEYJ153V RESISTOR
ERJ3GEYG152 ERJ3GEYG152 RESISTOR
ERJ3GEYJ124 ERJ3GEYJ124 RESISTOR
ERJ3GEYJ123V ERJ3GEYJ123V RESISTOR
ERJ3GEYJ105 ERJ3GEYJ105 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ103V ERJ3GEYJ103V RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RESISTOR
ERJ3GEYJR00V ERJ3GEYJR00V RESISTOR
ERJ3EKF2202V ERJ3EKF2202V RESISTOR
ERJ3EKF1002 ERJ3EKF1002 RESISTOR
ERD25TJ3R3 ERD25TJ3R3 RESISTOR
ERDS2TJ272 ERDS2TJ272 RESISTOR
VRESF4FJ100P VRESF4FJ100P RESISTOR
ERJ6ENF8251 ERJ6ENF8251 RESISTOR
ERJ6ENF8060 ERJ6ENF8060 RESISTOR
ECA0JM471I ECA0JM471I RESISTOR
D1BD2431A016 D1BD2431A016 RESISTOR
D0HD222ZA002 D0HD222ZA002 RESISTOR
ERDS2FJ331 ERDS2FJ331 RESISTOR
ERG2SJS331H ERG2SJS331H RESISTOR
ERJ6GEYJ101V ERJ6GEYJ101V RESISTOR
ERJ6GEYK4R7V ERJ6GEYK4R7V RESISTOR
XTV4_12BFX XTV4_12BFX SCREW
XTV26_8FR XTV26_8FR SCREW
XTV26_5F XTV26_5F SCREW
XTN26_7J XTN26_7J SCREW
XTB3_6JFN XTB3_6JFN SCREW
XTB3_5JFN XTB3_5JFN SCREW
VHDS0460 VHDS0460 SCREW
VHD1117 VHD1117 SCREW
VHD1095 VHD1095 SCREW
VHD1044 VHD1044 SCREW
LSHD0074 LSHD0074 SCREW
XTV4_12A XTV4_12A SCREW
VHDS0310 VHDS0310 SCREW (1/10)
XSN3_35 XSN3_35 SCREW (Z)
VXL3160 VXL3160 SHAFT
LSPF0056 LSPF0056 SHEET
VMBS1161 VMBS1161 SPRING
VMB3550 VMB3550 SPRING
VMB3548 VMB3548 SPRING
VMB3547 VMB3547 SPRING
K0ZZ00000598 K0ZZ00000598 SWITCH
K0C111A00006 K0C111A00006 SWITCH
EVQ11A09K EVQ11A09K SWITCH
VDR0372 VDR0372 TABLE
VMFS0003H6 VMFS0003H6 TAPE
VFK0330 VFK0330 TEST TOOL
RFKZ0492 RFKZ0492 TEST TOOL
LSTP0126 LSTP0126 TRANSFORMER
G2A252C00002 G2A252C00002 TRANSFORMER
UNR221300L UNR221300L TRANSISTOR
UNR221100L UNR221100L TRANSISTOR
UNR211200L UNR211200L TRANSISTOR
UNR211100L UNR211100L TRANSISTOR
DTC114EK-TX DTC114EK-TX TRANSISTOR
DTA124EK-TX DTA124EK-TX TRANSISTOR
B1GDCFJJ0002 B1GDCFJJ0002 TRANSISTOR
B1GBCFNN0004 B1GBCFNN0004 TRANSISTOR
B1DEEQ000006 B1DEEQ000006 TRANSISTOR
B1ADCF000078 B1ADCF000078 TRANSISTOR
B1ADCF000077 B1ADCF000077 TRANSISTOR
B1ADCF000001 B1ADCF000001 TRANSISTOR
B1ABGC000003 B1ABGC000003 TRANSISTOR
B1ABGC000001 B1ABGC000001 TRANSISTOR
B1ABCF000107 B1ABCF000107 TRANSISTOR
B1ABCF000020 B1ABCF000020 TRANSISTOR
B1ABCF000011 B1ABCF000011 TRANSISTOR
2SD2097TV2R 2SD2097TV2R TRANSISTOR
2SD1819AHL 2SD1819AHL TRANSISTOR
B1ABCC000004 B1ABCC000004 TRANSISTOR
2SC3311AHA 2SC3311AHA TRANSISTOR
2SB0709AHL 2SB0709AHL TRANSISTOR
B1ADCC000004 B1ADCC000004 TRANSISTOR
B1BACC000010 B1BACC000010 TRANSISTOR
B1DEEQ000001 B1DEEQ000001 TRANSISTOR
ENG56D01G1F ENG56D01G1F TUNER
LSSZ0007 LSSZ0007 UNIT
ERZV07Z361CS ERZV07Z361CS VARISTOR
VLQS0166 VLQS0166 VLQS0167
VRESC2TK275 VRESC2TK275 VRESC2TK275T
VMX3196 VMX3196 WASHER
VMX2699 VMX2699 WASHER
VMX2208 VMX2208 WASHER
LSEK0540 LSEK0540 WIRE
XTV3_12G XTV3_12G XTV3+12GFZ
Main Menu x
