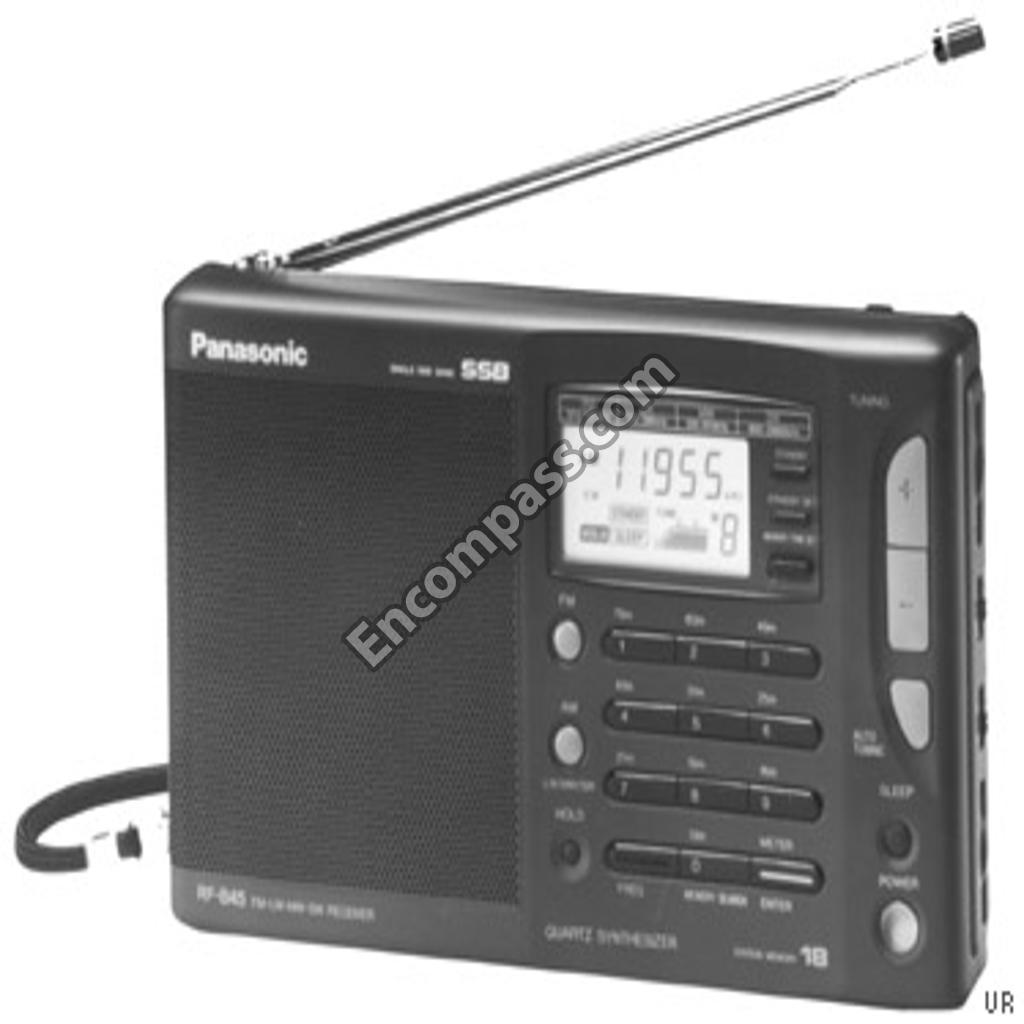

Model Image
Manufacturer

Panasonic

Model Number

RFB45

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
2SD709RS 2SD709RS 2SB709S
2SC4973-CDTX 2SC4973-CDTX 2SC2404-BCD
2SD601-RS 2SD601-RS 2SD601A-R
2SK238K16TW 2SK238K16TW 2SK238K16TX
RP66 RP66 ADAPTER (DISCONTINUED)
RPK0285 RPK0285 BOX
RPK0284 RPK0284 BOX
RPK0283 RPK0283 BOX
RMS12B RMS12B BRACKET
RGV0079-K RGV0079-K BUTTON
RGU0618-H RGU0618-H BUTTON
RGU0615-H RGU0615-H BUTTON
RFKHFB45E RFKHFB45E CABINET
VCUSTBH820JC VCUSTBH820JC CAPACITOR
RCST0GY685LG RCST0GY685LG CAPACITOR
ECUV1H681KN ECUV1H681KN CAPACITOR
ECUV1H680KCN ECUV1H680KCN CAPACITOR
NCUV1H390JCN NCUV1H390JCN CAPACITOR
ECUV1H332MBN ECUV1H332MBN CAPACITOR
ECUV1H330KCN ECUV1H330KCN CAPACITOR
ECUV1H270JCN ECUV1H270JCN CAPACITOR
ECUV1H221KN ECUV1H221KN CAPACITOR
ECUV1H220KCN ECUV1H220KCN CAPACITOR
ECUV1H150KCN ECUV1H150KCN CAPACITOR
ECUV1H102MBN ECUV1H102MBN CAPACITOR
ECUV1H101KN ECUV1H101KN CAPACITOR
ECUV1H100DCN ECUV1H100DCN CAPACITOR
ECUV1H070DCN ECUV1H070DCN CAPACITOR
ECUV1H050CCN ECUV1H050CCN CAPACITOR
ECUV1H030CCN ECUV1H030CCN CAPACITOR
ECUV1H020CCN ECUV1H020CCN CAPACITOR
ECUV1E333MBN ECUV1E333MBN CAPACITOR
ECUV1E223ZFN ECUV1E223ZFN CAPACITOR
ECUV1E223MBN ECUV1E223MBN CAPACITOR
ECUV1E104ZFG ECUV1E104ZFG CAPACITOR
ECUV1E103MBN ECUV1E103MBN CAPACITOR
ECUV1C105ZFN ECUV1C105ZFN CAPACITOR
ECUV1C104KB ECUV1C104KB CAPACITOR
ECEA1AK330I ECEA1AK330I CAPACITOR
ECEA0JK221X ECEA0JK221X CAPACITOR
ECEA0GK101I ECEA0GK101I CAPACITOR
ECQM1H473JV ECQM1H473JV CAPACITOR
ECQM1H472MZ3 ECQM1H472MZ3 CAPACITOR
RPK0271 RPK0271 CARTON
RFC0013 RFC0013 CASE
RL09A002-M RL09A002-M COIL
RL04N256-0 RL04N256-0 COIL
RL04N253-0 RL04N253-0 COIL
RL04N125-0 RL04N125-0 COIL
RL03B004-T RL03B004-T COIL
RLV6E001-0 RLV6E001-0 COIL
RLQZP680KT-Y RLQZP680KT-Y COIL
RLQZP221KT-Y RLQZP221KT-Y COIL
RLQZP220KT-Y RLQZP220KT-Y COIL
RLQZP181KT-Y RLQZP181KT-Y COIL
RLQZP101KT-Y RLQZP101KT-Y COIL
RLQZP1R5MT-Y RLQZP1R5MT-Y COIL
RLQZP1R0MT-Y RLQZP1R0MT-Y COIL
RLQZPR56MT-Y RLQZPR56MT-Y COIL
RLQZPR47MT-Y RLQZPR47MT-Y COIL
RLQZPR22MT-Y RLQZPR22MT-Y COIL
RLK4B003-M RLK4B003-M COIL
RLK4B002-M RLK4B002-M COIL
RLI4B011-M RLI4B011-M COIL
RLI3B003-T RLI3B003-T COIL
RLI3B002-T RLI3B002-T COIL
RLI3B001-T RLI3B001-T COIL
RLI2B006-T RLI2B006-T COIL
RLI2B005-M RLI2B005-M COIL
RLFFETWNA01L RLFFETWNA01L COIL
RLA6C1-T RLA6C1-T COIL
RELJHC6R8KTD RELJHC6R8KTD COIL
RELJHC1R0KTD RELJHC1R0KTD COIL
RELJFCR47KTD RELJFCR47KTD COIL
RCRBWT001-H RCRBWT001-H COMBINATION
REX0365 REX0365 CONNECTOR
EVUJ05T02D54 EVUJ05T02D54 CONTROL
EVUJ05T02B15 EVUJ05T02B15 CONTROL
EVND4AA00B54 EVND4AA00B54 CONTROL
0A90A-M 0A90A-M DIODE
RVD1SS135TA RVD1SS135TA DIODE
RVDSVC203ATW RVDSVC203ATW DIODE
MA729TW MA729TW DIODE
MA728 MA728 DIODE
MA724TW MA724TW DIODE
MA2C70000F MA2C70000F DIODE
MA553 MA553 DIODE
LN376GCPX-23 LN376GCPX-23 DIODE
IMN11T110 IMN11T110 DIODE
RSL5049-L RSL5049-L DISPLAY
ECEA0JU221E ECEA0JU221E ECEA0JKS221
ECEA0JU102 ECEA0JU102 ECEA0JU102
ECEA1AU101 ECEA1AU101 ECEA1AU101
ECEA1US221 ECEA1US221 ECEA1CU221
ECEA1HKA2R2I ECEA1HKA2R2I ECEA1HKA2R2
ECEA1HK0R1 ECEA1HK0R1 ECEA1HKK0R1
ECUV1H474JZ ECUV1H474JZ ECQV1H474JZ
ERJ6GEYJ102Z ERJ6GEYJ102Z ERJ6GEYF102
ERJ6GEYJ472V ERJ6GEYJ472V ERJ6GEYF472
ERJ6GEYG222 ERJ6GEYG222 ERJ6GEYG103
ERJ6GEYG151 ERJ6GEYG151 ERJ6GEYG151
ERJ6GEYJ330 ERJ6GEYJ330 ERJ6GEYG330
ERJ6GEYJ332 ERJ6GEYJ332 ERJ6GEYG332
ERJ6GEYJ470 ERJ6GEYJ470 ERJ6GEYG470
ERJ6GEYJ100 ERJ6GEYJ100 ERJ6GEYJ100
ERJ6GEYJ220 ERJ6GEYJ220 ERJ6GEYJ220
ERJ6GEYJ223 ERJ6GEYJ223 ERJ6GEYJ223
ERJ6GEYF473 ERJ6GEYF473 ERJ6GEYJ473
ERJ6GEYG681 ERJ6GEYG681 ERJ6GEYJ681
ERJ6GEYJ682V ERJ6GEYJ682V ERJ6GEYJ682
ERJ6GEYJ683 ERJ6GEYJ683 ERJ6GEYJ683
RLFASFR459I1 RLFASFR459I1 FILTER
RQCA0122 RQCA0122 GUIDE
RMR0464 RMR0464 HOLDER
S80734ANDYT1 S80734ANDYT1 IC
LA1207 LA1207 IC
AN7205 AN7205 IC
RQT1135Y RQT1135Y INSTRUCT BOOK
RJJD5M2ZA-H RJJD5M2ZA-H JACK
RJJD3M8ZA-C RJJD3M8ZA-C JACK
MA151WK-TX MA151WK-TX MA151WK
YEADGMB01 YEADGMB01 MA165
MA4120M MA4120M MA4120M
RGK0403B-H RGK0403B-H ORNAMENT
RGK0403A-H RGK0403A-H ORNAMENT
RSXZ459KM01 RSXZ459KM01 OSCILLATOR
RSXD75K0S05 RSXD75K0S05 OSCILLATOR
RSXB55M8S01 RSXB55M8S01 OSCILLATOR
RSXA55M4S01 RSXA55M4S01 OSCILLATOR
RFB45_EX RFB45_EX OTC AUDIO
RPN5131ZA RPN5131ZA PACKING PART
RPN0533 RPN0533 PACKING PART
RPN0506 RPN0506 PACKING PART
RKB205ZA-0 RKB205ZA-0 PAD 1/2
RFKKFB45PP RFKKFB45PP PANEL
RFKKFB45E RFKKFB45E PANEL
RFKJFB45PP RFKJFB45PP PANEL
RFKHFB45PP RFKHFB45PP PANEL
RFKNFB45PP RFKNFB45PP PLATE
RJP14G17ZA RJP14G17ZA PLUG
ERJ6GEY0R00A ERJ6GEY0R00A RESISTOR
ERJ6GEYJ471V ERJ6GEYJ471V RESISTOR
ERJ6GEYF333 ERJ6GEYF333 RESISTOR
ERJ6GEYJ331V ERJ6GEYJ331V RESISTOR
ERJ6GEYG272 ERJ6GEYG272 RESISTOR
ERJ6GEYJ224Z ERJ6GEYJ224Z RESISTOR
ERJ6GMYG221 ERJ6GMYG221 RESISTOR
ERJ6GEYJ153V ERJ6GEYJ153V RESISTOR
ERJ6GEYJ152V ERJ6GEYJ152V RESISTOR
ERJ6GEYJ105V ERJ6GEYJ105V RESISTOR
ERJ6GEYG104 ERJ6GEYG104 RESISTOR
ERJ6GEYJ101V ERJ6GEYJ101V RESISTOR
SCEA1HK3R3I SCEA1HK3R3I RESISTOR
ERJ6GEJ153V ERJ6GEJ153V RESISTOR
ERJ3RHD183S ERJ3RHD183S RESISTOR
ERJ3GEYJ225V ERJ3GEYJ225V RESISTOR
ERJ2GEJ101X ERJ2GEJ101X RESISTOR
XUC3VM XUC3VM RFKVXUC3FT
XYN3_C8FZ XYN3_C8FZ SCREW
XTN26_28JFZ XTN26_28JFZ SCREW
XTN26_12JFZ XTN26_12JFZ SCREW
XSHR17_3FZ XSHR17_3FZ SCREW
XTV26_8G XTV26_8G SCREW (1/10)
RPH554ZA RPH554ZA SHEET
RSS3B38ZA-M RSS3B38ZA-M SWITCH
RSS2B57Z RSS2B57Z SWITCH
RSS2B006-M RSS2B006-M SWITCH
EVQPTD05Q EVQPTD05Q SWITCH
RJT1073ZA RJT1073ZA TERMINAL
RJC93010 RJC93010 TERMINAL
RJC70011 RJC70011 TERMINAL
RJC30010 RJC30010 TERMINAL
RLI2A003-M RLI2A003-M TRANSFORMER
RLA3Z11-0 RLA3Z11-0 TRANSFORMER
2SK436A21TW 2SK436A21TW TRANSISTOR
RVTFMG5TW RVTFMG5TW TRANSISTOR
XEH1A1P XEH1A1P XEH1A1-BA
