Model Image
Manufacturer

Panasonic

Model Number

RRUS380

Description

Ic Recorder

Interactive Exploded View

Parts List

Part Number Description
RGU2272-R RGU2272-R BUTTON
RGU2271-S RGU2271-S BUTTON
RGU2270D-K RGU2270D-K BUTTON
RGU2269-S RGU2269-S BUTTON
RYK1355J-K RYK1355J-K CABINET
RKS0393E-K RKS0393E-K CABINET
F3F1A106A001 F3F1A106A001 CAP
F3E0J106A001 F3E0J106A001 CAP
F3H0J227A001 F3H0J227A001 CAPACITOR
F3F0J226A004 F3F0J226A004 CAPACITOR
F3F0J106A007 F3F0J106A007 CAPACITOR
F2H0J2210006 F2H0J2210006 CAPACITOR
F2H0G221A001 F2H0G221A001 CAPACITOR
F2H0G101A001 F2H0G101A001 CAPACITOR
F2G0G2200001 F2G0G2200001 CAPACITOR
F1G1E223A095 F1G1E223A095 CAPACITOR
F1G0J105A001 F1G0J105A001 CAPACITOR
EEE0GA331WP EEE0GA331WP CAPACITOR
ECJ1VB0J474K ECJ1VB0J474K CAPACITOR
ECJ0EC1H101J ECJ0EC1H101J CAPACITOR
ECJ0EC1H050D ECJ0EC1H050D CAPACITOR
ECJ0EB1H222K ECJ0EB1H222K CAPACITOR
ECJ0EB1C223K ECJ0EB1C223K CAPACITOR
ECJ0EB1C103K ECJ0EB1C103K CAPACITOR
ECJ0EB1A104K ECJ0EB1A104K CAPACITOR
F1G1H102A401 F1G1H102A401 CAPACITOR
RGQ0386-S RGQ0386-S CLIP
VLP0323A601R VLP0323A601R COIL
G1C470Z00014 G1C470Z00014 COIL
RMR1603-H2 RMR1603-H2 CONNECTOR
K1KA02B00236 K1KA02B00236 CONNECTOR
RKK0176F-K RKK0176F-K COVER
RKF0685-H1 RKF0685-H1 COVER
1SS355 1SS355 DIODE
MA735TX MA735TX DIODE
MA2S728 MA2S728 DIODE
MA2S11100L MA2S11100L DIODE
B3AAB0000037 B3AAB0000037 DIODE
J0JBD0000045 J0JBD0000045 FERRITE BEAD
J0JAC0000055 J0JAC0000055 FERRITE BEAD
RMR1604-K RMR1604-K HOLDER
MN101C38CLK MN101C38CLK IC
C3FBRC000021 C3FBRC000021 IC
C2HBBJ000042 C2HBBJ000042 IC
C1DB00001308 C1DB00001308 IC
C0JBAE000302 C0JBAE000302 IC
C0JBAB000698 C0JBAB000698 IC
C0JBAB000614 C0JBAB000614 IC
C0EBD0000074 C0EBD0000074 IC
C0EBB0000036 C0EBB0000036 IC
C0DBAGC00020 C0DBAGC00020 IC
C0CBACB00009 C0CBACB00009 IC
C0ABAB000112 C0ABAB000112 IC
RQT7868-P RQT7868-P INSTRUCT BOOK
K2HZ105E0009 K2HZ105E0009 JACK
K2HC104E0005 K2HC104E0005 JACK
K2HC103E0014 K2HC103E0014 JACK
RGV0331A-H RGV0331A-H KNOB
RGV0330-S RGV0330-S KNOB
L5AAACC00006 L5AAACC00006 LCD
RJM0019 RJM0019 MICROPHONE
RGK1743C-K RGK1743C-K ORNAMENT
H2D819400002 H2D819400002 OSCILLATOR
H2D120500012 H2D120500012 OSCILLATOR
H2D120500007 H2D120500007 OSCILLATOR
H0J327200115 H0J327200115 OSCILLATOR
RPQ1880 RPQ1880 PACKAGING
RPQ1879 RPQ1879 PACKAGING
RPQ1723 RPQ1723 PACKAGING (DISCONTINUED)
RPN1678 RPN1678 PACKAGING (DISCONTINUED)
RPN1508-1 RPN1508-1 PACKING
RGP1049-Q RGP1049-Q PANEL
REP3680H-M REP3680H-M PC BOARD
BX-PHONEPAD BX-PHONEPAD PRC
ERY32SB075VA ERY32SB075VA RESISTOR
ERJ3GEYJ1R0V ERJ3GEYJ1R0V RESISTOR
ERJ2RHD912 ERJ2RHD912 RESISTOR
ERJ2RHD562 ERJ2RHD562 RESISTOR
ERJ2RHD362X ERJ2RHD362X RESISTOR
ERJ2RHD272 ERJ2RHD272 RESISTOR
ERJ2RHD202 ERJ2RHD202 RESISTOR
ERJ2RHD183 ERJ2RHD183 RESISTOR
ERJ2RHD152 ERJ2RHD152 RESISTOR
ERJ2RHD122 ERJ2RHD122 RESISTOR
ERJ2RHD112 ERJ2RHD112 RESISTOR
ERJ2RHD103 ERJ2RHD103 RESISTOR
ERJ2GE0R00X ERJ2GE0R00X RESISTOR
ERJ2GEJ820X ERJ2GEJ820X RESISTOR
ERJ2GEJ334 ERJ2GEJ334 RESISTOR
ERJ2GEJ6R8X ERJ2GEJ6R8X RESISTOR
ERJ2GEJ563 ERJ2GEJ563 RESISTOR
ERJ2GEJ514 ERJ2GEJ514 RESISTOR
ERJ2GEJ475 ERJ2GEJ475 RESISTOR
ERJ2GEJ474 ERJ2GEJ474 RESISTOR
ERJ2GEJ473 ERJ2GEJ473 RESISTOR
ERJ2GEJ4R7X ERJ2GEJ4R7X RESISTOR
ERJ2GEJ332 ERJ2GEJ332 RESISTOR
ERJ2GEJ274 ERJ2GEJ274 RESISTOR
ERJ2GEJ270 ERJ2GEJ270 RESISTOR
ERJ2GEJ223X ERJ2GEJ223X RESISTOR
ERJ2GEJ222X ERJ2GEJ222X RESISTOR
ECEA0JKA221 ECEA0JKA221 RESISTOR
ERJ2GEJ154 ERJ2GEJ154 RESISTOR
ERJ2GEJ152 ERJ2GEJ152 RESISTOR
ERJ2GEJ105 ERJ2GEJ105 RESISTOR
ERJ2GEJ104 ERJ2GEJ104 RESISTOR
ERJ2GEJ103X ERJ2GEJ103X RESISTOR
ERJ2GEJ102X ERJ2GEJ102X RESISTOR
ERJ2GEJ101X ERJ2GEJ101X RESISTOR
ERJ2GEJ100X ERJ2GEJ100X RESISTOR
ERJ2GED563X ERJ2GED563X RESISTOR
D1H84744A024 D1H84744A024 RESISTOR
D1H84724A024 D1H84724A024 RESISTOR
D1H81024A024 D1H81024A024 RESISTOR
D1H447120002 D1H447120002 RESISTOR
D1H410320002 D1H410320002 RESISTOR
D1H410220001 D1H410220001 RESISTOR
ERJ2GEJ101 ERJ2GEJ101 RESISTOR
ERJ2GEJ223 ERJ2GEJ223 RESISTOR
ERJ2GEJ681 ERJ2GEJ681 RESISTOR
RHQ0051-K1 RHQ0051-K1 SCREW
RHE5162ZB RHE5162ZB SCREW
RHD20025-1 RHD20025-1 SCREW
RHD14124 RHD14124 SCREW
RQCS0539-B RQCS0539-B SHEET
RMZ0727 RMZ0727 SHEET
RMQ1355 RMQ1355 SPACER
RMG0645-W RMG0645-W SPACER
RAS3P16-U RAS3P16-U SPEAKER
RSS2A010-1A RSS2A010-1A SWITCH
K0KABA000012 K0KABA000012 SWITCH
K0H1BA000432 K0H1BA000432 SWITCH
EVQP7L01K EVQP7L01K SWITCH
RJC94018 RJC94018 TERMINAL
RJC80027 RJC80027 TERMINAL
RJC40026-1 RJC40026-1 TERMINAL
2SD2216J0L 2SD2216J0L TRANSISTOR
UNR9115J0L UNR9115J0L TRANSISTOR
B1CFFB000001 B1CFFB000001 TRANSISTOR
B1ADKB000008 B1ADKB000008 TRANSISTOR

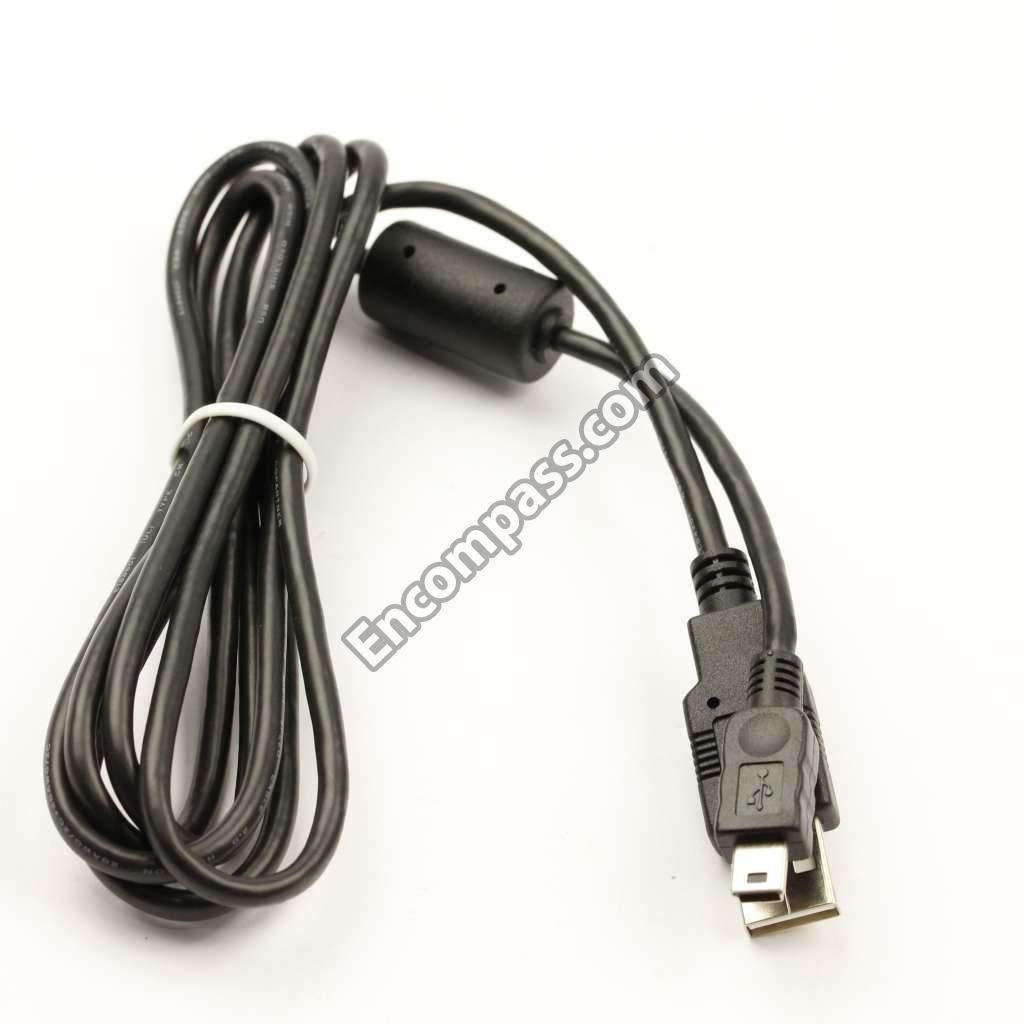

K2KZ4CB00010 K2KZ4CB00010 USB CABLE
REX1184 REX1184 WIRE
RFE0170B-S RFE0170B-S SOFTWARE - CD-RAM
