Model Image
Manufacturer

Panasonic

Model Number

RXD11PY

Description

Portable Stereo Cd System

Interactive Exploded View

Parts List

Part Number Description
RMA0109 RMA0109 ANGLE
RML0116 RML0116 ANGLE
RLV2C046-0 RLV2C046-0 ANTENNA
RML0080-1 RML0080-1 ARM
RGB0061-S RGB0061-S BADGE
RMA1080 RMA1080 BASE
RMR0149 RMR0149 BASE
RKK318ZC-94 RKK318ZC-94 BATTERY COVER
RDV0006-1 RDV0006-1 BELT
RDV0021-2 RDV0021-2 BELT
RMAX0046 RMAX0046 BRACKET
RMA0108 RMA0108 BRACKET
RGUX0344-S RGUX0344-S BUTTON
RGUX0345-S RGUX0345-S BUTTON
RGZX0034-H RGZX0034-H BUTTON
RKQX0010-S RKQX0010-S CABINET
RKSX0037-S RKSX0037-S CABINET
ECEA1AU471 ECEA1AU471 CAPACITOR
YFUGAC221BJ YFUGAC221BJ CAPACITOR
ECEA1CS222E ECEA1CS222E CAPACITOR
ECA1HM010 ECA1HM010 CAPACITOR
ECA1HM2R2 ECA1HM2R2 CAPACITOR
NCEA1HGE4R7B NCEA1HGE4R7B CAPACITOR
ECBT1C222MR5 ECBT1C222MR5 CAPACITOR
ECBT1C272MR5 ECBT1C272MR5 CAPACITOR
ECBT1C332MR5 ECBT1C332MR5 CAPACITOR
ECBT1C682MR5 ECBT1C682MR5 CAPACITOR
ECBT1H100JC5 ECBT1H100JC5 CAPACITOR
ERD50FJ332 ERD50FJ332 CAPACITOR
ECBT1H102KB5 ECBT1H102KB5 CAPACITOR
ERD50TJ1R0S ERD50TJ1R0S CAPACITOR
ECBT1H223KB5 ECBT1H223KB5 CAPACITOR
ECBT1H5R6KC5 ECBT1H5R6KC5 CAPACITOR
ECBT1H560J5 ECBT1H560J5 CAPACITOR
ECBT1H561KB5 ECBT1H561KB5 CAPACITOR
ECBT1H680J5 ECBT1H680J5 CAPACITOR
ECEA1CK220 ECEA1CK220 CAPACITOR
ECEC1HKS010 ECEC1HKS010 CAPACITOR
ECEA1HKA2R2I ECEA1HKA2R2I CAPACITOR
ECEA1HU0R1 ECEA1HU0R1 CAPACITOR
ECFR1C153MR ECFR1C153MR CAPACITOR
ECFR1C223MR ECFR1C223MR CAPACITOR
ECFR1C273MR ECFR1C273MR CAPACITOR
ECFR1C333MR ECFR1C333MR CAPACITOR
ECFR1C683MR ECFR1C683MR CAPACITOR
ECFR1C823MR ECFR1C823MR CAPACITOR
ECUVNC224KBN ECUVNC224KBN CAPACITOR
ECUVNE104MBN ECUVNE104MBN CAPACITOR
ECUVNE104ZFN ECUVNE104ZFN CAPACITOR
ECUV1E273KBN ECUV1E273KBN CAPACITOR
ECUV1E822KBN ECUV1E822KBN CAPACITOR
ECUV1H121KCN ECUV1H121KCN CAPACITOR
ECUV1H222KBN ECUV1H222KBN CAPACITOR
ECUV1H272KBN ECUV1H272KBN CAPACITOR
ECUV1H821KBN ECUV1H821KBN CAPACITOR
ECUZ1H102KBN ECUZ1H102KBN CAPACITOR
RCQB2A104KM RCQB2A104KM CAPACITOR
RCQB2A392KM RCQB2A392KM CAPACITOR
ECEA1CU222B ECEA1CU222B CAPACITOR
ECBA1H681KB5 ECBA1H681KB5 CAPACITOR
ECBT1H101K ECBT1H101K CAPACITOR
ECEA0JKS330 ECEA0JKS330 CAPACITOR
ERJ3RHD183V ERJ3RHD183V CAPACITOR
ECEA1AKS101IV ECEA1AKS101IV CAPACITOR
ECKF1H103ZF ECKF1H103ZF CAPACITOR
ECUV1H100DCN ECUV1H100DCN CAPACITOR
ECUZ1H471KBN ECUZ1H471KBN CAPACITOR
RJF0028 RJF0028 CLIP
RLFDFT20AL RLFDFT20AL COIL
RLQA2R2KT-G RLQA2R2KT-G COIL
RLQY30S1W-F RLQY30S1W-F COIL
RLQZB100KT-D RLQZB100KT-D COIL
RL02B131-T RL02B131-T COIL
RL09B17-T RL09B17-T COIL
RJP4G10Z RJP4G10Z CONNECTOR
RJS1A6719-1Q RJS1A6719-1Q CONNECTOR
RJS1A6819-J RJS1A6819-J CONNECTOR
RCVFMA10T01S RCVFMA10T01S CONTROL
RLD4Y45-F RLD4Y45-F CONTROL
RMVX0050 RMVX0050 COVER
RMVX0051 RMVX0051 COVER
RSXZ4M19Z01T RSXZ4M19Z01T CRYSTAL
KV1360NT KV1360NT DIODE
KV1520ATS2 KV1520ATS2 DIODE
MTZJ18BTA MTZJ18BTA DIODE
MTZJ5R1BTA MTZJ5R1BTA DIODE
MTZJ6R2C MTZJ6R2C DIODE
MTZJ7R5CTA MTZJ7R5CTA DIODE
RB441QT-77 RB441QT-77 DIODE
S1NB20-4101 S1NB20-4101 DIODE
RSL5257-G RSL5257-G DISPLAY
ECA1CM100GB ECA1CM100GB ECA1CM100GB
ECA1CM470B ECA1CM470B ECA1CM470B
F2A1E101A599 F2A1E101A599 ECA1CXL101
ECA1HMR22GB ECA1HMR22GB ECA1HMR22GB
ECBT1C103MS5 ECBT1C103MS5 ECBT1C103MS
ECEA1AKS221 ECEA1AKS221 ECEA0JKA221
ECEA1CKS101B ECEA1CKS101B ECEA0JKS101I
ECKF1H103ZF5 ECKF1H103ZF5 ECKF1H103ZF
PQCUV1H103KB PQCUV1H103KB ECUV1H103KBM
ECUV1H152KBV ECUV1H152KBV ECUV1H152KBV
ECUV1H181JCN ECUV1H181JCN ECUV1H181JCN
ERDS2TJ101 ERDS2TJ101 ERD25FJ101
ERDS2FJ104 ERDS2FJ104 ERD25FJ104K
ERDS2TJ105 ERDS2TJ105 ERD25FJ105
ERDS2FJ123 ERDS2FJ123 ERD25FJ123
ERD25FJ151P ERD25FJ151P ERD25FJ151K
ERDS2FJ182 ERDS2FJ182 ERD25FJ182K
ERDS2TJ183 ERDS2TJ183 ERD25FJ183K
ERD25FJ223K ERD25FJ223K ERD25FJ223K
ERDS2FJ273 ERDS2FJ273 ERD25FJ273
ERDS2FJ331 ERDS2FJ331 ERD25FJ331
ERDS2TJ333T ERDS2TJ333T ERD25FJ333
ERDS2FJ473 ERDS2FJ473 ERD25TJ473
ERD2FCVJ8R2T ERD2FCVJ8R2T ERD2FCJ8R2
ERD50TJ153 ERD50TJ153 ERDS1TJ153T
ERDS2TJ122T ERDS2TJ122T ERDS2TJ122
ERDS2TJ272 ERDS2TJ272 ERDS2TJ272
ERDS2FJ471 ERDS2FJ471 ERDS2TJ471
ERDS2FJ472 ERDS2FJ472 ERDS2TJ472
ERDS2FJ474 ERDS2FJ474 ERDS2TJ474
ERDS2FJ561 ERDS2FJ561 ERDS2TJ561
ERDS2TJ562TD ERDS2TJ562TD ERDS2TJ562
ERDS2TJ682T ERDS2TJ682T ERDS2TJ682
ERJ6GEYJ102Z ERJ6GEYJ102Z ERJ6GEYF102
ERJ6GEYK4R7V ERJ6GEYK4R7V ERJ6GEYF393
ECEA1VU102 ECEA1VU102 ERJ6GEYF472
ERJ6GEYG222 ERJ6GEYG222 ERJ6GEYG103
ERJ6GEYG391 ERJ6GEYG391 ERJ6GEYG391
ERJ6GEYJ223 ERJ6GEYJ223 ERJ6GEYJ223
ERJ6GEYJ392V ERJ6GEYJ392V ERJ6GEYJ392
ERJ6GEYF473 ERJ6GEYF473 ERJ6GEYJ473
ERJ6GEYJ682V ERJ6GEYJ682V ERJ6GEYJ682
ERJ6GEYJ683 ERJ6GEYJ683 ERJ6GEYJ683
ERJ6GEYJ823 ERJ6GEYJ823 ERJ6GEYJ823V
RLFCFA450L4B RLFCFA450L4B FILTER
RLFFETNL02AL RLFFETNL02AL FILTER
RXF0020 RXF0020 FLYWHEEL
XBA1C12NB5H XBA1C12NB5H FUSE
RSFMB012KT-L RSFMB012KT-L FUSE PROTECTOR
RDG0057 RDG0057 GEAR
RDG0059 RDG0059 GEAR
RDG0288 RDG0288 GEAR
RDK0005-1 RDK0005-1 GEAR
RKHX0012-H RKHX0012-H HANDLE
RBR4CM005-T RBR4CM005-T HEAD
RFKNXDT39GCK RFKNXDT39GCK HOLDER
RMNX0032 RMNX0032 HOLDER
LC72131D-U LC72131D-U IC
AN8739SBE2 AN8739SBE2 IC
AN8839NSBE2 AN8839NSBE2 IC
BA3313L BA3313L IC
MN662790RSC MN662790RSC IC
M38224M6H104 M38224M6H104 IC
PST9123T PST9123T IC
S81252SGY-Z S81252SGY-Z IC
TA2008AN TA2008AN IC
TA8227P TA8227P IC
RLQAR22KT-G RLQAR22KT-G INDUCTOR
RLQA101KT-G RLQA101KT-G INDUCTOR
RQT5203-1P RQT5203-1P INSTRUCT BOOK
RJJ1SM02-X RJJ1SM02-X JACK
RJJ37TK09 RJJ37TK09 JACK
RGVX0020-S RGVX0020-S KNOB
RGWX0051-S RGWX0051-S KNOB
RML0071 RML0071 LEVER
RML0072 RML0072 LEVER
RML0073-1 RML0073-1 LEVER
RML0074-1 RML0074-1 LEVER
RML0075 RML0075 LEVER
RML0076 RML0076 LEVER
RML0077-1 RML0077-1 LEVER
RML0078 RML0078 LEVER
RML0080 RML0080 LEVER
RML0081-2 RML0081-2 LEVER
RML0082 RML0082 LEVER
RGKX0054-S RGKX0054-S LID
RKFX0081-S RKFX0081-S LID
1SS254 1SS254 MA165
RAA0940 RAA0940 MECHANISM
MTZJ8R2B MTZJ8R2B MTZJ8R2BTA
RSXZ16M9M08T RSXZ16M9M08T OSCILLATOR
RSXZ456KM01 RSXZ456KM01 OSCILLATOR
SVQ49U722-S SVQ49U722-S OSCILLATOR
RFKGXD11P-Y RFKGXD11P-Y PANEL
RKWX0143B-Q RKWX0143B-Q PANEL
RKWX0144-Q RKWX0144-Q PANEL
REPX0196A REPX0196A PCB W/COMPONENT
RMS0350 RMS0350 PIN
RJRX0006 RJRX0006 PLATE
RMA1007 RMA1007 PLATE
RMVX0044 RMVX0044 PLATE
RJP3G9Y RJP3G9Y PLUG
RJP3G9YA RJP3G9YA PLUG
RXP0014 RXP0014 PULLEY
RBR2CY009 RBR2CY009 RBR2CY004-4
RXR0004 RXR0004 REEL
RXR0005 RXR0005 REEL
RCDRPM6937 RCDRPM6937 REMOTE CONTROL
ERD50FJ5R6P ERD50FJ5R6P RESISTOR
ECBT1H331KB5E ECBT1H331KB5E RESISTOR
ERJ3GEYJ185 ERJ3GEYJ185 RESISTOR
ERDS2FJ103 ERDS2FJ103 RESISTOR
ERD25FJ181K ERD25FJ181K RESISTOR
ERD25FJ221K ERD25FJ221K RESISTOR
ERD25FJ222 ERD25FJ222 RESISTOR
ERDS2FJ224 ERDS2FJ224 RESISTOR
ERD25FJ332T ERD25FJ332T RESISTOR
ERDS2FJ393 ERDS2FJ393 RESISTOR
ERDS2FJ680 ERDS2FJ680 RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ3GEYJR00V ERJ3GEYJR00V RESISTOR
ERJ6GEYJ100 ERJ6GEYJ100 RESISTOR
ERJ6GEYF124 ERJ6GEYF124 RESISTOR
ERJ6GEYG154 ERJ6GEYG154 RESISTOR
ERJ6GEYJ224Z ERJ6GEYJ224Z RESISTOR
ERJ6GEYK4R7 ERJ6GEYK4R7 RESISTOR
ERJ8GEYJ221 ERJ8GEYJ221 RESISTOR
ERJ8GEYJ0R00 ERJ8GEYJ0R00 RESISTOR
ERDS2TJ102 ERDS2TJ102 RESISTOR
ERJ6GEYJ101V ERJ6GEYJ101V RESISTOR
ERJ6GMYJ183 ERJ6GMYJ183 RESISTOR
ERD50VJ102 ERD50VJ102 RESISTOR (Z)
RFM179ZA RFM179ZA RFM187ZA
RFKRCT090P-K RFKRCT090P-K RFU189ZA
RMM0023-1 RMM0023-1 ROD
RMM0024 RMM0024 ROD
RMM0025 RMM0025 ROD
RMM0026 RMM0026 ROD
RMM0027 RMM0027 ROD
RMM0028 RMM0028 ROD
RMM0029-1 RMM0029-1 ROD
RXP0015 RXP0015 ROLLER
SHGD112 SHGD112 RUBBER
XTV3_10GFJ XTV3_10GFJ SCREW
RHD20049 RHD20049 SCREW
RHD26002 RHD26002 SCREW
XTN2_3F XTN2_3F SCREW
XTN2_45F XTN2_45F SCREW
XTN2_6GFJ XTN2_6GFJ SCREW
XTN2_6J XTN2_6J SCREW
XTB2_8FFZ XTB2_8FFZ SCREW
XTN3_12GFN XTN3_12GFN SCREW
XTV26_10G XTV26_10G SCREW
XTWS3_8T XTWS3_8T SCREW
XYN3_F15FY XYN3_F15FY SCREW
XTN26_8JFJK XTN26_8JFJK SCREW (1/10)
RMS0055-1 RMS0055-1 SHAFT
RMS0350-1 RMS0350-1 SHAFT
RMS0627 RMS0627 SHAFT
SUX102 SUX102 SHAFT
RPH0131 RPH0131 SHEET
RJS2A6016 RJS2A6016 SOCKET
RMG0102-1 RMG0102-1 SPACER
RMR0698-K1 RMR0698-K1 SPACER
RMXX0004-1 RMXX0004-1 SPACER
RAS10P30-G RAS10P30-G SPEAKER
RMB0043-1 RMB0043-1 SPRING
RMB0044 RMB0044 SPRING
RMB0045 RMB0045 SPRING
RMB0046-1 RMB0046-1 SPRING
RMB0047 RMB0047 SPRING
RMB0048 RMB0048 SPRING
RMB0049 RMB0049 SPRING
RMB0053 RMB0053 SPRING
RMB0059 RMB0059 SPRING
RMB0109-1 RMB0109-1 SPRING
RMB0125 RMB0125 SPRING
RMB0509 RMB0509 SPRING
RMCX0018 RMCX0018 SPRING
RMC0061 RMC0061 SPRING
RMEX0009 RMEX0009 SPRING
RME0098-2 RME0098-2 SPRING
RME0109 RME0109 SPRING
RME0142 RME0142 SPRING
RME0229 RME0229 SPRING
RMR0211 RMR0211 STOP
RMR0227 RMR0227 STOP
EVQPAD05R EVQPAD05R SWITCH
RSH1A006-U RSH1A006-U SWITCH
RSH1A012-U RSH1A012-U SWITCH
RSH1A043-U RSH1A043-U SWITCH
RSS2F001-G RSS2F001-G SWITCH
RSS3D006-G RSS3D006-G SWITCH
RJCX0005 RJCX0005 TERMINAL
RJC511XB RJC511XB TERMINAL
RJC70031ZC RJC70031ZC TERMINAL
RJRX0007 RJRX0007 TERMINAL
RJR0033 RJR0033 TERMINAL
RLI2B015-T RLI2B015-T TRANSFORMER
RTP1K1C011-X RTP1K1C011-X TRANSFORMER
KRA102MTA KRA102MTA TRANSISTOR
KRC104MTA KRC104MTA TRANSISTOR
KTA1046YTA KTA1046YTA TRANSISTOR
KTA12710YTA KTA12710YTA TRANSISTOR
KTC3199BLTA KTC3199BLTA TRANSISTOR
KTC3199GRTA KTC3199GRTA TRANSISTOR
RVTDTC143EST RVTDTC143EST TRANSISTOR

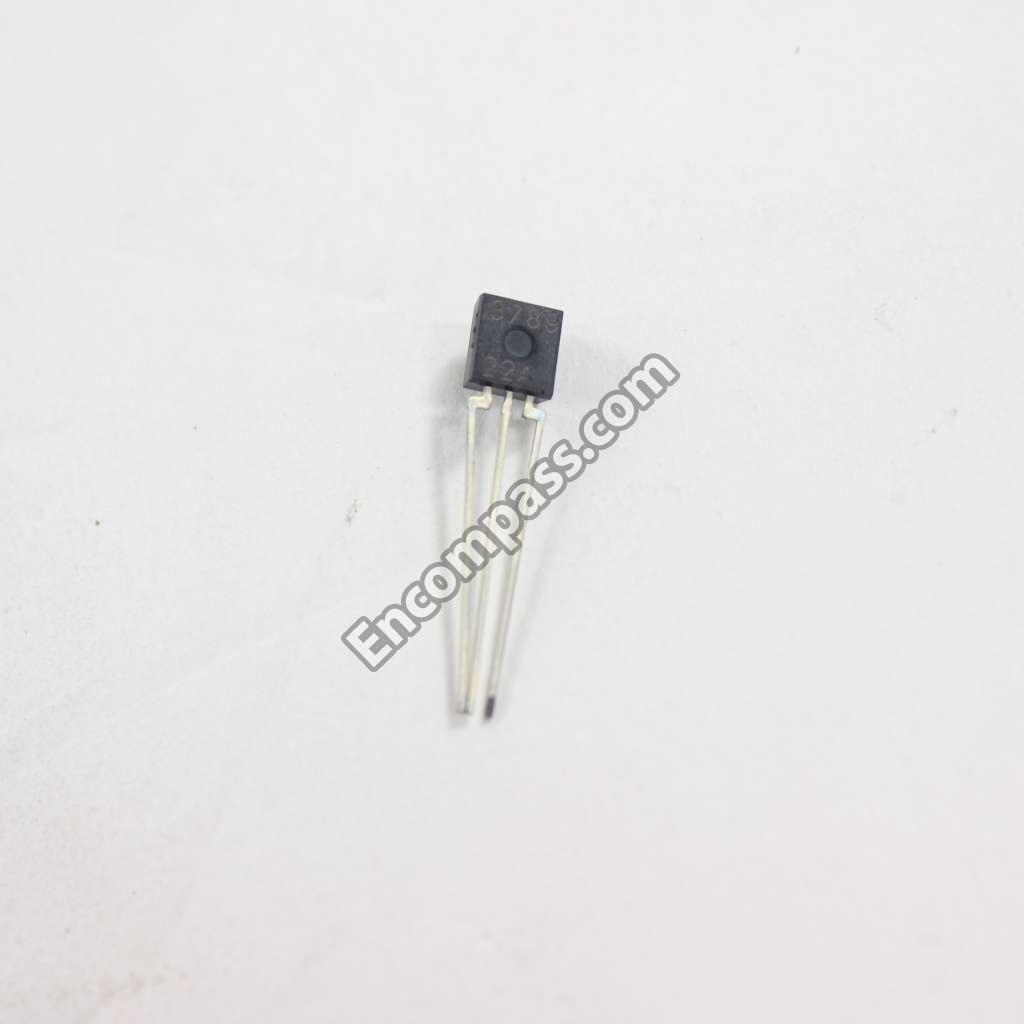

MSB709-QRST2 MSB709-QRST2 TRANSISTOR
2SD709RS 2SD709RS TRANSISTOR
VCYR1C104MX VCYR1C104MX VCYSDRC104MX
RHW16009 RHW16009 WASHER
RHW21008 RHW21008 WASHER
SNSD38 SNSD38 WASHER
REEX0085 REEX0085 WIRE
REU08H240QS REU08H240QS WIRE
REXX0218 REXX0218 WIRE
REXX0219 REXX0219 WIRE
REXX0220 REXX0220 WIRE
REXX0221 REXX0221 WIRE
REXX0222 REXX0222 WIRE
REX0836 REX0836 WIRE
RWJ8902170SS RWJ8902170SS WIRE
RWJ8903120SS RWJ8903120SS WIRE
RWJ9002080SS RWJ9002080SS WIRE
RWJ9003220SS RWJ9003220SS WIRE
XTV3_12G XTV3_12G XTV3+12GFZ
XTV3_20GFY XTV3_20GFY XTV3+20GFY
