Model Image
Manufacturer

Panasonic

Model Number

RXD20

Description

Cd/radio/cassette Boombox

Interactive Exploded View

Parts List

Part Number Description
ERDS1FJ151 ERDS1FJ151 *NLA* RESISTOR
2SA933ASTA 2SA933ASTA 2SA933SQR
RUZ0004 RUZ0004 ACTUATOR
XEARR210CACL XEARR210CACL ANTENNA
RLV2C050-0 RLV2C050-0 ANTENNA
RYJ0001 RYJ0001 ARM
RFY926ZA RFY926ZA ARM
RVD0001 RVD0001 BASE
UR64EC2337A UR64EC2337A BATTERY COVER
RUA0004 RUA0004 BELT
RUA0005 RUA0005 BELT
RUB0001 RUB0001 BRACKET
RWJ9002045SC RWJ9002045SC BUTTON
RFY881ZA RFY881ZA BUTTON
RGUX0393-S RGUX0393-S BUTTON
RGUX0393-3A RGUX0393-3A BUTTON
RGUX0394-S RGUX0394-S BUTTON
RGUX0394-3A RGUX0394-3A BUTTON
RGZX0039-H RGZX0039-H BUTTON
RGZX0039-K RGZX0039-K BUTTON
RYKW0052-S RYKW0052-S CABINET
RYKW0052B-K RYKW0052B-K CABINET
RKQX0012B-1H RKQX0012B-1H CABINET
RKQX0012D-K RKQX0012D-K CABINET
RKSX0040V-H RKSX0040V-H CABINET
RKSX0040V-K RKSX0040V-K CABINET
RWJ0110160SS RWJ0110160SS CABLE
RWJ0110165QQ RWJ0110165QQ CABLE
RWJ8902135SS RWJ8902135SS CABLE
RWJ8903190SS RWJ8903190SS CABLE
REXX0141-J REXX0141-J CABLE
REXX0218-1 REXX0218-1 CABLE
REXX0244-J REXX0244-J CABLE
ECBT1H220J5 ECBT1H220J5 CAPACITOR
ECQP1243GZ ECQP1243GZ CAPACITOR
ECA1AM101BV ECA1AM101BV CAPACITOR
ECA1AM221 ECA1AM221 CAPACITOR
ECA1AM471B ECA1AM471B CAPACITOR
ECA1CM100BV ECA1CM100BV CAPACITOR
ECA1CM330BV ECA1CM330BV CAPACITOR
ECA1EM222EV ECA1EM222EV CAPACITOR
ECA1EM470BV ECA1EM470BV CAPACITOR
ECA1HMR47BV ECA1HMR47BV CAPACITOR
ECA1HM0R1BV ECA1HM0R1BV CAPACITOR
ECA1HM100BV ECA1HM100BV CAPACITOR
ECA1HM2R2 ECA1HM2R2 CAPACITOR
ECA1HM3R3BV ECA1HM3R3BV CAPACITOR
ECA1HM4R7BV ECA1HM4R7BV CAPACITOR
ECBT1C272MR5 ECBT1C272MR5 CAPACITOR
ECBT1C332KB5 ECBT1C332KB5 CAPACITOR
ECBT1C332MR5 ECBT1C332MR5 CAPACITOR
ECBT1C682KR5 ECBT1C682KR5 CAPACITOR
ECBT1C682MR5 ECBT1C682MR5 CAPACITOR
ECBT1E103MR ECBT1E103MR CAPACITOR
ECBT1E473ZF5 ECBT1E473ZF5 CAPACITOR
ECBT1H100JC5 ECBT1H100JC5 CAPACITOR
ERD50FJ332 ERD50FJ332 CAPACITOR
ECBT1H102KB5 ECBT1H102KB5 CAPACITOR
ECBT1H103KB5 ECBT1H103KB5 CAPACITOR
ECBT1H104KB5 ECBT1H104KB5 CAPACITOR
ECBT1H105ZF5 ECBT1H105ZF5 CAPACITOR
ECBT1H153KB5 ECBT1H153KB5 CAPACITOR
ERD50TJ1R0S ERD50TJ1R0S CAPACITOR
ECBT1H223KB5 ECBT1H223KB5 CAPACITOR
ECBT1H270J5 ECBT1H270J5 CAPACITOR
ECBT1H333KB5 ECBT1H333KB5 CAPACITOR
ECBT1H560J5 ECBT1H560J5 CAPACITOR
ECBT1H561KB5 ECBT1H561KB5 CAPACITOR
ERJ3GEYF470 ERJ3GEYF470 CAPACITOR
ECEA1CK101 ECEA1CK101 CAPACITOR
ECEA1HKA100 ECEA1HKA100 CAPACITOR
VCYR1C104MX VCYR1C104MX CAPACITOR
ECFR1C223KR ECFR1C223KR CAPACITOR
ECFR1C333KR ECFR1C333KR CAPACITOR
ECFR1C683KR ECFR1C683KR CAPACITOR
ECFR1C823MR ECFR1C823MR CAPACITOR
ECQP2A621JZT ECQP2A621JZT CAPACITOR
F1C1C223A002 F1C1C223A002 CAPACITOR
F1C1C3330001 F1C1C3330001 CAPACITOR
RCBS1H102KBY RCBS1H102KBY CAPACITOR
RCE1AM101BP RCE1AM101BP CAPACITOR
RCE1CM220BP RCE1CM220BP CAPACITOR
RCE1HMR22BP RCE1HMR22BP CAPACITOR
RCE1HM010BP RCE1HM010BP CAPACITOR
RCE1HM2R2BP RCE1HM2R2BP CAPACITOR
RCQB2A102JTM RCQB2A102JTM CAPACITOR
RCQB2A103KTM RCQB2A103KTM CAPACITOR
RCQB2A392KM RCQB2A392KM CAPACITOR
RAA4601-Z RAA4601-Z CASSETTE ASSY
RMKX0069 RMKX0069 CHASSIS
RFU159ZA RFU159ZA CHASSIS
RFU168ZA RFU168ZA CHASSIS
RJF0028-1 RJF0028-1 CLIP
RFQ60ZA RFQ60ZA CLUTCH
RLQB3R3KT-1Y RLQB3R3KT-1Y COIL
RLQY30S1W-F RLQY30S1W-F COIL
RL02B136 RL02B136 COIL
RL09B17-T RL09B17-T COIL
RLI2B019-T RLI2B019-T COIL
RLQAR47KT-G RLQAR47KT-G COIL
K1KA04B00057 K1KA04B00057 CONNECTOR
RJS1A5503 RJS1A5503 CONNECTOR
RJS1A5510 RJS1A5510 CONNECTOR
RJS1A6723-J RJS1A6723-J CONNECTOR
RJS1A9423 RJS1A9423 CONNECTOR
RJS10T6ZA RJS10T6ZA CONNECTOR
RJS2A5625-1 RJS2A5625-1 CONNECTOR
RJS2A5725-1 RJS2A5725-1 CONNECTOR
RJS2A8616 RJS2A8616 CONNECTOR
RCVFMA10T01S RCVFMA10T01S CONTROL
RLD4Y45-F RLD4Y45-F CONTROL
RKK318ZC-H RKK318ZC-H COVER
RKK318ZC-K RKK318ZC-K COVER
RAE0152Z-1C RAE0152Z-1C DECK
RL1N4003S-P RL1N4003S-P DIODE
SVC237-AS SVC237-AS DIODE
SVC384T-AL SVC384T-AL DIODE
B0AACK000004 B0AACK000004 DIODE
B0BA6R200012 B0BA6R200012 DIODE
B0BA7R000005 B0BA7R000005 DIODE
MTZJ3R3BTA MTZJ3R3BTA DIODE
MTZJ6R2CTA MTZJ6R2CTA DIODE
MTZJ7R5ATA MTZJ7R5ATA DIODE
RB441Q40T77 RB441Q40T77 DIODE
RSL5278-G RSL5278-G DISPLAY
ECBT1C103MS5 ECBT1C103MS5 ECBT1C103MS
ECBT1C222MR5 ECBT1C222MR5 ECBT1C222MR5
ERD50FJ562 ERD50FJ562 ECBT1H150J
ECEA1CKA470B ECEA1CKA470B ECEA1CKA470
ECEA1HKS010 ECEA1HKS010 ECEA1HKS010I
ECEA1HKA2R2I ECEA1HKA2R2I ECEA1HKS2R2
ECKF1H103ZF5 ECKF1H103ZF5 ECKF1H103ZF
ECQV1H224JZ ECQV1H224JZ ECQV1H224JZ
ECQV1H474JZ ECQV1H474JZ ECQV1H474JZ
RUE0003 RUE0003 ERASE HEAD
ERD25FJ100P ERD25FJ100P ERD25FJ100P
ERDS2TJ101 ERDS2TJ101 ERD25FJ101
ERDS2FJ104 ERDS2FJ104 ERD25FJ104K
ERDS2TJ105 ERDS2TJ105 ERD25FJ105
ERDS2FJ121 ERDS2FJ121 ERD25FJ121K
ERDS2EJ121 ERDS2EJ121 ERD25FJ121K
ERD25FJ151P ERD25FJ151P ERD25FJ151K
ERDSTJ151 ERDSTJ151 ERD25FJ151K
ERDS2TJ183 ERDS2TJ183 ERD25FJ183K
ERD25FJ223K ERD25FJ223K ERD25FJ223K
ERDS2FJ273 ERDS2FJ273 ERD25FJ273
ERD25FJ331 ERD25FJ331 ERD25FJ331
ERDS2FJ333 ERDS2FJ333 ERD25FJ333
ERDS2FJ392 ERDS2FJ392 ERD25FJ392
ERDS2TJ392 ERDS2TJ392 ERD25FJ392
ERDS2FJ473 ERDS2FJ473 ERD25TJ473
ERD25TJ822 ERD25TJ822 ERD25TJ822
ERDS2FJ823 ERDS2FJ823 ERD25TJ823V
ERD2FCG220 ERD2FCG220 ERD2FCG220
ERD2FCJ8R2 ERD2FCJ8R2 ERD2FCJ8R2
ERD50TJ153 ERD50TJ153 ERDS1TJ153T
ERDS2FJ102 ERDS2FJ102 ERDS2FJ102
ERD25FJ181K ERD25FJ181K ERDS2FJ181
ERD25TJ221B ERD25TJ221B ERDS2FJ221
ERDS2FJ224 ERDS2FJ224 ERDS2FJ224
ERD25TJ393T ERD25TJ393T ERDS2FJ393
ERDS2TJ680 ERDS2TJ680 ERDS2FJ680
ERDS2TJ100 ERDS2TJ100 ERDS2TJ100
ERDS2FJ122 ERDS2FJ122 ERDS2TJ122
ERD25TJ124V ERD25TJ124V ERDS2TJ124
ERDS2FJ152 ERDS2FJ152 ERDS2TJ152
ERDS2FJ153 ERDS2FJ153 ERDS2TJ153
ERDS2TJ155 ERDS2TJ155 ERDS2TJ155
ERDS2TJ222TD ERDS2TJ222TD ERDS2TJ222TD
ERDS2TJ223 ERDS2TJ223 ERDS2TJ223
ERDS2TJ272 ERDS2TJ272 ERDS2TJ272
ERDS2FJ274 ERDS2FJ274 ERDS2TJ274
ERDS2TJ274 ERDS2TJ274 ERDS2TJ274
ERDS2TJ303T ERDS2TJ303T ERDS2TJ303
RC07-330K5 RC07-330K5 ERDS2TJ334
ERDS2FJ471 ERDS2FJ471 ERDS2TJ471
ERDS2TJ471 ERDS2TJ471 ERDS2TJ471
ERDS2FJ472 ERDS2FJ472 ERDS2TJ472
ERDS2TJ472TD ERDS2TJ472TD ERDS2TJ472
ERDS2FJ561 ERDS2FJ561 ERDS2TJ561
ERDS2TJ561A ERDS2TJ561A ERDS2TJ561
ERDS2TJ562TD ERDS2TJ562TD ERDS2TJ562
ERDS2TJ750TD ERDS2TJ750TD ERDS2TJ8R2
EVQPTD05Q EVQPTD05Q EVQ21405R
J0B1075A0101 J0B1075A0101 FILTER
J0B1075A0103 J0B1075A0103 FILTER
RLFCFA450L4B RLFCFA450L4B FILTER
RKQX0017 RKQX0017 FIXTURE
RKQX0018 RKQX0018 FIXTURE
RUC0002 RUC0002 FLYWHEEL
K5D122AQ0004 K5D122AQ0004 FUSE
RDG0247 RDG0247 GEAR
RDG0248 RDG0248 GEAR
RDG0288 RDG0288 GEAR
RFG110ZA RFG110ZA GEAR
RFG136ZA RFG136ZA GEAR
RKHX0014-K RKHX0014-K HANDLE
RKHX0014-1A RKHX0014-1A HANDLE
RMNX0043 RMNX0043 HOLDER
RMNX0084 RMNX0084 HOLDER
RMNX0085 RMNX0085 HOLDER
RFKNXD13PC-A RFKNXD13PC-A HOLDER
BA6774FS BA6774FS IC
BA3313L BA3313L IC
BA5948FP BA5948FP IC
C0ABBB000232 C0ABBB000232 IC
C2BBFE000122 C2BBFE000122 IC
C1BA00000421 C1BA00000421 IC
LC72121T LC72121T IC
PST9127T PST9127T IC
RLQA101KT-G RLQA101KT-G INDUCTOR
RLQA100KT-G RLQA100KT-G INDUCTOR
RQT6742-P RQT6742-P INSTRUCT BOOK
RJJ1SM02-X RJJ1SM02-X JACK
RJJ37TK09 RJJ37TK09 JACK
RGVX0022-H RGVX0022-H KNOB
RGWX0058-H RGWX0058-H KNOB
RKQX0013 RKQX0013 KNOB
RMLX0016 RMLX0016 LEVER
RUM0004 RUM0004 LEVER
RUM0005 RUM0005 LEVER
RUM0006 RUM0006 LEVER
RUM0007 RUM0007 LEVER
RUM0008 RUM0008 LEVER
RUM0009 RUM0009 LEVER
RFY874ZA RFY874ZA LEVER
RFY880ZA RFY880ZA LEVER
RFY883ZA RFY883ZA LEVER
RFY889ZA RFY889ZA LEVER
RFY896ZA RFY896ZA LEVER
RFY899ZA RFY899ZA LEVER
RFY952ZA RFY952ZA LEVER
RYFX0112-K RYFX0112-K LID
RYFX0112-S RYFX0112-S LID
RGKX0075-1A RGKX0075-1A LID
RGKX0075D-K RGKX0075D-K LID
RUZ0003 RUZ0003 LUG
RVD1SS133TA RVD1SS133TA MA165
RVB0002 RVB0002 MOTOR
RXQ0339 RXQ0339 MOTOR
RGKX0076-H RGKX0076-H ORNAMENT
RGKX0076D-K RGKX0076D-K ORNAMENT
SVQ49U722-S SVQ49U722-S OSCILLATOR
RSXD75K0E02 RSXD75K0E02 OSCILLATOR
RSXZ16M9Z01T RSXZ16M9Z01T OSCILLATOR
RXD20_EX RXD20_EX OTC AUDIO (DISCONTINUED)
RPNX0166 RPNX0166 PACKAGING (DISCONTINUED)
RPGX1087 RPGX1087 PACKAGING (DISCONTINUED)
RPGX1021 RPGX1021 PACKAGING (DISCONTINUED)
K2CB2CB00022 K2CB2CB00022 PANASONIC AC CORD BLACK
REEX0109 REEX0109 PANEL
RFU156ZA RFU156ZA PANEL
RKWX0201-Q RKWX0201-Q PANEL
REPX0246P REPX0246P PC BOARD
REPX0340A REPX0340A PCB W/COMPONENT
RMS0350 RMS0350 PIN
RMA1007 RMA1007 PLATE
RFY905ZA RFY905ZA PLATE
RXQ0304-1 RXQ0304-1 PLATE, ASSY
K1KA03B00047 K1KA03B00047 PLUG
RJP3G9Y RJP3G9Y PLUG
RJP4G17ZA RJP4G17ZA PLUG
K5G202AA0003 K5G202AA0003 PROTECTOR
RUG0001 RUG0001 PULLEY
RUE0002 RUE0002 R/P HEAD
RC20-22-5 RC20-22-5 RC20-22-5
ERD50TJ470 ERD50TJ470 RC20-47-5
RUF0002 RUF0002 REEL
S81233SGUP S81233SGUP REGULATOR
RRV12B05B14V RRV12B05B14V RESISTOR
ERD50CKF2704 ERD50CKF2704 RESISTOR
ERD50FJ5R6P ERD50FJ5R6P RESISTOR
ERD50TJ101 ERD50TJ101 RESISTOR
ECBT1H331KB5E ECBT1H331KB5E RESISTOR
ERD50TJ390U ERD50TJ390U RESISTOR
ERD50TJ393S ERD50TJ393S RESISTOR
ERD25FJ221K ERD25FJ221K RESISTOR
ERD25FJ222 ERD25FJ222 RESISTOR
ERDS2FJ303 ERDS2FJ303 RESISTOR
ERD25FJ332T ERD25FJ332T RESISTOR
ERDS2FJ393 ERDS2FJ393 RESISTOR
ERDS2FJ513 ERDS2FJ513 RESISTOR
ERDS2FJ680 ERDS2FJ680 RESISTOR
ERDS2TJ103 ERDS2TJ103 RESISTOR
ERDS2TJ104T ERDS2TJ104T RESISTOR
ERDS2TJ153TD ERDS2TJ153TD RESISTOR
ERD10TLJ332 ERD10TLJ332 RESISTOR
ERDS2TJ511T ERDS2TJ511T RESISTOR
ERDS2TJ513T ERDS2TJ513T RESISTOR
SHGD112 SHGD112 RUBBER
XTV3_10GFJ XTV3_10GFJ SCREW
RUP0001 RUP0001 SCREW
RUP0002 RUP0002 SCREW
RUP0003 RUP0003 SCREW
RUP0004 RUP0004 SCREW
RUP0005 RUP0005 SCREW
RUP0006 RUP0006 SCREW
RUP0007 RUP0007 SCREW
RUP0008 RUP0008 SCREW
XQN17_CG5 XQN17_CG5 SCREW
XQS2_A3FZ XQS2_A3FZ SCREW
XTN1_6_6F XTN1_6_6F SCREW
XTN2_3F XTN2_3F SCREW
XTN2_6GFJ XTN2_6GFJ SCREW
XTN3_12GFZ XTN3_12GFZ SCREW
XYN3_F15FY XYN3_F15FY SCREW
RFE499ZA RFE499ZA SCREW
RFE511ZA RFE511ZA SCREW
RUZ0002 RUZ0002 SENSOR
RWJ8903135ES RWJ8903135ES SENSOR
RCD1837SS3V RCD1837SS3V SENSOR
RMS0350-1 RMS0350-1 SHAFT
RMS0627 RMS0627 SHAFT
RPH0131 RPH0131 SHEET
RMR0698-K1 RMR0698-K1 SPACER
L0AA10A00010 L0AA10A00010 SPEAKER
RMB0347-1 RMB0347-1 SPRING
RMEX0009 RMEX0009 SPRING
RME0109 RME0109 SPRING
RME0142 RME0142 SPRING
RUK0002 RUK0002 SPRING
RUK0003 RUK0003 SPRING
RUK0004 RUK0004 SPRING
RUK0005 RUK0005 SPRING
RUK0006 RUK0006 SPRING
RUK0007 RUK0007 SPRING
RUK0008 RUK0008 SPRING
RUZ0001 RUZ0001 SPRING
RFS447ZA RFS447ZA SPRING
RFS467ZA RFS467ZA SPRING
RFS813ZA RFS813ZA SPRING
RFS815ZA RFS815ZA SPRING
RFS821ZA RFS821ZA SPRING
RFS822ZA RFS822ZA SPRING
RFS829ZA RFS829ZA SPRING
RFS837ZA RFS837ZA SPRING
RFS845ZA RFS845ZA SPRING
RFX174ZA RFX174ZA STOP
RSH1A053-U RSH1A053-U SWITCH
RSP1A026-Q RSP1A026-Q SWITCH
RSS3D006-G RSS3D006-G SWITCH
EVQPAD05R EVQPAD05R SWITCH
K0F162B00003 K0F162B00003 SWITCH
RFA91ZA RFA91ZA SWITCH
XQS17_A35FZ XQS17_A35FZ TERMINAL
RJCX0005 RJCX0005 TERMINAL
RJC511XB RJC511XB TERMINAL
RJC70031ZC RJC70031ZC TERMINAL
RJRX0009 RJRX0009 TERMINAL
RTP1K1C011-X RTP1K1C011-X TRANSFORMER
2SA933QRSTA 2SA933QRSTA TRANSISTOR
KRA102MTA KRA102MTA TRANSISTOR
B1GACFJJ0018 B1GACFJJ0018 TRANSISTOR
KTA1046 KTA1046 TRANSISTOR
KTA12710YTA KTA12710YTA TRANSISTOR
KTC3199BLTA KTC3199BLTA TRANSISTOR
KTC3199GRTA KTC3199GRTA TRANSISTOR
TA2149N TA2149N TUNER
RUH0001 RUH0001 WASHER
RUH0002 RUH0002 WASHER
RUH0003 RUH0003 WASHER
RUH0004 RUH0004 WASHER
SNSD38 SNSD38 WASHER
REEX0110 REEX0110 WIRE
REXX0218 REXX0218 WIRE

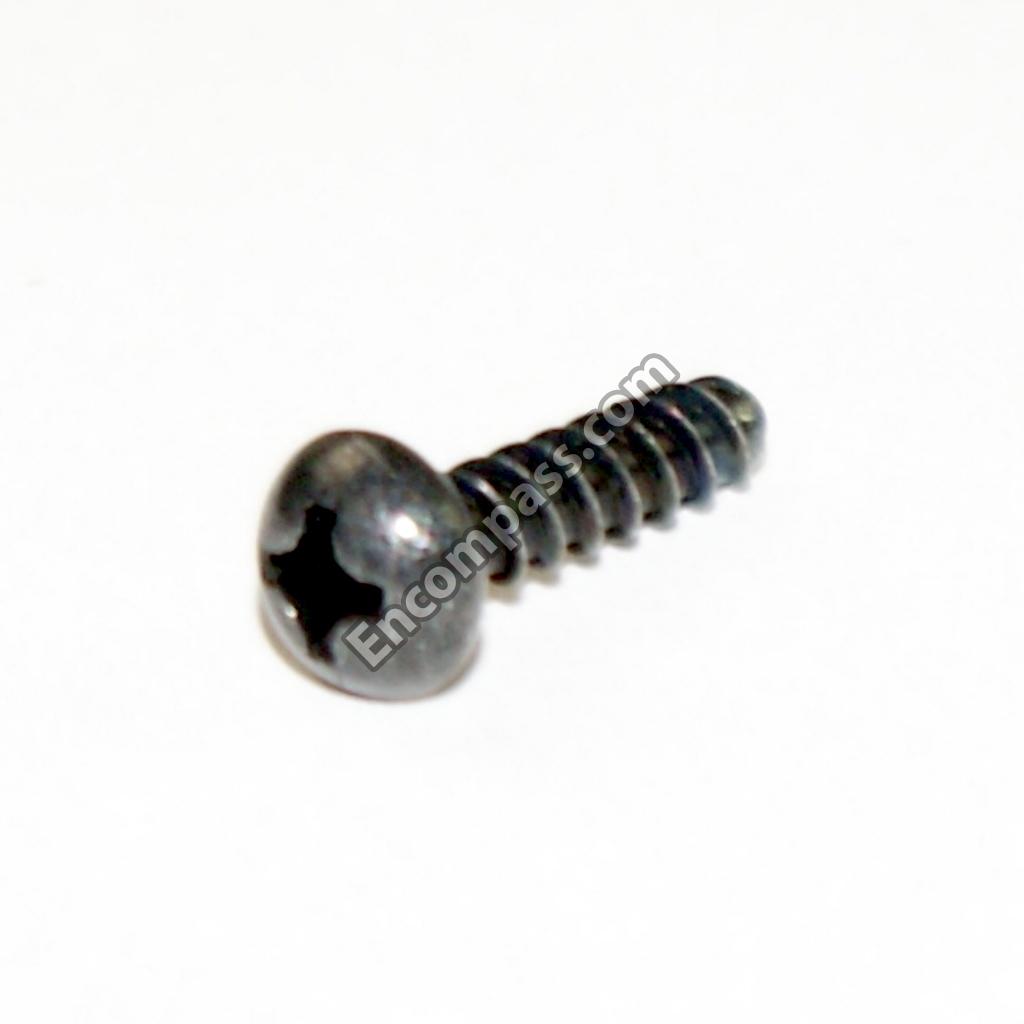

XTV3_12GFJK XTV3_12GFJK XTV3+12GFZ
XTV3_20GFY XTV3_20GFY XTV3+20GFY
Main Menu x
