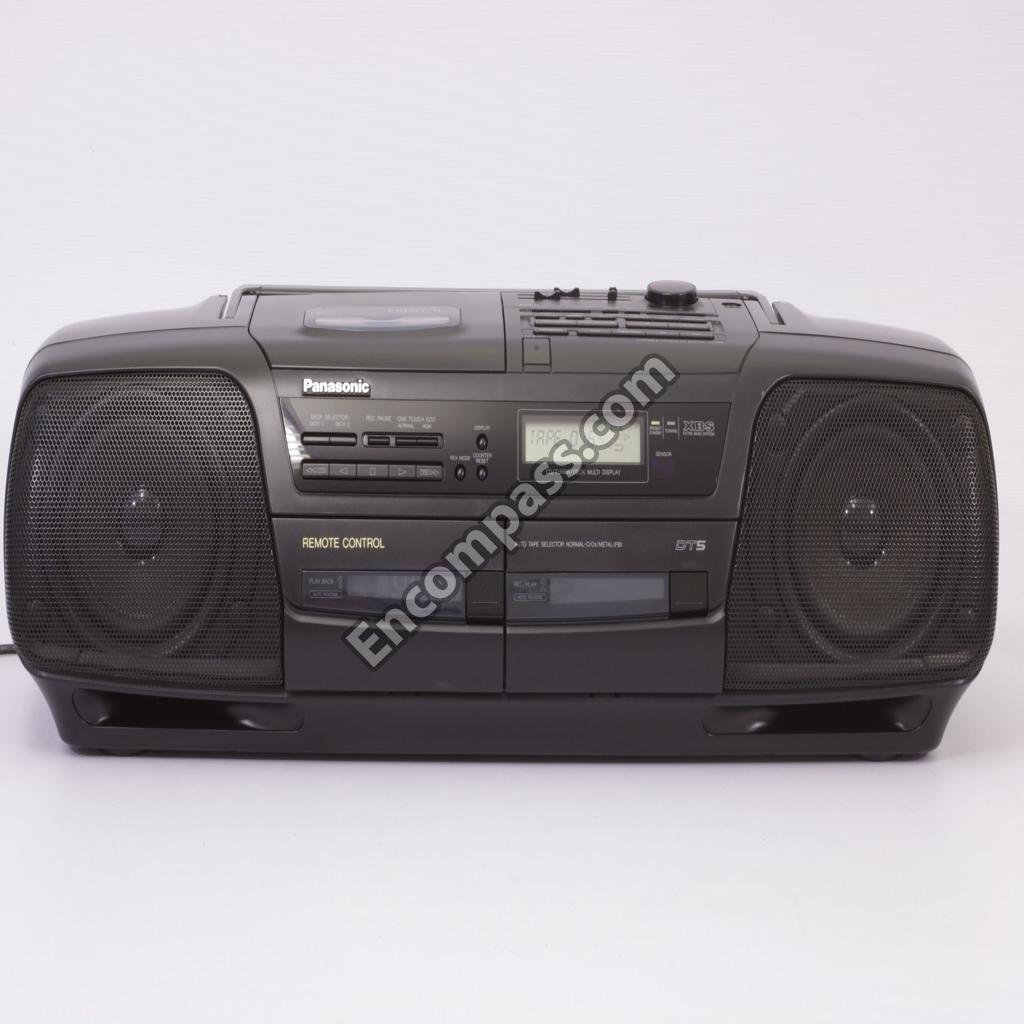

Model Image
Manufacturer

Panasonic

Model Number

RXDT5

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
2SD965Q 2SD965Q 2SD965Q
RKK0010-K RKK0010-K BATTERY COVER
RGU0276-K RGU0276-K BUTTON
RGU0274-K1 RGU0274-K1 BUTTON
RGU0273-K1 RGU0273-K1 BUTTON
RKQ0038B-K RKQ0038B-K CABINET
RFKHXDT5P RFKHXDT5P CABINET
RFKGXDT5P RFKGXDT5P CABINET
RWJ4704215KQ RWJ4704215KQ CABLE
RWJ4704140QK RWJ4704140QK CABLE
RWJ4704105KQ RWJ4704105KQ CABLE
RWJ1109075QQ RWJ1109075QQ CABLE
RWJ1107075QQ RWJ1107075QQ CABLE
RWJ1105080QQ RWJ1105080QQ CABLE
REX0182Y REX0182Y CABLE
REX0181 REX0181 CABLE
REX0149Y REX0149Y CABLE
REX0148Y REX0148Y CABLE
REX0088Y REX0088Y CABLE
REX0087Y REX0087Y CABLE
REX0084 REX0084 CABLE
REX0074 REX0074 CABLE
ECQP2A472JZT ECQP2A472JZT CAPACITOR
ECQP2A182JZT ECQP2A182JZT CAPACITOR
ECKF1H153MD ECKF1H153MD CAPACITOR
ECFR1C333JR ECFR1C333JR CAPACITOR
ECFR1C222MR ECFR1C222MR CAPACITOR
ECFR1C183KR ECFR1C183KR CAPACITOR
ECFR1C103KR ECFR1C103KR CAPACITOR
ECEA1HU010BG ECEA1HU010BG CAPACITOR
ECEA1CU100BG ECEA1CU100BG CAPACITOR
ECBT0J223NS5 ECBT0J223NS5 CAPACITOR
RPK0133 RPK0133 CARTON
RFKLXDT5NB RFKLXDT5NB CASS.DOOR 1
RFKLXDT5NC RFKLXDT5NC CASS.DOOR 2
RUA867ZB RUA867ZB CHASSIS
RMN0048 RMN0048 CHASSIS
RMK0076 RMK0076 CHASSIS
RMK0059 RMK0059 CHASSIS
RMK0058A RMK0058A CHASSIS
RUA793ZF RUA793ZF CHASSIS
RL08C002M-T RL08C002M-T COIL
RCD0002 RCD0002 COMBINATION
RJU031W008 RJU031W008 CONNECTOR
RJU031W007 RJU031W007 CONNECTOR
RJU028W020 RJU028W020 CONNECTOR
RJU028W010 RJU028W010 CONNECTOR
RJU028W004 RJU028W004 CONNECTOR
RJU005W010 RJU005W010 CONNECTOR
RJU005W007 RJU005W007 CONNECTOR
RJT031W008 RJT031W008 CONNECTOR
RJT031W007 RJT031W007 CONNECTOR
RJT028W020 RJT028W020 CONNECTOR
RJT028W004 RJT028W004 CONNECTOR
RJT005W010 RJT005W010 CONNECTOR
RJT005W007 RJT005W007 CONNECTOR
RJP4G9YA RJP4G9YA CONNECTOR
RJP3G4Y RJP3G4Y CONNECTOR
RJP3G1Z RJP3G1Z CONNECTOR
RVNCC73B1T-A RVNCC73B1T-A CONTROL
RRN6B05B14TA RRN6B05B14TA CONTROL
RFKLXDT5P RFKLXDT5P COVER
RVDMTZ4R7BTA RVDMTZ4R7BTA DIODE
LN028493PX LN028493PX DIODE
RYH0001 RYH0001 HANDLE
RXQ0051-1 RXQ0051-1 HEAD ASSY
RMY0040 RMY0040 HEAT SINK
RYF0066 RYF0066 HOLDER
S8053HNB-T S8053HNB-T IC
M51167AFP-TB M51167AFP-TB IC
MN1871610RRR MN1871610RRR IC
RXDT5IB RXDT5IB INSTRUCT BOOK
RJH3207N-0 RJH3207N-0 JACK
RGW0056-K RGW0056-K KNOB
RGV0029-K RGV0029-K KNOB
RGV0028-K RGV0028-K KNOB
RGU0209A-K RGU0209A-K KNOB
RGU0207-K2 RGU0207-K2 KNOB
RSL5014 RSL5014 LCD
RML0114 RML0114 LEVER
RZLAR300A RZLAR300A LEVER ASSY
RZZ0L05 RZZ0L05 LUBRICANT
RAA1131 RAA1131 MECHANISM
REM0006 REM0006 MOTOR
S0DD101-1Z S0DD101-1Z OPTICAL PICKUP
RSXD32K7F02 RSXD32K7F02 OSCILLATOR
RPN0250 RPN0250 PACKING
RJB0235C RJB0235C PC BOARD
EXBDF9035G0 EXBDF9035G0 RESISTOR
ERDS2TG563T ERDS2TG563T RESISTOR
ERDS2TG562T ERDS2TG562T RESISTOR
ERDS2TG392T ERDS2TG392T RESISTOR
ERDS2TG272T ERDS2TG272T RESISTOR
ERDS2TG183T ERDS2TG183T RESISTOR
ERDS2TG104T ERDS2TG104T RESISTOR
ERDS2FJ103 ERDS2FJ103 RESISTOR
ERDS2TG102T ERDS2TG102T RESISTOR
ERDS1VJ680T ERDS1VJ680T RESISTOR
ERJ6ENF2553 ERJ6ENF2553 RESISTOR
ERJ3GEYJ2R2V ERJ3GEYJ2R2V RESISTOR
RJT028W010 RJT028W010 RJT028W010-2
RXP0042 RXP0042 RXP0042
XQN17_C33 XQN17_C33 SCREW
RFM0176 RFM0176 SHEET
RFM0175 RFM0175 SHEET
RSC0072 RSC0072 SHIELD
RSC0071 RSC0071 SHIELD
EAS12P450B EAS12P450B SPEAKER
RUW170YA RUW170YA SPRING
RUD129XA RUD129XA SPRING
RMB0017-1 RMB0017-1 SPRING
RFKZXDT7 RFKZXDT7 TEST TOOL
2SB1393AU 2SB1393AU TRANSISTOR
UN4219TA UN4219TA TRANSISTOR
UN411FTA UN411FTA TRANSISTOR
S0AD101A S0AD101A TRAVERSE DECK (OPTICAL PICKUP)
UN4213 UN4213 UN4213
UN4215 UN4215 UN4215
RNW138ZA RNW138ZA WASHER
