Model Image
Manufacturer

Panasonic

Model Number

SAHT290

Description

Receiver

Interactive Exploded View

Parts List

Part Number Description
MA167 MA167 1SS131
2SA933SQR 2SA933SQR 2SA933SQR
RMQ1030 RMQ1030 ANGLE
RGB0036-2N RGB0036-2N BADGE
RMV0220 RMV0220 BARRIER
RMV0219 RMV0219 BARRIER
RLQM2R2KT2-W RLQM2R2KT2-W BEAD
RGU1945-S RGU1945-S BUTTON
RGU1944-1S RGU1944-1S BUTTON
RGU1943-S RGU1943-S BUTTON
RGU1942-S RGU1942-S BUTTON
RGU1941B-S RGU1941B-S BUTTON
RKM0373C-S RKM0373C-S CABINET
RWJ1813120SX RWJ1813120SX CABLE
RWJ1812520SS RWJ1812520SS CABLE
RWJ1805150SS RWJ1805150SS CABLE
RWJ1803320SX RWJ1803320SX CABLE
RWJ1803180SS RWJ1803180SS CABLE
RJL1X009B08 RJL1X009B08 CABLE
REZ1372 REZ1372 CABLE
ECUV1H101KCV ECUV1H101KCV CAPACITOR
ECUV1H470JCV ECUV1H470JCV CAPACITOR
ECUV1H391JC ECUV1H391JC CAPACITOR
ECUV1H331KBV ECUV1H331KBV CAPACITOR
ECUV1H272KBV ECUV1H272KBV CAPACITOR
ECUV1H221KBV ECUV1H221KBV CAPACITOR
ECUV1H220JCV ECUV1H220JCV CAPACITOR
ECUV1H152KBV ECUV1H152KBV CAPACITOR
ECUV1H151JCV ECUV1H151JCV CAPACITOR
ECU1H102KBV ECU1H102KBV CAPACITOR
ECUV1E103KBV ECUV1E103KBV CAPACITOR
ECUV1A224KBV ECUV1A224KBV CAPACITOR
ECUVNC104ZFV ECUVNC104ZFV CAPACITOR
ECQV1H473JZ3 ECQV1H473JZ3 CAPACITOR
ECKWRS102MBC ECKWRS102MBC CAPACITOR
ECEA1CKN100B ECEA1CKN100B CAPACITOR
ECCR1H180KC5 ECCR1H180KC5 CAPACITOR
ECBT1H104KB5 ECBT1H104KB5 CAPACITOR
ECBT1H103KB5 ECBT1H103KB5 CAPACITOR
ECBT1H102KB5 ECBT1H102KB5 CAPACITOR
ERD50FJ332 ERD50FJ332 CAPACITOR
ECA2AAM330XB ECA2AAM330XB CAPACITOR
ECA1VAM101XB ECA1VAM101XB CAPACITOR
ECA1JAM330XB ECA1JAM330XB CAPACITOR
ECA1HAM470XB ECA1HAM470XB CAPACITOR
ECA1HAK4R7XB ECA1HAK4R7XB CAPACITOR
ECA1HAK220XB ECA1HAK220XB CAPACITOR
ECA1HAK2R2XB ECA1HAK2R2XB CAPACITOR
ECA1HAK100XB ECA1HAK100XB CAPACITOR
ECA1HAK010X ECA1HAK010X CAPACITOR
ECA1EPXS470B ECA1EPXS470B CAPACITOR
ECA1EAM331XB ECA1EAM331XB CAPACITOR
ECA1EAK470XB ECA1EAK470XB CAPACITOR
ECA1EAK100XB ECA1EAK100XB CAPACITOR
ECA1CAM471XB ECA1CAM471XB CAPACITOR
ECA1CAM221XB ECA1CAM221XB CAPACITOR
ECA1CAK470XB ECA1CAK470XB CAPACITOR
ECA1CAK330XB ECA1CAK330XB CAPACITOR
ECA1CAK220XB ECA1CAK220XB CAPACITOR
ECA1CAK101XB ECA1CAK101XB CAPACITOR
ECA1CAK100XB ECA1CAK100XB CAPACITOR
ECA1AM332E ECA1AM332E CAPACITOR
ECA0JAK101XB ECA0JAK101XB CAPACITOR
RCE1V562MHSK RCE1V562MHSK CAPACITOR
ECBT1H101K ECBT1H101K CAPACITOR
ECKF1H103ZF ECKF1H103ZF CAPACITOR
ECQV1H104JZ3M ECQV1H104JZ3M CAPACITOR
RMK0320-1 RMK0320-1 CHASSIS
SHR301 SHR301 CLAMP
RMN0649 RMN0649 CLAMP
RLQZ150M-0 RLQZ150M-0 COIL
RLQYR73MW-E RLQYR73MW-E COIL
RLQT801M-W RLQT801M-W COIL
RLQB101KTA-Y RLQB101KTA-Y COIL
SJT3213 SJT3213 CONNECTOR
RJU100W04 RJU100W04 CONNECTOR
RJT100W11 RJT100W11 CONNECTOR
RJT100W04 RJT100W04 CONNECTOR
RJT003K010M1 RJT003K010M1 CONNECTOR
RJS2A5618 RJS2A5618 CONNECTOR
RJS1A6607T1 RJS1A6607T1 CONNECTOR
RJS1A6606T1 RJS1A6606T1 CONNECTOR
RJS1A6603T1 RJS1A6603T1 CONNECTOR
RJS1A1602-2S RJS1A1602-2S CONNECTOR
RRV16B24304A RRV16B24304A CONTROL
K2CB2CB00022 K2CB2CB00022 CORD
REE0970A REE0970A CORD
UR75EC0103D UR75EC0103D COVER
RGQ0231-K RGQ0231-K COVER
1SS355TE17 1SS355TE17 DIODE
1SS291TA 1SS291TA DIODE
1SR35400V 1SR35400V DIODE
1N5402BM21 1N5402BM21 DIODE
UDZSTE176R2B UDZSTE176R2B DIODE
B0BC5R600003 B0BC5R600003 DIODE
SLR325YCT31 SLR325YCT31 DIODE
SLR325MCT31 SLR325MCT31 DIODE
B0JAPG000008 B0JAPG000008 DIODE
RB721Q40T77 RB721Q40T77 DIODE
MTZJ8R2CTA MTZJ8R2CTA DIODE
MTZJ7R5CTA MTZJ7R5CTA DIODE
RVDRD6R8EB RVDRD6R8EB DIODE
MTZJ6R2B MTZJ6R2B DIODE
MTZJ5R6B MTZJ5R6B DIODE
MTZJ33DTA MTZJ33DTA DIODE
MTZJ3R9ATA MTZJ3R9ATA DIODE
MTZJ3R3ATA MTZJ3R3ATA DIODE
MTZJ16C MTZJ16C DIODE
ERZV10V511CS ERZV10V511CS DIODE
RSL0312-F RSL0312-F DISPLAY
DTC114ESTA DTC114ESTA DTC114ESTP
ECEA0JU102 ECEA0JU102 ECEA0JU102
ECEA1HN100SB ECEA1HN100SB ECEA1HN100S
ECEA2AN2R2U ECEA2AN2R2U ECEA2AN2R2U
ECKF1H103ZF5 ECKF1H103ZF5 ECKF1H103ZF
ECQE2104KF3 ECQE2104KF3 ECQE2104KF
ECUV1H103KBV ECUV1H103KBV ECUV1H103KBM
ECUZ1H471KBN ECUZ1H471KBN ECUV1H471KBN
ECUV1H473KBV ECUV1H473KBV ECUV1H473KBV

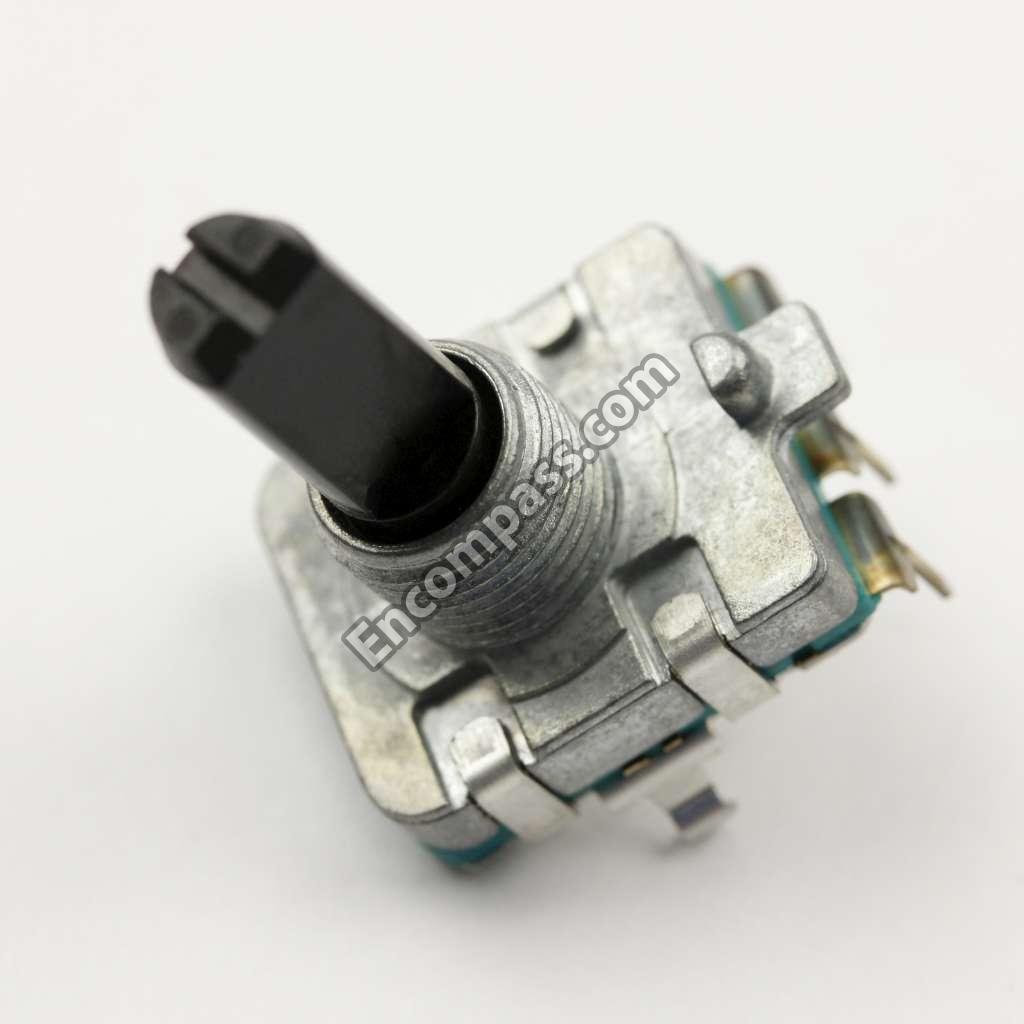

K9AA012A0002 K9AA012A0002 ENCODER
ERDS2EJ121 ERDS2EJ121 ERD25FJ121K
ERDS2FJ121 ERDS2FJ121 ERD25FJ121K
ERDS2FJ123 ERDS2FJ123 ERD25FJ123
ERDSTJ151 ERDSTJ151 ERD25FJ151K
ERD25FJ220K ERD25FJ220K ERD25FJ220
ERDS2FJ331 ERDS2FJ331 ERD25FJ331
ERD2SFJ4R7T ERD2SFJ4R7T ERD25FJ4R7
ERDS2TJ473 ERDS2TJ473 ERD25TJ473
ERDS2TJ563 ERDS2TJ563 ERD25TJ563
ERDS1FJ681 ERDS1FJ681 ERD25TJ681V
ERD25FJ684 ERD25FJ684 ERD25TJ684
ERD25TJ822 ERD25TJ822 ERD25TJ822
ERD2FCVG220T ERD2FCVG220T ERD2FCG220
ERDS1FJ3R9 ERDS1FJ3R9 ERDS1FJ3R9
ERDS1VJ4R7 ERDS1VJ4R7 ERDS1FJ4R7
ERDS1FJ561 ERDS1FJ561 ERDS1FJ561
ERDS2TJ102 ERDS2TJ102 ERDS2FJ102
ERD25FJ221K ERD25FJ221K ERDS2FJ221
ERD25TJ221B ERD25TJ221B ERDS2FJ221
ERDS2FJ224 ERDS2FJ224 ERDS2FJ224
ERDS2FJ270 ERDS2FJ270 ERDS2FJ270
ERJ8GCJ271 ERJ8GCJ271 ERDS2FJ271
ERDS2TJ752 ERDS2TJ752 ERDS2FJ752
ERDS2TJ101 ERDS2TJ101 ERDS2TJ101
ERDS2TJ122T ERDS2TJ122T ERDS2TJ122
ERDS2FJ152 ERDS2FJ152 ERDS2TJ152
ERDS2TJ154 ERDS2TJ154 ERDS2TJ154
ERDS2TJ155 ERDS2TJ155 ERDS2TJ155
ERDS25TJ182 ERDS25TJ182 ERDS2TJ182
ERDS2TJ222TD ERDS2TJ222TD ERDS2TJ222TD
ERDS2TJ223 ERDS2TJ223 ERDS2TJ223
ERDS2TJ390 ERDS2TJ390 ERDS2TJ390
ERDS2TJ470 ERDS2TJ470 ERDS2TJ470
ERDS2TJ472TD ERDS2TJ472TD ERDS2TJ472
ERDS2TJ682T ERDS2TJ682T ERDS2TJ682T
ERG1SJ101P ERG1SJ101P ERG1SJ101P
ERJ3GEYJ333 ERJ3GEYJ333 ERJ3GEYG333
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ100 ERJ3GEYJ100 ERJ3GEYJ100
ERJ3GEYJ101 ERJ3GEYJ101 ERJ3GEYJ101
ERJ3GEYJ1R5 ERJ3GEYJ1R5 ERJ3GEYJ1R5
ERJ3GEYJ272 ERJ3GEYJ272 ERJ3GEYJ272
ERJ3GEJ750V ERJ3GEJ750V ERJ3GEYJ750
REM0080A REM0080A FAN
RVBCST4R00MT RVBCST4R00MT FILTER
RFA0631A-K RFA0631A-K FOOT
XBA1C80NBAU XBA1C80NBAU FUSE
XBA1C16NBAU XBA1C16NBAU FUSE
XBA1C40NB5 XBA1C40NB5 FUSE
RGL0534-Q RGL0534-Q GUIDE
RGL0533-Q RGL0533-Q GUIDE
RXX0233 RXX0233 HEAT SINK
SHR9683 SHR9683 HOLDER
RMN0628 RMN0628 HOLDER
RMC0158-S RMC0158-S HOLDER
SNAHC1U04DBV SNAHC1U04DBV IC
NJM4580MTE1 NJM4580MTE1 IC
NJM4580DD NJM4580DD IC
NJM2279MTE1 NJM2279MTE1 IC
NJM2115MTE1 NJM2115MTE1 IC
NJM2060MTE1 NJM2060MTE1 IC
B3RAD0000028 B3RAD0000028 IC Z901 REMOTE SENSOR
CS49326-CLR CS49326-CLR IC1001 AC-3/DTS DECODER
CS4226-KQG CS4226-KQG IC1002 IC DIR/DAC/VOL
SN74LV244APW SN74LV244APW IC1003 IC CONVERTER
SN7AHCT244PW SN7AHCT244PW IC1004 IC CONVERTER
SN74HCU04APW SN74HCU04APW IC1005 IC INVERTER
TC9162AF TC9162AF IC1401 IC SELECTOR
TC9482F TC9482F IC1402 IC VOLUME
BA25BC0FP BA25BC0FP IC1701 IC REGULATOR
RSN310R36A-P RSN310R36A-P IC651
VLQ0855M1R0T VLQ0855M1R0T INDUCTOR
IB-DVDCV290PP IB-DVDCV290PP INSTRUCT BOOK
RQCA0823 RQCA0823 INSTRUCT BOOK
RQCA0820 RQCA0820 INSTRUCT BOOK
SJS305-1 SJS305-1 JACK
SJFD7-9 SJFD7-9 JACK
RJJ63TS01 RJJ63TS01 JACK
RJH5603-8 RJH5603-8 JACK
K4BK04H00003 K4BK04H00003 JACK
K4BK04H00002 K4BK04H00002 JACK
K4BK04H00001 K4BK04H00001 JACK
K4BK02H00002 K4BK02H00002 JACK
K4BK01H00001 K4BK01H00001 JACK
RGW0359-S RGW0359-S KNOB
RKA0079A-A RKA0079A-A LEG
1SS254 1SS254 MA165
MCUV1E223KBV MCUV1E223KBV MCUV1E223KBV
GP1FA550RZ GP1FA550RZ MODULE
RHN90001 RHN90001 NUT
RSXB12M2S01T RSXB12M2S01T OSCILLATOR
SCHT290D_1ST SCHT290D_1ST OTC AUDIO
SCHT290D_EX SCHT290D_EX OTC AUDIO
RPN1384 RPN1384 PACKING
RPFX0005 RPFX0005 PACKING
RGR0306J-A RGR0306J-A PANEL
RGPV0001-S RGPV0001-S PANEL
REP3108A-M REP3108A-M PC BOARD
REP3104D-S REP3104D-S PC BOARD (DISCONTINUED)
SNE1004-2 SNE1004-2 PLATE
RFZMR0013 RFZMR0013 PRC
RFZMN0009 RFZMN0009 PRC
RFZMN0008 RFZMN0008 PRC
RFZMN0003 RFZMN0003 PRC
RFZMK0019 RFZMK0019 PRC
RFZMH0008 RFZMH0008 PRC
RFZMG0018 RFZMG0018 PRC
RFZMG0017 RFZMG0017 PRC
RFZME0003 RFZME0003 PRC
RFZME0001 RFZME0001 PRC
ERD50TJ470 ERD50TJ470 RC20-47-5
RSY0054-C RSY0054-C RELAY
RSY0013M-0 RSY0013M-0 RELAY
ERD25TJ124V ERD25TJ124V RESISTOR
ERDS2TJ104 ERDS2TJ104 RESISTOR
ERDS2FJ103 ERDS2FJ103 RESISTOR
ERDS1FVJ1R2T ERDS1FVJ1R2T RESISTOR
ERC12UGK335D ERC12UGK335D RESISTOR
ERD50VJ122 ERD50VJ122 RESISTOR
ECBT1H331KB5E ECBT1H331KB5E RESISTOR
ERJ3GEYJ821V ERJ3GEYJ821V RESISTOR
ERJ3GEYJ682V ERJ3GEYJ682V RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYJ470V ERJ3GEYJ470V RESISTOR
ERJ3GEYJ392V ERJ3GEYJ392V RESISTOR
ERJ3GEYJ332V ERJ3GEYJ332V RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RESISTOR
ERJ3GEYJ330 ERJ3GEYJ330 RESISTOR
ERJ3GEYJ224V ERJ3GEYJ224V RESISTOR
ERJ3GEYJ223V ERJ3GEYJ223V RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ183V ERJ3GEYJ183V RESISTOR
ERJ3GEYJ182V ERJ3GEYJ182V RESISTOR
ERJ3GEYG152 ERJ3GEYG152 RESISTOR
ERJ3GEYJ151V ERJ3GEYJ151V RESISTOR
ERJ3GEYJ105 ERJ3GEYJ105 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERD25FJ181K ERD25FJ181K RESISTOR
ERDS2FJ474 ERDS2FJ474 RESISTOR
ERD10TLJ332 ERD10TLJ332 RESISTOR
ERDS2TJ272 ERDS2TJ272 RESISTOR
ERD25TJ184 ERD25TJ184 RESISTOR
RGKV0001-S RGKV0001-S RING
RJR0169T RJR0169T RJR0169T
RJT003K008-1 RJT003K008-1 RJT003K008-1
DTA114TSTP DTA114TSTP RVTDTA114SET
XTW3_15T XTW3_15T SCREW
XTW3_8PFJ XTW3_8PFJ SCREW
XTWS3_8T XTWS3_8T SCREW
B3X8TTSXTB3_8FFZ B3X8TTSXTB3_8FFZ SCREW
XTB3_35JFZ XTB3_35JFZ SCREW
XTB3_20JFZ XTB3_20JFZ SCREW
SNE2129-2 SNE2129-2 SCREW
RHD26016 RHD26016 SCREW
XTBS3_8JFZ1 XTBS3_8JFZ1 SCREW
RHD26046-J RHD26046-J SCREW
XTB3_6G XTB3_6G SCREW (1/10)
SJSD16-J SJSD16-J SOCKET
RJU003K010M1 RJU003K010M1 SOCKET
RJU003K008M1 RJU003K008M1 SOCKET
SJSD16-1 SJSD16-1 SOCKET
RKQ0089A RKQ0089A SPACER
RMN0648 RMN0648 SUPPORT
EVQPTD05Q EVQPTD05Q SWITCH
DTA114Y DTA114Y TRANSISTOR
2SD2374PQAU 2SD2374PQAU TRANSISTOR
2SD2137PQTA 2SD2137PQTA TRANSISTOR
2SD1915FTA 2SD1915FTA TRANSISTOR
B1AACF000063 B1AACF000063 TRANSISTOR
2SB621AQSTA 2SB621AQSTA TRANSISTOR
2SB1548PQAU 2SB1548PQAU TRANSISTOR
2SA1534AQRTA 2SA1534AQRTA TRANSISTOR
RVTDTC143ZST RVTDTC143ZST TRANSISTOR
RVTDTC114YST RVTDTC114YST TRANSISTOR
RVTDTA143XS RVTDTA143XS TRANSISTOR
RVTDTA113ZST RVTDTA113ZST TRANSISTOR
2SC3940AQSTA 2SC3940AQSTA TRANSISTOR
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
RKWV0001-Q RKWV0001-Q WINDOW
REE1104 REE1104 WIRE
REE1072 REE1072 WIRE
REE1071 REE1071 WIRE
