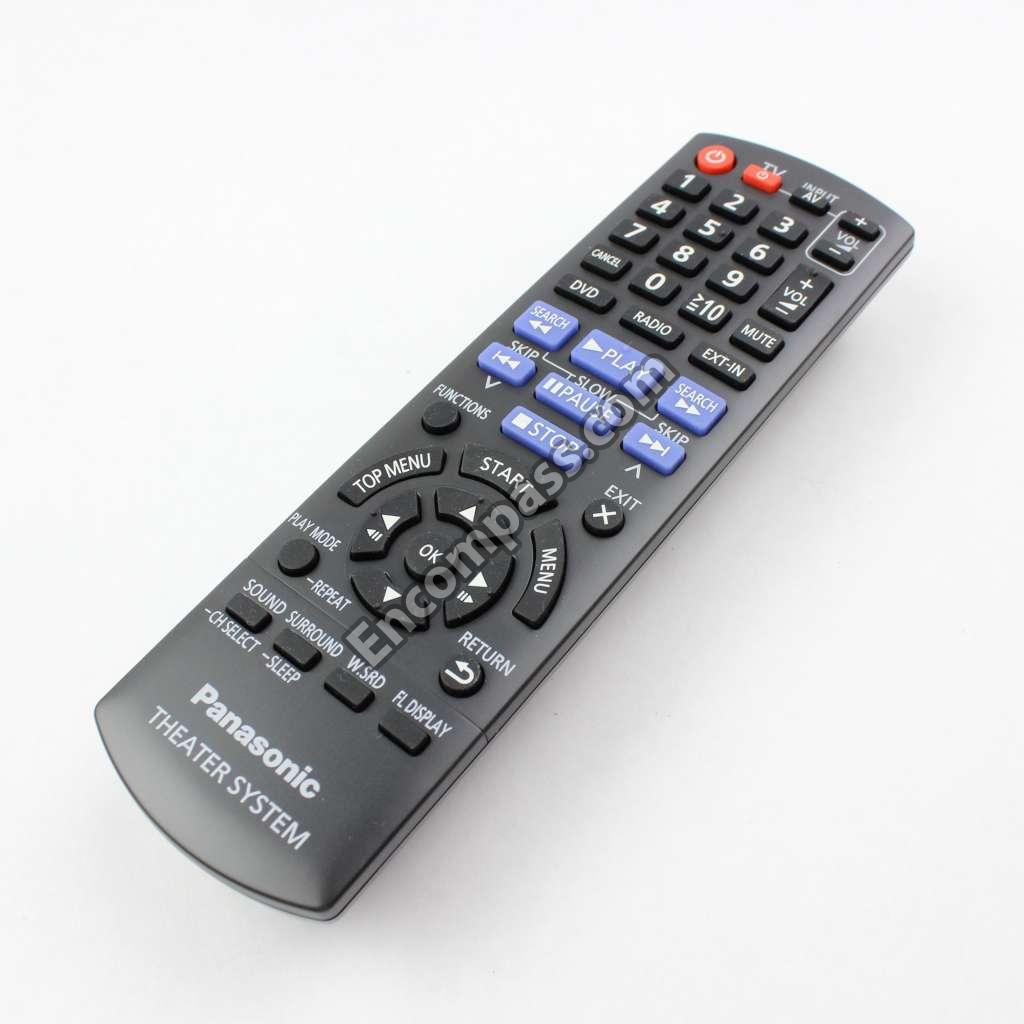

Model Image
Manufacturer

Panasonic

Model Number

SAXH50

Description

Home Theater System

Interactive Exploded View

Parts List

Part Number Description
RSAX0002 RSAX0002 ANTENNA
VMG1720 VMG1720 BELT
RGUX1043-K RGUX1043-K BUTTON
RGUX1030-K RGUX1030-K BUTTON
RGUX1029-K RGUX1029-K BUTTON
RKMX1009-K RKMX1009-K CABINET
RWJA003200XX RWJA003200XX CABLE
REXX1171 REXX1171 CABLE
REEX1250 REEX1250 CABLE
REEX1249 REEX1249 CABLE
K2KA2BA00001 K2KA2BA00001 CABLE
K2CB2CB00022 K2CB2CB00022 CABLE
F2G1C4700061 F2G1C4700061 CAPACITOR
F2G0J330A031 F2G0J330A031 CAPACITOR
F2G0J221A031 F2G0J221A031 CAPACITOR
F2G0J101A031 F2G0J101A031 CAPACITOR
F2B2D1810007 F2B2D1810007 CAPACITOR
F2A1V3300058 F2A1V3300058 CAPACITOR
F2A1H3R3A234 F2A1H3R3A234 CAPACITOR
F2A1H220A234 F2A1H220A234 CAPACITOR
F2A1H100A014 F2A1H100A014 CAPACITOR
F2A1H1000077 F2A1H1000077 CAPACITOR
F2A1E681B425 F2A1E681B425 CAPACITOR
F2A1E4R7B384 F2A1E4R7B384 CAPACITOR
F2A1E471A205 F2A1E471A205 CAPACITOR
F2A1E470B389 F2A1E470B389 CAPACITOR
F2A1E331B423 F2A1E331B423 CAPACITOR
F2A1E101B416 F2A1E101B416 CAPACITOR
F2A1C821B459 F2A1C821B459 CAPACITOR
F2A1C4710045 F2A1C4710045 CAPACITOR
F2A1C330B453 F2A1C330B453 CAPACITOR
F2A1C101B455 F2A1C101B455 CAPACITOR
F2A1C1010033 F2A1C1010033 CAPACITOR
F2A1C100A207 F2A1C100A207 CAPACITOR
F2A1A1010024 F2A1A1010024 CAPACITOR
F2A0J470A013 F2A0J470A013 CAPACITOR
F2A0J221A245 F2A0J221A245 CAPACITOR
F1K1C226A121 F1K1C226A121 CAPACITOR
F1K1C1050005 F1K1C1050005 CAPACITOR
F1J1H4740002 F1J1H4740002 CAPACITOR
F1J1C106A059 F1J1C106A059 CAPACITOR
F1J1A106A043 F1J1A106A043 CAPACITOR
F1H1H822A219 F1H1H822A219 CAPACITOR
F1H1H681A889 F1H1H681A889 CAPACITOR
F1H1H562A219 F1H1H562A219 CAPACITOR
F1H1H561A013 F1H1H561A013 CAPACITOR
F1H1H471A219 F1H1H471A219 CAPACITOR
F1H1H470A004 F1H1H470A004 CAPACITOR
F1H1H333A220 F1H1H333A220 CAPACITOR
F1H1H331A013 F1H1H331A013 CAPACITOR
F1H1H223A219 F1H1H223A219 CAPACITOR
F1H1H221A219 F1H1H221A219 CAPACITOR
F1H1H2210001 F1H1H2210001 CAPACITOR
F1H1H181A792 F1H1H181A792 CAPACITOR
F1H1H153A219 F1H1H153A219 CAPACITOR
F1H1H1500009 F1H1H1500009 CAPACITOR
F1H1H104A013 F1H1H104A013 CAPACITOR
F1H1H103A219 F1H1H103A219 CAPACITOR
F1H1H102A219 F1H1H102A219 CAPACITOR
F1H1H101A230 F1H1H101A230 CAPACITOR
F1H1H100A017 F1H1H100A017 CAPACITOR
F1H1E334A068 F1H1E334A068 CAPACITOR
F1H1E224A068 F1H1E224A068 CAPACITOR
F1H1E105A116 F1H1E105A116 CAPACITOR
F1H1E103A029 F1H1E103A029 CAPACITOR
F1H1E102A049 F1H1E102A049 CAPACITOR
F1H1C474A008 F1H1C474A008 CAPACITOR
F1H1C224A074 F1H1C224A074 CAPACITOR
F1H1C105A118 F1H1C105A118 CAPACITOR
F1H1C104A008 F1H1C104A008 CAPACITOR
F1H1A105A025 F1H1A105A025 CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
F1H0J1050013 F1H0J1050013 CAPACITOR
F1G1H8R0A456 F1G1H8R0A456 CAPACITOR
F1G1H221A444 F1G1H221A444 CAPACITOR
F1G1H101A566 F1G1H101A566 CAPACITOR
F1G1H100A565 F1G1H100A565 CAPACITOR
F1G1E4710001 F1G1E4710001 CAPACITOR
F1G1E2220001 F1G1E2220001 CAPACITOR
F1G1E1020001 F1G1E1020001 CAPACITOR
F1G1C273A081 F1G1C273A081 CAPACITOR
F1G1C104A077 F1G1C104A077 CAPACITOR
F1G1C1030007 F1G1C1030007 CAPACITOR
F1G1A104A001 F1G1A104A001 CAPACITOR
F1BAF471A013 F1BAF471A013 CAPACITOR
F1BAF1020020 F1BAF1020020 CAPACITOR
F1B3D221A011 F1B3D221A011 CAPACITOR
F0CAF104A105 F0CAF104A105 CAPACITOR
F0C2J1020001 F0C2J1020001 CAPACITOR
EEE0GA331WP EEE0GA331WP CAPACITOR
RMKX1023 RMKX1023 CHASSIS
RFKJMCD5601A RFKJMCD5601A CHASSIS
J0JHC0000045 J0JHC0000045 COIL
J0JCC0000308 J0JCC0000308 COIL
J0JCC0000042 J0JCC0000042 COIL
J0JBC0000015 J0JBC0000015 COIL
G1CR18JA0020 G1CR18JA0020 COIL
G0A330ZA0045 G0A330ZA0045 COIL
G0A100H00018 G0A100H00018 COIL
ELF19H010A ELF19H010A COIL
ELF17N010A ELF17N010A COIL
K1MY17AA0124 K1MY17AA0124 CONNECTOR
K1MY10AA0124 K1MY10AA0124 CONNECTOR
K1MN50AA0082 K1MN50AA0082 CONNECTOR
K1MN24A00062 K1MN24A00062 CONNECTOR
K1MN06AA0046 K1MN06AA0046 CONNECTOR
K1MN05AA0046 K1MN05AA0046 CONNECTOR
K1KA12AA0194 K1KA12AA0194 CONNECTOR
K1KA05AA0051 K1KA05AA0051 CONNECTOR
K1FY119E0002 K1FY119E0002 CONNECTOR
B3PBA0000503 B3PBA0000503 COUPLER
RKK-BTT270PK RKK-BTT270PK COVER
H2D500400006 H2D500400006 CRYSTAL
DZ2J36000L DZ2J36000L DIODE
DZ2J24000L DZ2J24000L DIODE
DA3X103E0L DA3X103E0L DIODE
DA3X101F0L DA3X101F0L DIODE
B1CHPD000003 B1CHPD000003 DIODE
B0JCPG000005 B0JCPG000005 DIODE
B0JCME000035 B0JCME000035 DIODE
B0HBSM000054 B0HBSM000054 DIODE
B0ECKP000002 B0ECKP000002 DIODE
B0EBNR000045 B0EBNR000045 DIODE
B0EAMM000057 B0EAMM000057 DIODE
B0EAKT000063 B0EAKT000063 DIODE
B0BC7R5A0263 B0BC7R5A0263 DIODE
B0BC5R6A0266 B0BC5R6A0266 DIODE
B0BC2R4A0263 B0BC2R4A0263 DIODE
B0BC027A0264 B0BC027A0264 DIODE
B0BC02700039 B0BC02700039 DIODE
B0BC015A0264 B0BC015A0264 DIODE
B0BC010A0267 B0BC010A0267 DIODE
B0ACCK000012 B0ACCK000012 DIODE
A2BB00000175 A2BB00000175 DISPLAY
RKWX1002 RKWX1002 FILTER
J0JDC0000102 J0JDC0000102 FILTER
J0JCC0000317 J0JCC0000317 FILTER
J0JBC0000041 J0JBC0000041 FILTER
J0JBC0000032 J0JBC0000032 FILTER
J0JBC0000019 J0JBC0000019 FILTER
VLF1491S104T VLF1491S104T FILTER
F1H0J1050018 F1H0J1050018 FILTER
K5G312Y00007 K5G312Y00007 FUSE
RDG0651 RDG0651 GEAR
RDG0650 RDG0650 GEAR
RMNX0329-1 RMNX0329-1 HOLDER
RMR0312 RMR0312 HOLDER
RFKWMXH50EB RFKWMXH50EB IC
C3EBFC000042 C3EBFC000042 IC
C3ABPG000163 C3ABPG000163 IC
C1AB00003476 C1AB00003476 IC
C1AB00003217 C1AB00003217 IC
C1AB00003216 C1AB00003216 IC
C0JBAR000540 C0JBAR000540 IC
C0JBAR000433 C0JBAR000433 IC
C0JBAB000986 C0JBAB000986 IC
C0HBB0000057 C0HBB0000057 IC
C0GBY0000117 C0GBY0000117 IC
C0FBAK000026 C0FBAK000026 IC
C0EBE0000504 C0EBE0000504 IC
C0DBZYY00448 C0DBZYY00448 IC
C0DBZYY00018 C0DBZYY00018 IC
C0DBZMC00006 C0DBZMC00006 IC
C0DBGYY00887 C0DBGYY00887 IC
C0DBEHG00006 C0DBEHG00006 IC
C0DBAYY00927 C0DBAYY00927 IC
C0DBAYH00005 C0DBAYH00005 IC
C0CBCDC00063 C0CBCDC00063 IC
C0ABBB000230 C0ABBB000230 IC
J0JYC0000196 J0JYC0000196 INDUCTOR
J0JHC0000117 J0JHC0000117 INDUCTOR
G1C100M00049 G1C100M00049 INDUCTOR
G0C330M00002 G0C330M00002 INDUCTOR
K2AB2B000007 K2AB2B000007 INLET
K4ZZ01000276 K4ZZ01000276 JACK
K4AL12B00006 K4AL12B00006 JACK
K2HC103A0031 K2HC103A0031 JACK
K2HA2YYA0005 K2HA2YYA0005 JACK
K2HA1YYB0022 K2HA1YYB0022 JACK
B3RAB0000056 B3RAB0000056 JACK
RKA0072-KJ RKA0072-KJ LEG
RXQ1949 RXQ1949 MOTOR
RGKX1049-K RGKX1049-K ORNAMENT
H0J270500131 H0J270500131 OSCILLATOR
H0J135500050 H0J135500050 OSCILLATOR
H0A327200097 H0A327200097 OSCILLATOR
RPFX1010 RPFX1010 PACKAGING
RGRX1004B-A RGRX1004B-A PANEL
RFKGAXH50P-K RFKGAXH50P-K PANEL
RFKBX0934P RFKBX0934P PC BOARD
RSCX1059 RSCX1059 PLATE
RMM0304 RMM0304 PLATE
D0GB100JA008 D0GB100JA008 PROTECTOR
RSCX1060 RSCX1060 RADIATOR
RSC1018 RSC1018 RADIATOR
N2QAYB000626 N2QAYB000626 REMOTE CONTROL
ERZVA5Z471 ERZVA5Z471 RESISTOR
ERX2SJR22P ERX2SJR22P RESISTOR
ERJ3RBD563 ERJ3RBD563 RESISTOR
ERJ3RBD472V ERJ3RBD472V RESISTOR
ERJ3RBD393 ERJ3RBD393 RESISTOR
ERJ3RBD303V ERJ3RBD303V RESISTOR
ERJ3RBD153V ERJ3RBD153V RESISTOR
ERJ3RBD122V ERJ3RBD122V RESISTOR
ERJ3GEYJ3R3V ERJ3GEYJ3R3V RESISTOR
ERJ2RKD75R0X ERJ2RKD75R0X RESISTOR
ERJ2RHD6191X ERJ2RHD6191X RESISTOR
ERJ2RHD5102X ERJ2RHD5102X RESISTOR
ERJ2RHD4020X ERJ2RHD4020X RESISTOR
ERJ2RHD3920X ERJ2RHD3920X RESISTOR
ERJ2RHD2202X ERJ2RHD2202X RESISTOR
ERJ2RHD1542X ERJ2RHD1542X RESISTOR
ERJ2RHD1471X ERJ2RHD1471X RESISTOR
ERJ2RHD1001X ERJ2RHD1001X RESISTOR
ECEA1CKA470B ECEA1CKA470B RESISTOR
ERJ2GEJ202X ERJ2GEJ202X RESISTOR
ERJ2GE0R00X ERJ2GE0R00X RESISTOR
ERJ1TYJ104U ERJ1TYJ104U RESISTOR
D1H88204A043 D1H88204A043 RESISTOR
D1H456020001 D1H456020001 RESISTOR
D0HB392ZA002 D0HB392ZA002 RESISTOR
D0HB123ZA002 D0HB123ZA002 RESISTOR
D0HB102ZA002 D0HB102ZA002 RESISTOR
D0GFR00JA017 D0GFR00JA017 RESISTOR
D0GF4R7JA017 D0GF4R7JA017 RESISTOR
D0GF100JA048 D0GF100JA048 RESISTOR
D0GDR00JA017 D0GDR00JA017 RESISTOR
D0GD824JA017 D0GD824JA017 RESISTOR
D0GD823JA017 D0GD823JA017 RESISTOR
D0GD335JA017 D0GD335JA017 RESISTOR
D0GD222JA017 D0GD222JA017 RESISTOR
D0GBR00JA008 D0GBR00JA008 RESISTOR
D0GB823JA008 D0GB823JA008 RESISTOR
D0GB682JA008 D0GB682JA008 RESISTOR
D0GB680JA008 D0GB680JA008 RESISTOR
D0GB563JA008 D0GB563JA008 RESISTOR
D0GB562JA008 D0GB562JA008 RESISTOR
D0GB4R7JA008 D0GB4R7JA008 RESISTOR
D0GB473JA008 D0GB473JA008 RESISTOR
D0GB822JA008 D0GB822JA008 RESISTOR
D0GB470JA008 D0GB470JA008 RESISTOR
D0GB3R3JA008 D0GB3R3JA008 RESISTOR
D0GB393JA008 D0GB393JA008 RESISTOR
D0GB392JA008 D0GB392JA008 RESISTOR
D0GB333JA008 D0GB333JA008 RESISTOR
D0GB332JA008 D0GB332JA008 RESISTOR
D0GB331JA008 D0GB331JA008 RESISTOR
D0GB2R2JA007 D0GB2R2JA007 RESISTOR
D0GB273JA008 D0GB273JA008 RESISTOR
D0GB272JA008 D0GB272JA008 RESISTOR
D0GB224JA008 D0GB224JA008 RESISTOR
D0GB223JA008 D0GB223JA008 RESISTOR
D0GB222JA008 D0GB222JA008 RESISTOR
D0GB221JA008 D0GB221JA008 RESISTOR
D0GB220JA008 D0GB220JA008 RESISTOR
D0GB184JA008 D0GB184JA008 RESISTOR
D0GB183JA008 D0GB183JA008 RESISTOR
D0GB154JA008 D0GB154JA008 RESISTOR
D0GB153JA008 D0GB153JA008 RESISTOR
D0GB152JA008 D0GB152JA008 RESISTOR
D0GB122JA008 D0GB122JA008 RESISTOR
D0GB105JA008 D0GB105JA008 RESISTOR
D0GB394JA008 D0GB394JA008 RESISTOR
D0GB103JA008 D0GB103JA008 RESISTOR
D0GB102JA008 D0GB102JA008 RESISTOR
D0GB101JA008 D0GB101JA008 RESISTOR
D0GA510JA023 D0GA510JA023 RESISTOR
D0GA473JA023 D0GA473JA023 RESISTOR
D0GA472JA023 D0GA472JA023 RESISTOR
D0GA333JA023 D0GA333JA023 RESISTOR
D0GA332JA023 D0GA332JA023 RESISTOR
D0GA273JA023 D0GA273JA023 RESISTOR
D0GA221JA023 D0GA221JA023 RESISTOR
D0GA220JA023 D0GA220JA023 RESISTOR
D0GA104JA023 D0GA104JA023 RESISTOR
D0GA103JA023 D0GA103JA023 RESISTOR
D0GA102JA023 D0GA102JA023 RESISTOR
D0GA101JA023 D0GA101JA023 RESISTOR
XTB3_10JFJ XTB3_10JFJ SCREW
XSN3_4FJ XSN3_4FJ SCREW
RHDX301003 RHDX301003 SCREW
RHDX30005-1 RHDX30005-1 SCREW
RHDX261002 RHDX261002 SCREW
RHD30119-S RHD30119-S SCREW
RHD30007-K2J RHD30007-K2J SCREW
RHD26046 RHD26046 SCREW
RHD26043-1 RHD26043-1 SCREW
D4CC11040013 D4CC11040013 SENSOR
B3RAD0000204 B3RAD0000204 SENSOR
RMQ1742 RMQ1742 SHEET
RMNX1075 RMNX1075 SHEET
RMNX1050 RMNX1050 SHEET
RMZX1022 RMZX1022 SPACER
RMCX0066 RMCX0066 SPRING
EZAEG2A50AX EZAEG2A50AX SUPPRESSOR
K0L1CB000004 K0L1CB000004 SWITCH
EVQPTD05Q EVQPTD05Q SWITCH
K4CZ01000027 K4CZ01000027 TERMINAL
D4CAA5R10001 D4CAA5R10001 THERMISTER
G4D1A0000118 G4D1A0000118 TRANSFORMER
ETS35BL136AC ETS35BL136AC TRANSFORMER
B1GBCFJJ0051 B1GBCFJJ0051 TRANSISTOR
B1GBCFGG0030 B1GBCFGG0030 TRANSISTOR
B1CFHA000002 B1CFHA000002 TRANSISTOR
B1CERS000002 B1CERS000002 TRANSISTOR
B1BABK000001 B1BABK000001 TRANSISTOR
B1BABD000001 B1BABD000001 TRANSISTOR
B1ADGB000008 B1ADGB000008 TRANSISTOR
B1ADCE000012 B1ADCE000012 TRANSISTOR
B1ABDF000026 B1ABDF000026 TRANSISTOR
B1ABCF000176 B1ABCF000176 TRANSISTOR
B1ABCF000011 B1ABCF000011 TRANSISTOR
B1ABBE000003 B1ABBE000003 TRANSISTOR
RAY1101-V RAY1101-V TRAVERSE
RXQ1899 RXQ1899 TRAY
RFKZXH150PK2 RFKZXH150PK2 WIRE
