Model Image
Manufacturer

Panasonic

Model Number

SCHTB10

Description

Sound Bar Speaker System

Interactive Exploded View

Parts List

Part Number Description
RSCX1041A RSCX1041A ABSORBER
RSCX1041 RSCX1041 ABSORBER
RYQX1048 RYQX1048 ASSEMBLY
RYQX1034-K RYQX1034-K BRACKETS
RGUX1020-K1 RGUX1020-K1 BUTTON
RYQX1033-K RYQX1033-K CABINET
RFAX1027 RFAX1027 CABLE
REZX1003 REZX1003 CABLE
REXX1110 REXX1110 CABLE
REXX1104 REXX1104 CABLE
REXX1103 REXX1103 CABLE
F2G1H4R7A031 F2G1H4R7A031 CAPACITOR
F2G1C100A072 F2G1C100A072 CAPACITOR
F2G0J101A031 F2G0J101A031 CAPACITOR
F2B2G6R80001 F2B2G6R80001 CAPACITOR
F2B2D1010003 F2B2D1010003 CAPACITOR
F2A2A100A057 F2A2A100A057 CAPACITOR
F2A1H100A182 F2A1H100A182 CAPACITOR
F2A1H1000077 F2A1H1000077 CAPACITOR
F2A1E471B424 F2A1E471B424 CAPACITOR
F2A1E4710114 F2A1E4710114 CAPACITOR
F2A1C330A234 F2A1C330A234 CAPACITOR
F2A1C100A234 F2A1C100A234 CAPACITOR
F1K2J2220002 F1K2J2220002 CAPACITOR
F1K1H105A149 F1K1H105A149 CAPACITOR
F1J2E1030004 F1J2E1030004 CAPACITOR
F1J1H4740002 F1J1H4740002 CAPACITOR
F1J1H104A717 F1J1H104A717 CAPACITOR
F1J1H102A002 F1J1H102A002 CAPACITOR
F1J1A106A043 F1J1A106A043 CAPACITOR
F1H1H471A219 F1H1H471A219 CAPACITOR
F1H1H470A004 F1H1H470A004 CAPACITOR
F1H1H333A220 F1H1H333A220 CAPACITOR
F1H1H331A004 F1H1H331A004 CAPACITOR
F1H1H330A230 F1H1H330A230 CAPACITOR
F1H1H222A219 F1H1H222A219 CAPACITOR
F1H1H221A219 F1H1H221A219 CAPACITOR
F1H1H220A004 F1H1H220A004 CAPACITOR
F1H1H180A004 F1H1H180A004 CAPACITOR
F1H1H1500009 F1H1H1500009 CAPACITOR
F1H1H104A013 F1H1H104A013 CAPACITOR
F1H1H103A219 F1H1H103A219 CAPACITOR
F1H1H102A219 F1H1H102A219 CAPACITOR
F1H1H101A230 F1H1H101A230 CAPACITOR
F1H1H1010005 F1H1H1010005 CAPACITOR
F1H1H100A017 F1H1H100A017 CAPACITOR
F1H1E105A116 F1H1E105A116 CAPACITOR
F1H1C474A008 F1H1C474A008 CAPACITOR
F1H1C473A088 F1H1C473A088 CAPACITOR
F1H1C104A042 F1H1C104A042 CAPACITOR
F1H0J1050013 F1H0J1050013 CAPACITOR
F1BAF2220023 F1BAF2220023 CAPACITOR
F1BAF1020020 F1BAF1020020 CAPACITOR
F1B3D561A011 F1B3D561A011 CAPACITOR
F0CAF104A105 F0CAF104A105 CAPACITOR
F0C2J1030007 F0C2J1030007 CAPACITOR
EEUFC1A102B EEUFC1A102B CAPACITOR
EEEHB0J102UP EEEHB0J102UP CAPACITOR
EEEFK1C100R EEEFK1C100R CAPACITOR
EEEFK0J471P EEEFK0J471P CAPACITOR
EEEFC1A471P EEEFC1A471P CAPACITOR
EEE1HA100SP EEE1HA100SP CAPACITOR
EEE1HA010SR EEE1HA010SR CAPACITOR
EEE1EA330WR EEE1EA330WR CAPACITOR
EEE0JA101WR EEE0JA101WR CAPACITOR
EEE0JA101WAR EEE0JA101WAR CAPACITOR
EEE0GA331WP EEE0GA331WP CAPACITOR
RYQX1031 RYQX1031 CHASSIS
RYQX1031-2 RYQX1031-2 CHASSIS UNIT
J0JCC0000308 J0JCC0000308 COIL
G1A330ZA0007 G1A330ZA0007 COIL
G0A200D00002 G0A200D00002 COIL
G0A101ZA0045 G0A101ZA0045 COIL
G0A100H00018 G0A100H00018 COIL
ELF19H010A ELF19H010A COIL
ELF15N007A ELF15N007A COIL
K1MY16AA0021 K1MY16AA0021 CONNECTOR
K1MN50BA0173 K1MN50BA0173 CONNECTOR
K1MN12BA0026 K1MN12BA0026 CONNECTOR
K1MN10AA0046 K1MN10AA0046 CONNECTOR
K1KA10BA0062 K1KA10BA0062 CONNECTOR
K1FY119E0014 K1FY119E0014 CONNECTOR
REEX1103 REEX1103 CORD
J0JKB0000020 J0JKB0000020 CORE
RMVX1021A-Q RMVX1021A-Q COVER
RMVX1021-Q RMVX1021-Q COVER
RMRX1016-K RMRX1016-K COVER
RKK-PT470EBK RKK-PT470EBK COVER
RKK-HTB10GNK RKK-HTB10GNK COVER
H0J283500018 H0J283500018 CRYSTAL
RKAX1016-K RKAX1016-K CUSHION
RKAX1012-KJ RKAX1012-KJ CUSHION
RKAX0042-K RKAX0042-K CUSHION
MAZ8300GML MAZ8300GML DIODE
MA2J1110GL MA2J1110GL DIODE
ERZV10V511CS ERZV10V511CS DIODE
B3PBA0000402 B3PBA0000402 DIODE
B3AGB0000037 B3AGB0000037 DIODE
B0JCPG000005 B0JCPG000005 DIODE
B0JCME000012 B0JCME000012 DIODE
B0JCAE000001 B0JCAE000001 DIODE
B0JAMF000011 B0JAMF000011 DIODE
B0HBSM000054 B0HBSM000054 DIODE
B0HAMP000094 B0HAMP000094 DIODE
B0EDKT000009 B0EDKT000009 DIODE
B0EBNR000015 B0EBNR000015 DIODE
B0EAMM000057 B0EAMM000057 DIODE
B0EAKT000062 B0EAKT000062 DIODE
B0EAKT000061 B0EAKT000061 DIODE
B0BC6R2A0266 B0BC6R2A0266 DIODE
B0BC5R600003 B0BC5R600003 DIODE
B0BC030A0264 B0BC030A0264 DIODE
B0BC018A0267 B0BC018A0267 DIODE
B0BC012A0264 B0BC012A0264 DIODE
B0BC010A0007 B0BC010A0007 DIODE
B0ACCK000005 B0ACCK000005 DIODE
J0JCC0000119 J0JCC0000119 FILTER
RLBV102V-Y RLBV102V-Y FILTER
G0B9R5K00007 G0B9R5K00007 FILTER
K5H302100004 K5H302100004 FUSE
K5D252APA008 K5D252APA008 FUSE
RMQX1061 RMQX1061 GASKET
K3GE1ZZ00001 K3GE1ZZ00001 HOLDER
MIP2F20MSSCF MIP2F20MSSCF IC
C3ABMG000238 C3ABMG000238 IC
C2HBCY000067 C2HBCY000067 IC
C2CBDD000001 C2CBDD000001 IC
C1AB00003217 C1AB00003217 IC
C1AB00003216 C1AB00003216 IC
C1AB00002989 C1AB00002989 IC
C1AB00002975 C1AB00002975 IC
C0JBAZ001466 C0JBAZ001466 IC
C0JBAR000396 C0JBAR000396 IC
C0JBAQ000073 C0JBAQ000073 IC
C0JBAB000986 C0JBAB000986 IC
C0FBZK000013 C0FBZK000013 IC
C0EBG0000107 C0EBG0000107 IC
C0DBAYH00005 C0DBAYH00005 IC
C0DAEMZ00001 C0DAEMZ00001 IC
C0DAAMH00015 C0DAAMH00015 IC
C0DAAMH00013 C0DAAMH00013 IC
C0CBCDC00014 C0CBCDC00014 IC
C0CBCBG00013 C0CBCBG00013 IC
C0CBCBC00049 C0CBCBC00049 IC
C0CBCAG00015 C0CBCAG00015 IC
C0CBABC00117 C0CBABC00117 IC
J0JYC0000096 J0JYC0000096 INDUCTOR
J0JHC0000021 J0JHC0000021 INDUCTOR
J0JDC0000045 J0JDC0000045 INDUCTOR
J0JBC0000072 J0JBC0000072 INDUCTOR
G1CR82KA0010 G1CR82KA0010 INDUCTOR
G1C330MA0291 G1C330MA0291 INDUCTOR
K2ABYA000001 K2ABYA000001 INLET
K2HC104E0005 K2HC104E0005 JACK
B3RAB0000056 B3RAB0000056 JACK
RGNX1124-K1 RGNX1124-K1 LABEL
RHNX1002 RHNX1002 NUT
H2D400400018 H2D400400018 OSCILLATOR
H2D100500004 H2D100500004 OSCILLATOR
H2B100500007 H2B100500007 OSCILLATOR
H0J327200172 H0J327200172 OSCILLATOR
H0J245500068 H0J245500068 OSCILLATOR
H0J135000003 H0J135000003 OSCILLATOR
RPNX1057 RPNX1057 PACKAGING
RMFX1054-K RMFX1054-K PACKAGING
RYPX1070-K2 RYPX1070-K2 PANEL
RYPX1070-K RYPX1070-K PANEL
REPX0841A REPX0841A PC BOARD
REPX0839AB REPX0839AB PC BOARD
D0GB100JA008 D0GB100JA008 PROTECTOR
K6B1AEA00003 K6B1AEA00003 RELAY
N2QAYC000027 N2QAYC000027 REMOTE CONTROL
ERX2SJR27P ERX2SJR27P RESISTOR
YW21163R3JT YW21163R3JT RESISTOR
ERJ6GEYJ334 ERJ6GEYJ334 RESISTOR
ERJ6GEYJ150V ERJ6GEYJ150V RESISTOR
ERJ3RBD681V ERJ3RBD681V RESISTOR
ERJ3RBD563 ERJ3RBD563 RESISTOR
ERJ3RBD512V ERJ3RBD512V RESISTOR
ERJ3RBD472V ERJ3RBD472V RESISTOR
ERJ3RBD393 ERJ3RBD393 RESISTOR
ERJ3RBD333V ERJ3RBD333V RESISTOR
ERJ3RBD331 ERJ3RBD331 RESISTOR
ERJ3RBD273V ERJ3RBD273V RESISTOR
ERJ3RBD272V ERJ3RBD272V RESISTOR
ERJ3RBD153V ERJ3RBD153V RESISTOR
ERJ3RBD103 ERJ3RBD103 RESISTOR
ERJ3GEYJ3R3V ERJ3GEYJ3R3V RESISTOR
ERJ3GEYJ201V ERJ3GEYJ201V RESISTOR
ERJ2GEJ4R7X ERJ2GEJ4R7X RESISTOR
ERJ2GE0R00X ERJ2GE0R00X RESISTOR
ERJ1TYJ333U ERJ1TYJ333U RESISTOR
ERJ1TYJ222U ERJ1TYJ222U RESISTOR
ERJ1TYJ204U ERJ1TYJ204U RESISTOR
ERJ1TYJ104U ERJ1TYJ104U RESISTOR
ERDS1TJ395B ERDS1TJ395B RESISTOR
D1H83304A024 D1H83304A024 RESISTOR
D0HB392ZA002 D0HB392ZA002 RESISTOR
D0HB242ZA002 D0HB242ZA002 RESISTOR
D0HB152ZA002 D0HB152ZA002 RESISTOR
D0HB123ZA002 D0HB123ZA002 RESISTOR
D0GDR00JA017 D0GDR00JA017 RESISTOR
D0GD473JA017 D0GD473JA017 RESISTOR
D0GD472JA017 D0GD472JA017 RESISTOR
D0GD331JA017 D0GD331JA017 RESISTOR
D0GD222JA017 D0GD222JA017 RESISTOR
D0GD220JA017 D0GD220JA017 RESISTOR
D0GD103JA017 D0GD103JA017 RESISTOR
D0GBR00JA008 D0GBR00JA008 RESISTOR
D0GB823JA008 D0GB823JA008 RESISTOR
D0GB821JA008 D0GB821JA008 RESISTOR
D0GB820JA008 D0GB820JA008 RESISTOR
D0GB682JA008 D0GB682JA008 RESISTOR
D0GB681JA008 D0GB681JA008 RESISTOR
D0GB563JA008 D0GB563JA008 RESISTOR
D0GB562JA008 D0GB562JA008 RESISTOR
D0GB561JA008 D0GB561JA008 RESISTOR
D0GB510JA008 D0GB510JA008 RESISTOR
D0GB473JA008 D0GB473JA008 RESISTOR
D0GB822JA008 D0GB822JA008 RESISTOR
D0GB470JA008 D0GB470JA008 RESISTOR
D0GB333JA008 D0GB333JA008 RESISTOR
D0GB332JA008 D0GB332JA008 RESISTOR
D0GB331JA008 D0GB331JA008 RESISTOR
D0GB330JA008 D0GB330JA008 RESISTOR
D0GB273JA008 D0GB273JA008 RESISTOR
D0GB224JA008 D0GB224JA008 RESISTOR
D0GB223JA008 D0GB223JA008 RESISTOR
D0GB222JA008 D0GB222JA008 RESISTOR
D0GB221JA008 D0GB221JA008 RESISTOR
D0GB221JA007 D0GB221JA007 RESISTOR
D0GB202JA008 D0GB202JA008 RESISTOR
D0GB183JA008 D0GB183JA008 RESISTOR
D0GB182JA008 D0GB182JA008 RESISTOR
D0GB180JA008 D0GB180JA008 RESISTOR
D0GB154JA008 D0GB154JA008 RESISTOR
D0GB153JA008 D0GB153JA008 RESISTOR
D0GB152JA008 D0GB152JA008 RESISTOR
D0GB151JA008 D0GB151JA008 RESISTOR
D0GB105JA008 D0GB105JA008 RESISTOR
D0GB394JA008 D0GB394JA008 RESISTOR
D0GB103JA008 D0GB103JA008 RESISTOR
D0GB102JA008 D0GB102JA008 RESISTOR
D0GB101JA008 D0GB101JA008 RESISTOR
XTB3_8JFJK XTB3_8JFJK SCREW
XTB3_6JFJK XTB3_6JFJK SCREW
XTB3_6JFJ XTB3_6JFJ SCREW
XTB3_16JFJK XTB3_16JFJK SCREW
XTB3_16GFJK XTB3_16GFJK SCREW
XTB3_12JFJK XTB3_12JFJK SCREW
XTB3_10JFJK XTB3_10JFJK SCREW
XTB3_10JFJ XTB3_10JFJ SCREW

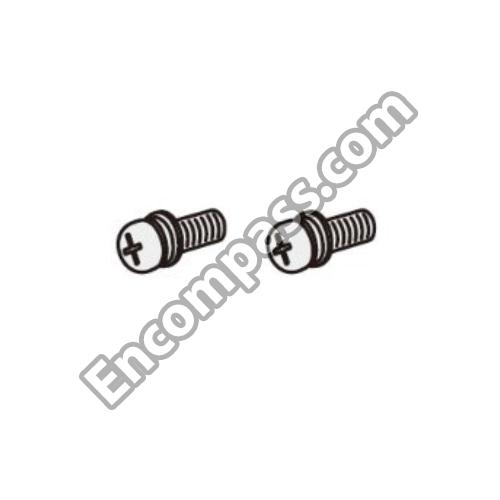

RYQX1042-1 RYQX1042-1 SCREW
RHDX301002 RHDX301002 SCREW
RHDX30005-1 RHDX30005-1 SCREW
RHD30119-S RHD30119-S SCREW
RHD30119-K RHD30119-K SCREW
RHD14136 RHD14136 SCREW
B3RAC0000019 B3RAC0000019 SENSOR
RSC0839 RSC0839 SHEET
RYQX1043-1 RYQX1043-1 SHIELD
RMQX1072A-Q RMQX1072A-Q SPACER
RMQX1072-K RMQX1072-K SPACER
RMFX1021D RMFX1021D SPACER
L0AA08A00027 L0AA08A00027 SPEAKER
EAS65P149A EAS65P149A SPEAKER
EZAEG2A50AX EZAEG2A50AX SUPPRESSOR
K0H1BA000267 K0H1BA000267 SWITCH
K4CZ01000027 K4CZ01000027 TERMINAL
D4CAA5R10001 D4CAA5R10001 THERMISTER
J0MAB0000235 J0MAB0000235 TRANSFORMER
ETS28BH1E5BC ETS28BH1E5BC TRANSFORMER
ETS19AB2A6AG ETS19AB2A6AG TRANSFORMER
B1HBCFA00003 B1HBCFA00003 TRANSISTOR
B1GDCFJJ0008 B1GDCFJJ0008 TRANSISTOR
B1GBCFNN0004 B1GBCFNN0004 TRANSISTOR
B1GBCFJJ0007 B1GBCFJJ0007 TRANSISTOR
B1GBCFGG0030 B1GBCFGG0030 TRANSISTOR
B1CFGD000002 B1CFGD000002 TRANSISTOR
B1ADBL000010 B1ADBL000010 TRANSISTOR
B1ABMF000020 B1ABMF000020 TRANSISTOR
B1ABCF000079 B1ABCF000079 TRANSISTOR
B1ABCF000011 B1ABCF000011 TRANSISTOR
2SC3940ARA 2SC3940ARA TRANSISTOR
EZJZ0V80008B EZJZ0V80008B VARISTOR
REXX1115 REXX1115 WIRE
REXX1114-1 REXX1114-1 WIRE
REXX1114 REXX1114 WIRE
REEX1201-1 REEX1201-1 WIRE ASSY
