Model Image
Manufacturer

Panasonic

Model Number

SCHTB520

Description

Sound Bar Speaker System

Interactive Exploded View

Parts List

Part Number Description
RMFX1075 RMFX1075 ABSORBER
K2CB2CB00022 K2CB2CB00022 AC POWER CORD FOR MAIN UNIT
REE1607-J REE1607-J AC WIRE FOR SPEAKER UNIT
RMAX1013 RMAX1013 BOARD

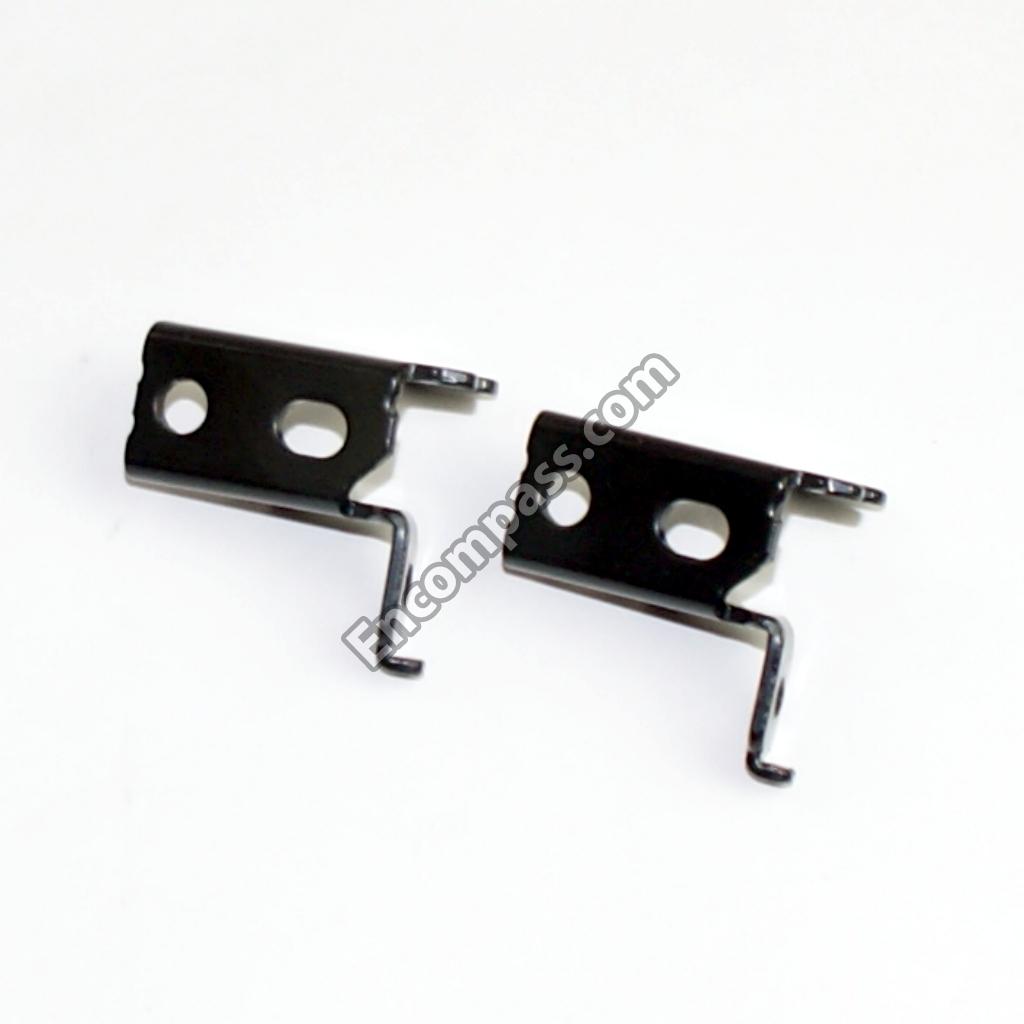

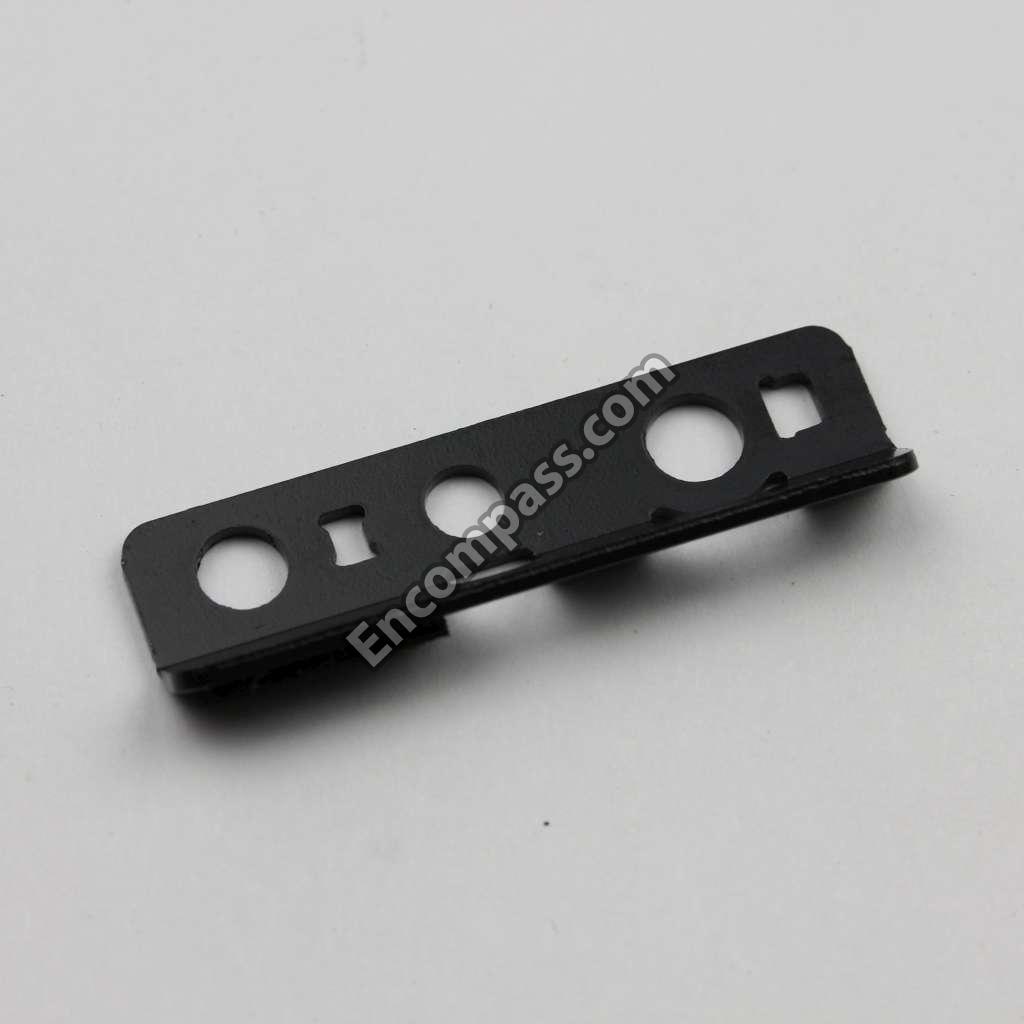

RMQX1082-K RMQX1082-K BRACKET
RGUX1037-K RGUX1037-K BUTTON
RFKHUHTB520P RFKHUHTB520P CABINET

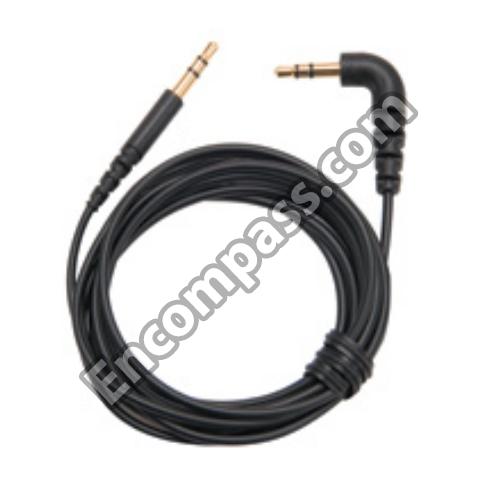

REZX1019-1 REZX1019-1 CABLE
F2G1C100A072 F2G1C100A072 CAPACITOR
F2G0J101A031 F2G0J101A031 CAPACITOR
F2A1E471B424 F2A1E471B424 CAPACITOR
F2A0J221A211 F2A0J221A211 CAPACITOR
F2A0J101A024 F2A0J101A024 CAPACITOR
F1K1H105A149 F1K1H105A149 CAPACITOR
F1J1H4740002 F1J1H4740002 CAPACITOR
F1J1A106A043 F1J1A106A043 CAPACITOR
F1H1H333A220 F1H1H333A220 CAPACITOR
F1H1H1500009 F1H1H1500009 CAPACITOR
F1J0J226A014 F1J0J226A014 CAPACITOR
F1H1H103A219 F1H1H103A219 CAPACITOR
F1H1H102A219 F1H1H102A219 CAPACITOR
F1H1H1010005 F1H1H1010005 CAPACITOR
F1H1H100A831 F1H1H100A831 CAPACITOR
F1H1C474A008 F1H1C474A008 CAPACITOR
F1H1C105A008 F1H1C105A008 CAPACITOR
F1H1C104A042 F1H1C104A042 CAPACITOR
F1H1C104A008 F1H1C104A008 CAPACITOR
F1G1H330A565 F1G1H330A565 CAPACITOR
F1G1H220A565 F1G1H220A565 CAPACITOR
F1G1H120A444 F1G1H120A444 CAPACITOR
F1G1H102A401 F1G1H102A401 CAPACITOR
F1G1H101A565 F1G1H101A565 CAPACITOR
F1G1H100A565 F1G1H100A565 CAPACITOR
F1G1C223A081 F1G1C223A081 CAPACITOR
F1G1C1030007 F1G1C1030007 CAPACITOR
F1G1A104A001 F1G1A104A001 CAPACITOR
F1G0J105A031 F1G0J105A031 CAPACITOR
EEEHB0J102UP EEEHB0J102UP CAPACITOR
EEEFK1C100R EEEFK1C100R CAPACITOR
EEEFK0J471P EEEFK0J471P CAPACITOR
EEE1VA330WP EEE1VA330WP CAPACITOR
EEE1HA100SP EEE1HA100SP CAPACITOR
EEE1HA010SR EEE1HA010SR CAPACITOR
EEE1CA330WR EEE1CA330WR CAPACITOR
EEE0JA101WR EEE0JA101WR CAPACITOR
EEE0GA331WP EEE0GA331WP CAPACITOR
RYQX1068 RYQX1068 CHASSIS
RMKX1032 RMKX1032 CHASSIS
J0JCC0000308 J0JCC0000308 COIL
J0JBC0000015 J0JBC0000015 COIL
G1A330ZA0007 G1A330ZA0007 COIL
G0A200D00002 G0A200D00002 COIL
G0A100H00018 G0A100H00018 COIL
K1MY22A00003 K1MY22A00003 CONNECTOR
K1MY16AA0021 K1MY16AA0021 CONNECTOR
K1MN26BA0033 K1MN26BA0033 CONNECTOR
K1MN20AA0046 K1MN20AA0046 CONNECTOR
K1MN12BA0026 K1MN12BA0026 CONNECTOR
K1MN10AA0046 K1MN10AA0046 CONNECTOR
K1KA09A00226 K1KA09A00226 CONNECTOR
K1KA05BA0014 K1KA05BA0014 CONNECTOR
K1KA04AA0193 K1KA04AA0193 CONNECTOR
K1FY119E0014 K1FY119E0014 CONNECTOR
J0JKB0000020 J0JKB0000020 CORE
RKK-HTB10GNK RKK-HTB10GNK COVER
RKAX0028-K RKAX0028-K CUSHION
B3ADB0000026 B3ADB0000026 DIODE
B0ZBZ0000156 B0ZBZ0000156 DIODE
B0JCPG000005 B0JCPG000005 DIODE
B0JCCD000017 B0JCCD000017 DIODE
B0ECKP000002 B0ECKP000002 DIODE
B0BC030A0264 B0BC030A0264 DIODE
B0ACCK000012 B0ACCK000012 DIODE
B0ACCK000005 B0ACCK000005 DIODE
REZX1021 REZX1021 FFC
REZX1020 REZX1020 FFC
REZX1019 REZX1019 FFC
J0JHC0000078 J0JHC0000078 FILTER
J0JCC0000119 J0JCC0000119 FILTER
RLBV102V-Y RLBV102V-Y FILTER
RMQ1933 RMQ1933 GASKET
RMFX1070C RMFX1070C HIMELON
RMFX1070B RMFX1070B HIMELON
RYQ0846-K RYQ0846-K HOLDER
RMKX1034-K RMKX1034-K HOLDER
RFA3321-K RFA3321-K HOLDER
RFKWMHTB520M RFKWMHTB520M IC
RFKWHTB520PH RFKWHTB520PH IC
C3EBEC000060 C3EBEC000060 IC
C3ABMY000022 C3ABMY000022 IC
C2HBCY000067 C2HBCY000067 IC
C2CBYY001016 C2CBYY001016 IC
C2CBYY000968 C2CBYY000968 IC
C1AB00003217 C1AB00003217 IC
C1AB00003216 C1AB00003216 IC
C1AB00003174 C1AB00003174 IC
C1AB00002989 C1AB00002989 IC
C1AB00002975 C1AB00002975 IC
C0JBAZ001466 C0JBAZ001466 IC
C0JBAR000396 C0JBAR000396 IC
C0JBAQ000073 C0JBAQ000073 IC
C0EBG0000107 C0EBG0000107 IC
C0DBAYH00005 C0DBAYH00005 IC
C0CBCAG00015 C0CBCAG00015 IC
C0CBABC00117 C0CBABC00117 IC
J0JYC0000096 J0JYC0000096 INDUCTOR
J0JBC0000072 J0JBC0000072 INDUCTOR
G1CR82KA0010 G1CR82KA0010 INDUCTOR
K2HC103A0031 K2HC103A0031 JACK
B3RAB0000056 B3RAB0000056 JACK
B3ABB0000086 B3ABB0000086 LED
RMFX1017 RMFX1017 NUT
RHNX1002-1 RHNX1002-1 NUT
H2D400400018 H2D400400018 OSCILLATOR
H2D100500004 H2D100500004 OSCILLATOR
H0J327200172 H0J327200172 OSCILLATOR
H0J283500022 H0J283500022 OSCILLATOR
H0J245500101 H0J245500101 OSCILLATOR
H0J135500035 H0J135500035 OSCILLATOR
RPFX1032 RPFX1032 PACKAGING
RMG0850-K RMG0850-K PAD
RFKGUHTB520K RFKGUHTB520K PANEL
RXQX1071 RXQX1071 PARTITION
REPX0910AD REPX0910AD PC BOARD
REPX0910AC REPX0910AC PC BOARD
REPX0910AB REPX0910AB PC BOARD
REPX0910AA REPX0910AA PC BOARD
RXQ1992 RXQ1992 PLATE
RYQX1059 RYQX1059 PORT
RYQX1058 RYQX1058 PORT
D0GB100JA008 D0GB100JA008 PROTECTOR
B3RBB0000013 B3RBB0000013 RECEIVER
N2QAYC000043 N2QAYC000043 REMOTE CONTROL
ERJ3RBD563 ERJ3RBD563 RESISTOR
ERJ3RBD512V ERJ3RBD512V RESISTOR
ERJ3RBD391V ERJ3RBD391V RESISTOR
ERJ3RBD273V ERJ3RBD273V RESISTOR
ERJ3RBD272V ERJ3RBD272V RESISTOR
ERJ3RBD271V ERJ3RBD271V RESISTOR
ERJ3RBD221V ERJ3RBD221V RESISTOR
ERJ3RBD103 ERJ3RBD103 RESISTOR
ERJ3GEYJ3R3V ERJ3GEYJ3R3V RESISTOR
ERJ3GEYJ201V ERJ3GEYJ201V RESISTOR
ERJ2GEJ202X ERJ2GEJ202X RESISTOR
D1H83304A024 D1H83304A024 RESISTOR
D0HB102ZA002 D0HB102ZA002 RESISTOR
D0GBR00JA008 D0GBR00JA008 RESISTOR
D0GB823JA008 D0GB823JA008 RESISTOR
D0GB820JA008 D0GB820JA008 RESISTOR
D0GB682JA008 D0GB682JA008 RESISTOR
D0GB681JA008 D0GB681JA008 RESISTOR
D0GB563JA008 D0GB563JA008 RESISTOR
D0GB562JA008 D0GB562JA008 RESISTOR
D0GB473JA008 D0GB473JA008 RESISTOR
D0GB822JA008 D0GB822JA008 RESISTOR
D0GB470JA008 D0GB470JA008 RESISTOR
D0GB333JA008 D0GB333JA008 RESISTOR
D0GB332JA008 D0GB332JA008 RESISTOR
D0GB330JA008 D0GB330JA008 RESISTOR
D0GB224JA008 D0GB224JA008 RESISTOR
D0GB223JA008 D0GB223JA008 RESISTOR
D0GB221JA008 D0GB221JA008 RESISTOR
D0GB183JA008 D0GB183JA008 RESISTOR
D0GB182JA008 D0GB182JA008 RESISTOR
D0GB180JA008 D0GB180JA008 RESISTOR
D0GB153JA008 D0GB153JA008 RESISTOR
D0GB152JA008 D0GB152JA008 RESISTOR
D0GB105JA008 D0GB105JA008 RESISTOR
D0GB394JA008 D0GB394JA008 RESISTOR
D0GB103JA008 D0GB103JA008 RESISTOR
D0GB102JA008 D0GB102JA008 RESISTOR
D0GB101JA008 D0GB101JA008 RESISTOR
D0GAR00J0008 D0GAR00J0008 RESISTOR
D0GA820JA023 D0GA820JA023 RESISTOR
D0GA682JA023 D0GA682JA023 RESISTOR
D0GA681JA023 D0GA681JA023 RESISTOR
D0GA510JA023 D0GA510JA023 RESISTOR
D0GA4R7JA023 D0GA4R7JA023 RESISTOR
D0GA473JA023 D0GA473JA023 RESISTOR
D0GA472JA023 D0GA472JA023 RESISTOR
D0GA470JA023 D0GA470JA023 RESISTOR
D0GA332JA023 D0GA332JA023 RESISTOR
D0GA330JA023 D0GA330JA023 RESISTOR
D0GA302JA023 D0GA302JA023 RESISTOR
D0GA273JA023 D0GA273JA023 RESISTOR
D0GA224JA023 D0GA224JA023 RESISTOR
D0GA221JA023 D0GA221JA023 RESISTOR
D0GA182JA023 D0GA182JA023 RESISTOR
D0GA154JA023 D0GA154JA023 RESISTOR
D0GA153JA023 D0GA153JA023 RESISTOR
D0GA151JA023 D0GA151JA023 RESISTOR
D0GA104JA023 D0GA104JA023 RESISTOR
D0GA103JA023 D0GA103JA023 RESISTOR
D0GA102JA023 D0GA102JA023 RESISTOR
D0GA101JA023 D0GA101JA023 RESISTOR

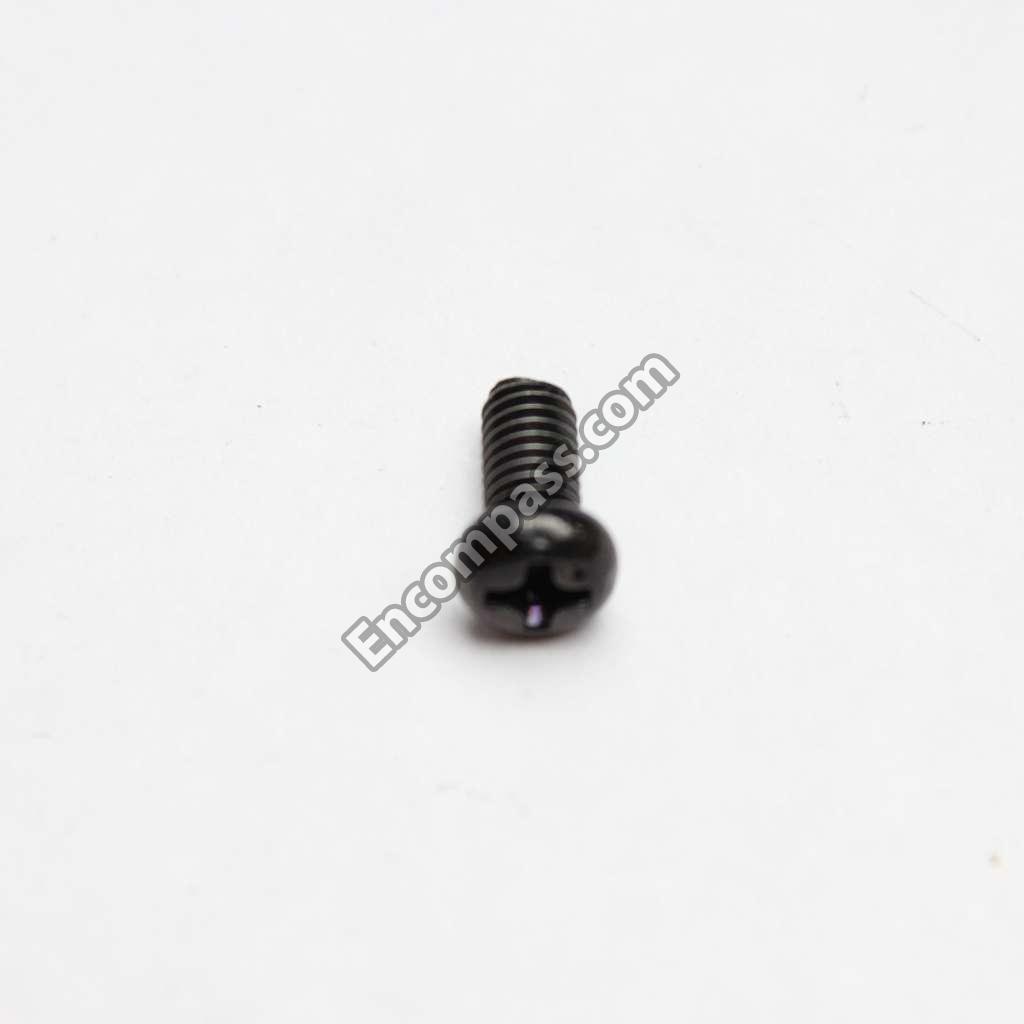

XYN5_J14FJK XYN5_J14FJK SCREW
XTB3_10JFJK XTB3_10JFJK SCREW
XTB3_10JFJ XTB3_10JFJ SCREW
XSN4_8FJK XSN4_8FJK SCREW
RHDX301005 RHDX301005 SCREW
RHDX30005-1 RHDX30005-1 SCREW
RHD30119-S RHD30119-S SCREW
RHD26056 RHD26056 SCREW
RHD14136 RHD14136 SCREW
RMQX1101-Q1 RMQX1101-Q1 SHEET
RMQX1099-Q RMQX1099-Q SHEET
RMFX1071 RMFX1071 SHEET
RMF0458-J RMF0458-J SHEET
N0AB3ZJ00001 N0AB3ZJ00001 SMPS POWER MODULE FOR SPEAKER UNIT SBHWA520
N0AB2FH00002 N0AB2FH00002 SMPS POWER PC BOARD FOR MAIN UNIT SUHTB520
RMZX1018-1 RMZX1018-1 SPACER
L0AZ03A00014 L0AZ03A00014 SPEAKER
EAS65P151A EAS65P151A SPEAKER

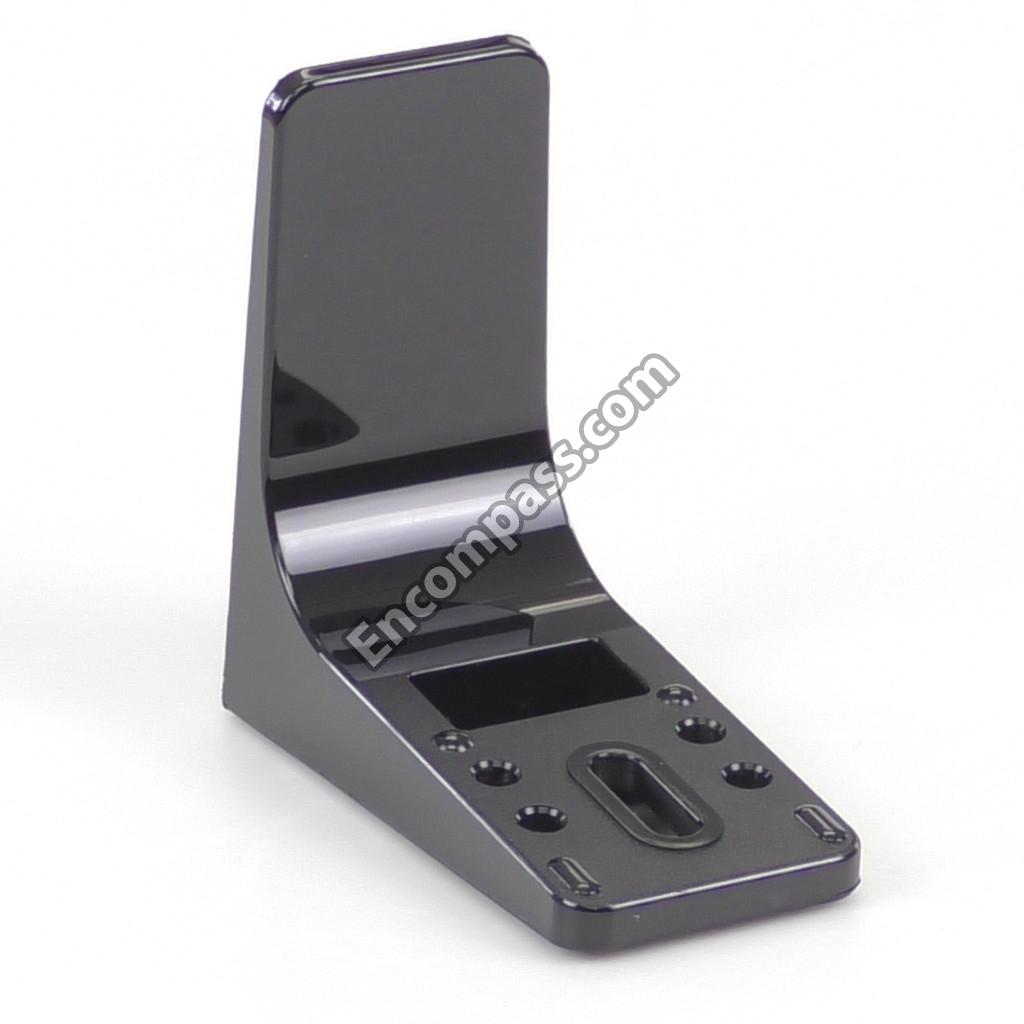

RYQX1070A-K RYQX1070A-K STAND
RYQ0853-KJ RYQ0853-KJ STAND
K0H1BA000267 K0H1BA000267 SWITCH
RMQ1937 RMQ1937 TAPE
J0MAB0000235 J0MAB0000235 TRANSFORMER
B1HBCFA00003 B1HBCFA00003 TRANSISTOR
B1GDCFJJ0044 B1GDCFJJ0044 TRANSISTOR
B1GDCFJJ0008 B1GDCFJJ0008 TRANSISTOR
B1GBCFNN0004 B1GBCFNN0004 TRANSISTOR
B1GBCFJJ0051 B1GBCFJJ0051 TRANSISTOR
B1GBCFJJ0007 B1GBCFJJ0007 TRANSISTOR
B1GBCFGG0030 B1GBCFGG0030 TRANSISTOR
B1CFGD000002 B1CFGD000002 TRANSISTOR
B1ADCE000012 B1ADCE000012 TRANSISTOR
B1ADBL000010 B1ADBL000010 TRANSISTOR
B1ABMF000020 B1ABMF000020 TRANSISTOR
B1ABCF000079 B1ABCF000079 TRANSISTOR
B1ABCF000011 B1ABCF000011 TRANSISTOR
RMG0851-K1 RMG0851-K1 TWEETER
EZJZ0V80008B EZJZ0V80008B VARISTOR
REXX1211 REXX1211 WIRE
REXX1195 REXX1195 WIRE
REXX1194 REXX1194 WIRE
REX1439 REX1439 WIRE
