Model Image
Manufacturer

Panasonic

Model Number

SHBT100

Description

Wireless System

Interactive Exploded View

Parts List

Part Number Description
K0F122B00107 K0F122B00107 BUTTON
RGUX0713A-K RGUX0713A-K BUTTON
RGPX0286-K RGPX0286-K CABINET
RYKX0342-K3 RYKX0342-K3 CABINET
K2CB2CB00022 K2CB2CB00022 CABLE
ECA1EAM101XB ECA1EAM101XB CAPACITOR
ECQV1H684JL3 ECQV1H684JL3 CAPACITOR
ECJ1VB0J474K ECJ1VB0J474K CAPACITOR
F1H1C105A097 F1H1C105A097 CAPACITOR
F1H1C224A068 F1H1C224A068 CAPACITOR
F1H1H102A219 F1H1H102A219 CAPACITOR
F1H1H104A013 F1H1H104A013 CAPACITOR
F1H1H153A219 F1H1H153A219 CAPACITOR
F1H1H221A792 F1H1H221A792 CAPACITOR
F1H1H331A013 F1H1H331A013 CAPACITOR
F1J2A221A030 F1J2A221A030 CAPACITOR
F1K2A1040007 F1K2A1040007 CAPACITOR
F2A0J101A245 F2A0J101A245 CAPACITOR
F2A0J681A550 F2A0J681A550 CAPACITOR
F2A1C100A234 F2A1C100A234 CAPACITOR
F2A1J470A050 F2A1J470A050 CAPACITOR
F2A1V4710036 F2A1V4710036 CAPACITOR
RGPX0285B-K RGPX0285B-K CASE
RMKX0133A-1 RMKX0133A-1 CHASSIS
G0A150L00003 G0A150L00003 COIL
G0B9R5K00003 G0B9R5K00003 COIL
K1KA05AA0193 K1KA05AA0193 CONNECTOR
K1MY22A00003 K1MY22A00003 CONNECTOR
K4AL04B00003 K4AL04B00003 CONNECTOR
J0JKB0000020 J0JKB0000020 CORE
RKAX0028-K RKAX0028-K CUSHION
B0BC01600013 B0BC01600013 DIODE
B0ECKP000002 B0ECKP000002 DIODE
MA2J1110GL MA2J1110GL DIODE
RXXX0095A RXXX0095A HEAT SINK
K1YF07000003 K1YF07000003 HOLDER
RMR0312 RMR0312 HOLDER
K1YZ05000005 K1YZ05000005 HOLDER
RMNX0224-1 RMNX0224-1 HOLDER
C0ABBB000228 C0ABBB000228 IC
C1BA00000487 C1BA00000487 IC
RFKVEFX67P-K RFKVEFX67P-K KIT
B3AGA0000124 B3AGA0000124 LED
RGNX0650-K3 RGNX0650-K3 NAMEPLATE
RGNX0651-K2 RGNX0651-K2 NAMEPLATE
RPFX0203 RPFX0203 PACKAGING
RGLX0144-Q RGLX0144-Q PANEL
RYPX0215D-K4 RYPX0215D-K4 PANEL

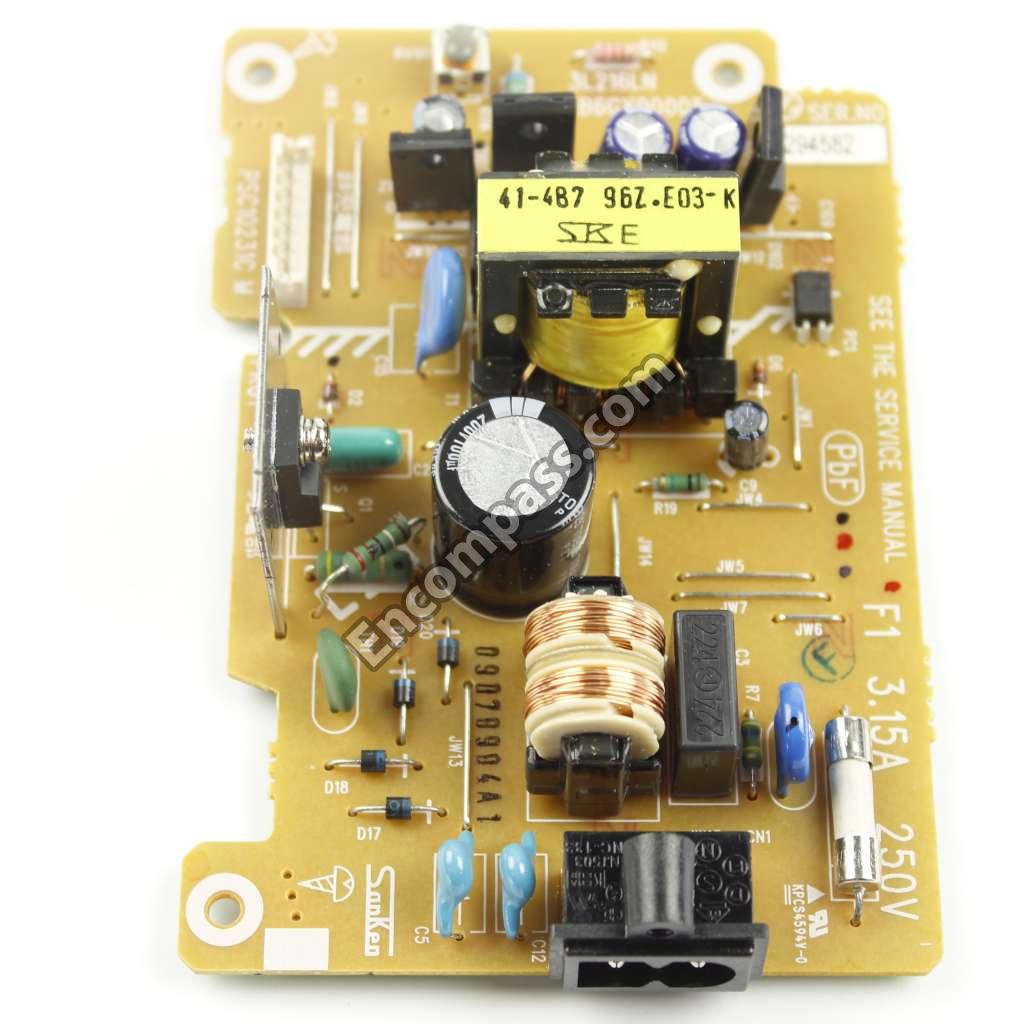

N0AB6GY00005 N0AB6GY00005 PC BOARD
REPX0644B REPX0644B PC BOARD
REPX0645B REPX0645B PC BOARD
RMQX0268 RMQX0268 PLATE
RSCX0157 RSCX0157 PLATE
D0GB103JA008 D0GB103JA008 RESISTOR
D0GB122JA007 D0GB122JA007 RESISTOR
D0GB122JA008 D0GB122JA008 RESISTOR
D0GB152JA007 D0GB152JA007 RESISTOR
D0GB183JA008 D0GB183JA008 RESISTOR
D0GB220JA008 D0GB220JA008 RESISTOR
D0GB221JA007 D0GB221JA007 RESISTOR
D0GB271JA008 D0GB271JA008 RESISTOR
D0GB272JA008 D0GB272JA008 RESISTOR
D0GB273JA007 D0GB273JA007 RESISTOR
D0GB332JA007 D0GB332JA007 RESISTOR
D0GB333JA008 D0GB333JA008 RESISTOR
D0GB822JA008 D0GB822JA008 RESISTOR
D0GB473JA008 D0GB473JA008 RESISTOR
D0GB561JA008 D0GB561JA008 RESISTOR
D0GB562JA008 D0GB562JA008 RESISTOR
D0GB821JA008 D0GB821JA008 RESISTOR
D0GB823JA008 D0GB823JA008 RESISTOR
D0GBR00JA008 D0GBR00JA008 RESISTOR
D0GDR00JA017 D0GDR00JA017 RESISTOR
ERJ8GEYJ100V ERJ8GEYJ100V RESISTOR
ERG2SJ122E ERG2SJ122E RESISTOR
ERJ1TYJ220U ERJ1TYJ220U RESISTOR
ERJ3RED270 ERJ3RED270 RESISTOR
RHD26046 RHD26046 SCREW
RHD30111-3 RHD30111-3 SCREW
XTB2_6GFJK XTB2_6GFJK SCREW
XTB3_10JFJ XTB3_10JFJ SCREW
XTB3_8JFJ XTB3_8JFJ SCREW
K0D123A00085 K0D123A00085 SLIDE
RMCX0035 RMCX0035 SPRING
EVQPC105K EVQPC105K SWITCH
K4CZ01000027 K4CZ01000027 TERMINAL
B1AAKD000012 B1AAKD000012 TRANSISTOR
B1ABCF000176 B1ABCF000176 TRANSISTOR
B1ACCF000094 B1ACCF000094 TRANSISTOR
B1ACKD000006 B1ACKD000006 TRANSISTOR
B1ADCE000012 B1ADCE000012 TRANSISTOR
B1GBCFGG0030 B1GBCFGG0030 TRANSISTOR
B1GBCFJJ0051 B1GBCFJJ0051 TRANSISTOR
B1GDCFGG0026 B1GDCFGG0026 TRANSISTOR
B1GDCFJJ0047 B1GDCFJJ0047 TRANSISTOR

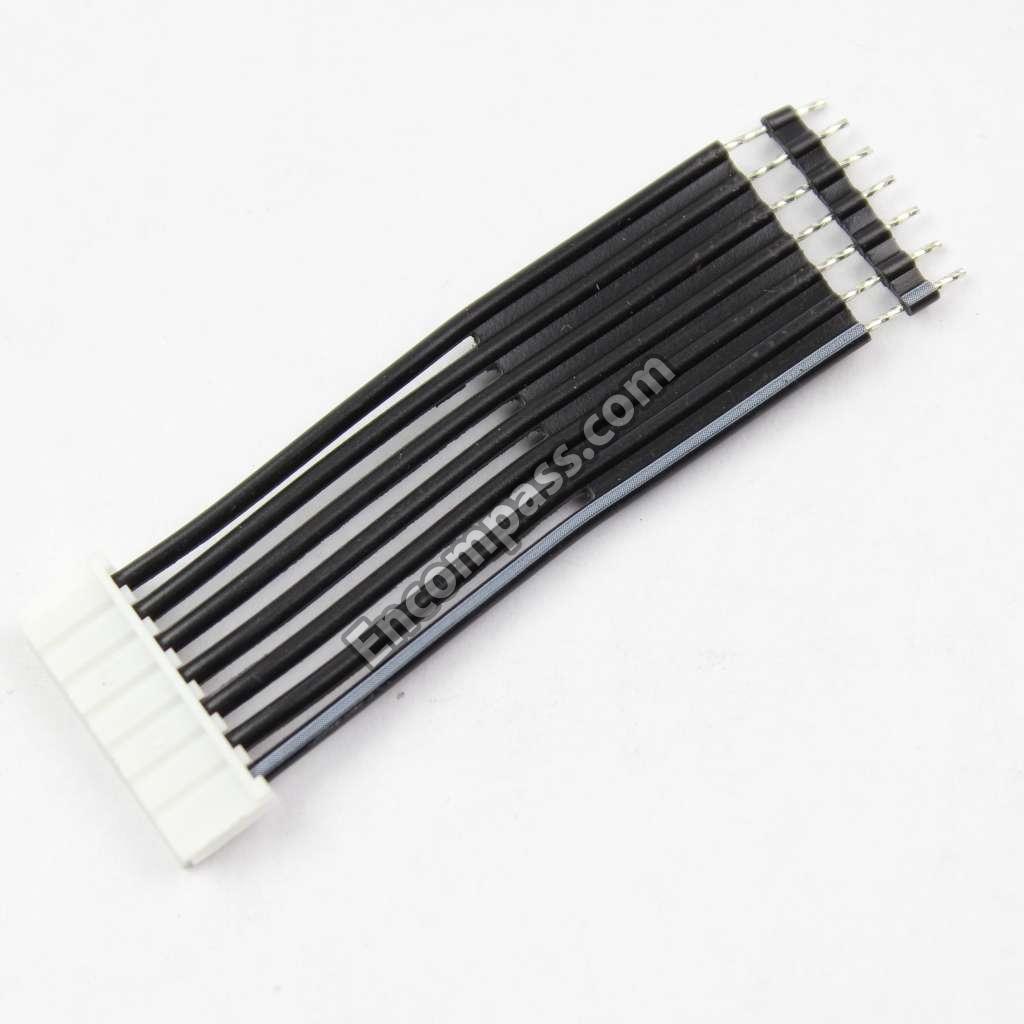

REEX0860B REEX0860B WIRE
REEX0868B REEX0868B WIRE
REXX0583 REXX0583 WIRE
REXX0584-1 REXX0584-1 WIRE
REXX0595-1 REXX0595-1 WIRE
