Model Image
Manufacturer

Panasonic

Model Number

SLBD20D

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
RJS1A8602 RJS1A8602 AC SOCKET
SFYB5-32 SFYB5-32 BALL
SFUMBD2N01-1 SFUMBD2N01-1 BASE
SFUPBD2N51E SFUPBD2N51E BASE
SJY90080-3 SJY90080-3 BELT
SUWB17-1 SUWB17-1 BRACKET
RFKKBD20DPPK RFKKBD20DPPK CABINET
SKMB140 SKMB140 CABINET
SFGK171F01 SFGK171F01 CAP
ECEA1CGE331 ECEA1CGE331 CAPACITOR
ECKT1H223ZF ECKT1H223ZF CAPACITOR
ECQG1223KZ ECQG1223KZ CAPACITOR
SPEB3 SPEB3 CLAMPER
SFUMZ15R52 SFUMZ15R52 CONNECTOR
K2CB2CB00022 K2CB2CB00022 CORD, POWER
SKMB130-0K SKMB130-0K COVER
SHGB26 SHGB26 CUSHION
SHGB7 SHGB7 CUSHION
SVD1SR35200V SVD1SR35200V DIODE
SFUGZ15R51-3 SFUGZ15R51-3 GEAR
SBHB7 SBHB7 HINGES
SPEB5 SPEB5 HOLDER

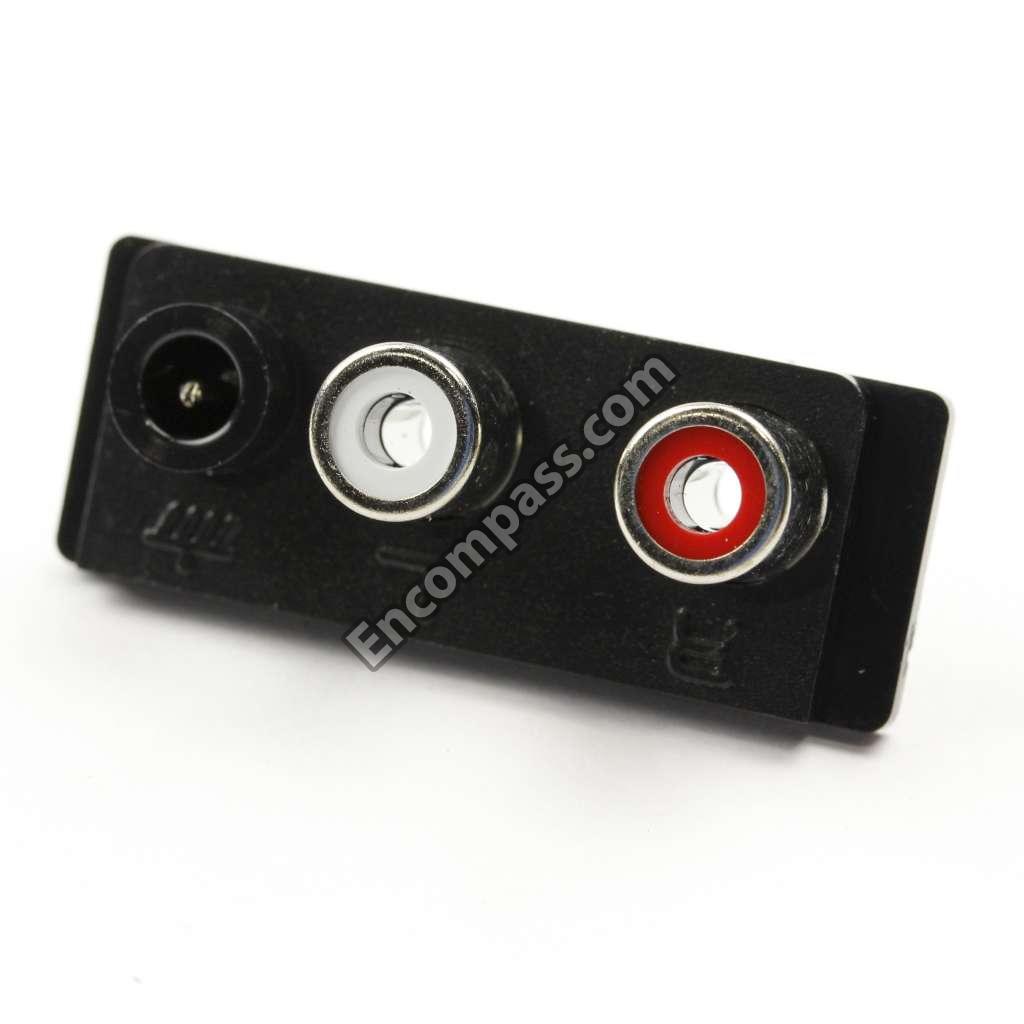

SFDJBD2N03 SFDJBD2N03 JACK
SBCB61-0S SBCB61-0S KNOB
SFKTBD2N01 SFKTBD2N01 KNOB
SFKTBD2N03 SFKTBD2N03 KNOB
SFUMBD2N52 SFUMBD2N52 LEVER
SFUMZ15R54 SFUMZ15R54 LEVER
SFURZ15R51 SFURZ15R51 LINK
RZZ0L05 RZZ0L05 LUBRICANT
SZZ0L23 SZZ0L23 LUBRICANT
SH097 SH097 LUBRICANT
SFUGZ15R51E SFUGZ15R51E MAIN GEAR
RFKSBD20DPPK RFKSBD20DPPK MANUAL (SL-BD20D)
SFTGB93M02EM SFTGB93M02EM MAT
SLBD20D_EX SLBD20D_EX OTC AUDIO
RPG2599 RPG2599 PACKING
SPPB1-4 SPPB1-4 PACKING
SPSB4 SPSB4 PACKING
SPSB5 SPSB5 PACKING
XZB60X65A01Z XZB60X65A01Z PACKING
SXP-B83-1 SXP-B83-1 PC BOARD
SFUBZ15R51 SFUBZ15R51 PLATE
SFUMZ15R57 SFUMZ15R57 PLATE
SUKB4E SUKB4E PLATE
SFDSD72R01 SFDSD72R01 POWER SWITCH
RFZE0024 RFZE0024 PRC
RFZE0025 RFZE0025 PRC
RFZJ0075 RFZJ0075 PRC
RFZK0067 RFZK0067 PRC
RFZN0023 RFZN0023 PRC
RFZS0077 RFZS0077 PRC
RFZV0035 RFZV0035 PRC
RFZV0036 RFZV0036 PRC
RMJ0005 RMJ0005 PROTECTOR
ERD25VJ471T ERD25VJ471T RESISTOR
SFQSZ15R51 SFQSZ15R51 ROD
SFUZZ15R01 SFUZZ15R01 ROD
STZB4 STZB4 ROD
SFXGQ06N01 SFXGQ06N01 SCREW
SNSB1 SNSB1 SCREW
SNSB3 SNSB3 SCREW
XTB3_10GFJK XTB3_10GFJK SCREW
XTB3_16J XTB3_16J SCREW
XTB3_30J XTB3_30J SCREW
XTW3_14Q XTW3_14Q SCREW
XYC3_CG10 XYC3_CG10 SCREW
XYE3_EJ8 XYE3_EJ8 SCREW
SFXJBD2N51 SFXJBD2N51 SHAFT
SFQHZ15R01 SFQHZ15R01 SPRING
SFQHZ15R55 SFQHZ15R55 SPRING
SFQHZ15R61 SFQHZ15R61 SPRING
SFQHZ15R62 SFQHZ15R62 SPRING
SFQHZ15R63 SFQHZ15R63 SPRING
SFQHZ15R64 SFQHZ15R64 SPRING
SUSB35 SUSB35 SPRING
SFDSHSW0834 SFDSHSW0834 SWITCH
SFUMZ15R59 SFUMZ15R59 SWITCH
SFAB14A SFAB14A TONEARM
SFTEB83M01-1 SFTEB83M01-1 TURNTABLE
SDWB1A SDWB1A TURNTABLE SHAFT
SHRB106 SHRB106 WASHER
WFPLB46M1 WFPLB46M1 WIRE
XTB3_8GFJK XTB3_8GFJK XTB3+8GFZ
