Model Image
Manufacturer

Panasonic

Model Number

SRDF181

Description

Rice Cooker

Interactive Exploded View

Parts List

Part Number Description
ARH01ED94 ARH01ED94 BASE

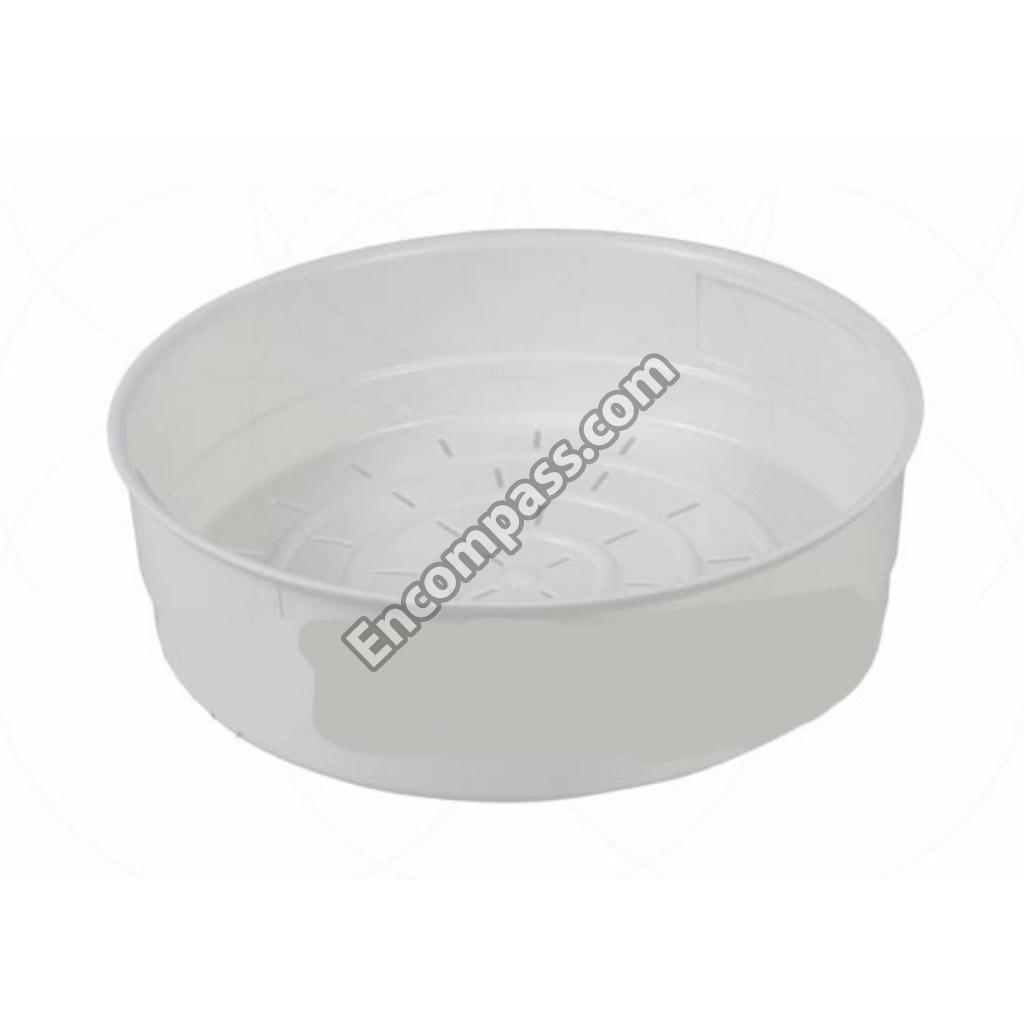

ARK53ED94-W9 ARK53ED94-W9 BASKET
ARE10ED94-WQ ARE10ED94-WQ CABINET
ARP01E94 ARP01E94 CABLE
ARQ24AF1200U ARQ24AF1200U CORD
ARF27ED94 ARF27ED94 COVER
ARE40ED941WQ ARE40ED941WQ COVER

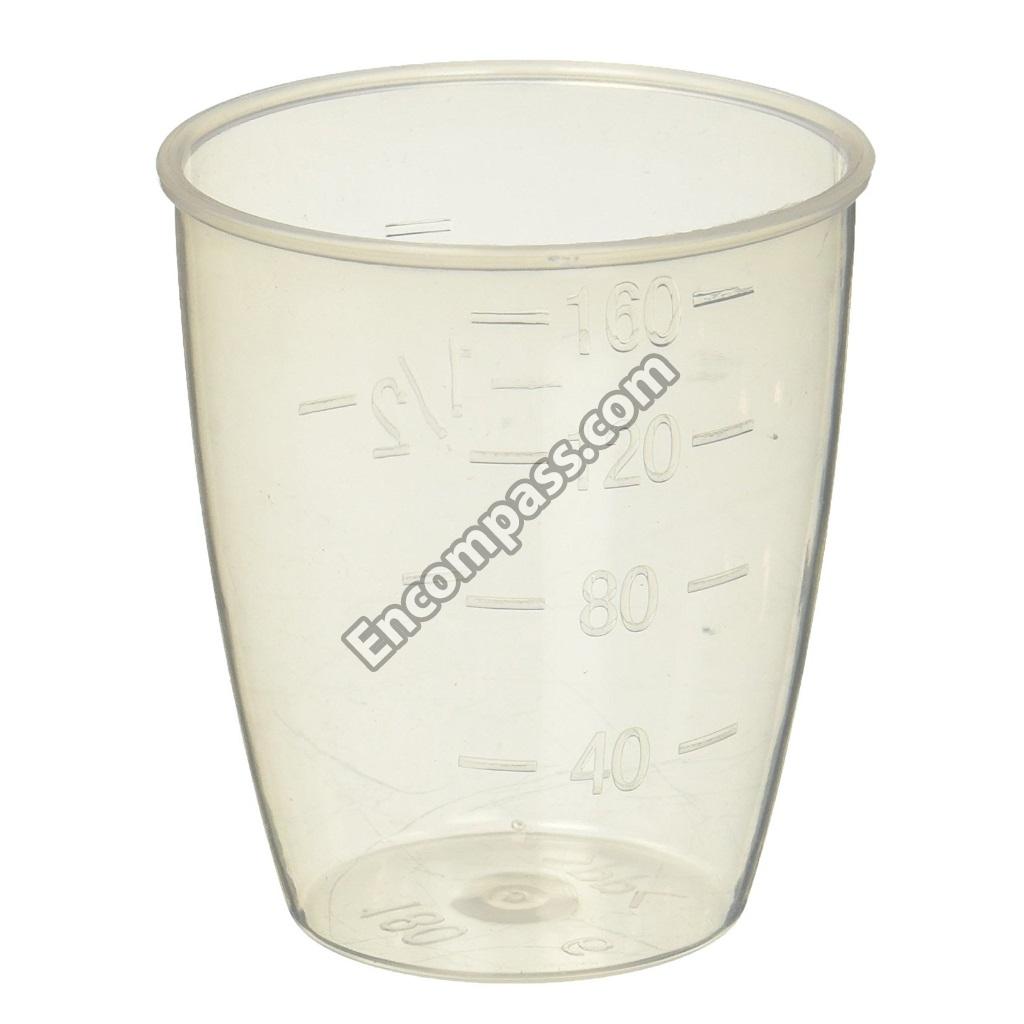

ARK06ED37 ARK06ED37 CUP
ARH90ED94 ARH90ED94 CUSHION
ARE20ED941 ARE20ED941 ENCLOSURE
ARH69ED94-WQ ARH69ED94-WQ FRAME
ARE00ED94WQU ARE00ED94WQU FRAME
ARL20BE5000U ARL20BE5000U HEATER
ARB70ED94 ARB70ED94 HINGE
ARY00AF12-LN ARY00AF12-LN LABEL
ARN21HE36-LN ARN21HE36-LN LABEL
ARB32AF12 ARB32AF12 LABEL
ARE05ED941WQ ARE05ED941WQ LEVER
ARB90TE45 ARB90TE45 LID
ARB01ED941WQ ARB01ED941WQ LID
ARB01AF12WQU ARB01AF12WQU LID
ARQ18ED37 ARQ18ED37 LUG
SR-DF181 SR-DF181 MICROCOMPUTER CONTROLLED / FUZZY LOGIC RICE COOKER WITH ONE TOUCH
ARZ75E382 ARZ75E382 PACKAGING
ARZ57E7227 ARZ57E7227 PACKAGING
ARZ11ED9400U ARZ11ED9400U PACKAGING
ARZ04ED9400U ARZ04ED9400U PACKAGING
ARZ01AF12-LN ARZ01AF12-LN PACKAGING
ARB80ED941 ARB80ED941 PACKING
ARE50HE36 ARE50HE36 PAN
ARH01AF1200U ARH01AF1200U PC BOARD
ARK02ED37-WQ ARK02ED37-WQ SCOOP
XYN4_C6FZ XYN4_C6FZ SCREW
XYM4_E10FNS XYM4_E10FNS SCREW
XTB4_12GFJ XTB4_12GFJ SCREW
ARL25E382 ARL25E382 SCREW
ARB78ED94 ARB78ED94 SEAL
ARB31ED401 ARB31ED401 SEAL
ARS10AF1200U ARS10AF1200U SENSOR
ARB74E7692 ARB74E7692 SHAFT
ARS61-783 ARS61-783 SPRING
ARE06EA29 ARE06EA29 SPRING
ARB45ED40-JU ARB45ED40-JU STEAM VALVE
ARH92ED37 ARH92ED37 SUPPORT
ARE42ED94 ARE42ED94 SUPPORT
ARG10AF1200U ARG10AF1200U TERMINAL
