Model Image
Manufacturer

Panasonic

Model Number

SRLA10N

Description

2004 Rice Cooker

Interactive Exploded View

Parts List

Part Number Description
ECEA2AGE3R3 ECEA2AGE3R3 AQZ33L102
ARE29-414 ARE29-414 BASE
ARE10M643X8U ARE10M643X8U BODY
ARE10M643W0U ARE10M643W0U BODY
ARE10M643P0U ARE10M643P0U BODY
ARE05M642-W0 ARE05M642-W0 BUTTON
ARE05M642-P0 ARE05M642-P0 BUTTON
ARS14M59200U ARS14M59200U CASE
ARS14E61400U ARS14E61400U CASE
ARS14A59200U ARS14A59200U CASE
ARQ21H64200U ARQ21H64200U CORD
ARQ00T64200U ARQ00T64200U CORD
ARQ56M591-X8 ARQ56M591-X8 COVER
ARQ56M591-W0 ARQ56M591-W0 COVER
ARQ56M591-P0 ARQ56M591-P0 COVER
ARQ56-413-W0 ARQ56-413-W0 COVER
ARE40T591-X8 ARE40T591-X8 COVER
ARE40-413-P0 ARE40-413-P0 COVER

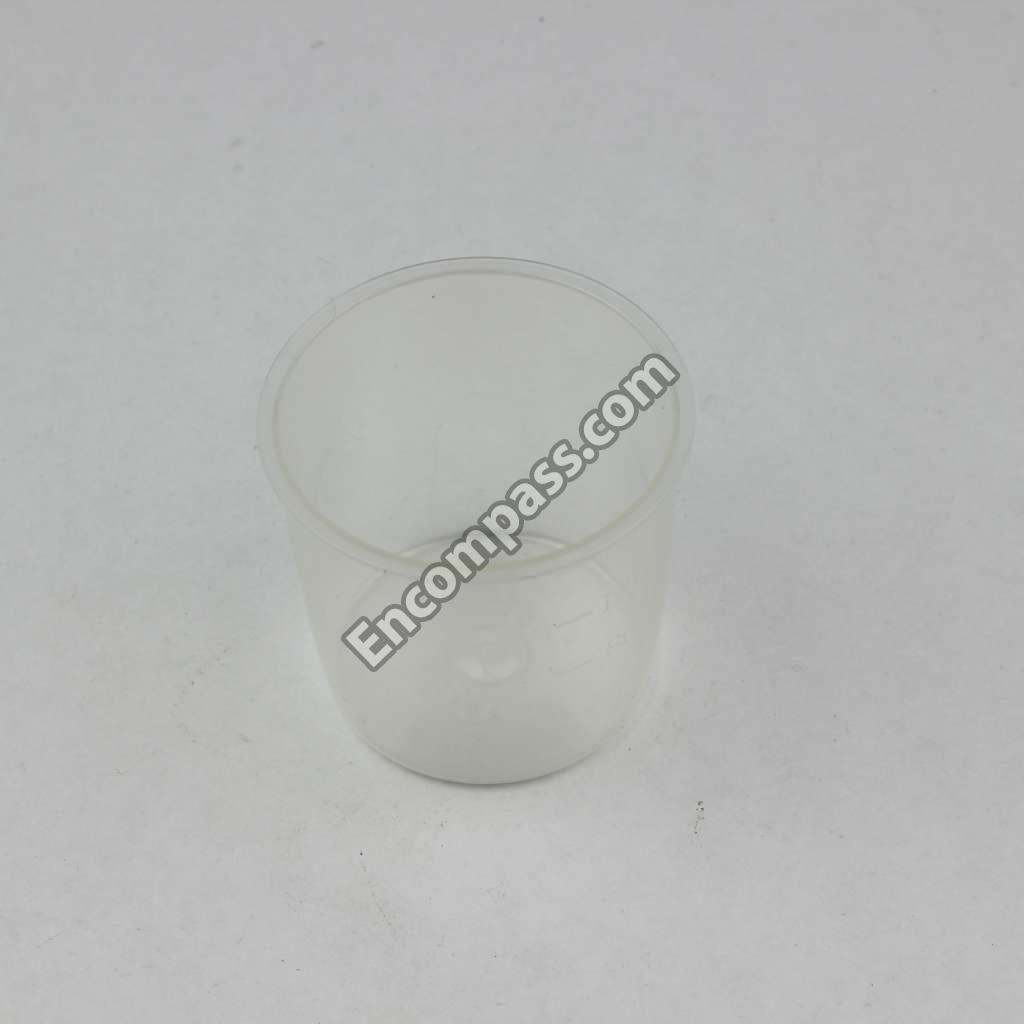

ARK06-2761 ARK06-2761 CUP
ARN24T642-GA ARN24T642-GA ESCUTCHEON
ARN24H642-GA ARN24H642-GA ESCUTCHEON
ARN24A642-GA ARN24A642-GA ESCUTCHEON
ARN21T643-XM ARN21T643-XM ESCUTCHEON
ARN21M643-XM ARN21M643-XM ESCUTCHEON
ARN21M643-P0 ARN21M643-P0 ESCUTCHEON
ARN21M643-A5 ARN21M643-A5 ESCUTCHEON
ARE20T64300U ARE20T64300U FRAME
ARE20A64300U ARE20A64300U FRAME
ARE00M643-X8 ARE00M643-X8 FRAME
ARE00M643-W0 ARE00M643-W0 FRAME
ARE00M643-P0 ARE00M643-P0 FRAME
ARE00A643-W0 ARE00A643-W0 FRAME
ARL20T64300U ARL20T64300U HEATER
ARL20H64300U ARL20H64300U HEATER
ARL20A64300U ARL20A64300U HEATER
ARL10T64300U ARL10T64300U HEATER
ARL10H64300U ARL10H64300U HEATER
ARL10A64300U ARL10A64300U HEATER
ARF19T642 ARF19T642 INLET
ARZ19T642 ARZ19T642 INSTRUCT BOOK
ARZ19A642 ARZ19A642 INSTRUCT BOOK
ASR148C093-X ASR148C093-X LABEL
ARY18C591-W0 ARY18C591-W0 LABEL
ARY18A591-W0 ARY18A591-W0 LABEL
ARY05M643-W0 ARY05M643-W0 LABEL
ARY05M643-P0 ARY05M643-P0 LABEL
ARY00T643-W0 ARY00T643-W0 LABEL
ARY00H643-W0 ARY00H643-W0 LABEL
ARY00H643-P0 ARY00H643-P0 LABEL
ARY00C643-W0 ARY00C643-W0 LABEL
ARY00A643-W0 ARY00A643-W0 LABEL
ARB32T109-W0 ARB32T109-W0 LABEL
ARB32R238 ARB32R238 LABEL
ARH81M592 ARH81M592 LEAD WIRE
ARB01T643X8U ARB01T643X8U LID
ARB01H643W0U ARB01H643W0U LID
ARB01H643P0U ARB01H643P0U LID
ARB01H642W0U ARB01H642W0U LID
ARB01A643W0U ARB01A643W0U LID
ARZ01T643-X8 ARZ01T643-X8 PACKAGING ITEM (DISCONTINUED)
ARZ01A643-W0 ARZ01A643-W0 PACKAGING ITEM (DISCONTINUED)
ARZ11-41400U ARZ11-41400U PAD
ARZ04-41400U ARZ04-41400U PAD
ASR758-344A ASR758-344A PAPER
ARH01T64300U ARH01T64300U PC BOARD
ARH01S64300U ARH01S64300U PC BOARD
ARH01H64300U ARH01H64300U PC BOARD
ARQ02A59100U ARQ02A59100U REEL
XYN4_C7FNS-1 XYN4_C7FNS-1 SCREW
XYC4_CF12FU XYC4_CF12FU SCREW
XTN4_8GFU XTN4_8GFU SCREW
XTB4_8BFU XTB4_8BFU SCREW
XTB4_15CFU XTB4_15CFU SCREW
XTB4_12AFU XTB4_12AFU SCREW
XTB4_10BFU XTB4_10BFU SCREW
ARB74-413 ARB74-413 SHAFT
ASR312-607-H ASR312-607-H SPRING
ARE06-501 ARE06-501 SPRING
ARB70M643 ARB70M643 SPRING
ARN97T643 ARN97T643 WIRE
ARN97M643 ARN97M643 WIRE
ARN97A643 ARN97A643 WIRE
ARL61A591 ARL61A591 WIRE
ARL60M591 ARL60M591 WIRE
ARL60A591 ARL60A591 WIRE
ARE45M59100U ARE45M59100U WIRE
