Model Image
Manufacturer

Panasonic

Model Number

SUHTB15

Description

Sub Woofer - Soundbar

Interactive Exploded View

Parts List

Part Number Description
RFKBUHTB15PP RFKBUHTB15PP BOX
RGU2748-K RGU2748-K BUTTON
REE1622 REE1622 CABLE
REE1614 REE1614 CABLE
K2CB2CB00022 K2CB2CB00022 CABLE
F2B2G1000001 F2B2G1000001 CAPACITOR
F2A2G1810002 F2A2G1810002 CAPACITOR
F2A2A100A057 F2A2A100A057 CAPACITOR
F2A1V4710058 F2A1V4710058 CAPACITOR
F2A1H8210023 F2A1H8210023 CAPACITOR
F2A1H100A182 F2A1H100A182 CAPACITOR
F2A1E6810012 F2A1E6810012 CAPACITOR
F2A1E1020049 F2A1E1020049 CAPACITOR
F2A1A4710038 F2A1A4710038 CAPACITOR
F2A0J471A247 F2A0J471A247 CAPACITOR
F2A0J101A245 F2A0J101A245 CAPACITOR
F1K1H105A149 F1K1H105A149 CAPACITOR
F1K1E106A078 F1K1E106A078 CAPACITOR
F1J2E1030004 F1J2E1030004 CAPACITOR
F1J1H104A717 F1J1H104A717 CAPACITOR
F1J1C106A059 F1J1C106A059 CAPACITOR
F1J1A4750002 F1J1A4750002 CAPACITOR
F1J1A106A043 F1J1A106A043 CAPACITOR
F1H1H682A219 F1H1H682A219 CAPACITOR
F1H1H471A219 F1H1H471A219 CAPACITOR
F1H1H470A230 F1H1H470A230 CAPACITOR
F1H1H333A220 F1H1H333A220 CAPACITOR
F1H1H221A219 F1H1H221A219 CAPACITOR
F1H1H104A913 F1H1H104A913 CAPACITOR
F1H1H104A013 F1H1H104A013 CAPACITOR
F1H1H103A238 F1H1H103A238 CAPACITOR
F1H1H103A219 F1H1H103A219 CAPACITOR
F1H1H102A219 F1H1H102A219 CAPACITOR
F1H1H101A230 F1H1H101A230 CAPACITOR
F1H1E105A116 F1H1E105A116 CAPACITOR
F1H1C474A008 F1H1C474A008 CAPACITOR
F1H1C105A097 F1H1C105A097 CAPACITOR
F1H1C104A042 F1H1C104A042 CAPACITOR
F1H1A105A025 F1H1A105A025 CAPACITOR
F1G1H330A565 F1G1H330A565 CAPACITOR
F1G1H220A565 F1G1H220A565 CAPACITOR
F1G1H120A444 F1G1H120A444 CAPACITOR
F1G1H102A401 F1G1H102A401 CAPACITOR
F1G1H101A565 F1G1H101A565 CAPACITOR
F1G1H100A565 F1G1H100A565 CAPACITOR
F1G1C223A091 F1G1C223A091 CAPACITOR
F1G1C1030007 F1G1C1030007 CAPACITOR
F1G1A104A001 F1G1A104A001 CAPACITOR
F1G0J105A031 F1G0J105A031 CAPACITOR
F1BAF471A013 F1BAF471A013 CAPACITOR
F1BAF1020020 F1BAF1020020 CAPACITOR
F1B3A222A008 F1B3A222A008 CAPACITOR
F0CAF104A105 F0CAF104A105 CAPACITOR
F0C2J1030007 F0C2J1030007 CAPACITOR
EEEHB1V330UP EEEHB1V330UP CAPACITOR
EEEHB0J102UP EEEHB0J102UP CAPACITOR
EEEHB0J101UR EEEHB0J101UR CAPACITOR
EEEFK1C220R EEEFK1C220R CAPACITOR
EEEFK0J331XP EEEFK0J331XP CAPACITOR
EEE1EA330WR EEE1EA330WR CAPACITOR
EEE0JA101WR EEE0JA101WR CAPACITOR
ECQV1H474JL3 ECQV1H474JL3 CAPACITOR
ECQV1H105JL3 ECQV1H105JL3 CAPACITOR
RMK0791 RMK0791 CHASSIS
RMQ1983 RMQ1983 CLOTH
J0JCC0000308 J0JCC0000308 COIL
J0JBC0000015 J0JBC0000015 COIL
G1C4R7MA0098 G1C4R7MA0098 COIL
G1C330MA0234 G1C330MA0234 COIL
K1MY16AA0021 K1MY16AA0021 CONNECTOR
K1MN40BA0173 K1MN40BA0173 CONNECTOR
K1MN40AA0082 K1MN40AA0082 CONNECTOR
K1MN11BA0004 K1MN11BA0004 CONNECTOR
K1MN11AA0003 K1MN11AA0003 CONNECTOR
K1MN10AA0046 K1MN10AA0046 CONNECTOR
K1KA10BA0051 K1KA10BA0051 CONNECTOR
K1KA06A00452 K1KA06A00452 CONNECTOR
K1KA03AA0301 K1KA03AA0301 CONNECTOR
K1KA02AA0186 K1KA02AA0186 CONNECTOR
K1FY119E0045 K1FY119E0045 CONNECTOR
REEX1267A-J REEX1267A-J CORD
REEX1266A-J REEX1266A-J CORD
J0JKB0000020 J0JKB0000020 CORE
B3PBA0000503 B3PBA0000503 COUPLER
RKK-HTB10GNK RKK-HTB10GNK COVER
RFKRUHTB15PP RFKRUHTB15PP COVER
RFKNUHTB15PP RFKNUHTB15PP COVER
VMG1719 VMG1719 CUSHION
ERZV10V511CS ERZV10V511CS DIODE
DZ2J300M0L DZ2J300M0L DIODE
DZ2J270M0L DZ2J270M0L DIODE
DZ2J200M0L DZ2J200M0L DIODE
DZ2J075M0L DZ2J075M0L DIODE
DZ2J062M0L DZ2J062M0L DIODE
DZ2J051M0L DZ2J051M0L DIODE
B3ADA0000087 B3ADA0000087 DIODE
B3ABA0000187 B3ABA0000187 DIODE
B0ZAZ0000052 B0ZAZ0000052 DIODE
B0JCPG000005 B0JCPG000005 DIODE
B0JCME000105 B0JCME000105 DIODE
B0JCCD000017 B0JCCD000017 DIODE
B0JAME000029 B0JAME000029 DIODE
B0HBSM000054 B0HBSM000054 DIODE
B0FBAR000043 B0FBAR000043 DIODE
B0EDKT000009 B0EDKT000009 DIODE
B0ECKP000002 B0ECKP000002 DIODE
B0EAMM000057 B0EAMM000057 DIODE
B0ACCK000012 B0ACCK000012 DIODE
B0ACCK000005 B0ACCK000005 DIODE
J0KG00000071 J0KG00000071 FILTER
J0JHC0000078 J0JHC0000078 FILTER
J0JCC0000119 J0JCC0000119 FILTER
RLBV102V-Y RLBV102V-Y FILTER
G0B9R5K00005 G0B9R5K00005 FILTER
ELF19H520E ELF19H520E FILTER
K5D602APA008 K5D602APA008 FUSE
RMF0539 RMF0539 HIMELON
K3GE1ZZ00001 K3GE1ZZ00001 HOLDER
K1YZ06000002 K1YZ06000002 HOLDER
RHQX1002W RHQX1002W HOUSING
RHQX1002R RHQX1002R HOUSING
RFKWMHTB15P0 RFKWMHTB15P0 IC
RFKWMHTB15M0 RFKWMHTB15M0 IC
MIP2F20MSSCF MIP2F20MSSCF IC
C5HACYY00004 C5HACYY00004 IC
C3EBEC000060 C3EBEC000060 IC
C3ABMY000022 C3ABMY000022 IC
C2HBCY000091 C2HBCY000091 IC
C1AB00003217 C1AB00003217 IC
C1AB00003174 C1AB00003174 IC
C1AB00002989 C1AB00002989 IC
C1AB00002975 C1AB00002975 IC
C1AB00002461 C1AB00002461 IC
C0JBAZ001466 C0JBAZ001466 IC
C0JBAR000396 C0JBAR000396 IC
C0JBAQ000073 C0JBAQ000073 IC
C0JBAB000986 C0JBAB000986 IC
C0JBAB000837 C0JBAB000837 IC
C0JBAA000501 C0JBAA000501 IC
C0EBE0000456 C0EBE0000456 IC
C0DBZMC00006 C0DBZMC00006 IC
C0DBEKG00004 C0DBEKG00004 IC
C0DBAYH00005 C0DBAYH00005 IC
C0DABFC00002 C0DABFC00002 IC
C0CBCDD00004 C0CBCDD00004 IC
C0CBCAG00015 C0CBCAG00015 IC
C0CBABC00117 C0CBABC00117 IC
C0ABBA000168 C0ABBA000168 IC
J0JYC0000096 J0JYC0000096 INDUCTOR
J0JBC0000072 J0JBC0000072 INDUCTOR
G1CR82KA0010 G1CR82KA0010 INDUCTOR
G0C100Z00007 G0C100Z00007 INDUCTOR
RMV0380 RMV0380 INLET
K2AB2B000007 K2AB2B000007 INLET
B3RAB0000056 B3RAB0000056 JACK
RKA0072-KJ RKA0072-KJ LEG
RGL0756-Q RGL0756-Q LIGHTING
L6FAYYYH0079 L6FAYYYH0079 MOTOR
H2D400400018 H2D400400018 OSCILLATOR
H2D100500004 H2D100500004 OSCILLATOR
H0J327200172 H0J327200172 OSCILLATOR
H0J283500022 H0J283500022 OSCILLATOR
H0J245500101 H0J245500101 OSCILLATOR
RPNX1090-1 RPNX1090-1 PACKAGING
RPFX1044GN RPFX1044GN PACKAGING
RXK0681-J RXK0681-J PANEL
RFKKUHTB15PP RFKKUHTB15PP PANEL
RFKHUHTB15PP RFKHUHTB15PP PANEL
REP4714AB REP4714AB PC BOARD
REP4714AA REP4714AA PC BOARD
REP4701A REP4701A PC BOARD
RGN3072G-K RGN3072G-K PLATE
D0GB100JA008 D0GB100JA008 PROTECTOR
K6B1AYY00065 K6B1AYY00065 RELAY

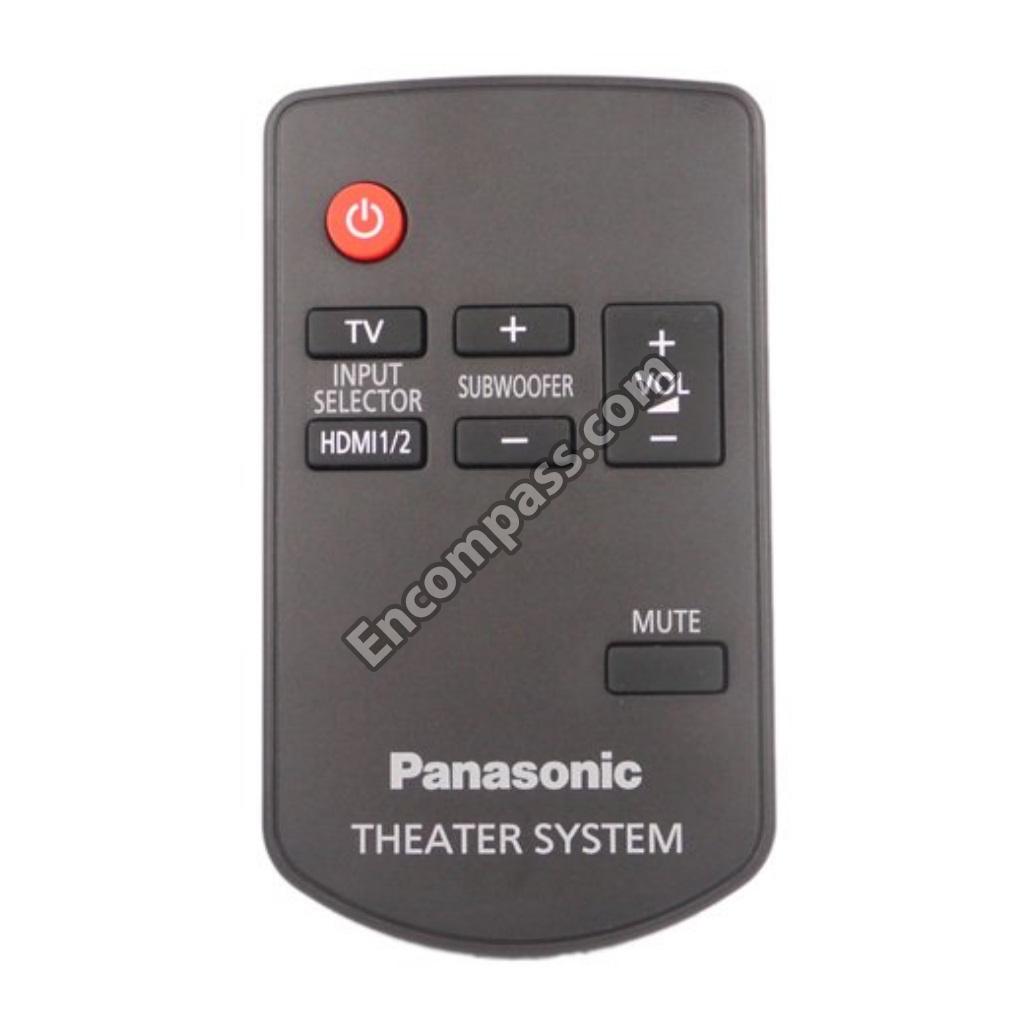

N2QAYC000046 N2QAYC000046 REMOTE CONTROL
ERJ8GCJ155V ERJ8GCJ155V RESISTOR
ERJ6RBD473V ERJ6RBD473V RESISTOR
ERJ6GEYJ334 ERJ6GEYJ334 RESISTOR
ERJ6GMYG221 ERJ6GMYG221 RESISTOR
ERJ3RBD682V ERJ3RBD682V RESISTOR
ERJ3RBD512V ERJ3RBD512V RESISTOR
ERJ3RBD391V ERJ3RBD391V RESISTOR
ERJ3RBD333V ERJ3RBD333V RESISTOR
ERJ3RBD273V ERJ3RBD273V RESISTOR
ERJ3RBD272V ERJ3RBD272V RESISTOR
ERJ3RBD271V ERJ3RBD271V RESISTOR
ERJ3RBD221V ERJ3RBD221V RESISTOR
ERJ3RBD104V ERJ3RBD104V RESISTOR
ERJ3RBD103 ERJ3RBD103 RESISTOR
ERJ3GEYJ3R3V ERJ3GEYJ3R3V RESISTOR
ERJ3GEYJ201V ERJ3GEYJ201V RESISTOR
ERJ3EKF1822V ERJ3EKF1822V RESISTOR
ERJ1TYJ333U ERJ1TYJ333U RESISTOR
ERJ1TYJ332 ERJ1TYJ332 RESISTOR
ERJ1TYJ222U ERJ1TYJ222U RESISTOR
ERJ1TRSJR15 ERJ1TRSJR15 RESISTOR
D1H83304A024 D1H83304A024 RESISTOR
D1H81044A024 D1H81044A024 RESISTOR
D0HB822ZA002 D0HB822ZA002 RESISTOR
D0HB152ZA002 D0HB152ZA002 RESISTOR
D0HB102ZA002 D0HB102ZA002 RESISTOR
D0GDR00JA017 D0GDR00JA017 RESISTOR
D0GD681JA017 D0GD681JA017 RESISTOR
D0GD562JA017 D0GD562JA017 RESISTOR
D0GD473JA017 D0GD473JA017 RESISTOR
D0GD272JA017 D0GD272JA017 RESISTOR
D0GD222JA017 D0GD222JA017 RESISTOR
D0GD220JA017 D0GD220JA017 RESISTOR
D0GBR00JA008 D0GBR00JA008 RESISTOR
D0GB820JA008 D0GB820JA008 RESISTOR
D0GB563JA008 D0GB563JA008 RESISTOR
D0GB562JA008 D0GB562JA008 RESISTOR
D0GB473JA008 D0GB473JA008 RESISTOR
D0GB822JA008 D0GB822JA008 RESISTOR
D0GB471JA008 D0GB471JA008 RESISTOR
D0GB470JA008 D0GB470JA008 RESISTOR
D0GB393JA008 D0GB393JA008 RESISTOR
D0GB391JA008 D0GB391JA008 RESISTOR
D0GB333JA008 D0GB333JA008 RESISTOR
D0GB330JA008 D0GB330JA008 RESISTOR
D0GB274JA007 D0GB274JA007 RESISTOR
D0GB273JA008 D0GB273JA008 RESISTOR
D0GB271JA008 D0GB271JA008 RESISTOR
D0GB224JA008 D0GB224JA008 RESISTOR
D0GB223JA008 D0GB223JA008 RESISTOR
D0GB222JA008 D0GB222JA008 RESISTOR
D0GB221JA007 D0GB221JA007 RESISTOR
D0GB182JA008 D0GB182JA008 RESISTOR
D0GB153JA008 D0GB153JA008 RESISTOR
D0GB122JA008 D0GB122JA008 RESISTOR
D0GB121JA008 D0GB121JA008 RESISTOR
D0GB105JA008 D0GB105JA008 RESISTOR
D0GB394JA008 D0GB394JA008 RESISTOR
D0GB103JA008 D0GB103JA008 RESISTOR
D0GB102JA008 D0GB102JA008 RESISTOR
D0GB101JA008 D0GB101JA008 RESISTOR
D0GAR00J0008 D0GAR00J0008 RESISTOR
D0GA823JA023 D0GA823JA023 RESISTOR
D0GA820JA023 D0GA820JA023 RESISTOR
D0GA682JA023 D0GA682JA023 RESISTOR
D0GA681JA023 D0GA681JA023 RESISTOR
D0GA510JA023 D0GA510JA023 RESISTOR
D0GA4R7JA023 D0GA4R7JA023 RESISTOR
D0GA473JA023 D0GA473JA023 RESISTOR
D0GA472JA023 D0GA472JA023 RESISTOR
D0GA470JA023 D0GA470JA023 RESISTOR
D0GA333JA023 D0GA333JA023 RESISTOR
D0GA332JA023 D0GA332JA023 RESISTOR
D0GA330JA023 D0GA330JA023 RESISTOR
D0GA302JA023 D0GA302JA023 RESISTOR
D0GA273JA023 D0GA273JA023 RESISTOR
D0GA224JA023 D0GA224JA023 RESISTOR
D0GA223JA023 D0GA223JA023 RESISTOR
D0GA221JA023 D0GA221JA023 RESISTOR
D0GA202JA023 D0GA202JA023 RESISTOR
D0GA183JA023 D0GA183JA023 RESISTOR
D0GA182JA023 D0GA182JA023 RESISTOR
D0GA180JA023 D0GA180JA023 RESISTOR
D0GA154JA023 D0GA154JA023 RESISTOR
D0GA153JA023 D0GA153JA023 RESISTOR
D0GA152JA023 D0GA152JA023 RESISTOR
D0GA151JA023 D0GA151JA023 RESISTOR
D0GA105JA023 D0GA105JA023 RESISTOR
D0GA104JA023 D0GA104JA023 RESISTOR
D0GA103JA023 D0GA103JA023 RESISTOR
D0GA102JA023 D0GA102JA023 RESISTOR
D0GA101JA023 D0GA101JA023 RESISTOR
VJF0036 VJF0036 RIVET
XTB4_16AFJK XTB4_16AFJK SCREW
XTB3_10JFJK XTB3_10JFJK SCREW
RHDX301003 RHDX301003 SCREW
RHDX261002 RHDX261002 SCREW
RHDX03001 RHDX03001 SCREW
RHD30119-S RHD30119-S SCREW
RHD26046 RHD26046 SCREW
PNJ4881M02VT PNJ4881M02VT SENSOR
RSC0839 RSC0839 SHEET
RSC1039 RSC1039 SHIELD
RSC1038 RSC1038 SHIELD
RSC1037 RSC1037 SHIELD
RMZ1105 RMZ1105 SPACER
L0AA16A00052 L0AA16A00052 SPEAKER
RMA2333 RMA2333 SUPPORT
RMA2332 RMA2332 SUPPORT
EZAEG2A50AX EZAEG2A50AX SUPPRESSOR
EVQ21405RJ EVQ21405RJ SWITCH
K4CZ01000027 K4CZ01000027 TERMINAL
K4AL02B00001 K4AL02B00001 TERMINAL
D4CAA5R10001 D4CAA5R10001 THERMISTER
J0MAB0000235 J0MAB0000235 TRANSFORMER
ETS35BC2YGAD ETS35BC2YGAD TRANSFORMER
ETS19AB2A6AG ETS19AB2A6AG TRANSFORMER
B1HBCFA00003 B1HBCFA00003 TRANSISTOR
B1GDCFJJ0008 B1GDCFJJ0008 TRANSISTOR
B1GBCFNN0038 B1GBCFNN0038 TRANSISTOR
B1GBCFNN0035 B1GBCFNN0035 TRANSISTOR
B1GBCFJJ0048 B1GBCFJJ0048 TRANSISTOR
B1GBCFJJ0007 B1GBCFJJ0007 TRANSISTOR
B1GBCFGG0030 B1GBCFGG0030 TRANSISTOR
B1CFGD000002 B1CFGD000002 TRANSISTOR
B1BABG000007 B1BABG000007 TRANSISTOR
B1BABD000001 B1BABD000001 TRANSISTOR
B1ADCE000012 B1ADCE000012 TRANSISTOR
B1ADBL000010 B1ADBL000010 TRANSISTOR
B1ABGC000001 B1ABGC000001 TRANSISTOR
B1ABCF000176 B1ABCF000176 TRANSISTOR
B1ABCF000079 B1ABCF000079 TRANSISTOR
B1ABCF000011 B1ABCF000011 TRANSISTOR
EZJZ0V80008B EZJZ0V80008B VARISTOR
REX1463 REX1463 WIRE
REX1462 REX1462 WIRE
REX1451 REX1451 WIRE
REX1450-1 REX1450-1 WIRE
REX1449-1 REX1449-1 WIRE
