Model Image
Manufacturer

Encompass

Model Number

TC23LX60

Description

23" Wide Lcd Clr Tv

Interactive Exploded View

Parts List

Part Number Description
14790 14790 17"-37" LED LCD PL STAND
2SA720-R 2SA720-R 2SA720R
2SD601-RS 2SD601-RS 2SD601AQ
2SD602ARS 2SD602ARS 2SD602R

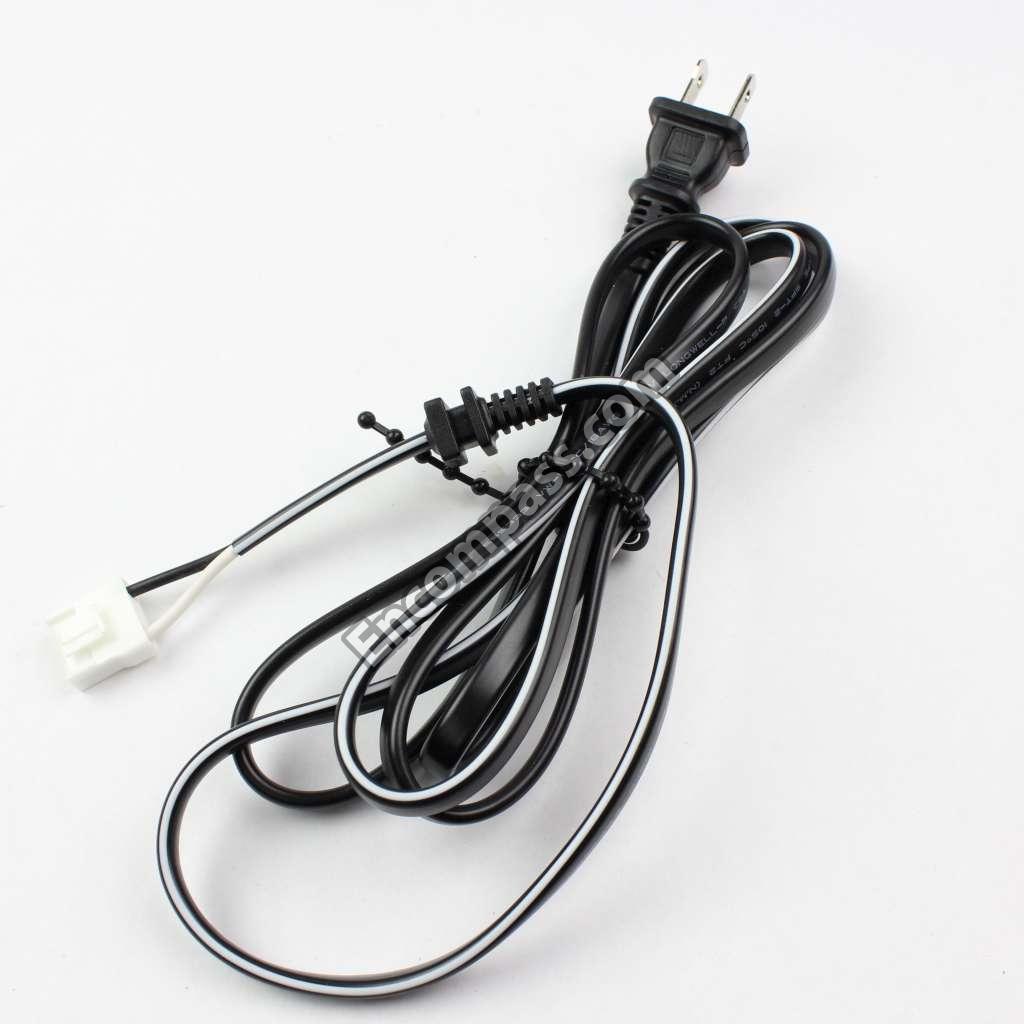

K2CB2DZ00015 K2CB2DZ00015 AC CORD
TXFKU09QSER TXFKU09QSER BACK
TBMA181 TBMA181 BADGE
TBLG3081 TBLG3081 BASE
TKPA98701A TKPA98701A BRACKET
TBXA48201 TBXA48201 BUTTON
TTY2AA6501 TTY2AA6501 CABINET
EEVHB0J470R EEVHB0J470R CAPACITOR
EEVHB0J220R EEVHB0J220R CAPACITOR
F1H1C1040004 F1H1C1040004 CAPACITOR
F1H1A105A025 F1H1A105A025 CAPACITOR
F1G1H102A401 F1G1H102A401 CAPACITOR
ECEA1CU471B ECEA1CU471B CAPACITOR
ECEA1CU102E ECEA1CU102E CAPACITOR
ECA1HM221 ECA1HM221 CAPACITOR
ECA1HM330B ECA1HM330B CAPACITOR
ECA1VM221 ECA1VM221 CAPACITOR
ECJ0EB1A104K ECJ0EB1A104K CAPACITOR
ECJ0EB1A473K ECJ0EB1A473K CAPACITOR
ECJ0EB1C103K ECJ0EB1C103K CAPACITOR
ECJ0EB1C223K ECJ0EB1C223K CAPACITOR
ECJ0EC1H100D ECJ0EC1H100D CAPACITOR
ECJ0EC1H101J ECJ0EC1H101J CAPACITOR
F1G1H120A451 F1G1H120A451 CAPACITOR
ECJ0EC1H121J ECJ0EC1H121J CAPACITOR
ECJ0EC1H220J ECJ0EC1H220J CAPACITOR
ECJ0EC1H330J ECJ0EC1H330J CAPACITOR
ECJ0EC1H560J ECJ0EC1H560J CAPACITOR
ECJ0EC1H820J ECJ0EC1H820J CAPACITOR
ECJ1VB0J225K ECJ1VB0J225K CAPACITOR
ECJ1VB1A474K ECJ1VB1A474K CAPACITOR
ECJ1VB1C224K ECJ1VB1C224K CAPACITOR
ECJ1VB1C563K ECJ1VB1C563K CAPACITOR
ECJ1VB1E104K ECJ1VB1E104K CAPACITOR
ECJ1VB1E272K ECJ1VB1E272K CAPACITOR
ECJ1VB1H103K ECJ1VB1H103K CAPACITOR
ECJ1XB1H153K ECJ1XB1H153K CAPACITOR
ECUX1H682KBV ECUX1H682KBV CAPACITOR
ECJ1XF1A105Z ECJ1XF1A105Z CAPACITOR
ECJ1XF1H103Z ECJ1XF1H103Z CAPACITOR
ECJ1VF1E104Z ECJ1VF1E104Z CAPACITOR
ECJ1VB0J105K ECJ1VB0J105K CAPACITOR
ECJ1XB1C104K ECJ1XB1C104K CAPACITOR
ECJ1VB1H102K ECJ1VB1H102K CAPACITOR
ECJ1XC1H102J ECJ1XC1H102J CAPACITOR
ECJ1XC1H150J ECJ1XC1H150J CAPACITOR
ECJ1XC1H221J ECJ1XC1H221J CAPACITOR
ECJ1XC1H471J ECJ1XC1H471J CAPACITOR
ECJ2FB0J106K ECJ2FB0J106K CAPACITOR
ECJ2FB0J106M ECJ2FB0J106M CAPACITOR
ECJ2FB0J225K ECJ2FB0J225K CAPACITOR
ECJ2FB1C474K ECJ2FB1C474K CAPACITOR
ECJ2FB1E105K ECJ2FB1E105K CAPACITOR
ECJ2FB1E475M ECJ2FB1E475M CAPACITOR
ECJ2XB1H104K ECJ2XB1H104K CAPACITOR
ECJ2FF1A475Z ECJ2FF1A475Z CAPACITOR
ECUX1H103KBV ECUX1H103KBV CAPACITOR
ECJ3XB1C106M ECJ3XB1C106M CAPACITOR
ECJ3YB1A106M ECJ3YB1A106M CAPACITOR
ECJ3YB1C475K ECJ3YB1C475K CAPACITOR
EEEHB0G470R EEEHB0G470R CAPACITOR
EEEHB0G471P EEEHB0G471P CAPACITOR
EEVHB0J101 EEVHB0J101 CAPACITOR
EEEHB0J221UP EEEHB0J221UP CAPACITOR
EEEHB1A101P EEEHB1A101P CAPACITOR
EEEHB1A471UP EEEHB1A471UP CAPACITOR
EEEHB1C100R EEEHB1C100R CAPACITOR
EEEHB1C101UP EEEHB1C101UP CAPACITOR
EEVHA1C470P EEVHA1C470P CAPACITOR
EEEHB1E101P EEEHB1E101P CAPACITOR
EEEHB1V100R EEEHB1V100R CAPACITOR
EEFCD0G560R EEFCD0G560R CAPACITOR
EEUFC1C102 EEUFC1C102 CAPACITOR
EEUFC1C681 EEUFC1C681 CAPACITOR
F2A1E471A796 F2A1E471A796 CAPACITOR
F1J1A1050020 F1J1A1050020 CAPACITOR
F1J1E3340003 F1J1E3340003 CAPACITOR
F2A0J681A272 F2A0J681A272 CAPACITOR
F2A1C101A121 F2A1C101A121 CAPACITOR
F2A1C471A256 F2A1C471A256 CAPACITOR
F2A1E222A200 F2A1E222A200 CAPACITOR
F2G0J470A019 F2G0J470A019 CAPACITOR
F3F1C335A045 F3F1C335A045 CAPACITOR
F3H1E106A052 F3H1E106A052 CAPACITOR
EEEHB1C220UR EEEHB1C220UR CAPACITOR (DISCONTINUED)
TMME084 TMME084 CLAMP
TMME237 TMME237 CLAMP
TMM25401 TMM25401 CLAMP
TMM6428-1 TMM6428-1 CLAMP
TMM76416-1 TMM76416-1 CLAMP
G0A470ZA0033 G0A470ZA0033 COIL
G0A680GA0002 G0A680GA0002 COIL
J0JHC0000045 J0JHC0000045 COIL
TALC168T5R6K TALC168T5R6K COIL
TALL08N101KA TALL08N101KA COIL
TALL08N330KA TALL08N330KA COIL
TALL08N470KA TALL08N470KA COIL
TLUADTB820K TLUADTB820K COIL
G1C100K00031 G1C100K00031 COIL (DISCONTINUED)
K1FA119E0004 K1FA119E0004 CONNECTOR
K1KA02AA0193 K1KA02AA0193 CONNECTOR
K1KA04A00192 K1KA04A00192 CONNECTOR
K1KA05AA0150 K1KA05AA0150 CONNECTOR
K1KA08AA0104 K1KA08AA0104 CONNECTOR
K1KA08A00293 K1KA08A00293 CONNECTOR
K1KA08BA0061 K1KA08BA0061 CONNECTOR
K1KA09AA0150 K1KA09AA0150 CONNECTOR
K1KA09AA0193 K1KA09AA0193 CONNECTOR
K1KA09BA0061 K1KA09BA0061 CONNECTOR
K1KA10AA0105 K1KA10AA0105 CONNECTOR
VJP4357F019B VJP4357F019B CONNECTOR
K1KA23A00003 K1KA23A00003 CONNECTOR
K1KB30B00044 K1KB30B00044 CONNECTOR
K1U935A00002 K1U935A00002 CONNECTOR
K1KB23A00003 K1KB23A00003 CONNECTOR (DISCONTINUED)
TKXA19501 TKXA19501 COVER
TXFKP05QSER TXFKP05QSER COVER
TKKL5290 TKKL5290 COVER (DISCONTINUED)
H0J283500018 H0J283500018 CRYSTAL
MA3X152A0L MA3X152A0L DIODE
B0HCMM000014 B0HCMM000014 DIODE
B0JANG000003 B0JANG000003 DIODE
B0JCPG000005 B0JCPG000005 DIODE
EZJZ0V80008B EZJZ0V80008B DIODE
MAZ8043M MAZ8043M DIODE
MA8150 MA8150 DIODE
MA2J1110GL MA2J1110GL DIODE
MA22D390GL MA22D390GL DIODE
MA704WA MA704WA DIODE
MA728 MA728 DIODE
MAZ80510LL MAZ80510LL DIODE
MA8051M MA8051M DIODE
MAZ80560ML MAZ80560ML DIODE
MA8075M MA8075M DIODE
MA8110M MA8110M DIODE
MA8140M MA8140M DIODE
MA8180M MA8180M DIODE
MA8200M MA8200M DIODE
MA8220 MA8220 DIODE
MA8330 MA8330 DIODE
RK34 RK34 DIODE
1SS355 1SS355 DIODE
B3CKE0000007 B3CKE0000007 DIODE (DISCONTINUED)
ERJ3GEYJ332V ERJ3GEYJ332V ERJ3GEYG332
ERJ3GEYJ333 ERJ3GEYJ333 ERJ3GEYG333
ERJ3GEYJ471V ERJ3GEYJ471V ERJ3GEYG471
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ105 ERJ3GEYJ105 ERJ3GEYJ105V
ERJ3GEYJ123V ERJ3GEYJ123V ERJ3GEYJ123V
ERJ3GEYJ151V ERJ3GEYJ151V ERJ3GEYJ151V
ERJ3GEYG152 ERJ3GEYG152 ERJ3GEYJ152V
ERJ3GEYJ153V ERJ3GEYJ153V ERJ3GEYJ153V
ERJ3GEY223 ERJ3GEY223 ERJ3GEYJ223V
ERJ6GEYJ102Z ERJ6GEYJ102Z ERJ6GEYF102
ECEA1VU102 ECEA1VU102 ERJ6GEYF472
ERJ6GEYG222 ERJ6GEYG222 ERJ6GEYG103
ERJ6GEYJ123V ERJ6GEYJ123V ERJ6GEYJ123V
EXCELSR35T EXCELSR35T EXCELSR35T
J0HAAB000036 J0HAAB000036 FILTER
J0JBC0000080 J0JBC0000080 FILTER
J0JHC0000078 J0JHC0000078 FILTER
RRTLX60-600 RRTLX60-600 FIRMWARE
TMME075 TMME075 GUARD
B3RAD0000168 B3RAD0000168 IC
AN5829SV AN5829SV IC
AN77L08M AN77L08M IC
TLC2933IPWL TLC2933IPWL IC
C0CBCYE00001 C0CBCYE00001 IC
C0DAAZG00010 C0DAAZG00010 IC
C0DBFFD00003 C0DBFFD00003 IC
C0EBF0000354 C0EBF0000354 IC
C1AB00002474 C1AB00002474 IC
C1AB00002484 C1AB00002484 IC
C1AB00002848 C1AB00002848 IC
C1BB00000947 C1BB00000947 IC
C1ZBZ0003191 C1ZBZ0003191 IC
C1ZBZ0003307 C1ZBZ0003307 IC
TVRN837S TVRN837S IC
TVRN926S TVRN926S IC
TVRP014S TVRP014S IC
C0DBAMH00014 C0DBAMH00014 IC (DISCONTINUED)
C0EBF0000335 C0EBF0000335 IC (DISCONTINUED)
G1C220MA0077 G1C220MA0077 INDUCTOR
G1C330MA0167 G1C330MA0167 INDUCTOR
J0JBC0000099 J0JBC0000099 INDUCTOR
J0JDC0000046 J0JDC0000046 INDUCTOR
J0MAB0000169 J0MAB0000169 INDUCTOR (DISCONTINUED)
TQB2AA0662-2 TQB2AA0662-2 INSTRUCT BOOK
K2HC103A0014 K2HC103A0014 JACK
ERJ3GEYJ2R7 ERJ3GEYJ2R7 M RESISTOR CH 1 (DISCONTINUED)
MA729-TX MA729-TX MA729-TX
N0AB3GH00003 N0AB3GH00003 MODULE
ELLCDM-07 ELLCDM-07 MOUNT
H0J202500011 H0J202500011 OSCILLATOR
L5EDD5Q00007 L5EDD5Q00007 PANEL
TKKC5229-1 TKKC5229-1 PANEL
TNPA3749ACS TNPA3749ACS PC BOARD
TXJ_A20MRJ TXJ_A20MRJ PC BOARD
TXJ_A70MRJ TXJ_A70MRJ PC BOARD
TZRXN020MRJE TZRXN020MRJE PC BOARD
TZRXN030MRJ TZRXN030MRJ PC BOARD
TZRXN030MRJE TZRXN030MRJE PC BOARD
TZRXN010MRJE TZRXN010MRJE PC BOARD (AUTH REQ.)
TXFKZ010W21 TXFKZ010W21 PEDESTAL
ERJ6GEYJ472V ERJ6GEYJ472V RESISTOR
ERJ6GEY0R00A ERJ6GEY0R00A RESISTOR
ERJ3GEYJ271V ERJ3GEYJ271V RESISTOR
ERJ2GEJ223 ERJ2GEJ223 RESISTOR
ERJ2GEJ101 ERJ2GEJ101 RESISTOR
ECJ2FF1A335Z ECJ2FF1A335Z RESISTOR
ERD25V0R00 ERD25V0R00 RESISTOR
ERG1FJS330D ERG1FJS330D RESISTOR
ERJ12YJ181U ERJ12YJ181U RESISTOR
ERJ12YJ222U ERJ12YJ222U RESISTOR
ERJ12YJ331 ERJ12YJ331 RESISTOR
ERJ14YJ102 ERJ14YJ102 RESISTOR
ERJ14YJ122U ERJ14YJ122U RESISTOR
ERJ14YJ152U ERJ14YJ152U RESISTOR
ERJ2GEJ1R8X ERJ2GEJ1R8X RESISTOR
ERJ2GEJ101X ERJ2GEJ101X RESISTOR
ERJ2GEJ102X ERJ2GEJ102X RESISTOR
ERJ2GEJ103X ERJ2GEJ103X RESISTOR
ERJ2GEJ104 ERJ2GEJ104 RESISTOR
ERJ2GEJ105 ERJ2GEJ105 RESISTOR
ERJ2GEJ154 ERJ2GEJ154 RESISTOR
ERJ2GEJ220 ERJ2GEJ220 RESISTOR
ERJ2GEJ222X ERJ2GEJ222X RESISTOR
ERJ2GEJ223X ERJ2GEJ223X RESISTOR
ERJ2GEJ274 ERJ2GEJ274 RESISTOR
ERJ2GEJ393 ERJ2GEJ393 RESISTOR
ERJ2GEJ473 ERJ2GEJ473 RESISTOR
ERJ2GEJ561 ERJ2GEJ561 RESISTOR
ERJ2GEJ562X ERJ2GEJ562X RESISTOR
ERJ2GEJ563 ERJ2GEJ563 RESISTOR
ERJ2GEJ822 ERJ2GEJ822 RESISTOR
ERJ2GE0R00X ERJ2GE0R00X RESISTOR
ERJ3EKF1000 ERJ3EKF1000 RESISTOR
ERJ3EKF1001 ERJ3EKF1001 RESISTOR
ERJ3EKF1002 ERJ3EKF1002 RESISTOR
ERJ3EKF1021 ERJ3EKF1021 RESISTOR
ERJ3EKF1101 ERJ3EKF1101 RESISTOR
ERJ3EKF1600 ERJ3EKF1600 RESISTOR
ERJ3EKF1802 ERJ3EKF1802 RESISTOR
ERJ3EKF2200 ERJ3EKF2200 RESISTOR
ERJ3EKF2202 ERJ3EKF2202 RESISTOR
ERJ3EKF2372 ERJ3EKF2372 RESISTOR
ERJ3EKF2401 ERJ3EKF2401 RESISTOR
ERJ3EKF2702V ERJ3EKF2702V RESISTOR
ERJ3EKF3301 ERJ3EKF3301 RESISTOR
ERJ3EKF3901 ERJ3EKF3901 RESISTOR
ERJ3EKF3902 ERJ3EKF3902 RESISTOR
ERJ3GEYF472 ERJ3GEYF472 RESISTOR
ERJ3EKF4871 ERJ3EKF4871 RESISTOR
ERJ3EKF5102 ERJ3EKF5102 RESISTOR
ERJ3EKF5231 ERJ3EKF5231 RESISTOR
ERJ3EKF6651 ERJ3EKF6651 RESISTOR
ERJ3EKF7151 ERJ3EKF7151 RESISTOR
ERJ3EKF8061V ERJ3EKF8061V RESISTOR
ERJ3EKF8661 ERJ3EKF8661 RESISTOR
ERJ3EKF9100 ERJ3EKF9100 RESISTOR
ERJ3EKF9101 ERJ3EKF9101 RESISTOR
ERJ3GEYJ100 ERJ3GEYJ100 RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ121 ERJ3GEYJ121 RESISTOR
ERJ3GEYJ154 ERJ3GEYJ154 RESISTOR
D0GB155JA057 D0GB155JA057 RESISTOR
ERJ3GEYJ182V ERJ3GEYJ182V RESISTOR
ERJ3GEYJ184V ERJ3GEYJ184V RESISTOR
ERJ3GEYJ220 ERJ3GEYJ220 RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ224V ERJ3GEYJ224V RESISTOR
ERJ3GEYJ225V ERJ3GEYJ225V RESISTOR
ERJ3GEYJ272 ERJ3GEYJ272 RESISTOR
ERJ3GEYJ273 ERJ3GEYJ273 RESISTOR
ERJ3GEYJ330 ERJ3GEYJ330 RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RESISTOR
ERJ3GEYJ390V ERJ3GEYJ390V RESISTOR
D0GB393JA041 D0GB393JA041 RESISTOR
ERJ3GEYJ431V ERJ3GEYJ431V RESISTOR
ERJ3GEYJ470 ERJ3GEYJ470 RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYJ474 ERJ3GEYJ474 RESISTOR
ERJ3GEYJ560V ERJ3GEYJ560V RESISTOR
ERJ3GEYJ562 ERJ3GEYJ562 RESISTOR
ERJ3GEYJ563 ERJ3GEYJ563 RESISTOR
ERJ3GEYJ682 ERJ3GEYJ682 RESISTOR
ERJ3GEYJ821 ERJ3GEYJ821 RESISTOR
ERJ3GEYJ912V ERJ3GEYJ912V RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ6ENF2492 ERJ6ENF2492 RESISTOR
ERJ6ENF4701 ERJ6ENF4701 RESISTOR
ERJ6ENF75R0 ERJ6ENF75R0 RESISTOR
ERJ6GEYJ152V ERJ6GEYJ152V RESISTOR
ERJ6GEYJ271 ERJ6GEYJ271 RESISTOR
ERJ6GEYJ331V ERJ6GEYJ331V RESISTOR
ERJ8GEY0R00 ERJ8GEY0R00 RESISTOR
EXB2HVR000 EXB2HVR000 RESISTOR
EXB2HV104JV EXB2HV104JV RESISTOR
EXB38VR000 EXB38VR000 RESISTOR
EXB38V470J EXB38V470J RESISTOR
EXB2HV470JV EXB2HV470JV RESISTOR (DISCONTINUED)
THTD015J THTD015J SCREW
XSB3_6FJ XSB3_6FJ SCREW
XTB4_15JFJ XTB4_15JFJ SCREW
XTV3_10JFJ XTV3_10JFJ SCREW
XTV3_8JFJK XTV3_8JFJK SCREW
XTW3_12TFJ XTW3_12TFJ SCREW
XTW3_8TFJ XTW3_8TFJ SCREW
XYN3_K8 XYN3_K8 SCREW (10)
123TCLX60 123TCLX60 SD CARD
TMMJ097 TMMJ097 SPACER
EAS12S11A EAS12S11A SPEAKER
TESA169 TESA169 SPRING
TES4G204 TES4G204 SPRING
K0F122A00172 K0F122A00172 SWITCH
K9ZZ00001279 K9ZZ00001279 TERMINAL
UN5213TX UN5213TX TRANSISTOR
B1ABCE000015 B1ABCE000015 TRANSISTOR
B1ADDF000005 B1ADDF000005 TRANSISTOR
B1CBHD000002 B1CBHD000002 TRANSISTOR
B1DHDC000028 B1DHDC000028 TRANSISTOR
B1MBACA00008 B1MBACA00008 TRANSISTOR
UN2215 UN2215 TRANSISTOR
UN5214 UN5214 TRANSISTOR
MSB709RT1 MSB709RT1 TRANSISTOR
ENG36A16GF ENG36A16GF TUNER
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
CL-MB CL-MB WALL MOUNT
U-2TB U-2TB WALL MOUNT
Main Menu x
