Model Image
Manufacturer

Panasonic

Model Number

TC60AS640U

Description

60 Inch Lcd Tv

Interactive Exploded View

Parts List

Part Number Description
K2AAYB000010 K2AAYB000010 AC INLET
TC-60AS640U-EX TC-60AS640U-EX ASSEMBLY
TBL5ZX08281 TBL5ZX08281 ASSY PEDESTAL
TMK5ZX087 TMK5ZX087 BARRIER
K4AD01D00008 K4AD01D00008 BLOCK
N5HZZ0000130 N5HZZ0000130 BLUETOOTH MODULE
TBX5ZA03301 TBX5ZA03301 BRACKET
TKP5ZA41401 TKP5ZA41401 BRACKET
TKP5ZA41501 TKP5ZA41501 BRACKET
TKP5ZA42204 TKP5ZA42204 BRACKET
TUX5ZX0371 TUX5ZX0371 BRACKET
TBL5ZX08911 TBL5ZX08911 BRACKETS

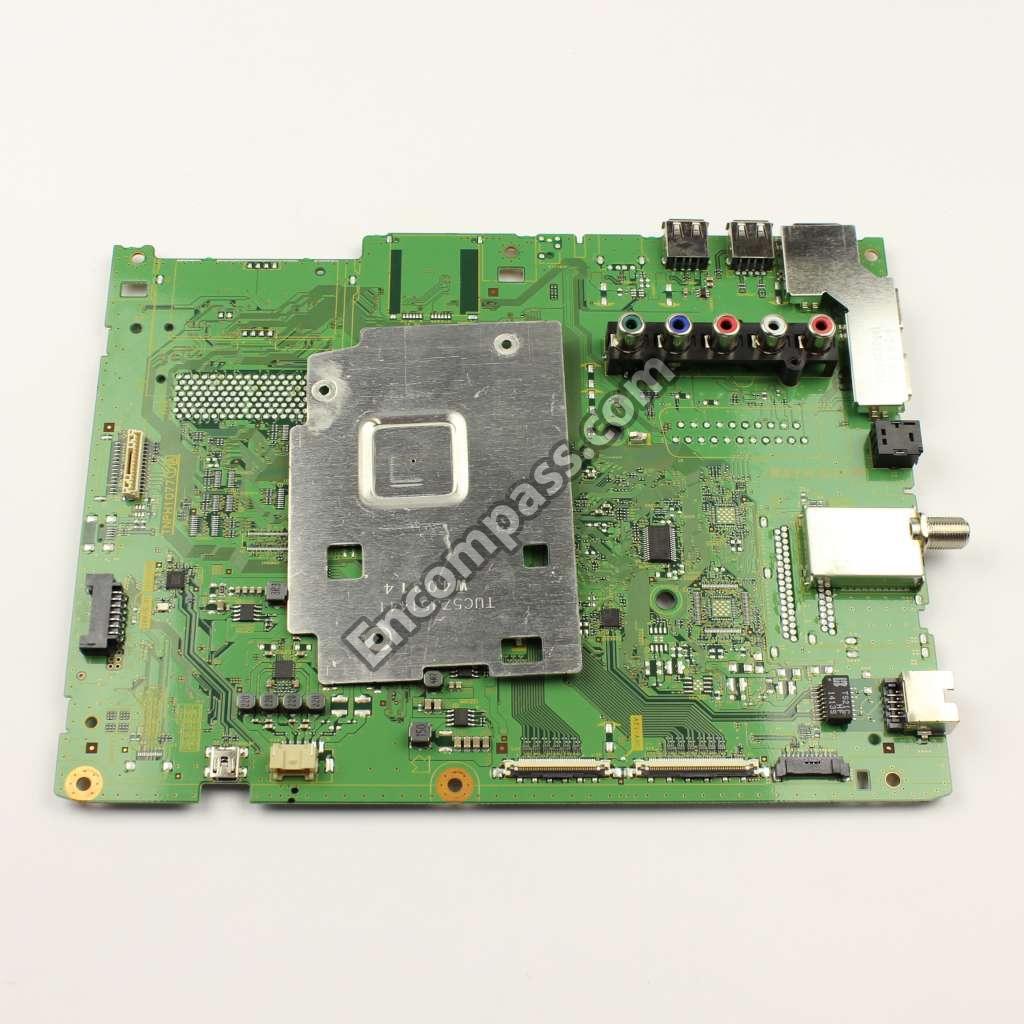

TXN_A1ZYUUS TXN_A1ZYUUS CIRCUIT BOARD A (MAIN BOARD)
TZRNP11XVUUP TZRNP11XVUUP CIRCUIT BOARD P (POWER SUPPLY)
K2CA2YY00260 K2CA2YY00260 CORD
H0J120500097 H0J120500097 CRYSTAL
TMK2AA230 TMK2AA230 FELT
TEWB431 TEWB431 GASKET
TEWB633 TEWB633 GASKET
TEWB772 TEWB772 GASKET
TXN_K1ZFUUS TXN_K1ZFUUS K BOARD (IR SENSOR/POWER LED BOARD) REMOTE,LED,LUMINANCE SENSOR
N5HBZ0000109 N5HBZ0000109 LAN ADAPTER
TKP5ZA41701 TKP5ZA41701 LED CASE
K7AAAY000014 K7AAAY000014 LINK
TSCKF0170128 TSCKF0170128 LVDS CABLE (41 PIN)
TSCKF0170127 TSCKF0170127 LVDS CABLE (51 PIN)
TUX5ZX0331 TUX5ZX0331 METAL
TUX5ZX0541 TUX5ZX0541 METAL BOTTOM
TKK5ZC50501A TKK5ZC50501A PANEL
K4ZZ01000267 K4ZZ01000267 PLUG
N2QAYB000926 N2QAYB000926 REMOTE CONTROL UNITS
B3RBB0000018 B3RBB0000018 REMOTE SENSOR
THEJ061J THEJ061J SCREW
TMKK438 TMKK438 SHEET
TMKK461 TMKK461 SHEET
TUC2AC50441 TUC2AC50441 SHIELD
TKP5ZA42010 TKP5ZA42010 SIDE AV BRACKET
L0EYAA000054 L0EYAA000054 SPEAKER UNIT
TEWF411 TEWF411 TAPE
K2LC1YYE0003 K2LC1YYE0003 TERMINAL
N2QBYA000004 N2QBYA000004 TOUCHPAD REMOTE
G4DYA0000450 G4DYA0000450 TRANSFORMER
G4DYA0000462 G4DYA0000462 TRANSFORMER
G5BYC0000040 G5BYC0000040 TRANSFORMER
TXJ_P5YBUU TXJ_P5YBUU WIRE
TXJA02YSUU-1 TXJA02YSUU-1 WIRE
TXJA10YSUU TXJA10YSUU WIRE
TXJA12YSUU TXJA12YSUU WIRE
TXJA02ZYUU TXJA02ZYUU WIRE(A02-P2)
