Model Image
Manufacturer

Panasonic

Model Number

TH32LRU6

Description

32inch Led Hospitality Display

Interactive Exploded View

Parts List

Part Number Description
ERZVA7V471 ERZVA7V471 ABSORBER
K2CB2YY00077 K2CB2YY00077 AC CORD
K2AEYB000003 K2AEYB000003 AC INLET
TXFKU5513SER TXFKU5513SER BACK COVER
10030-0073300 10030-0073300 BATTERY DOOR
TKZ4GX5034 TKZ4GX5034 BRACKET
TKX5ZA02801 TKX5ZA02801 BRACKET
TKP2AA28201 TKP2AA28201 BRACKET

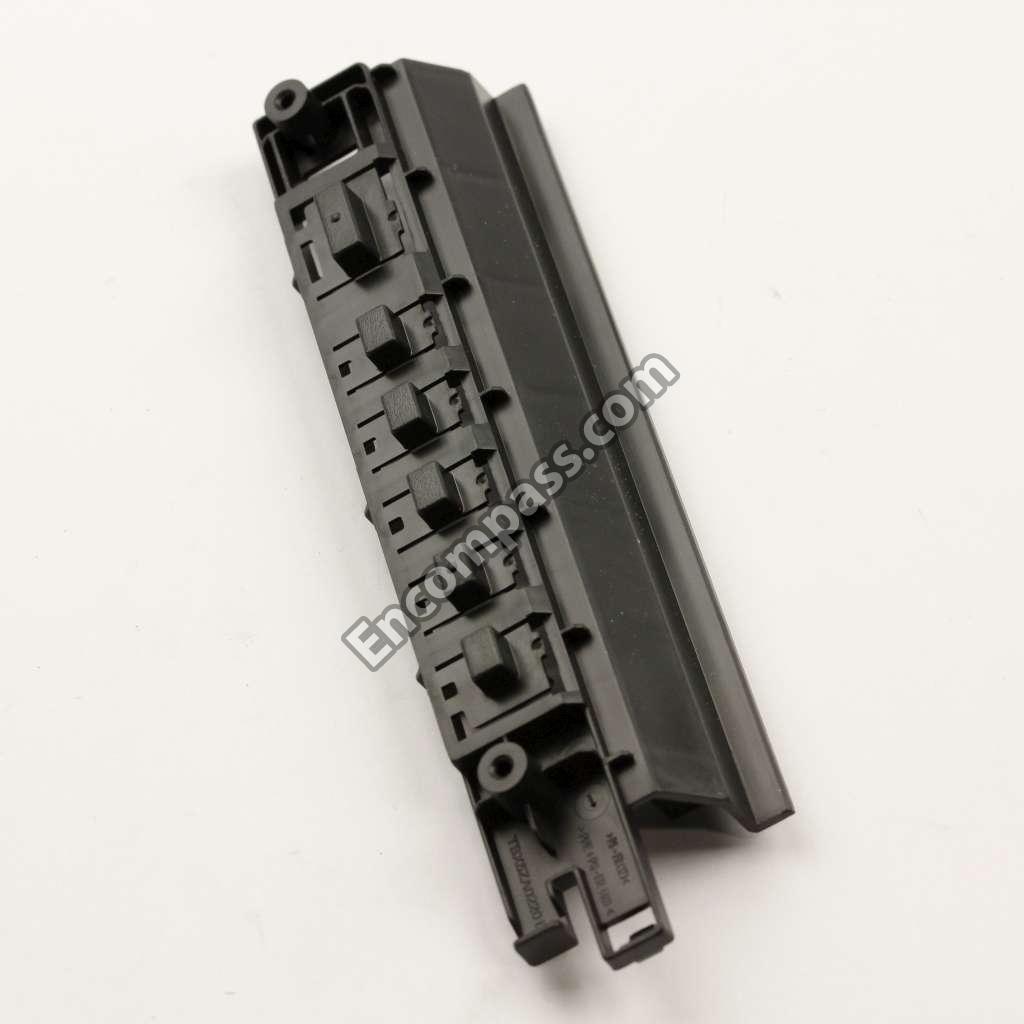

TBX5ZA02201 TBX5ZA02201 BRACKET
TBL5ZX07291 TBL5ZX07291 BRACKET
TXFKY5Z0449 TXFKY5Z0449 CABINET
TSCKF0160004 TSCKF0160004 CABLE
F2A2E1610001 F2A2E1610001 CAPACITOR
F2A1V470B660 F2A1V470B660 CAPACITOR
F2A1E222B927 F2A1E222B927 CAPACITOR
F1K1V106A010 F1K1V106A010 CAPACITOR
F1K1E106A134 F1K1E106A134 CAPACITOR
F1JZZ1060001 F1JZZ1060001 CAPACITOR
F1J1H105A945 F1J1H105A945 CAPACITOR
F1J1E224A272 F1J1E224A272 CAPACITOR
F1J1E105A287 F1J1E105A287 CAPACITOR
F1J1C475A225 F1J1C475A225 CAPACITOR
F1J1C475A217 F1J1C475A217 CAPACITOR
F1J1A106A087 F1J1A106A087 CAPACITOR
F1J1A106A043 F1J1A106A043 CAPACITOR
F1J0J2260004 F1J0J2260004 CAPACITOR
F1J0G2260001 F1J0G2260001 CAPACITOR
F1H1H104B047 F1H1H104B047 CAPACITOR
F1H1H103B047 F1H1H103B047 CAPACITOR
F1H1H102B052 F1H1H102B052 CAPACITOR
F1H1E104A161 F1H1E104A161 CAPACITOR
F1H1C474A178 F1H1C474A178 CAPACITOR
F1H1C224A178 F1H1C224A178 CAPACITOR
F1H1C105A145 F1H1C105A145 CAPACITOR
F1H1C104A178 F1H1C104A178 CAPACITOR
F1H1A105A036 F1H1A105A036 CAPACITOR
F1H0J105A051 F1H0J105A051 CAPACITOR
F1G1H820A834 F1G1H820A834 CAPACITOR
F1G1H6R00009 F1G1H6R00009 CAPACITOR
F1G1H5R0A831 F1G1H5R0A831 CAPACITOR
F1G1H472A830 F1G1H472A830 CAPACITOR
F1G1H471A834 F1G1H471A834 CAPACITOR
F1G1H4710004 F1G1H4710004 CAPACITOR
F1G1H470A834 F1G1H470A834 CAPACITOR
F1G1H390A834 F1G1H390A834 CAPACITOR
F1G1H270A834 F1G1H270A834 CAPACITOR
F1G1H222A830 F1G1H222A830 CAPACITOR
F1G1H221A834 F1G1H221A834 CAPACITOR
F1G1H220A834 F1G1H220A834 CAPACITOR
F1G1H1R5A831 F1G1H1R5A831 CAPACITOR
F1G1H181A834 F1G1H181A834 CAPACITOR
F1G1H151A834 F1G1H151A834 CAPACITOR
F1G1H150A834 F1G1H150A834 CAPACITOR
F1G1H121A834 F1G1H121A834 CAPACITOR
F1G1H120A834 F1G1H120A834 CAPACITOR
F1G1H102A834 F1G1H102A834 CAPACITOR
F1G1H102A401 F1G1H102A401 CAPACITOR
F1G1H101A834 F1G1H101A834 CAPACITOR
F1G1H100A834 F1G1H100A834 CAPACITOR
F1G1H100A833 F1G1H100A833 CAPACITOR
F1G1E472A144 F1G1E472A144 CAPACITOR
F1G1E472A086 F1G1E472A086 CAPACITOR
F1G1E333A059 F1G1E333A059 CAPACITOR
F1G1E332A144 F1G1E332A144 CAPACITOR
F1G1E103A059 F1G1E103A059 CAPACITOR
F1G1C473A048 F1G1C473A048 CAPACITOR
F1G1C183A146 F1G1C183A146 CAPACITOR
F1G1C104A077 F1G1C104A077 CAPACITOR
F1G1C1030008 F1G1C1030008 CAPACITOR
F1G1A105A047 F1G1A105A047 CAPACITOR
F1G0J105A049 F1G0J105A049 CAPACITOR
F1B3D101A099 F1B3D101A099 CAPACITOR
F1AAF471A019 F1AAF471A019 CAPACITOR
F1AAF102A020 F1AAF102A020 CAPACITOR
F1A3A471A060 F1A3A471A060 CAPACITOR
F0CAF1040016 F0CAF1040016 CAPACITOR
EEUFR1V102PY EEUFR1V102PY CAPACITOR
D0GD750JA052 D0GD750JA052 CAPACITOR
TMME268 TMME268 CLAMP
TKZ5ZA50251 TKZ5ZA50251 CLIP
G1CR68JA0020 G1CR68JA0020 COIL
G1CR33JA0020 G1CR33JA0020 COIL
G1CR27JA0097 G1CR27JA0097 COIL
G1CR22JA0097 G1CR22JA0097 COIL
G1CR18JA0020 G1CR18JA0020 COIL
G1C6R8MA0533 G1C6R8MA0533 COIL
G1C68NJA0075 G1C68NJA0075 COIL
G1C4R7ZA0311 G1C4R7ZA0311 COIL
G1C3R3MA0464 G1C3R3MA0464 COIL
G1C3R3JA0074 G1C3R3JA0074 COIL
G1C2R2ZA0311 G1C2R2ZA0311 COIL
G1C220MA0533 G1C220MA0533 COIL
G1C1R5J00008 G1C1R5J00008 COIL
G1C150MA0445 G1C150MA0445 COIL
G1BYYYC00024 G1BYYYC00024 COIL
K4AD01A00004 K4AD01A00004 CONNECTOR
K1ZZ00001549 K1ZZ00001549 CONNECTOR
K1U510D00001 K1U510D00001 CONNECTOR
K1U307E00002 K1U307E00002 CONNECTOR
K1KY30BA0275 K1KY30BA0275 CONNECTOR
K1KY14BA0484 K1KY14BA0484 CONNECTOR
K1KY14BA0386 K1KY14BA0386 CONNECTOR
K1KY08BA0402 K1KY08BA0402 CONNECTOR
K1KY07BA0483 K1KY07BA0483 CONNECTOR
K1KY04BA0387 K1KY04BA0387 CONNECTOR
K1KA14A00248 K1KA14A00248 CONNECTOR
K1FY315A0017 K1FY315A0017 CONNECTOR
K1FY119E0067 K1FY119E0067 CONNECTOR
K1FY119D0028 K1FY119D0028 CONNECTOR
K1FY104B0092 K1FY104B0092 CONNECTOR
J0JKA0000038 J0JKA0000038 CORE
H1A3935B0003 H1A3935B0003 CRYSTAL
H0J400400079 H0J400400079 CRYSTAL
H0J270500166 H0J270500166 CRYSTAL
H0J227500003 H0J227500003 CRYSTAL
H0J222500010 H0J222500010 CRYSTAL
EZJZ1V800AA EZJZ1V800AA DIODE
EZJZ0V120JA EZJZ0V120JA DIODE
DZ2J220M0L DZ2J220M0L DIODE
DZ2J160M0L DZ2J160M0L DIODE
DZ2J140M0L DZ2J140M0L DIODE
DZ2J068M0L DZ2J068M0L DIODE
DZ2J051M0L DZ2J051M0L DIODE
DZ2J047M0L DZ2J047M0L DIODE
DZ2J033M0L DZ2J033M0L DIODE
DZ2J027M0L DZ2J027M0L DIODE
DB2J30900L DB2J30900L DIODE
DA2JF2300L DA2JF2300L DIODE
DA2J10100L DA2J10100L DIODE
B3AAB0000379 B3AAB0000379 DIODE
B0ZBZ0000203 B0ZBZ0000203 DIODE
B0JDRJ000001 B0JDRJ000001 DIODE
B0JCDE000006 B0JCDE000006 DIODE
B0JCCE000021 B0JCCE000021 DIODE
B0JBSL000049 B0JBSL000049 DIODE
B0JAME000126 B0JAME000126 DIODE
B0HAGQ000001 B0HAGQ000001 DIODE
B0FBAR000050 B0FBAR000050 DIODE
B0BC01500025 B0BC01500025 DIODE
B0BB20000009 B0BB20000009 DIODE
B0ADCK000001 B0ADCK000001 DIODE
L5EDDYY00475 L5EDDYY00475 DISPLAY
TMK2AA00801 TMK2AA00801 FELT
J0ZZB0000175 J0ZZB0000175 FILTER
J0ZZB0000147 J0ZZB0000147 FILTER
J0ZZB0000142 J0ZZB0000142 FILTER
J0JYC0000464 J0JYC0000464 FILTER
J0JYC0000156 J0JYC0000156 FILTER
J0JKB0000034 J0JKB0000034 FILTER
J0JKA0000024 J0JKA0000024 FILTER
J0JHC0000116 J0JHC0000116 FILTER
J0B1075B0061 J0B1075B0061 FILTER
J0B1075B0060 J0B1075B0060 FILTER
G0B153G00003 G0B153G00003 FILTER
K5E502YYA162 K5E502YYA162 FUSE
TEW2AG0514 TEW2AG0514 GASKET
TVRT345S TVRT345S IC
TVRT340ADS TVRT340ADS IC
MN2WS0270PB MN2WS0270PB IC
J0JCC0000287 J0JCC0000287 IC
C3ABTY000073 C3ABTY000073 IC
C1CB00003425 C1CB00003425 IC
C1AB00004145 C1AB00004145 IC
C1AB00004053 C1AB00004053 IC
C1AB00003984 C1AB00003984 IC
C1AB00003333 C1AB00003333 IC
C0ZBZ0001867 C0ZBZ0001867 IC
C0JBAU000089 C0JBAU000089 IC
C0JBAB000722 C0JBAB000722 IC
C0JBAA000419 C0JBAA000419 IC
C0EBF0000354 C0EBF0000354 IC
C0DBZYY00545 C0DBZYY00545 IC
C0DBZYY00541 C0DBZYY00541 IC
C0DBGYY03749 C0DBGYY03749 IC
C0DBGYY00977 C0DBGYY00977 IC
C0DBGYY00887 C0DBGYY00887 IC
C0DBEYY00102 C0DBEYY00102 IC
C0DBBYY00065 C0DBBYY00065 IC
C0DBAYY01645 C0DBAYY01645 IC
C0DBAYY01644 C0DBAYY01644 IC
C0DBAYY01300 C0DBAYY01300 IC
C0DBAYY01299 C0DBAYY01299 IC
C0ABBB000179 C0ABBB000179 IC
B3PAA0000629 B3PAA0000629 IC
B3JB00000208 B3JB00000208 IC
AN34043AAVF AN34043AAVF IC
G1CR10JA0020 G1CR10JA0020 INDUCTOR
K2LB106A0017 K2LB106A0017 JACK
K2HC1YYA0040 K2HC1YYA0040 JACK
TXJA121YGU TXJA121YGU LEAD
TXJA101YGU TXJA101YGU LEAD
TXJA021YGU TXJA021YGU LEAD
TXJ_P31YGU TXJ_P31YGU LEAD
TKK5ZC50452 TKK5ZC50452 LED PANEL
TUX2AE0681 TUX2AE0681 METAL
H0J250500109 H0J250500109 OSCILLATOR
TXN_P11YGU TXN_P11YGU PC BOARD
TXN_K1UYUUS TXN_K1UYUUS PC BOARD
TXN_A11XGUS TXN_A11XGUS PC BOARD
TBL5ZX07271 TBL5ZX07271 PEDESTAL
N2QAYB000820 N2QAYB000820 REMOTE CONTROL
B3RBB0000018 B3RBB0000018 REMOTE SENSOR
EXB2HV121JV EXB2HV121JV RESISTOR
D1HY6804A012 D1HY6804A012 RESISTOR
D1HY4704A012 D1HY4704A012 RESISTOR
D1HY2204A012 D1HY2204A012 RESISTOR
D1HY1038A012 D1HY1038A012 RESISTOR
D1BB7151A106 D1BB7151A106 RESISTOR
D1BB6041A073 D1BB6041A073 RESISTOR
D1BB5761A194 D1BB5761A194 RESISTOR
D1BB4871A106 D1BB4871A106 RESISTOR
D1BB3091A073 D1BB3091A073 RESISTOR
D1BB2871A106 D1BB2871A106 RESISTOR
D1BB2002A195 D1BB2002A195 RESISTOR
D1BB1911A073 D1BB1911A073 RESISTOR
D1BB1802A195 D1BB1802A195 RESISTOR
D1BB1692A073 D1BB1692A073 RESISTOR
D1BB1333A106 D1BB1333A106 RESISTOR
D1BA82R0A023 D1BA82R0A023 RESISTOR
D1BA6201A023 D1BA6201A023 RESISTOR
D1BA56R0A023 D1BA56R0A023 RESISTOR
D1BA5602A023 D1BA5602A023 RESISTOR
D1BA5362A023 D1BA5362A023 RESISTOR
D1BA4701A023 D1BA4701A023 RESISTOR
D1BA3742A023 D1BA3742A023 RESISTOR
D1BA3602A023 D1BA3602A023 RESISTOR
D1BA3302A023 D1BA3302A023 RESISTOR
D1BA2700A023 D1BA2700A023 RESISTOR
D1BA2491A023 D1BA2491A023 RESISTOR
D1BA2400A023 D1BA2400A023 RESISTOR
D1BA2202A023 D1BA2202A023 RESISTOR
D1BA1600A023 D1BA1600A023 RESISTOR
D1BA1403A023 D1BA1403A023 RESISTOR
D1BA1402A023 D1BA1402A023 RESISTOR
D1BA1201A023 D1BA1201A023 RESISTOR
D1BA1200A023 D1BA1200A023 RESISTOR
D1BA1002A023 D1BA1002A023 RESISTOR
D1BA1001A023 D1BA1001A023 RESISTOR
D0GFR00J0005 D0GFR00J0005 RESISTOR
D0GF105JA048 D0GF105JA048 RESISTOR
D0GDR00J0004 D0GDR00J0004 RESISTOR
D0GD752JA052 D0GD752JA052 RESISTOR
D0GD681JA059 D0GD681JA059 RESISTOR
D0GD680JA052 D0GD680JA052 RESISTOR
D0GD4R7JA059 D0GD4R7JA059 RESISTOR
D0GD473JA052 D0GD473JA052 RESISTOR
D0GD472JA052 D0GD472JA052 RESISTOR
D0GD471JA052 D0GD471JA052 RESISTOR
D0GD272JA052 D0GD272JA052 RESISTOR
D0GD182JA052 D0GD182JA052 RESISTOR
D0GD134JA052 D0GD134JA052 RESISTOR
D0GD104JA052 D0GD104JA052 RESISTOR
D0GD103JA052 D0GD103JA052 RESISTOR
D0GD100JA059 D0GD100JA059 RESISTOR
D0GD100JA052 D0GD100JA052 RESISTOR
D0GBR00J0004 D0GBR00J0004 RESISTOR
D0GB911ZA037 D0GB911ZA037 RESISTOR
D0GB822ZA038 D0GB822ZA038 RESISTOR
D0GB752JA065 D0GB752JA065 RESISTOR
D0GB473JA065 D0GB473JA065 RESISTOR
D0GB332ZA038 D0GB332ZA038 RESISTOR
D0GB332JA065 D0GB332JA065 RESISTOR
D0GB224JA065 D0GB224JA065 RESISTOR
D0GB223JA065 D0GB223JA065 RESISTOR
D0GB222JA065 D0GB222JA065 RESISTOR
D0GB203ZA038 D0GB203ZA038 RESISTOR
D0GB183JA065 D0GB183JA065 RESISTOR
D0GB104JA065 D0GB104JA065 RESISTOR
D0GB103ZA038 D0GB103ZA038 RESISTOR
D0GB103JA065 D0GB103JA065 RESISTOR
D0GB102ZA038 D0GB102ZA038 RESISTOR
D0GB102JA065 D0GB102JA065 RESISTOR
D0GB101JA065 D0GB101JA065 RESISTOR
D0GAR00J0005 D0GAR00J0005 RESISTOR
D0GA683JA023 D0GA683JA023 RESISTOR
D0GA682JA023 D0GA682JA023 RESISTOR
D0GA681JA023 D0GA681JA023 RESISTOR
D0GA680JA023 D0GA680JA023 RESISTOR
D0GA564JA023 D0GA564JA023 RESISTOR
D0GA561JA023 D0GA561JA023 RESISTOR
D0GA560JA023 D0GA560JA023 RESISTOR
D0GA511JA023 D0GA511JA023 RESISTOR
D0GA510JA023 D0GA510JA023 RESISTOR
D0GA473JA039 D0GA473JA039 RESISTOR
D0GA472JA023 D0GA472JA023 RESISTOR
D0GA471JA023 D0GA471JA023 RESISTOR
D0GA470JA023 D0GA470JA023 RESISTOR
D0GA360JA023 D0GA360JA023 RESISTOR
D0GA333JA023 D0GA333JA023 RESISTOR
D0GA332JA023 D0GA332JA023 RESISTOR
D0GA331JA023 D0GA331JA023 RESISTOR
D0GA275JA023 D0GA275JA023 RESISTOR
D0GA273JA023 D0GA273JA023 RESISTOR
D0GA272JA023 D0GA272JA023 RESISTOR
D0GA223JA023 D0GA223JA023 RESISTOR
D0GA222JA023 D0GA222JA023 RESISTOR
D0GA221JA023 D0GA221JA023 RESISTOR
D0GA220JA023 D0GA220JA023 RESISTOR
D0GA202JA023 D0GA202JA023 RESISTOR
D0GA1R1JA023 D0GA1R1JA023 RESISTOR
D0GA184JA023 D0GA184JA023 RESISTOR
D0GA183JA023 D0GA183JA023 RESISTOR
D0GA182JA023 D0GA182JA023 RESISTOR
D0GA132JA023 D0GA132JA023 RESISTOR
D0GA122JA023 D0GA122JA023 RESISTOR
D0GA105JA023 D0GA105JA023 RESISTOR
D0GA104JA039 D0GA104JA039 RESISTOR
D0GA103JA039 D0GA103JA039 RESISTOR
D0GA102JA039 D0GA102JA039 RESISTOR
D0GA101JA039 D0GA101JA039 RESISTOR
D0C1R33JA104 D0C1R33JA104 RESISTOR
D0B1106JA033 D0B1106JA033 RESISTOR
D0GB561JA065 D0GB561JA065 RESISTORS
D0GB153JA065 D0GB153JA065 RESISTORS
H0J240500067 H0J240500067 RESONATORS
TMKK532 TMKK532 RUBBER
XYN4_F12FJK XYN4_F12FJK SCREW
XVE6A10FJK XVE6A10FJK SCREW
XTV3_10JFJ XTV3_10JFJ SCREW
XTS5_20AFJK XTS5_20AFJK SCREW
XTB3_30AFJK XTB3_30AFJK SCREW
XSS5_12FNK XSS5_12FNK SCREW
THTD030J THTD030J SCREW
THT2AA002J THT2AA002J SCREW
THM2AA001N THM2AA001N SCREW
THEL047J THEL047J SCREW
THE4GJ001J THE4GJ001J SCREW
THEC1509 THEC1509 SCREW
THE2AC004J THE2AC004J SCREW
TBL2AB30081 TBL2AB30081 SHEET
THEJ036J THEJ036J SHIELD
TMME442 TMME442 SPACER
L0EYAA000043 L0EYAA000043 SPEAKER
TMK4GG089 TMK4GG089 SPONGE
TMK4GG082 TMK4GG082 SPONGE
TMK2AG153 TMK2AG153 SPONGE
EVQ11G05R EVQ11G05R SWITCH
TEWF440 TEWF440 TAPE
TEWF178 TEWF178 TAPE
K4ZZ01000289 K4ZZ01000289 TERMINAL
D4CAY4R7A096 D4CAY4R7A096 THERMISTOR
G4DYA0000461 G4DYA0000461 TRANSFORMER
G1C10NJ00008 G1C10NJ00008 TRANSISTOR
B1CHRE000015 B1CHRE000015 TRANSISTOR
B1CERT000011 B1CERT000011 TRANSISTOR
B1ADCF000194 B1ADCF000194 TRANSISTOR
B1ABCF000231 B1ABCF000231 TRANSISTOR
B1ABCE000015 B1ABCE000015 TRANSISTOR
B1ABBE000003 B1ABBE000003 TRANSISTOR
Main Menu x
