Model Image
Manufacturer

Panasonic

Model Number

TP2011DW

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
2SC3311A 2SC3311A 2SC1685RTA
2SC3063 2SC3063 2SC3063RL
2SD2499MA2 2SD2499MA2 2SD2499LBMA2
AN78M05LB AN78M05LB AN78M05LB
AN78M09 AN78M09 AN78M09LB
UR50EC1151C UR50EC1151C BATTERY COVER
TSKA076 TSKA076 BEAD
TSKA074 TSKA074 BEAD
TSKA072 TSKA072 BEAD
TCUV1H103ZFN TCUV1H103ZFN CAPACITOR
TACCW471T50V TACCW471T50V CAPACITOR
TACCW391T50V TACCW391T50V CAPACITOR
EC0S2DG151D4 EC0S2DG151D4 CAPACITOR
ECWH12H822JR ECWH12H822JR CAPACITOR
ECWF2394JBB ECWF2394JBB CAPACITOR
ECUX1H821KBX ECUX1H821KBX CAPACITOR
ECUX1H680JCX ECUX1H680JCX CAPACITOR
ECUX1H562KBX ECUX1H562KBX CAPACITOR
ECUX1H471KBX ECUX1H471KBX CAPACITOR
ECUX1H390JCX ECUX1H390JCX CAPACITOR
ECUX1H332KBX ECUX1H332KBX CAPACITOR
ECUX1H330JCX ECUX1H330JCX CAPACITOR
ECUX1H300JCX ECUX1H300JCX CAPACITOR
ECUX1H223ZFX ECUX1H223ZFX CAPACITOR
ECUX1H221JUX ECUX1H221JUX CAPACITOR
ECUX1H221JCX ECUX1H221JCX CAPACITOR
ECUX1H181JCX ECUX1H181JCX CAPACITOR
ECUX1H150JUX ECUX1H150JUX CAPACITOR
ECUX1H121JCX ECUX1H121JCX CAPACITOR
ECUX1H102KBX ECUX1H102KBX CAPACITOR
ECUX1H101JCX ECUX1H101JCX CAPACITOR
ECUX1H070DCX ECUX1H070DCX CAPACITOR
ECUV1H104ZFM ECUV1H104ZFM CAPACITOR
ECQU2A224MV ECQU2A224MV CAPACITOR
ECQU2A153MV ECQU2A153MV CAPACITOR
ECQM1H823JZ ECQM1H823JZ CAPACITOR
ECQB1H333JF3 ECQB1H333JF3 CAPACITOR
ECQM1H104JZ ECQM1H104JZ CAPACITOR
ECQB1H103KF ECQB1H103KF CAPACITOR
ECKD3D181JBN ECKD3D181JBN CAPACITOR
ECKD3A821KB ECKD3A821KB CAPACITOR
ECKD3A331KB ECKD3A331KB CAPACITOR
ECKD2H821KB ECKD2H821KB CAPACITOR
ECEA1HN4R7U ECEA1HN4R7U CAPACITOR
ECEA1HN4R7UB ECEA1HN4R7UB CAPACITOR
ECEA1HN2R2SB ECEA1HN2R2SB CAPACITOR
ECEA1HN010U ECEA1HN010U CAPACITOR
ECEA1HNR47U ECEA1HNR47U CAPACITOR
ECEA1HFS2R2 ECEA1HFS2R2 CAPACITOR
ERJ6GEYJ5R1V ERJ6GEYJ5R1V CAPACITOR
ECA1JHG100B ECA1JHG100B CAPACITOR
NCEA1HGE4R7B NCEA1HGE4R7B CAPACITOR
ECA1HM3R3 ECA1HM3R3 CAPACITOR
ECA1HM220 ECA1HM220 CAPACITOR
ECA1HM2R2 ECA1HM2R2 CAPACITOR
ECA1HM010 ECA1HM010 CAPACITOR
ECA1HMR47G ECA1HMR47G CAPACITOR
ECA1HMR22GB ECA1HMR22GB CAPACITOR
ECA1HHG470B ECA1HHG470B CAPACITOR
ECA1EM221 ECA1EM221 CAPACITOR
ECA1EHG101B ECA1EHG101B CAPACITOR
ECEA1CU471B ECEA1CU471B CAPACITOR
YFUGAC221BJ YFUGAC221BJ CAPACITOR
ECA1AM102 ECA1AM102 CAPACITOR
ECA1AM101B ECA1AM101B CAPACITOR
ECEA1EU471E ECEA1EU471E CAPACITOR
ECKD3D102KB4 ECKD3D102KB4 CAPACITOR
ECUX1H470JCX ECUX1H470JCX CAPACITOR
MD302M MD302M CHASSIS
0LK19042A 0LK19042A COIL
ELESN180JA ELESN180JA COIL
TLUABTA470K TLUABTA470K COIL
TLUABTA2R2K TLUABTA2R2K COIL
ELH5L4101 ELH5L4101 COIL
ELESN390KA ELESN390KA COIL
ELESN120JA ELESN120JA COIL
ELEIE680KA ELEIE680KA COIL
EIV7EN053B EIV7EN053B COIL
EXNG471P365 EXNG471P365 COMBO Z
TSKA064 TSKA064 CORE
A51KRE89XDT A51KRE89XDT CRT
A51KRE89XDT A51KRE89XDT CRT
TSSA010 TSSA010 CRYSTAL
TAFCSB503F38 TAFCSB503F38 CRYSTAL
TVSSR2KLV TVSSR2KLV DIODE
TAP104XM05 TAP104XM05 DIODE
RL30A RL30A DIODE
MA4330H MA4330H DIODE
RD6_8ESB3 RD6_8ESB3 DIODE
MA4047H MA4047H DIODE
YEADGMB01 YEADGMB01 DIODE
EU02V1 EU02V1 DIODE
AU02 AU02 DIODE
ECA0JM101GB ECA0JM101GB ECA0JM101GB
ECA1AM470B ECA1AM470B ECA1AM470B
F2A1E101A599 F2A1E101A599 ECA1CXL101
ECA1EM102GB ECA1EM102GB ECA1EM102GB
ECA1EM220 ECA1EM220 ECA1EM220GB
ECEA25Z4R7 ECEA25Z4R7 ECA1EM4R7GB
ECA1VM471GB ECA1VM471GB ECA1VM471GB
ECCD2H100F9 ECCD2H100F9 ECCD2H100F
ECEA2CU330 ECEA2CU330 ECEA2CU330
ECEA2EU220W ECEA2EU220W ECEA2ES220E
ECKD2H101KB5 ECKD2H101KB5 ECKD2H101KB5
ECKD2H222KB2 ECKD2H222KB2 ECKD2H222KB2
ECKM2H472PE7 ECKM2H472PE7 ECKD2H472PU7
ECKD2H561KB7 ECKD2H561KB7 ECKD2H561KB7
ECKD3A471KB ECKD3A471KB ECKD3D471JBN
ECQB1H223JF ECQB1H223JF ECQB1H223JF3
ECQB1H153KF ECQB1H153KF ECQM1H153JVW
ECSF25E1VB ECSF25E1VB ECSF1EE105VE
ECUX1H220JCV ECUX1H220JCV ECUX1H220JCV
EM02BM EM02BM EM02BMV0
ERA15-01V3 ERA15-01V3 ERA15-01V3
ERA22-04 ERA22-04 ERA22-04
ERC12ZGM825D ERC12ZGM825D ERC12ZGK825
ERDS2TJ101 ERDS2TJ101 ERD25FJ101
ERDS2TJ470 ERDS2TJ470 ERD25FJ470T
ERDS1FJ101P ERDS1FJ101P ERD50FJ101V
ERDS1TJ181T ERDS1TJ181T ERD50TJ181
ERDS1FVJ182 ERDS1FVJ182 ERDS1FVJ182
ERDS2FJ103 ERDS2FJ103 ERDS2TJ103T
ERDS2TJ104 ERDS2TJ104 ERDS2TJ104T
ERDS2FJ152 ERDS2FJ152 ERDS2TJ152
ERDS2TJ222TD ERDS2TJ222TD ERDS2TJ222TD
ERDS2FJ301 ERDS2FJ301 ERDS2TJ301T
ERD10TLJ332 ERD10TLJ332 ERDS2TJ332T
ERJ6GEYJ102Z ERJ6GEYJ102Z ERJ6GEYF102
ERJ6GEYF333 ERJ6GEYF333 ERJ6GEYF333
ERJ6GEYK4R7V ERJ6GEYK4R7V ERJ6GEYF393
ECEA1VU102 ECEA1VU102 ERJ6GEYF472
ERJ6GEYG222 ERJ6GEYG222 ERJ6GEYG103
ERJ6GEYG103 ERJ6GEYG103 ERJ6GEYG103
ERJ6GEYJ332 ERJ6GEYJ332 ERJ6GEYG332
ERJ6GEYG750 ERJ6GEYG750 ERJ6GEYG750
ERJ6GEYJ122V ERJ6GEYJ122V ERJ6GEYJ122V
ERJ6GEYJ153V ERJ6GEYJ153V ERJ6GEYJ153V
ERJ6GEYG154 ERJ6GEYG154 ERJ6GEYJ154V
ERJ6GEYJ182V ERJ6GEYJ182V ERJ6GEYJ182V
ERJ6GMYG221 ERJ6GMYG221 ERJ6GEYJ221V
ERJ6GEYG273 ERJ6GEYG273 ERJ6GEYJ273V
ERJ6GEYJ471V ERJ6GEYJ471V ERJ6GEYJ471V
ERJ6GEYJ474V ERJ6GEYJ474V ERJ6GEYJ474V
ERJ6GEYJ562V ERJ6GEYJ562V ERJ6GEYJ562V
ERJ6GEYJ564 ERJ6GEYJ564 ERJ6GEYJ564V
ERJ6GMYJ183 ERJ6GMYJ183 ERJ6GMYJ183
ERQ14AJ270P ERQ14AJ270P ERQ14AJ270P
ERQ2CJP2R0S ERQ2CJP2R0S ERQ2CJ2R0
ERQ2CJP120S ERQ2CJP120S ERQ2CJP120S
ERX3FJ4R7H ERX3FJ4R7H ERX3FJ4R7H
ETH19Y70AY ETH19Y70AY ETH19Y70AY
EU02V0 EU02V0 EU02A
EFCS4R5MS4X EFCS4R5MS4X FILTER
M1969M M1969M FILTER
ELF15N013A ELF15N013A FILTER
EFCWS4504AB EFCWS4504AB FILTER
VLFS0052 VLFS0052 FILTER
KFT3AB119F1 KFT3AB119F1 FLYBACK TRANSFORMER
TXFKY0198SER TXFKY0198SER FRONT CABINET
TXF3A011DB2 TXF3A011DB2 GROUND
M24C04-WBN6 M24C04-WBN6 IC
PC817X2 PC817X2 IC
STR58041A STR58041A IC
MN1874085T9S MN1874085T9S IC
MN1874085TJW MN1874085TJW IC
LA7837-TV LA7837-TV IC
LA4285 LA4285 IC
AN5165K AN5165K IC
TQB2AA0265 TQB2AA0265 INSTRUCT BOOK
TBX2AA00201G TBX2AA00201G KNOB (S) POWER
MA4047M MA4047M MA4047
MAZ40620M MAZ40620M MA4062M
MA4360-M MA4360-M MA4360-M
TSM2AA001 TSM2AA001 MAGNET
ED302M ED302M MAIN PCB CHASSIS
TBM17454-2 TBM17454-2 NAMEPLATE
TSS2AA001 TSS2AA001 OSCILLATOR
TP2011DW_EX TP2011DW_EX OTC TELEVISION
TNP2AA034ADS TNP2AA034ADS PC BOARD
PIC-12042SRB PIC-12042SRB PIC-12042SR
TSX2AA0011 TSX2AA0011 POWER CORD
EVQQKH06K EVQQKH06K POWER SWITCH
TKU2A22210M TKU2A22210M REAR CABINET
UR50EC1151A UR50EC1151A REMOTE BATTERY COVER

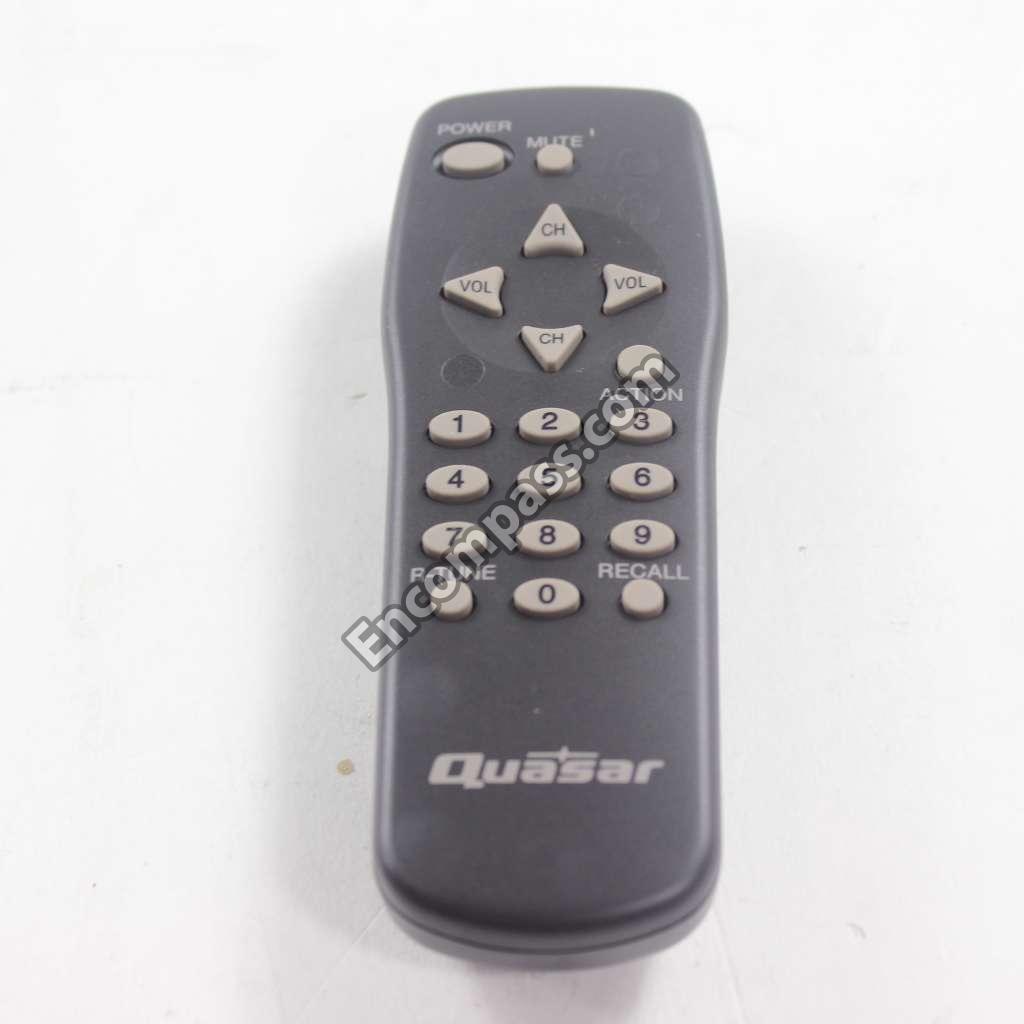

EUR501375 EUR501375 REMOTE CONTROL
ER0S2CKF3001 ER0S2CKF3001 RESISTOR
ER025CKF1002 ER025CKF1002 RESISTOR
ERJ6GEYJ911 ERJ6GEYJ911 RESISTOR
ERJ6GEYJ822V ERJ6GEYJ822V RESISTOR
ERJ6GEYJ821 ERJ6GEYJ821 RESISTOR
ERJ6GEYJ684V ERJ6GEYJ684V RESISTOR
ERJ6GEYJ683 ERJ6GEYJ683 RESISTOR
ERJ6GEYJ682V ERJ6GEYJ682V RESISTOR
ERJ6GEYG681 ERJ6GEYG681 RESISTOR
ERJ6GEYF473 ERJ6GEYF473 RESISTOR
ERJ6GEYJ392V ERJ6GEYJ392V RESISTOR
ERJ6GEYJ331V ERJ6GEYJ331V RESISTOR
ERJ6GEYJ220 ERJ6GEYJ220 RESISTOR
ERJ6GEYJ185 ERJ6GEYJ185 RESISTOR
ERJ6GEYG104 ERJ6GEYG104 RESISTOR
ERJ6GEYJ101V ERJ6GEYJ101V RESISTOR
ERJ6ENF4532 ERJ6ENF4532 RESISTOR
ERJ6ENF1651 ERJ6ENF1651 RESISTOR
ERJ6ENF1502 ERJ6ENF1502 RESISTOR
ERG3FJ680 ERG3FJ680 RESISTOR
ERG3FJ470H ERG3FJ470H RESISTOR
ERG3FJ272H ERG3FJ272H RESISTOR
ERG2FJ683H ERG2FJ683H RESISTOR
ERG2FJ562H ERG2FJ562H RESISTOR
ERG2FJ390H ERG2FJ390H RESISTOR
ERG2FJ123H ERG2FJ123H RESISTOR
ERG2FJ122H ERG2FJ122H RESISTOR
ERF7ZK1R5 ERF7ZK1R5 RESISTOR
ERF2SJR33 ERF2SJR33 RESISTOR
ERD50FJ474 ERD50FJ474 RESISTOR
ERDS2TJ562TD ERDS2TJ562TD RESISTOR
ERDS2TJ274T ERDS2TJ274T RESISTOR
ERDS2TJ183 ERDS2TJ183 RESISTOR
ERD25TJ124V ERD25TJ124V RESISTOR
ERDS1TJ272 ERDS1TJ272 RESISTOR
ERDS1TJ183 ERDS1TJ183 RESISTOR
ERDS1FJ561 ERDS1FJ561 RESISTOR
ERDS1FJ272 ERDS1FJ272 RESISTOR
ERDS1FJ1R5 ERDS1FJ1R5 RESISTOR
ERDS1FJ1R2 ERDS1FJ1R2 RESISTOR
ERDS1FVJ1R0P ERDS1FVJ1R0P RESISTOR
ERD25FVJ1R0T ERD25FVJ1R0T RESISTOR
ERDS2TJ102 ERDS2TJ102 RESISTOR
ERDS2FJ331 ERDS2FJ331 RESISTOR
ERJ6GEYJ223 ERJ6GEYJ223 RESISTOR
ERJ6GEYJ561V ERJ6GEYJ561V RESISTOR
ER0S2CKF1002 ER0S2CKF1002 RESISTOR
RU2NV1 RU2NV1 RU2NV1
TJSC00300 TJSC00300 SOCKET
EASG9D550B2 EASG9D550B2 SPEAKER
TLT010K991K TLT010K991K TLT010K991K
TLT120K999R TLT120K999R TLT120K999R
ETE19Z30AY ETE19Z30AY TRANSFORMER
2SC1573AH 2SC1573AH TRANSISTOR
2SA17670QA 2SA17670QA TRANSISTOR
2SD601-RS 2SD601-RS TRANSISTOR
MSB709RT1 MSB709RT1 TRANSISTOR
ENV56D37G3R ENV56D37G3R TUNER
TMM2A30702 TMM2A30702 WEDGE
0BA1C63NU100 0BA1C63NU100 XBA1C63NU100
TLY2AA001 TLY2AA001 YOKE
ETC33X82NA ETC33X82NA YOKE
