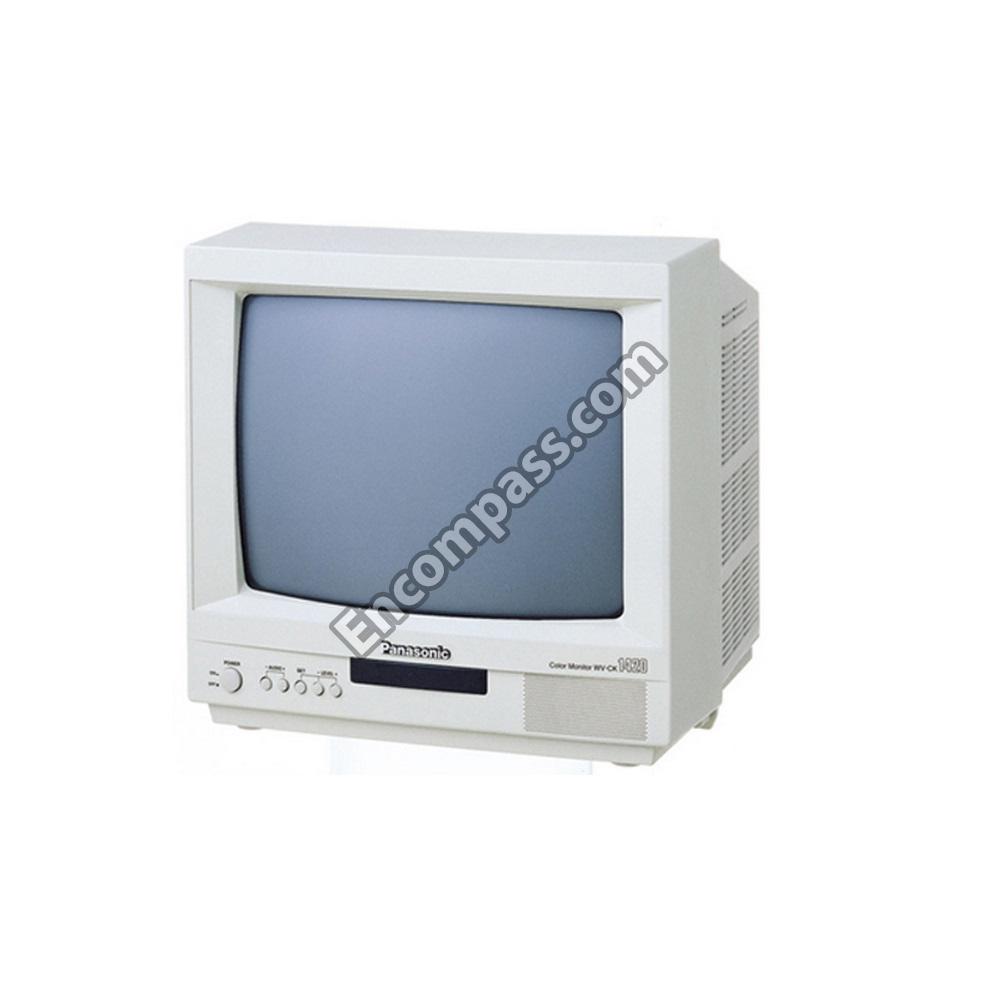

Model Image
Manufacturer

Panasonic

Model Number

WVCK1420P

Description

Color Monitor

Interactive Exploded View

Parts List

Part Number Description
2SA564AQR 2SA564AQR 2SA1127-S
2SC945Q 2SC945Q 2SC945A
2SD601-RS 2SD601-RS 2SD601A-R
AN5265 AN5265 AN5265
AN78M05LB AN78M05LB AN78M05LB
AU02 AU02 AU02
TBM4C1A02701 TBM4C1A02701 BADGE
TJB4C1A030 TJB4C1A030 BRACKET
TBX4C1A061 TBX4C1A061 BUTTON
TBX4C1A060 TBX4C1A060 BUTTON
TKY4C1A002E TKY4C1A002E CABINET
EC0S2DA271CB EC0S2DA271CB CAPACITOR
EC0S2CA681CB EC0S2CA681CB CAPACITOR
ECWH12H123JS ECWH12H123JS CAPACITOR
ECUV1H681JCN ECUV1H681JCN CAPACITOR
ECUV1H680JCN ECUV1H680JCN CAPACITOR
ECUV1H473KBN ECUV1H473KBN CAPACITOR
ECUV1H471JCN ECUV1H471JCN CAPACITOR
ECUV1H330JCN ECUV1H330JCN CAPACITOR
ECUX1H223ZFN ECUX1H223ZFN CAPACITOR
ECUV1H220JCN ECUV1H220JCN CAPACITOR
ECUV1H153KBN ECUV1H153KBN CAPACITOR
F1J1H122A400 F1J1H122A400 CAPACITOR
ECUV1H101JCN ECUV1H101JCN CAPACITOR
ECUV1E104ZFG ECUV1E104ZFG CAPACITOR
ECUV1C683KBN ECUV1C683KBN CAPACITOR
ECQU2A224KHB ECQU2A224KHB CAPACITOR
ECQU2A104MNB ECQU2A104MNB CAPACITOR
ECQM4223JZB ECQM4223JZB CAPACITOR
ECQM1H223JZ ECQM1H223JZ CAPACITOR
ECQV1H154JZ ECQV1H154JZ CAPACITOR
ECQM1H123JZ ECQM1H123JZ CAPACITOR
ECQF2H564JZA ECQF2H564JZA CAPACITOR
ECQE1224KF ECQE1224KF CAPACITOR
ECKW3D821KBP ECKW3D821KBP CAPACITOR
TCKC3D222KBN TCKC3D222KBN CAPACITOR
ECKR2H561KB ECKR2H561KB CAPACITOR
ECKR2H471KB5 ECKR2H471KB5 CAPACITOR
ECKR2H331KB ECKR2H331KB CAPACITOR
ECKR2H222KB5 ECKR2H222KB5 CAPACITOR
ECKF1H391KB ECKF1H391KB CAPACITOR
ECKF1H331KB ECKF1H331KB CAPACITOR
ECKCNA471MBB ECKCNA471MBB CAPACITOR
ECKCNB222MB ECKCNB222MB CAPACITOR
ECEA1VTK332E ECEA1VTK332E CAPACITOR
ECEA1VTK222E ECEA1VTK222E CAPACITOR
ECEA1VTK100B ECEA1VTK100B CAPACITOR
ECEA1JTK100B ECEA1JTK100B CAPACITOR
ECEA1HTK4R7B ECEA1HTK4R7B CAPACITOR
ECEA1HTK3R3B ECEA1HTK3R3B CAPACITOR
ECEA1HTK2R2B ECEA1HTK2R2B CAPACITOR
ECEA1HTK100B ECEA1HTK100B CAPACITOR
ECEA1HTK010B ECEA1HTK010B CAPACITOR
ECEA1HTK0R1B ECEA1HTK0R1B CAPACITOR
ECEA1HTKR47B ECEA1HTKR47B CAPACITOR
ECEA1HTKR33B ECEA1HTKR33B CAPACITOR
ECEA1HTKR22B ECEA1HTKR22B CAPACITOR
ECEA1ETK102E ECEA1ETK102E CAPACITOR
ECEA1CTK471B ECEA1CTK471B CAPACITOR
ECEA1CTK470B ECEA1CTK470B CAPACITOR
ECEA1CTK4R7B ECEA1CTK4R7B CAPACITOR
ECEA1CTK331B ECEA1CTK331B CAPACITOR
ECEA1CTK221B ECEA1CTK221B CAPACITOR
ECEA1CTK220B ECEA1CTK220B CAPACITOR
ECEA1CTK100B ECEA1CTK100B CAPACITOR
ECEA1ATK470B ECEA1ATK470B CAPACITOR
ECEA1ATK331B ECEA1ATK331B CAPACITOR
ECEA1ATK330B ECEA1ATK330B CAPACITOR
ECEA0JTK220B ECEA0JTK220B CAPACITOR
ECEA0JTK101B ECEA0JTK101B CAPACITOR
ECA160V33UE ECA160V33UE CAPACITOR
ERJ6GEYJ203Z ERJ6GEYJ203Z CAPACITOR
ECA1HHG221 ECA1HHG221 CAPACITOR
ECA1HEN010 ECA1HEN010 CAPACITOR
ECA1CHG101 ECA1CHG101 CAPACITOR
ECA1CHG100B ECA1CHG100B CAPACITOR
ECA1AHG471B ECA1AHG471B CAPACITOR
TMM6428-1 TMM6428-1 CLAMP
TMM15404-1 TMM15404-1 CLAMP
TKK4C1A07101 TKK4C1A07101 CLAMP
TSKA077 TSKA077 COIL
TSKA075 TSKA075 COIL
TSKA069 TSKA069 COIL
TL0ABTA180K TL0ABTA180K COIL
TL0ABTA100K TL0ABTA100K COIL
TLK4C9007P TLK4C9007P COIL
TLK153152Q1 TLK153152Q1 COIL
TLH4C6623P-1 TLH4C6623P-1 COIL
ELEP4CJ101KA ELEP4CJ101KA COIL
ELEP4CJR47KA ELEP4CJR47KA COIL
TJS5A8750 TJS5A8750 CONNECTOR
TJS5A8730 TJS5A8730 CONNECTOR
FBTFS2831-2 FBTFS2831-2 CONNECTOR
EVNDXAA03B22 EVNDXAA03B22 CONTROL
ERG2ANJ150 ERG2ANJ150 CONTROL
TSX4C1A013P TSX4C1A013P CORD
PC123ZY2 PC123ZY2 COUPLER
TKU4C1A002D TKU4C1A002D COVER
A34AGT13X31K A34AGT13X31K CRT
TJS1A5081 TJS1A5081 CRT SOCKET
EF0EC1205B4 EF0EC1205B4 CRYSTAL
YWS2L60 YWS2L60 DIODE
YWD1NL20U YWD1NL20U DIODE
TVSSSR2KSV1 TVSSSR2KSV1 DIODE
TVSRU2AMV1 TVSRU2AMV1 DIODE
SLR-56VC3F SLR-56VC3F DIODE
MA4360-M MA4360-M DIODE
MA4360-L MA4360-L DIODE
MA4330-M MA4330-M DIODE
MAZ41500MF MAZ41500MF DIODE
MA4110-H MA4110-H DIODE
MA4108J MA4108J DIODE
RD6_8ESB3 RD6_8ESB3 DIODE
MTZJ5R1BTA MTZJ5R1BTA DIODE
MA4051H MA4051H DIODE
MA4024-H MA4024-H DIODE
MA171 MA171 DIODE
ERB06-15V1 ERB06-15V1 DIODE
ERA15-01V5 ERA15-01V5 DIODE
B0EBNT000002 B0EBNT000002 DIODE
MA4056L MA4056L DIODE (I)
ECA1EHG331 ECA1EHG331 ECA1EHG331
ECKD2H472KB5 ECKD2H472KB5 ECKD2H472KB5
ECKF1H331KBV ECKF1H331KBV ECKF1H331KB
ECKD2H103PE ECKD2H103PE ECKW2H103PE
ECKW3D152KBP ECKW3D152KBP ECKW3D152KBN
ECQM1H103KVW ECQM1H103KVW ECQM1H103KV
ECQM1H822JZ ECQM1H822JZ ECQM1H822JZ
ECQM1H104JZ ECQM1H104JZ ECQV1H104JZ
ECQM1H683MZW ECQM1H683MZW ECQV1H683JZ
ECSF25E1VB ECSF25E1VB ECSF1EE105VE
ECUV1C224KBN ECUV1C224KBN ECUV1C224KBM
PQCUV1H103KB PQCUV1H103KB ECUV1H103KBM
MCUV1H103ZFN MCUV1H103ZFN ECUV1H103ZFV
ECUX1H221KBV ECUX1H221KBV ECUX1H221KBV
ECUX1H223KBN ECUX1H223KBN ECUX1H223KBN
ERDS2TJ471 ERDS2TJ471 ERD16TJ471
ERD25FJ100K ERD25FJ100K ERD25FJ100P
ERDS2TJ101 ERDS2TJ101 ERD25FPJ101V
ERD25TJ202 ERD25TJ202 ERD25TJ202
ERD25TJ393T ERD25TJ393T ERD25TJ393T
ERDS2FJ823 ERDS2FJ823 ERD25TJ823V
ERDS2TJ102 ERDS2TJ102 ERDS2FJ102
ERDS2FJ123 ERDS2FJ123 ERDS2FJ123
ERDS2TJ222TD ERDS2TJ222TD ERDS2TJ222TD
ERDS2TJ470 ERDS2TJ470 ERDS2TJ470
ERD25FJ4R7 ERD25FJ4R7 ERDS2TJ4R7T
ERDS2TJ751 ERDS2TJ751 ERDS2TJ751T
ECKF1H050C5 ECKF1H050C5 ERG2ANJ102H
ERG2SJ222E ERG2SJ222E ERG2ANJP222S
ERG2ANJ471H ERG2ANJ471H ERG2SJ471
ERJ6GEY0R00A ERJ6GEY0R00A ERJ6GEY0R00V
ERJ6GEYJ102Z ERJ6GEYJ102Z ERJ6GEYF102
ERJ6GEYF333 ERJ6GEYF333 ERJ6GEYF333
ERJ6GEYK4R7V ERJ6GEYK4R7V ERJ6GEYF393
ERJ6GEYJ472V ERJ6GEYJ472V ERJ6GEYF472
ERJ6GEYG222 ERJ6GEYG222 ERJ6GEYG103
ERJ6GEYG103 ERJ6GEYG103 ERJ6GEYG103
ERJ6GEYJ181 ERJ6GEYJ181 ERJ6GEYG181
ERJ6GEYJ330 ERJ6GEYJ330 ERJ6GEYG330
ERJ6GEYJ332 ERJ6GEYJ332 ERJ6GEYG332
ERJ6GEYG391 ERJ6GEYG391 ERJ6GEYG391
ERJ6GEYJ560V ERJ6GEYJ560V ERJ6GEYG560
ERJ6GEYG750 ERJ6GEYG750 ERJ6GEYG750
ERJ6GEYJ122V ERJ6GEYJ122V ERJ6GEYJ122V
ERJ6GEYJ123V ERJ6GEYJ123V ERJ6GEYJ123V
ERJ6GEYG154 ERJ6GEYG154 ERJ6GEYJ154V
ERJ6GEYJ182V ERJ6GEYJ182V ERJ6GEYJ182V
ERJ6GMYG221 ERJ6GMYG221 ERJ6GEYJ221V
ERJ6GEYJ224Z ERJ6GEYJ224Z ERJ6GEYJ224V
ERJ6GEYG272 ERJ6GEYG272 ERJ6GEYJ272V
ERJ6GEYG273 ERJ6GEYG273 ERJ6GEYJ273V
ERJ6GEYJ334 ERJ6GEYJ334 ERJ6GEYJ334B
ERJ6GEYJ471V ERJ6GEYJ471V ERJ6GEYJ471V
ERJ6GEYJ562V ERJ6GEYJ562V ERJ6GEYJ562V
ERJ6GEYJ823 ERJ6GEYJ823 ERJ6GEYJ823V
ERJ6GMYJ183 ERJ6GMYJ183 ERJ6GMYJ183
ERJ6GEYJ563V ERJ6GEYJ563V ERJ6RBD563
ERQ2CJP3R0S ERQ2CJP3R0S ERQ2CJP3R0S
EU02V1 EU02V1 EU02A
ELF18D666D ELF18D666D FILTER
ADL-CN1738E ADL-CN1738E FILTER
XBA2C31TR0 XBA2C31TR0 FUSE
ERQ12HJ1R0P ERQ12HJ1R0P FUSE RESISTOR
ERQ16NK1R0E ERQ16NK1R0E FUSE RESISTOR
ERQ1CJP102S ERQ1CJP102S FUSE RESISTOR
TKK4C1A032A TKK4C1A032A GLASS
TMM6024-1 TMM6024-1 GUM
TMM4C1A007 TMM4C1A007 GUM
TUC4C1A069 TUC4C1A069 HEAT SINK
TUC4C1A068 TUC4C1A068 HEAT SINK
TUC4C1A066 TUC4C1A066 HEAT SINK
TUC4C1A054A TUC4C1A054A HEAT SINK
TP00351-51 TP00351-51 HOLDER
TMM4C1A044 TMM4C1A044 HOLDER
C0EAS0000018 C0EAS0000018 IC
0N3111 0N3111 IC
S24C02ADP-P S24C02ADP-P IC
S-80741AL-Z S-80741AL-Z IC
MN1871681TB MN1871681TB IC
LA7840 LA7840 IC
BA225 BA225 IC
TQB4C1A177 TQB4C1A177 INSTRUCT BOOK
TQF4C1A077 TQF4C1A077 LABEL
TQF4C1A074 TQF4C1A074 LABEL
TQF4C1A073 TQF4C1A073 LABEL
TQF4C1A072 TQF4C1A072 LABEL
TQF4C1A068 TQF4C1A068 LABEL
MA2B0270B MA2B0270B MA27-B
MA4047H MA4047H MA4047H
MA4082MTA MA4082MTA MA4082LMTA
MA4120M MA4120M MA4120M
MAZ41800MF MAZ41800MF MA4180MTA
TSN63115-4 TSN63115-4 MAGNET
CK1420-CY CK1420-CY MAGNET
ECUV1H104KBN ECUV1H104KBN MCUV1E104KBM
ECUM1H121JCN ECUM1H121JCN MCUV1H121JCN
ECUV1H560JCN ECUV1H560JCN MCUV1H560JCN
TSS4C816M32T TSS4C816M32T OSCILLATOR
CK1420P-CML CK1420P-CML PCB W/COMPONENT
CK1420P-CMC CK1420P-CMC PCB W/COMPONENT
CK1420P-CMA CK1420P-CMA PCB W/COMPONENT
ERJ6GEYJ561V ERJ6GEYJ561V RESISTOR
ERJ6GEYJ223 ERJ6GEYJ223 RESISTOR
ERJ8GCJ271 ERJ8GCJ271 RESISTOR
ERDS2FJ331 ERDS2FJ331 RESISTOR
TRF7ZK272T-1 TRF7ZK272T-1 RESISTOR
TAFCSB503F18 TAFCSB503F18 RESISTOR
ER025TKF1803 ER025TKF1803 RESISTOR
ERQ2CJP100S ERQ2CJP100S RESISTOR
ERQ12AJ1R0K ERQ12AJ1R0K RESISTOR
ERJ6GEYJ915V ERJ6GEYJ915V RESISTOR
ERJ6GEYJ911 ERJ6GEYJ911 RESISTOR
ERJ6GEYJ821 ERJ6GEYJ821 RESISTOR
ERJ6GEYJ684V ERJ6GEYJ684V RESISTOR
ERJ6GEYJ683 ERJ6GEYJ683 RESISTOR
ERJ6GEYJ682V ERJ6GEYJ682V RESISTOR
ERJ6GEYG681 ERJ6GEYG681 RESISTOR
ERJ6GEYG621 ERJ6GEYG621 RESISTOR
ERJ6GEYF473 ERJ6GEYF473 RESISTOR
ERJ6GEYJ392V ERJ6GEYJ392V RESISTOR
ERJ6GEYJ331V ERJ6GEYJ331V RESISTOR
ERJ6GEJ274V ERJ6GEJ274V RESISTOR
ERJ6GEYJ271 ERJ6GEYJ271 RESISTOR
ERJ6GEYJ155V ERJ6GEYJ155V RESISTOR
ERJ6GEYJ152V ERJ6GEYJ152V RESISTOR
ERJ6GEYG104 ERJ6GEYG104 RESISTOR
ERJ6GEYJ101V ERJ6GEYJ101V RESISTOR
ERJ6GEYJ100 ERJ6GEYJ100 RESISTOR
ERJ6ENF3301 ERJ6ENF3301 RESISTOR
ERJ6ENF2201V ERJ6ENF2201V RESISTOR
ERJ6ENF1962V ERJ6ENF1962V RESISTOR
ERJ6ENF1472 ERJ6ENF1472 RESISTOR
ERJ6ENF1243V ERJ6ENF1243V RESISTOR
ERJ6ENF1002 ERJ6ENF1002 RESISTOR
ERG3ANJ391 ERG3ANJ391 RESISTOR
ERG2ANJ6R2W ERG2ANJ6R2W RESISTOR
ERG2ANJ470H ERG2ANJ470H RESISTOR
ERG2ANJ3R3W ERG2ANJ3R3W RESISTOR
ERG2ANJ221 ERG2ANJ221 RESISTOR
ERG2ANJ153W ERG2ANJ153W RESISTOR
ERG2ANJ123 ERG2ANJ123 RESISTOR
ERG2ANJ101 ERG2ANJ101 RESISTOR
ERG1ANJ332 ERG1ANJ332 RESISTOR
ERDS1FVJ182 ERDS1FVJ182 RESISTOR
ERD25FJ272 ERD25FJ272 RESISTOR
ERD2FAVJ1R5 ERD2FAVJ1R5 RESISTOR
ERDS2TJ562TD ERDS2TJ562TD RESISTOR
ERD25FJ391 ERD25FJ391 RESISTOR
ERDS2TJ241 ERDS2TJ241 RESISTOR
ERDS2TJ223 ERDS2TJ223 RESISTOR
ERDS1TJ272 ERDS1TJ272 RESISTOR
ERDS1TJ222 ERDS1TJ222 RESISTOR
ERDS1TJ154TT ERDS1TJ154TT RESISTOR
ERDS1TJ152 ERDS1TJ152 RESISTOR
ERDS1FJ2R2 ERDS1FJ2R2 RESISTOR
ERC12ZGK825C ERC12ZGK825C RESISTOR
ERC12ZGK335C ERC12ZGK335C RESISTOR
DGC3R05M DGC3R05M RESISTOR
XTW3_12BFX XTW3_12BFX SCREW
XTB4_20CFX XTB4_20CFX SCREW
XTB4_15CFX XTB4_15CFX SCREW
THT4C1A535 THT4C1A535 SCREW
THT4C1A415 THT4C1A415 SCREW
TJS4C63574TA TJS4C63574TA SOCKET
TJS4C63573TA TJS4C63573TA SOCKET
TJS4CP05-L TJS4CP05-L SOCKET
TKK4C1A037-B TKK4C1A037-B SPACER
EAS65P309T EAS65P309T SPEAKER
TES201 TES201 SPRING
TMM4C1A053 TMM4C1A053 SUPPORT
EVQ4CTSVR-2T EVQ4CTSVR-2T SWITCH
ESB92DA1B ESB92DA1B SWITCH
TLH15462M TLH15462M TRANSFORMER
ETS29AK286NC ETS29AK286NC TRANSFORMER
ETF39L51AYT2 ETF39L51AYT2 TRANSFORMER
2SD601ARTX 2SD601ARTX TRANSISTOR
2SD789ETZ 2SD789ETZ TRANSISTOR
2SD2499LBMA 2SD2499LBMA TRANSISTOR
2SD1275A-P 2SD1275A-P TRANSISTOR
2SC5241 2SC5241 TRANSISTOR
2SC2258 2SC2258 TRANSISTOR
MSB709RT1 MSB709RT1 TRANSISTOR
VCUSTBH820JC VCUSTBH820JC VCUSTBH820JC
XWG5F20FX XWG5F20FX WASHER
XF5B10K40171 XF5B10K40171 WIRE
CK142020WPA CK142020WPA WIRE
CK14201AWPB CK14201AWPB WIRE
CK1420A12S4 CK1420A12S4 WIRE
CK1420A11S5 CK1420A11S5 WIRE
XYN3_F12FJ XYN3_F12FJ XYN3+F10R
CK1420-DY CK1420-DY YOKE
