Model Image
Manufacturer

Panasonic

Model Number

WVCU650

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
N0JBEG000001 N0JBEG000001 ADAPTER
3CA002899AAA 3CA002899AAA ANGLE (DISCONTINUED)
3CA002900AAA 3CA002900AAA ANGLE (DISCONTINUED)
3CA002902AAA 3CA002902AAA ANGLE (DISCONTINUED)
3CA002903AAA 3CA002903AAA ANGLE (DISCONTINUED)
3CA002933AAA 3CA002933AAA ANGLE (DISCONTINUED)
3CA002934AAA 3CA002934AAA ANGLE (DISCONTINUED)
3CA002936AAA 3CA002936AAA ANGLE (DISCONTINUED)
3PE001032AAA 3PE001032AAA BADGE (DISCONTINUED)
3PE001033AAB 3PE001033AAB BADGE (DISCONTINUED)
PE20X35C05B PE20X35C05B BAG
PE26X40C05B PE26X40C05B BAG
PE45X63C05B PE45X63C05B BAG
3CC001005AAA 3CC001005AAA BRACKET
3CC001295AAA 3CC001295AAA BRACKET (DISCONTINUED)
3CC001296AAA 3CC001296AAA BRACKET (DISCONTINUED)
3MB001143AAA 3MB001143AAA BUTTON (DISCONTINUED)
3MB001143AAB 3MB001143AAB BUTTON (DISCONTINUED)
3MB001143AAC 3MB001143AAC BUTTON (DISCONTINUED)
3MB001143AAD 3MB001143AAD BUTTON (DISCONTINUED)
3MB001146AAA 3MB001146AAA BUTTON (DISCONTINUED)
3MB001146AAB 3MB001146AAB BUTTON (DISCONTINUED)
3MB001146AAC 3MB001146AAC BUTTON (DISCONTINUED)
3MB001146AAD 3MB001146AAD BUTTON (DISCONTINUED)
3MB001147AAA 3MB001147AAA BUTTON (DISCONTINUED)
3MB001148AAA 3MB001148AAA BUTTON (DISCONTINUED)
3MB001149AAC 3MB001149AAC BUTTON (DISCONTINUED)
3MB001149AAD 3MB001149AAD BUTTON (DISCONTINUED)
PKM22EPP4002 PKM22EPP4002 BUZZER
ECST1VC335 ECST1VC335 CAPACITOR
ECUV1H103KBV ECUV1H103KBV CAPACITOR
EEFUD0J101ER EEFUD0J101ER CAPACITOR
EEUFC0J221 EEUFC0J221 CAPACITOR
EEUFC1A392L EEUFC1A392L CAPACITOR
EEUFC1C472 EEUFC1C472 CAPACITOR
F1H1A105A002 F1H1A105A002 CAPACITOR
F1H1H101A231 F1H1H101A231 CAPACITOR
F1H1H102A219 F1H1H102A219 CAPACITOR
F1H1H103A219 F1H1H103A219 CAPACITOR
F1H1H220A004 F1H1H220A004 CAPACITOR
F1H1H241A004 F1H1H241A004 CAPACITOR
F1J1C1050002 F1J1C1050002 CAPACITOR
F1J1C1050028 F1J1C1050028 CAPACITOR
F1K1E1050002 F1K1E1050002 CAPACITOR
F3G1A336A028 F3G1A336A028 CAPACITOR
F3H1C4760008 F3H1C4760008 CAPACITOR
F1H1E104A030 F1H1E104A030 CAPACITOR
MCUV1H102KBV MCUV1H102KBV CAPACITOR
MVUV1C104KBV MVUV1C104KBV CAPACITOR
YW400225FZT YW400225FZT CAPACITOR
YW400475FZT YW400475FZT CAPACITOR
F2G1A471A026 F2G1A471A026 CAPACITOR (DISCONTINUED)
F3F1C3350002 F3F1C3350002 CAPACITOR (DISCONTINUED)
VCU650L01 VCU650L01 CAPACITOR (DISCONTINUED)
VCU650L02 VCU650L02 CAPACITOR (DISCONTINUED)
VCU650L04 VCU650L04 CAPACITOR (DISCONTINUED)
VCU650L05 VCU650L05 CAPACITOR (DISCONTINUED)
3CE001024AAA 3CE001024AAA CASE

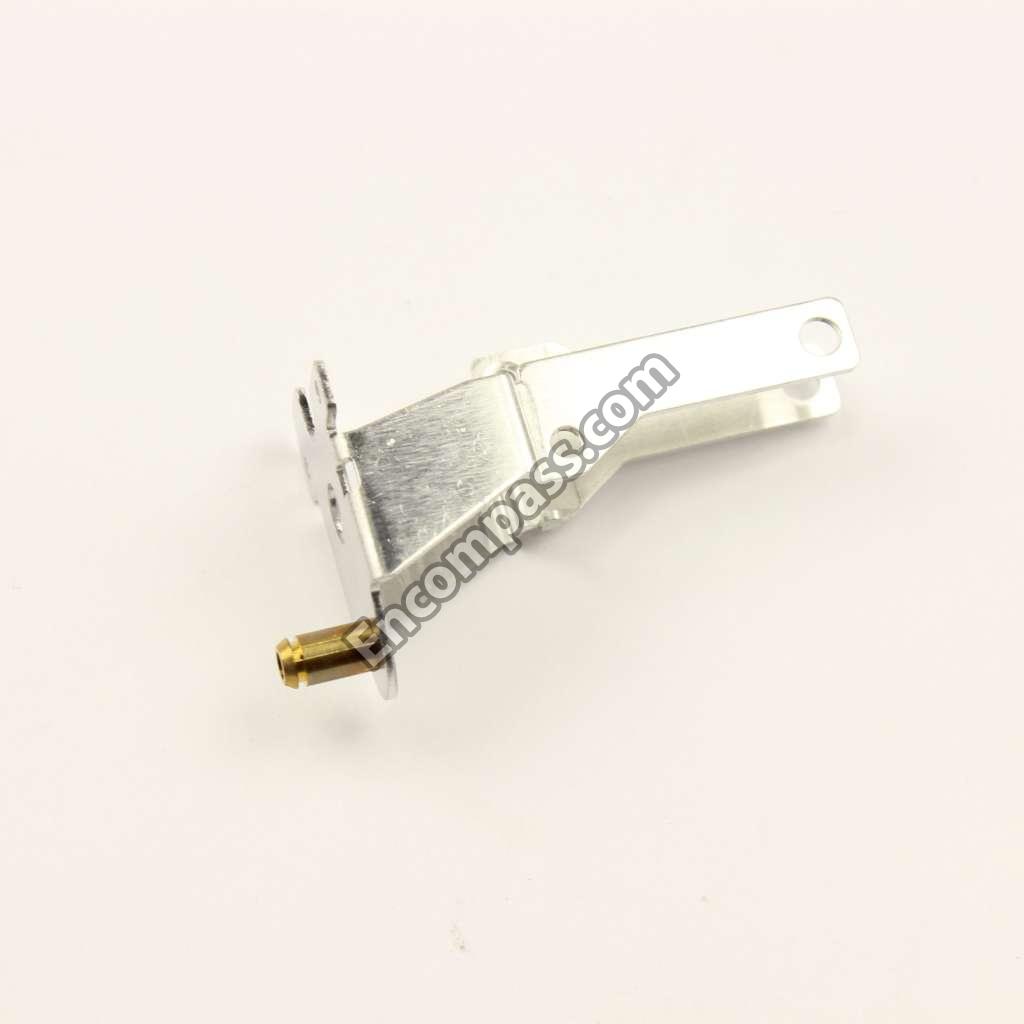

3CB001008BAA 3CB001008BAA CHASSIS
3CB002037AAA 3CB002037AAA CHASSIS (DISCONTINUED)
UAMS-07-V0 UAMS-07-V0 CLAMP
YWX43 YWX43 CLAMP
G1C101M00013 G1C101M00013 COIL
G1C5R6J00001 G1C5R6J00001 COIL
G1C8R2J00002 G1C8R2J00002 COIL
K1FA109B0025 K1FA109B0025 CONNECTOR
K1KA05A00066 K1KA05A00066 CONNECTOR
K1KA14A00168 K1KA14A00168 CONNECTOR
K1KA40A00140 K1KA40A00140 CONNECTOR
K2LC108B0063 K2LC108B0063 CONNECTOR
K1KA05AA0083 K1KA05AA0083 CONNECTOR
YW530470310 YW530470310 CONNECTOR
YW530480510 YW530480510 CONNECTOR
YW533980690 YW533980690 CONNECTOR
K1KA11A00054 K1KA11A00054 CONNECTOR (DISCONTINUED)
K1KA16B00092 K1KA16B00092 CONNECTOR (DISCONTINUED)
K1KA40B00088 K1KA40B00088 CONNECTOR (DISCONTINUED)
K1KB50A00121 K1KB50A00121 CONNECTOR (DISCONTINUED)
VU550CJA01YD VU550CJA01YD CONTROL
3DA001016AAA 3DA001016AAA COVER
3DA001839AAA 3DA001839AAA COVER (DISCONTINUED)
3DA001840AAB 3DA001840AAB COVER (DISCONTINUED)
3DA001841AAB 3DA001841AAB COVER (DISCONTINUED)
3DA001842AAA 3DA001842AAA COVER (DISCONTINUED)
3DA001843AAA 3DA001843AAA COVER (DISCONTINUED)
3DA001844AAA 3DA001844AAA COVER (DISCONTINUED)
3DA001845AAA 3DA001845AAA COVER (DISCONTINUED)
3DA001952AAA 3DA001952AAA COVER (DISCONTINUED)
YWX480WB01B YWX480WB01B CUSHION
B0ADBJ000001 B0ADBJ000001 DIODE
B0ADCC000004 B0ADCC000004 DIODE
B0ADCJ000012 B0ADCJ000012 DIODE
B0BC8R100004 B0BC8R100004 DIODE
B0JCMG000003 B0JCMG000003 DIODE
B0JCRC000004 B0JCRC000004 DIODE
LN38GCPP LN38GCPP DIODE
MAZ80560ML MAZ80560ML DIODE
MA8100 MA8100 DIODE
MA8150 MA8150 DIODE
J0LB00000063 J0LB00000063 DIODE
L5DYBYY00007 L5DYBYY00007 DISPLAY (DISCONTINUED)
YWSLR332MG YWSLR332MG DISPLAY (DISCONTINUED)
ERDS2FJ103 ERDS2FJ103 ERDS2TJ103T
ERJ12YJ151 ERJ12YJ151 ERJ12YJ151H
ERJ3GEYJ471V ERJ3GEYJ471V ERJ3GEYG471
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ105 ERJ3GEYJ105 ERJ3GEYJ105V
ERJ3GEY223 ERJ3GEY223 ERJ3GEYJ223V
ERJ3RHD682V ERJ3RHD682V ERJ3RHD682V
ERJ3RHD912 ERJ3RHD912 ERJ3RHD912V
J0HABC000003 J0HABC000003 FILTER
3DL001017AAA 3DL001017AAA FOOT (DISCONTINUED)
3DL001018AAA 3DL001018AAA FOOT (DISCONTINUED)
3DL001019AAA 3DL001019AAA FOOT (DISCONTINUED)
3DL001020AAA 3DL001020AAA FOOT (DISCONTINUED)
3DL001021AAA 3DL001021AAA FOOT (DISCONTINUED)
K5D102BK0003 K5D102BK0003 FUSE
3FF001001AAA 3FF001001AAA GEAR
K3GE1BB00004 K3GE1BB00004 HOLDER
C0ABGA000025 C0ABGA000025 IC
C0DBAZC00010 C0DBAZC00010 IC
C0EBH0000063 C0EBH0000063 IC
C0JBAA000173 C0JBAA000173 IC
C0JBAA000174 C0JBAA000174 IC
C0JBAB000384 C0JBAB000384 IC
C0JBAC000158 C0JBAC000158 IC
C0JBAF000250 C0JBAF000250 IC
C0JBAF000280 C0JBAF000280 IC
C0JBAM000052 C0JBAM000052 IC
C0JBAN000140 C0JBAN000140 IC
C0JBAN000141 C0JBAN000141 IC
C0JBAZ000237 C0JBAZ000237 IC
C0JBAZ001003 C0JBAZ001003 IC
C0JBAZ001137 C0JBAZ001137 IC
C0JBAZ002262 C0JBAZ002262 IC
C3EBJC000064 C3EBJC000064 IC
MCHC138AE MCHC138AE IC
SN75ALS181NS SN75ALS181NS IC
TC7S14FUL TC7S14FUL IC
UPD784031GC UPD784031GC IC
YWNJM32560M YWNJM32560M IC
74HC373ADTE 74HC373ADTE IC
C0CBCDD00003 C0CBCDD00003 IC (DISCONTINUED)
C3BBFC000295 C3BBFC000295 IC (DISCONTINUED)
J0JBC0000022 J0JBC0000022 INDUCTOR
V8QB6276BN V8QB6276BN INSTRUCT BOOK
3TR002330FAA 3TR002330FAA INSTRUCT BOOK
3TR002744CAA 3TR002744CAA INSTRUCT BOOK
K2LB212B0006 K2LB212B0006 JACK
YWHEC4100010 YWHEC4100010 JACK
V9AA3278BN V9AA3278BN KEY (DISCONTINUED)
3MA001004AAA 3MA001004AAA KNOB
3MA001032AAA 3MA001032AAA KNOB (DISCONTINUED)
V7MA1164A4 V7MA1164A4 LABEL
V7SA4171A4 V7SA4171A4 LABEL
YFV7MB0106A4 YFV7MB0106A4 LABEL
V7MA0419A4 V7MA0419A4 LABEL (DISCONTINUED)
V7MB0103A4 V7MB0103A4 LABEL (DISCONTINUED)
3PA002630AAA 3PA002630AAA LABEL (DISCONTINUED)
LN1261CAL-TR LN1261CAL-TR LED
YWSLR332DU YWSLR332DU LED (DISCONTINUED)
YWSLR332VR YWSLR332VR LED (DISCONTINUED)
3DA001846AAA 3DA001846AAA LID (DISCONTINUED)
MC74HC273F MC74HC273F MC74HC273AF
3HN001050AAA 3HN001050AAA MIRROR (DISCONTINUED)
H0J270500003 H0J270500003 OSCILLATOR
V9CA5010BN V9CA5010BN PACKAGING (DISCONTINUED)
3CX001041AAA 3CX001041AAA PACKING (DISCONTINUED)
3CX001291AAA 3CX001291AAA PACKING (DISCONTINUED)
3NZ001008AAA 3NZ001008AAA PAD (DISCONTINUED)
3CF002301AAA 3CF002301AAA PANEL (DISCONTINUED)
VCU65PKC1AYD VCU65PKC1AYD PC BOARD
3AJ001004AAA 3AJ001004AAA PIN (DISCONTINUED)
D1H810140001 D1H810140001 RESISTOR
D2EHA53B0001 D2EHA53B0001 RESISTOR
D2FDZ1400003 D2FDZ1400003 RESISTOR
ERJ14YJ4R7 ERJ14YJ4R7 RESISTOR
ERJ3EKF1002 ERJ3EKF1002 RESISTOR
ERJ3EKF1502V ERJ3EKF1502V RESISTOR
ERJ3EKF4702V ERJ3EKF4702V RESISTOR
ERJ3GEYJ100 ERJ3GEYJ100 RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ154 ERJ3GEYJ154 RESISTOR
ERJ3GEYJ203V ERJ3GEYJ203V RESISTOR
ERJ3GEYJ271V ERJ3GEYJ271V RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ303 ERJ3GEYJ303 RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RESISTOR
ERJ3GEYJ363V ERJ3GEYJ363V RESISTOR
D0GB393JA041 D0GB393JA041 RESISTOR
ERJ3GEYJ470 ERJ3GEYJ470 RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYJ511 ERJ3GEYJ511 RESISTOR
ERJ3GEYJ680V ERJ3GEYJ680V RESISTOR
ERJ3GEJ750V ERJ3GEJ750V RESISTOR
ERJ3GEYJ911 ERJ3GEYJ911 RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ3RHD243V ERJ3RHD243V RESISTOR
ERJ3RHD303V ERJ3RHD303V RESISTOR
ERJ3RHD332V ERJ3RHD332V RESISTOR
ERJ3RHD473 ERJ3RHD473 RESISTOR
ERJ3RHD752 ERJ3RHD752 RESISTOR
ERJ6GEY0R00A ERJ6GEY0R00A RESISTOR
ERJ8GEYJ2R2 ERJ8GEYJ2R2 RESISTOR
K5H1023A0022 K5H1023A0022 RESISTOR
YWMNR14EJ103 YWMNR14EJ103 RESISTOR
YWR0816P123D YWR0816P123D RESISTOR
YWR0816P223D YWR0816P223D RESISTOR
YWR0816P333D YWR0816P333D RESISTOR
3AG001001AAB 3AG001001AAB RING (DISCONTINUED)
YWTM166N08 YWTM166N08 RUBBER
K1YZZZ000024 K1YZZZ000024 SCREW
1AA001003AAA 1AA001003AAA SCREW
3AE001021AAA 3AE001021AAA SCREW (DISCONTINUED)
3AE001022AAA 3AE001022AAA SCREW (DISCONTINUED)
3EZ001171AAA 3EZ001171AAA SCREW (DISCONTINUED)
3AB001139AAA 3AB001139AAA SHAFT (DISCONTINUED)
3DH001377AAA 3DH001377AAA SHIELD (DISCONTINUED)
3DH001378AAA 3DH001378AAA SHIELD (DISCONTINUED)
YWLH56 YWLH56 SPACER
3CJ001181AAA 3CJ001181AAA SPACER (DISCONTINUED)
3CW001003AAA 3CW001003AAA SPRING
3CW001089BAA 3CW001089BAA SPRING (DISCONTINUED)
3CW001091AAA 3CW001091AAA SPRING (DISCONTINUED)
3CW001104AAA 3CW001104AAA SPRING (DISCONTINUED)
EVQP0D07K EVQP0D07K SWITCH
K0D141A00004 K0D141A00004 SWITCH
K0H1BA000301 K0H1BA000301 SWITCH
K0N110B00012 K0N110B00012 SWITCH
V9AA2970B3 V9AA2970B3 SWITCH
YWKKMJ2LINIA YWKKMJ2LINIA SWITCH
YWKSP08 YWKSP08 SWITCH
YWSSSS822AT YWSSSS822AT SWITCH
K0G11ZA00007 K0G11ZA00007 SWITCH (DISCONTINUED)
K0H1BA000360 K0H1BA000360 SWITCH (DISCONTINUED)
K4CD01000002 K4CD01000002 TERMINAL
B1ABCF000058 B1ABCF000058 TRANSISTOR
B1ADCF000001 B1ADCF000001 TRANSISTOR
B1ADCF000067 B1ADCF000067 TRANSISTOR
B1DDDD000004 B1DDDD000004 TRANSISTOR
B1GBCFJJ0007 B1GBCFJJ0007 TRANSISTOR
MSB709RT1 MSB709RT1 TRANSISTOR
2SD601ARTX 2SD601ARTX TRANSISTOR
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
VCU550CJLA01 VCU550CJLA01 WIRE
VCU550CJLA02 VCU550CJLA02 WIRE
K2NY6YY00002 K2NY6YY00002 WIRE
K2NC8AA00002 K2NC8AA00002 WIRE (DISCONTINUED)
