Manufacturer
Rheem
Model Number
RA1324AJ1NA
Description
Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/4HP 208-230V 1075RPM MOTOR |
|
|
1/8-INCH COPPER TUBE |
|
|
1/8HP 208-230V 1075RPM CONDMTR |
|
|
1/8HP 208-230V1PH 1075RPM MTR |
|
|
208-230V1PH 1/4HP 1075RPM MTR |
|
|
24V 30A 1POLE CONTACTOR |
|
|
3/8-INCH 8CUIN LIQUIDLINEDRIER |
|
|
3/8ODF SERVICE VALVE |
|
|

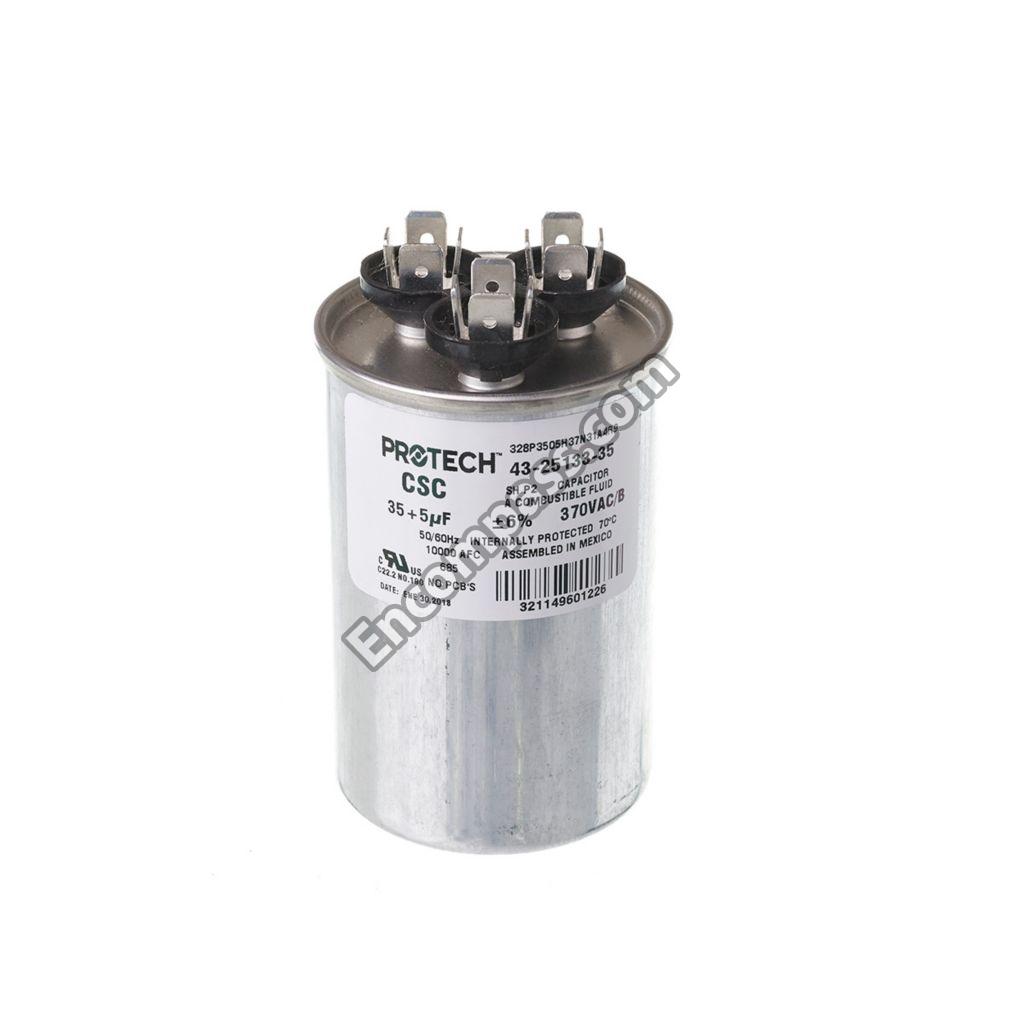

35/5MFD 370V RND RUN CAPACITOR |
|
|
35/5MFD 440V DUAL ROUND |
|
|
3BLD 20-INCH CCW 1/2-INCH BRE |
|
|
40/5/370 DUAL ROUND CAPACITOR |
|
|
40/5MFD 370V RND RUN CAPACITOR |
|
|
40/5MFD 440V ROUND CAPACITOR |
|
|
A/R HIGH # LIMIT; 610OP 420CL |
|
|
AUTO RESET LOW PRESSURE LIMIT |
|
|
BLANK CENTER CAP NAMEPLATE |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
CONTROL BOX |
|
|
FAN BLADE 20-INCH DIA 26DEG 1/2-INCH BRE |
|
|
GRILLE |
|
|
LIQUID LINE FILTER DRIER |
|
|

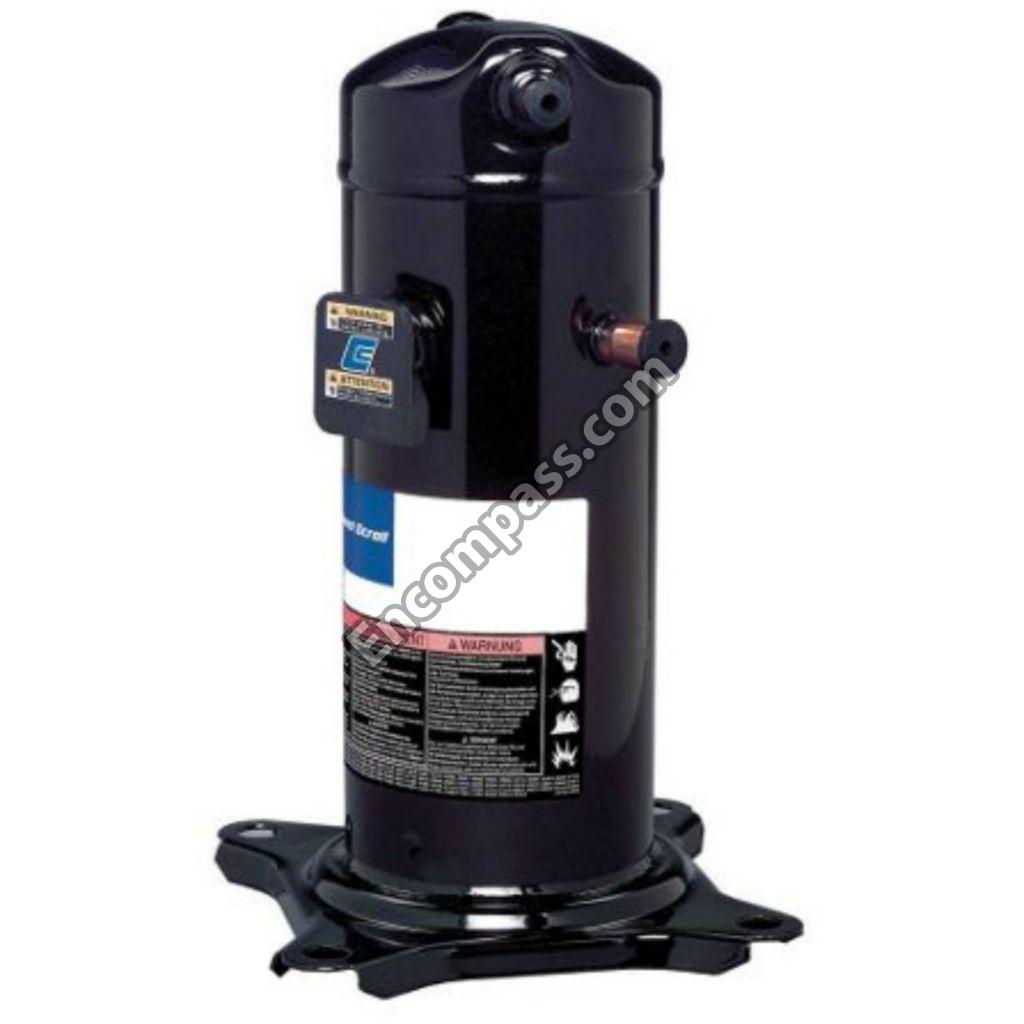

R410A 1P 208/230V SCROLL |
|
|
SERVICE VALVE 3/4-INCH |
|
|
TOP PANEL |
|
|
VALVE CORE |
