Manufacturer
Rheem
Model Number
RA1624AJ1NA
Description
Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/5HP 208-230V 825RPM 48 MOTOR |
|
|
1/6HP 208-230V 825RPM 1SP |
|
|
1/6HP 208-230V 825RPM 1SPD MTR |
|
|
1/8-INCH COPPER TUBE |
|
|
24-INCHDIA 22DEG 1/2-INCH CCW 2BLD FAN |
|
|

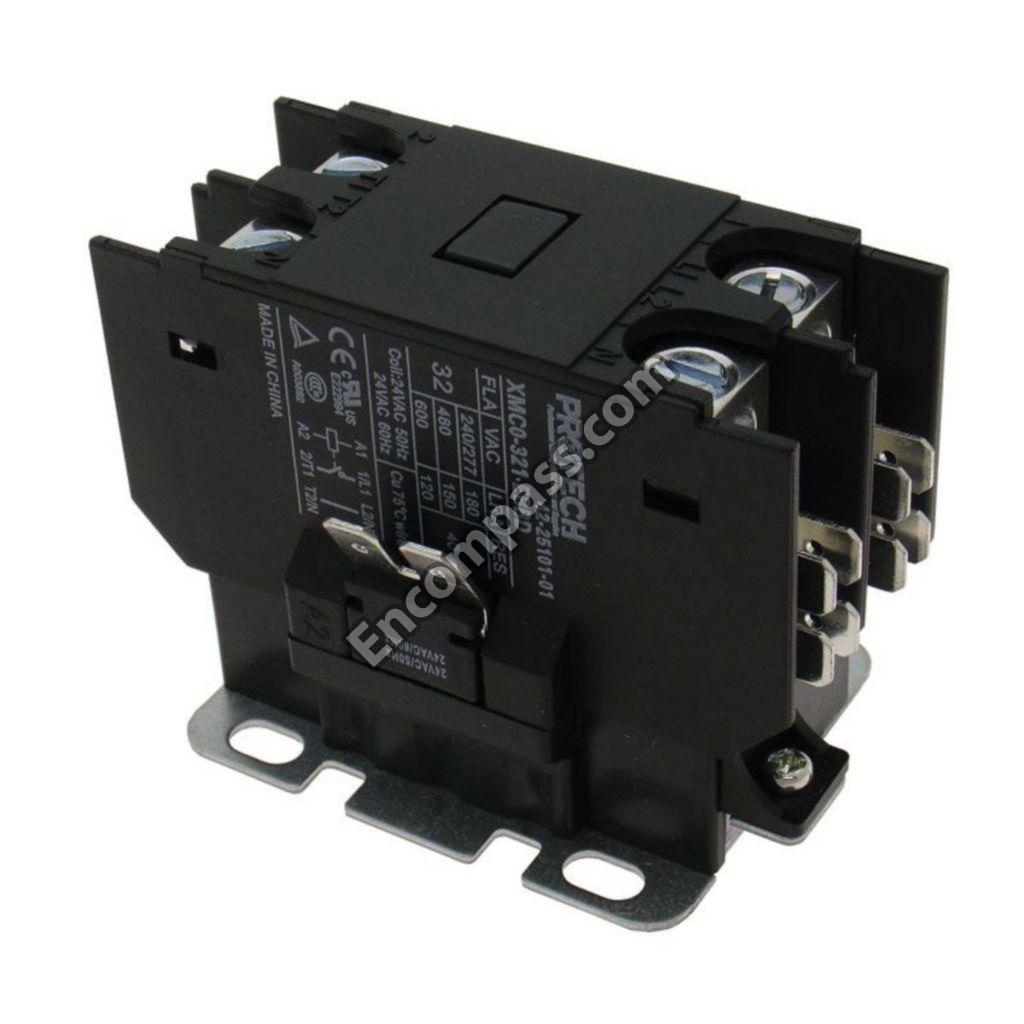

24V 30A 1POLE CONTACTOR |
|
|
3/8-INCH 8CUIN LIQUIDLINEDRIER |
|
|

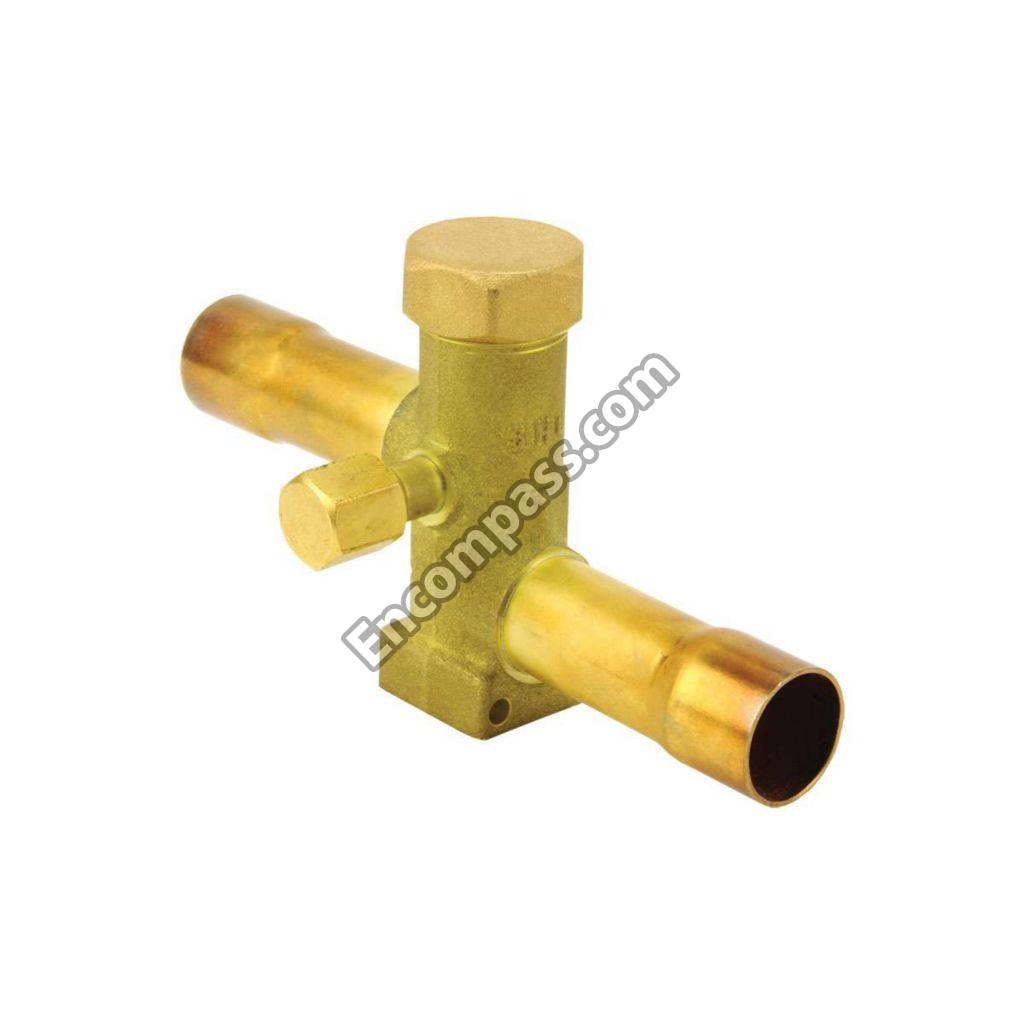

3/8ODF SERVICE VALVE |
|
|
35/5MFD 370V RND RUN CAPACITOR |
|
|
35/5MFD 440V DUAL ROUND |
|
|
40/5/370 DUAL ROUND CAPACITOR |
|
|
40/5MFD 370V RND RUN CAPACITOR |
|
|
40/5MFD 440V ROUND CAPACITOR |
|
|

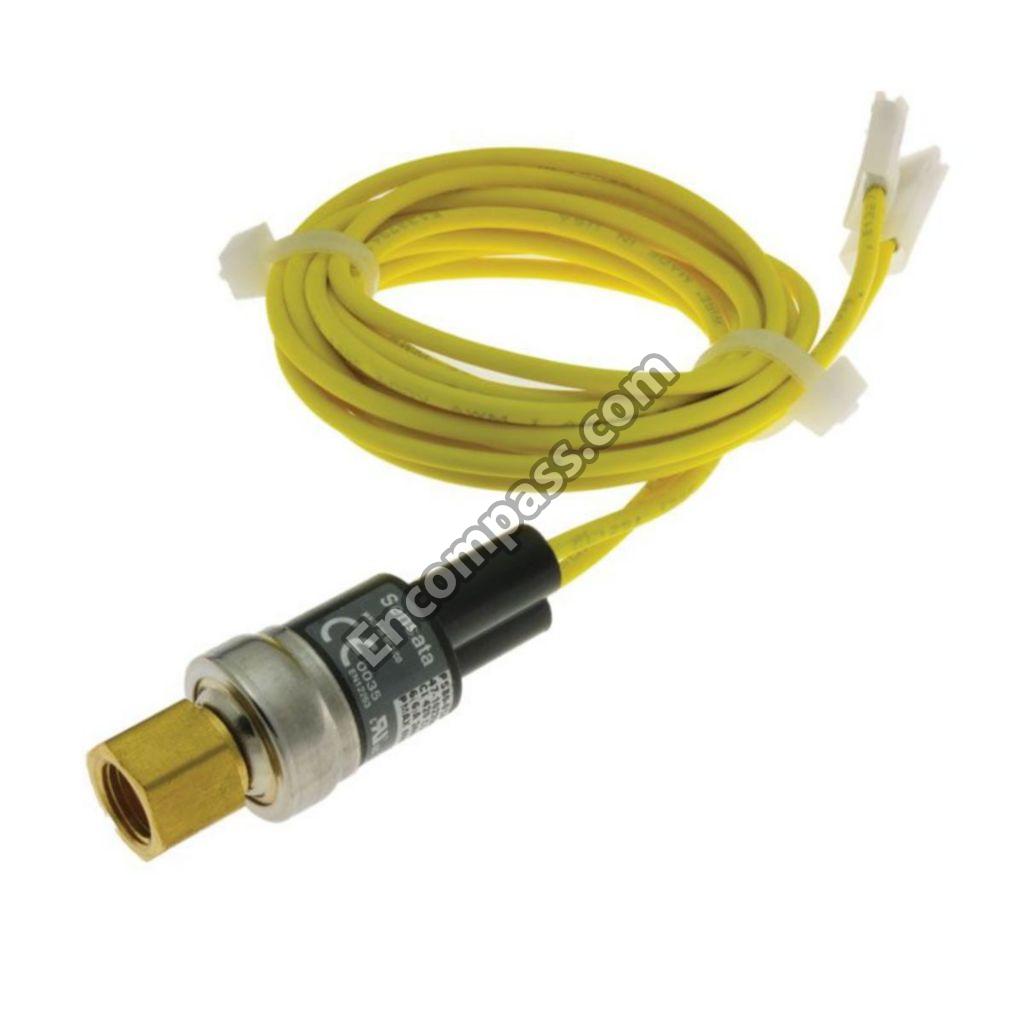

A/R HIGH # LIMIT; 610OP 420CL |
|
|
AUTO RESET LOW PRESSURE LIMIT |
|
|
BLANK CENTER CAP NAMEPLATE |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|

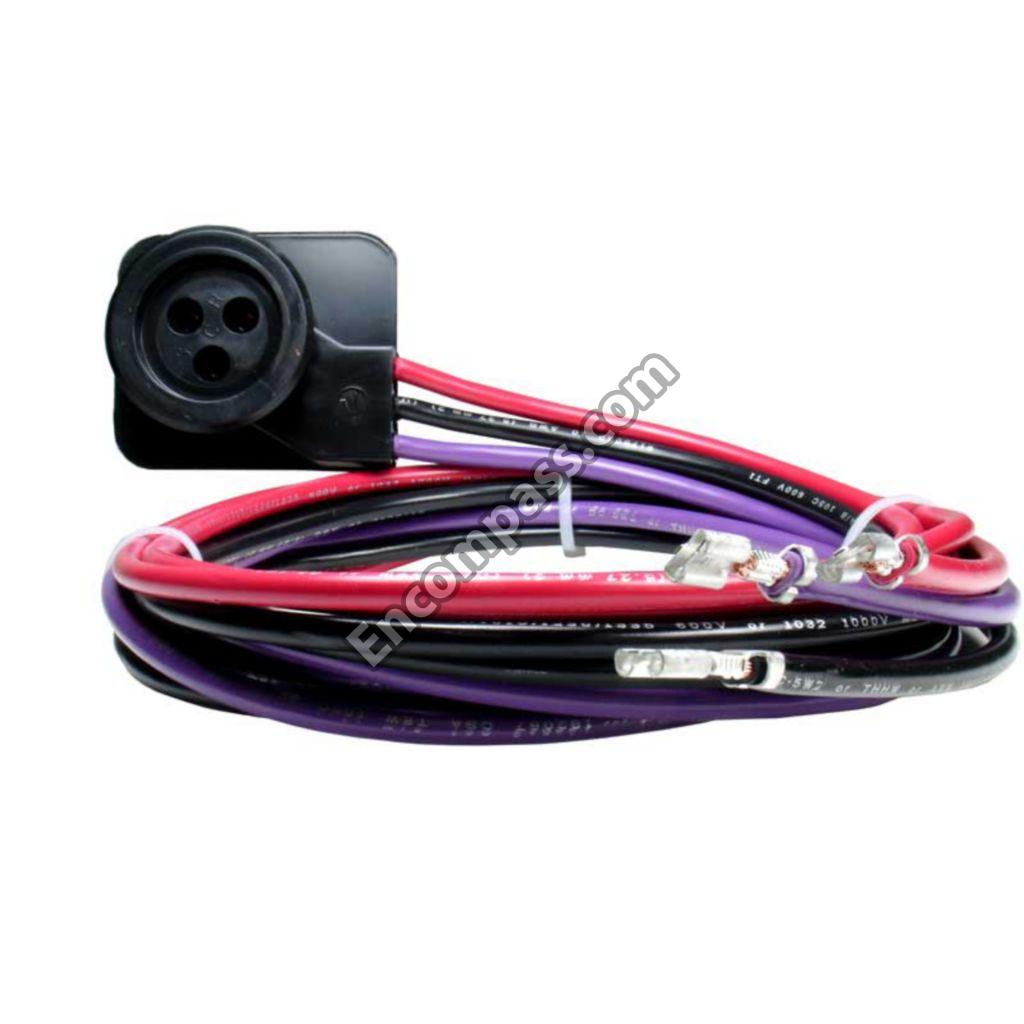

COMPRESSOR WIRING HARNESS |
|
|
CONTROL BOX |
|
|

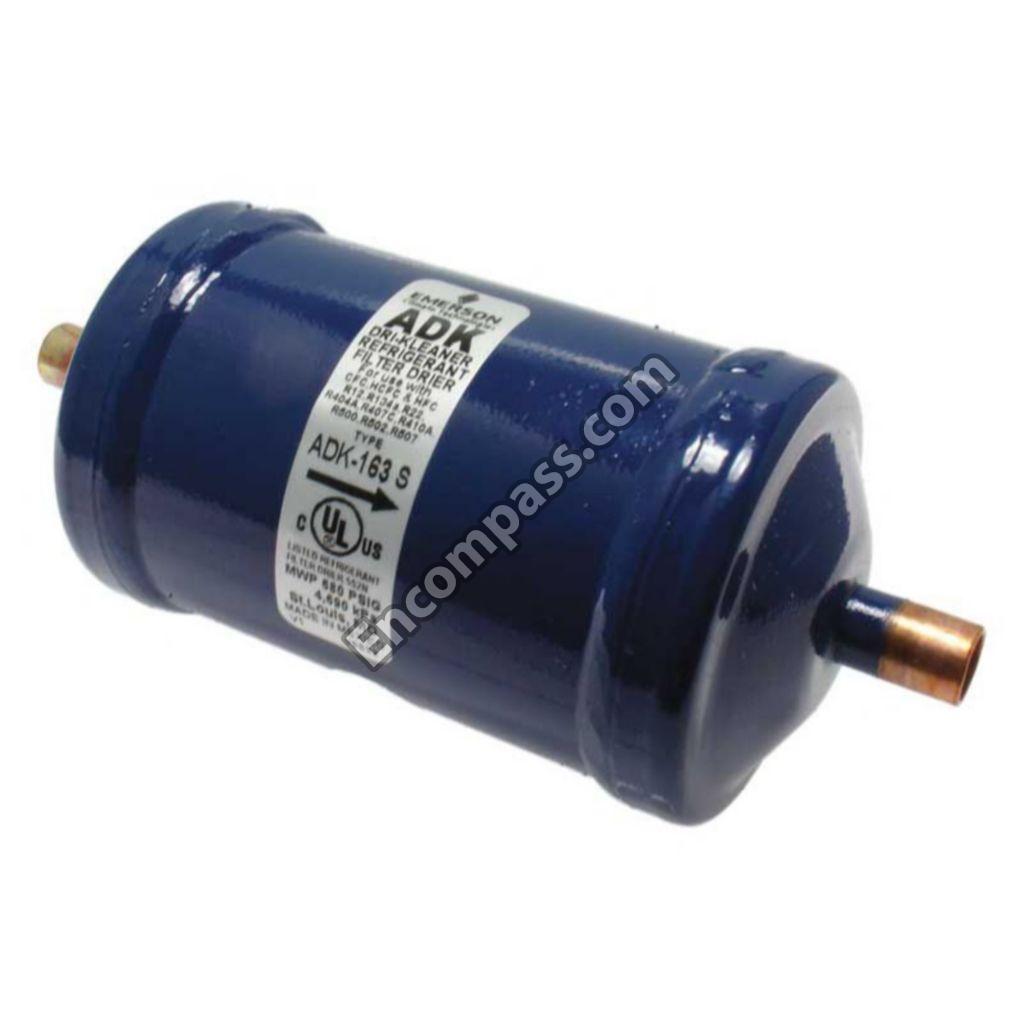

LIQUID LINE FILTER DRIER |
|
|
SERVICE VALVE 3/4-INCH |
|
|
TOP PANEL |
|
|
VALVE CORE |
|
|
WIRE GRILLE |
