Manufacturer
Rheem
Model Number
RANL018JAZ
Description
Straight Cool - Residential Condenser
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/10HP 208-230V 825RPM 1SP MTR |
|
|

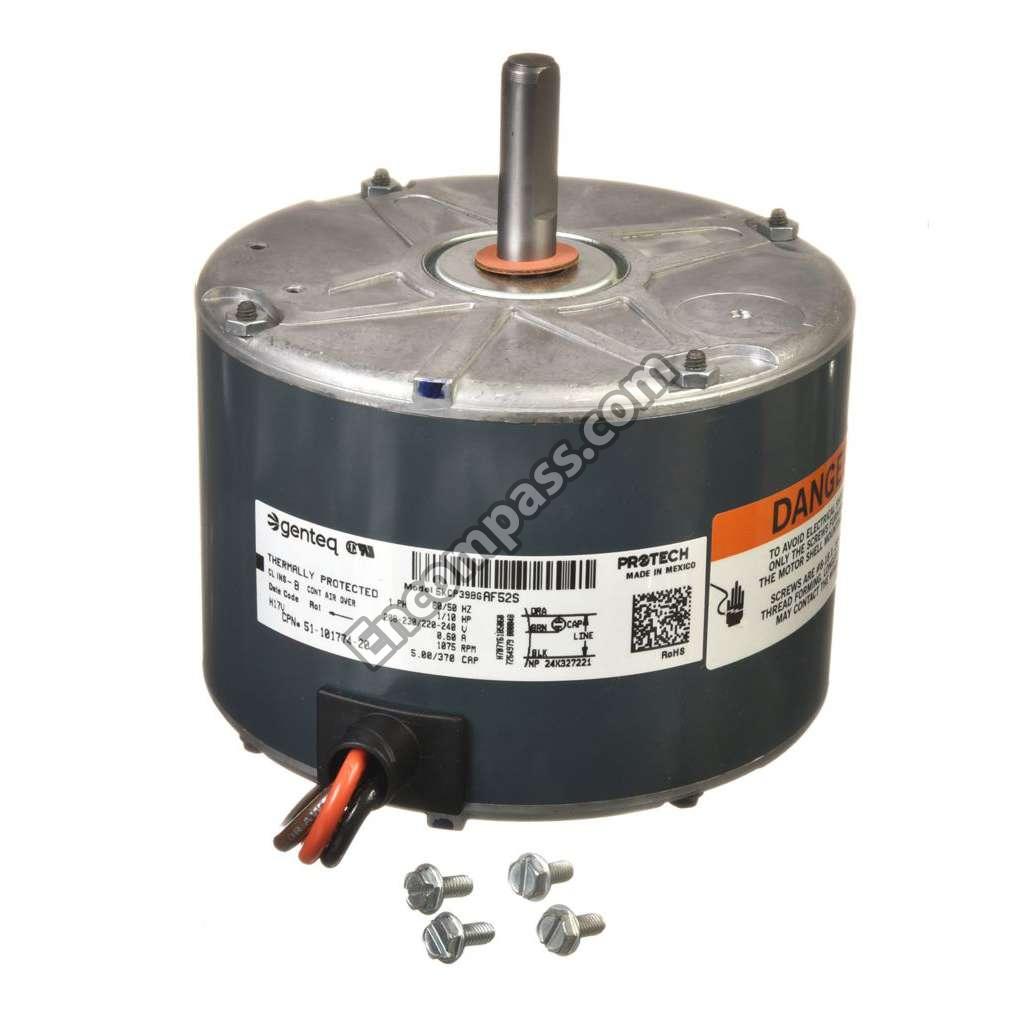

1/10HP 208/230V1PH 1075RPM MTR |
|
|
18-INCH 2BLD FAN 1/2-INCH BORE CCW 28DE |
|
|
18-INCH DIA 26DEG 1/2-INCH CCW 2BLD FAN |
|
|

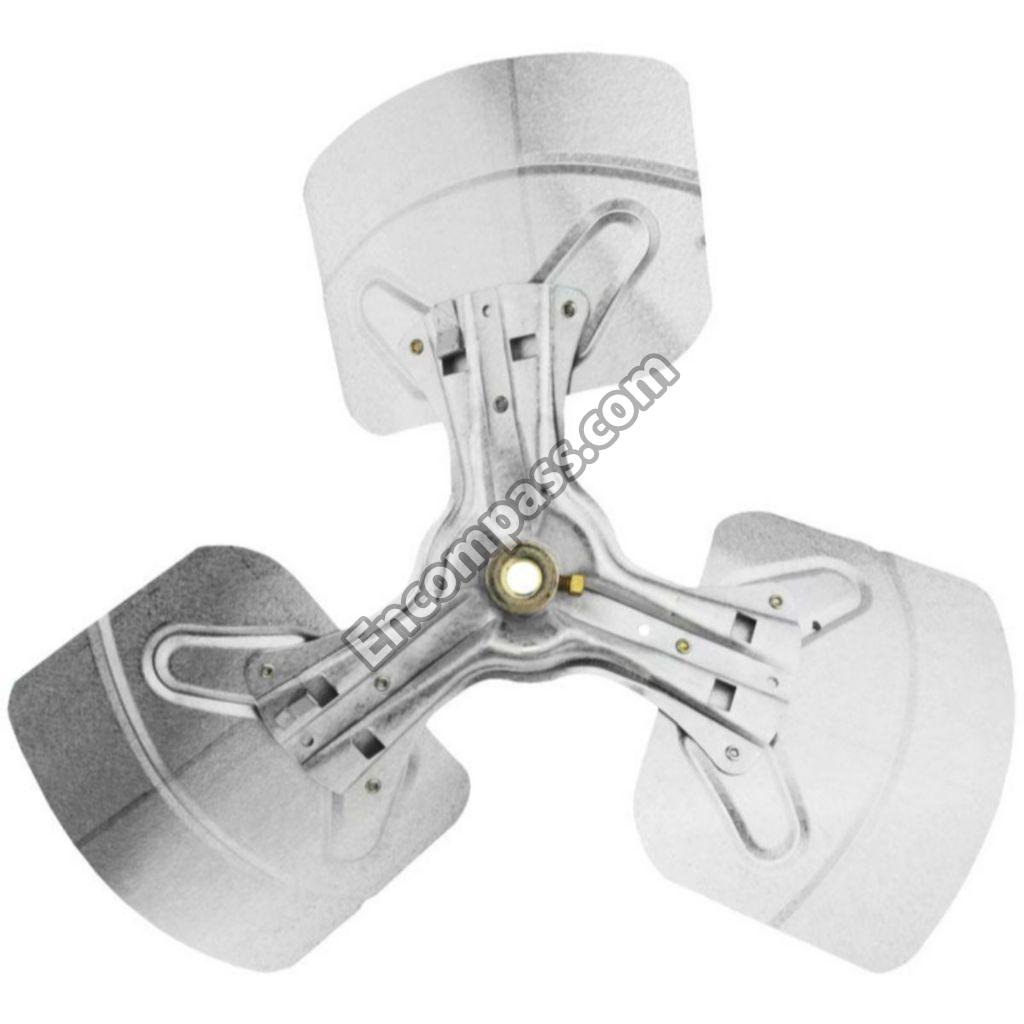

18-INCH DIA 30DEG 1/2-INCH CCW 3BLD FAN |
|
|
18-INCH DIA 32DEG 1/2-INCH CCW 3BLD FAN |
|
|
24V 30A 1POLE CONTACTOR |
|
|
3/4-INCH OD SUCTION LINE VALVE |
|
|
3/8-INCH 8CUIN LIQUIDLINEDRIER |
|
|
3/8-INCH SWEATODF 600# LIQ SRVC VLV |
|
|
30/5MFD 370V ROUND CAPACITOR |
|
|
420# HIGH LIMIT AUTO # SWITCH |
|
|
88/106MFD 330V RND START CAPAC |
|
|
95#-CLS 50#-OPN A/R LOW LIMIT |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
HIGH PRESSURE LIMIT-AUTO RESET |
|
|
LIQUID LINE FILTER DRIER |
|
|
LOW#LIMIT OPEN50 CLOSE95 |
|
|
START RELAY |
|
|
SVC VLV SUCTION LINE 3/4-INCH |
|
|
WIRE GRILLE |
