Manufacturer
Rheem
Model Number
RAPM048JEZ
Description
Straight Cool - Residential Condenser
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/6HP 825RPM 208/230V 1PH MTR |
|
|
230V1PH 57100BTU R-410A COMP. |
|
|
24-INCH DIA 22DEG 1/2-INCH CCW 3BLD FAN |
|
|
26-INCH WIRE GRILLE |
|
|
3/8-INCH SWEATODF 600# LIQ SRVC VLV |
|
|
420# HIGH LIMIT AUTO # SWITCH |
|
|
7/8-INCH SWTCON SUCTION SERVICE VALVE |
|
|
70/7.5MFD 370V ROUND DUAL CAP |
|
|
70MFD 370V ROUND RUN CAPAC |
|
|
88/106MFD 330V RND START CAPAC |
|
|
95#-CLS 50#-OPN A/R LOW LIMIT |
|
|
CHARGE COMPENSATOR |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR SOUND ENCLOSURE |
|
|

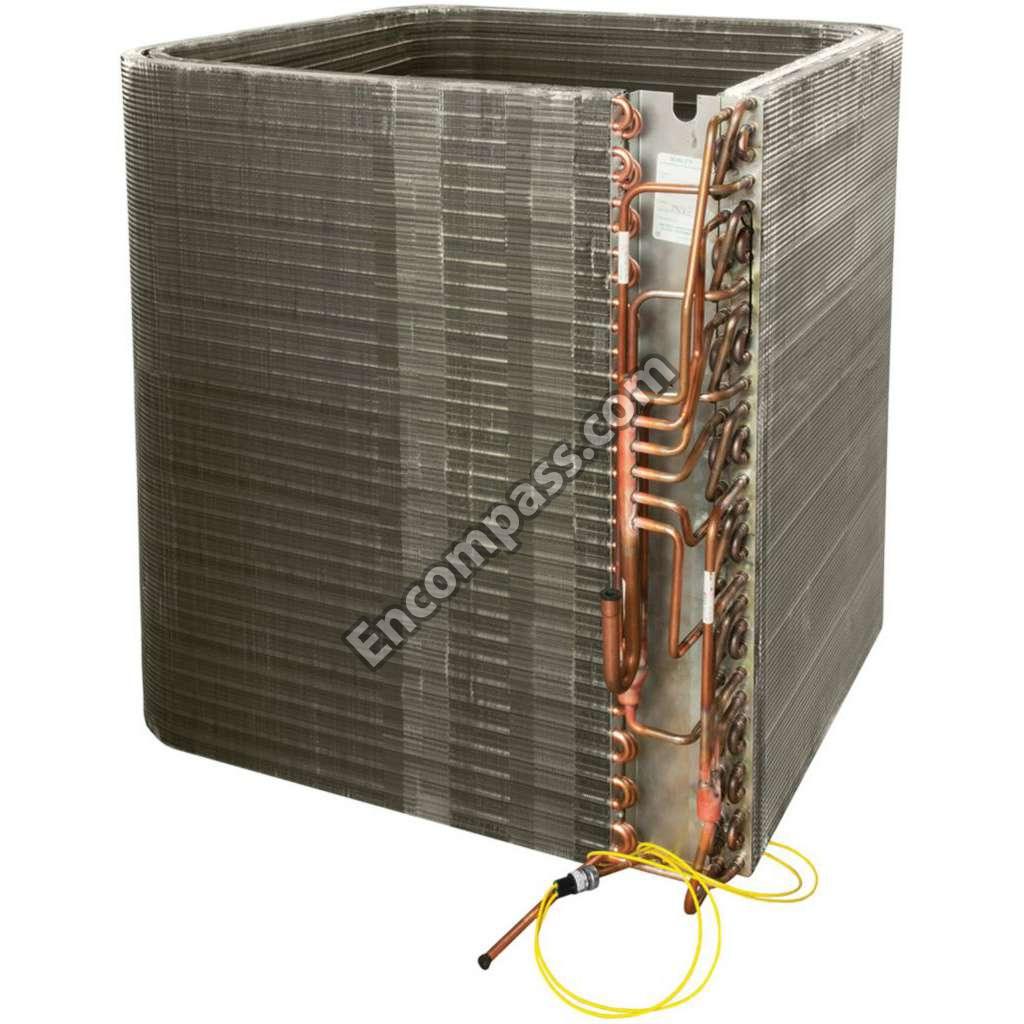

CONDENSER COIL LTLO |
|
|
CONTROL BOARD KIT |
|
|
CONTROL BOX ASSEMBLY |
|
|
ECM MOTOR 1/3HP230V1PHCCW 39 |
|
|
HIGH PRESSURE LIMIT-AUTO RESET |
|
|
LOW PRESSURE LIMIT AUTO RESET |
|
|
LOW#LIMIT OPEN50 CLOSE95 |
|
|
START RELAY |
|
|
TOP PANEL |
|
|
TOP PANEL - NEUTRA GREEN |
|
|
TOPPANEL 16X32 |
|
|
WIRING HARNESS |
|
|
WIRING HARNESS FOR SCROLL COMP |
