Manufacturer
Rheem
Model Number
RAPM060JAZ
Description
Straight Cool - Residential Condenser
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

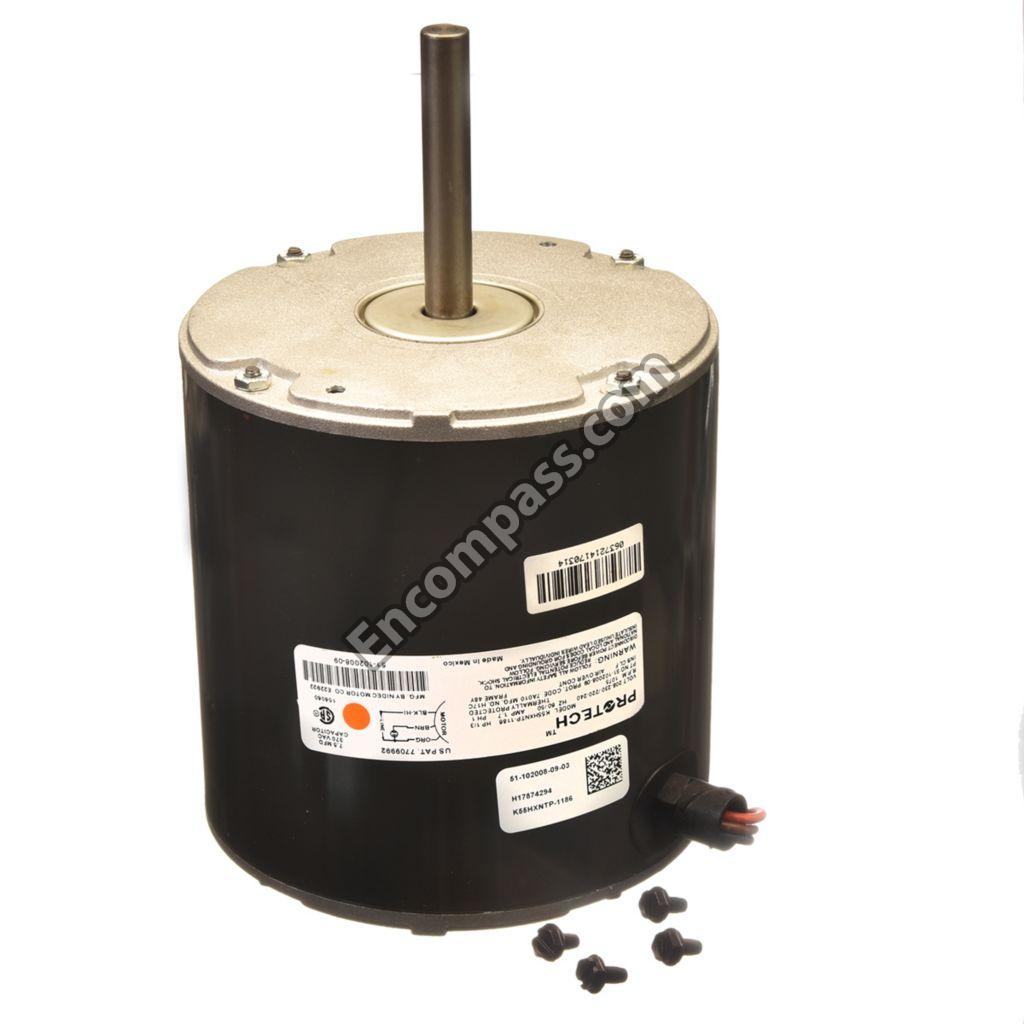

1/3HP 208/230 1PH 1075RPM COND |
|
|

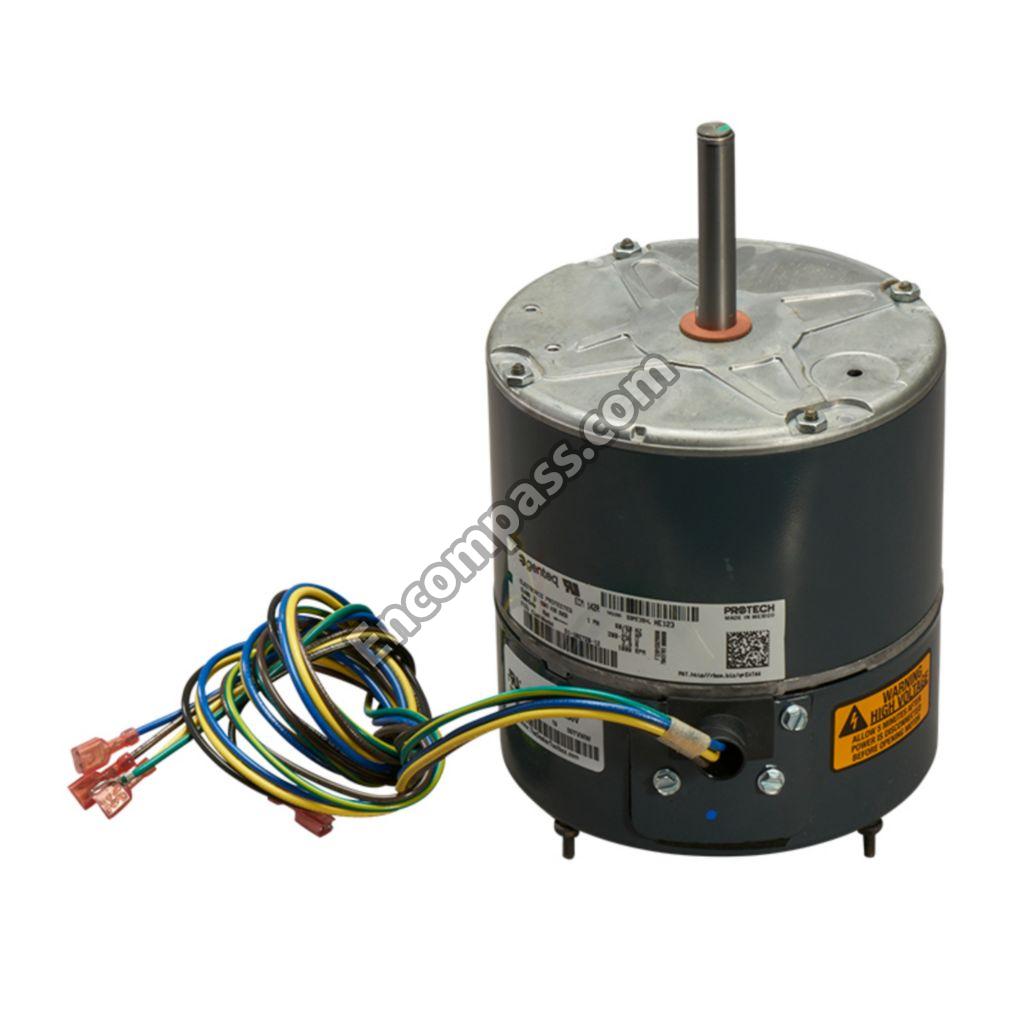

208-230V 1/3HP ECM COND MOTOR |
|
|
24-INCH DIA 22DEG 1/2-INCH CCW 3BLD FAN |
|
|
24V 40AMP 1POLE CONTACTOR |
|
|
26-INCH WIRE GRILLE |
|
|
3/8-INCH SWEATODF 600# LIQ SRVC VLV |
|
|
3BLD 24-INCH DIA CCW 1/2-INCH BORE |
|
|
420# HIGH LIMIT AUTO # SWITCH |
|
|
7/8-INCH SWTCON SUCTION SERVICE VALVE |
|
|
70/7.5MFD 370V ROUND DUAL CAP |
|
|
70MFD 370V ROUND RUN CAPAC |
|
|
95#-CLS 50#-OPN A/R LOW LIMIT |
|
|
CHARGE COMPENSATOR |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
CONDENSER COIL LTLO |
|
|
CONTACTOR 40A 1POLE 24V COIL |
|
|
HIGH PRESSURE LIMIT-AUTO RESET |
|
|
LOW#LIMIT OPEN50 CLOSE95 |
|
|
TOP PANEL |
|
|
TOP PANEL - NEUTRA GREEN |
|
|
TOPPANEL 16X32 |
