Manufacturer
Rheem
Model Number
RARL061JEC
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

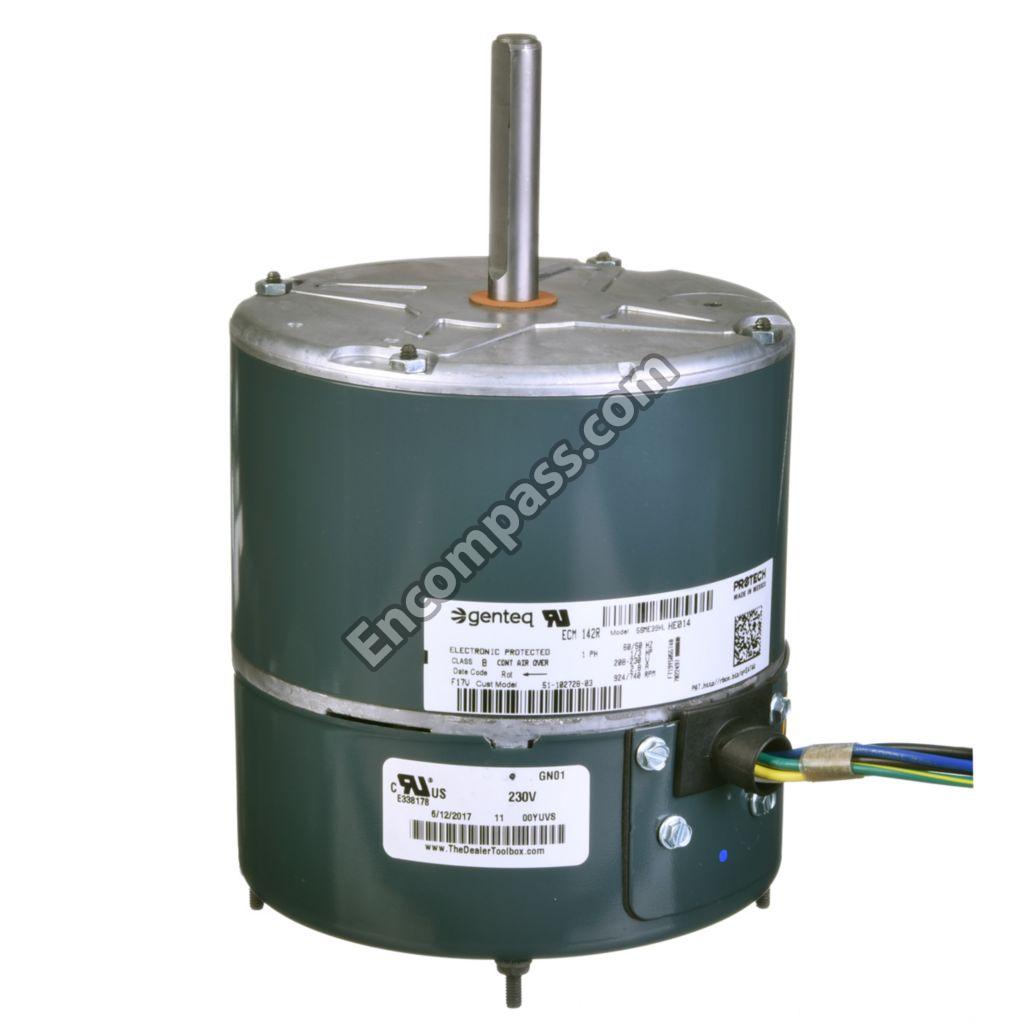

208-230V 1/3HP ECM MOTOR |
|
|
24-INCH DIA 22DEG 1/2-INCH CCW 3BLD FAN |
|
|
240V 40W BELLY BAND CC HEATER |
|
|
3/8-INCH 8CUIN LIQUIDLINEDRIER |
|
|
3/8-INCH SWEATODF 600# LIQ SRVC VLV |
|
|
40MFD 370V ROUND RUN CAPACITOR |
|
|
40MFD 440V ROUND CAPACITOR |
|
|
40W 230V BELLY BAND CC HEATER |
|
|
7/8-INCH SWTCON SUCTION SERVICE VALVE |
|
|
88/106MFD 330V RND START CAPAC |
|
|
95#-CLS 50#-OPN A/R LOW LIMIT |
|
|
CAPACITOR STRAP |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR SOUND ENCLOSURE |
|
|
CONDENSER COIL |
|
|

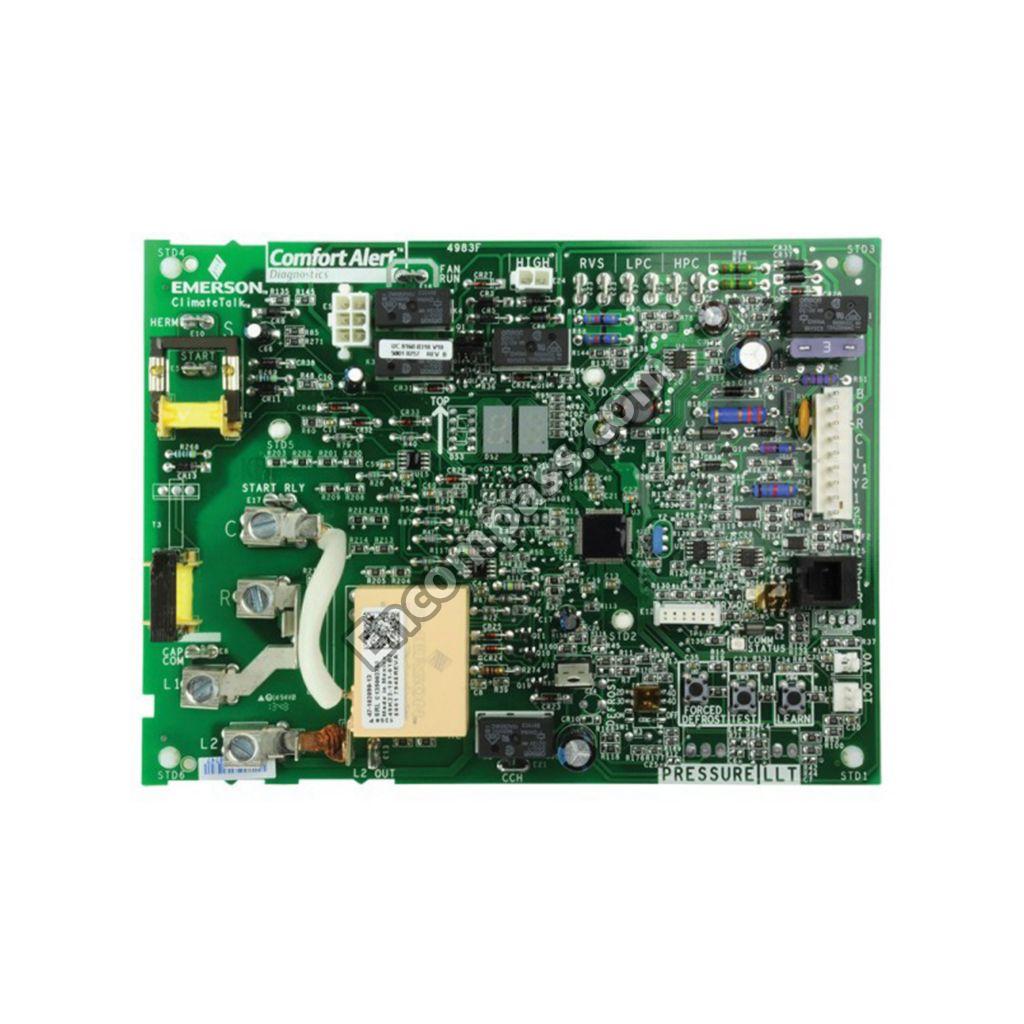

CONTROL BOARD KIT |
|
|
CONTROL BOX ASSEMBLY |
|
|
DEFROST AND AMBIENT SENSOR KIT |
|
|
HIGH PRESSURE LIMIT-AUTO RESET |
|
|
LIQUID LINE FILTER DRIER |
|
|
LOW PRESSURE LIMIT AUTO RESET |
|
|
MOLDED PLUG |
|
|
START RELAY |
|
|
TOP PANEL |
|
|
TOP PANEL - NEUTRA GREEN |
|
|
TOPPANEL 16X32 |
|
|
WIRE GRILLE |
