Manufacturer
Rheem
Model Number
RAWL121DAZ
Description
Straight Cool - Commercial Condenser
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
208/230-24V 75VA TRANSFORMER |
|
|

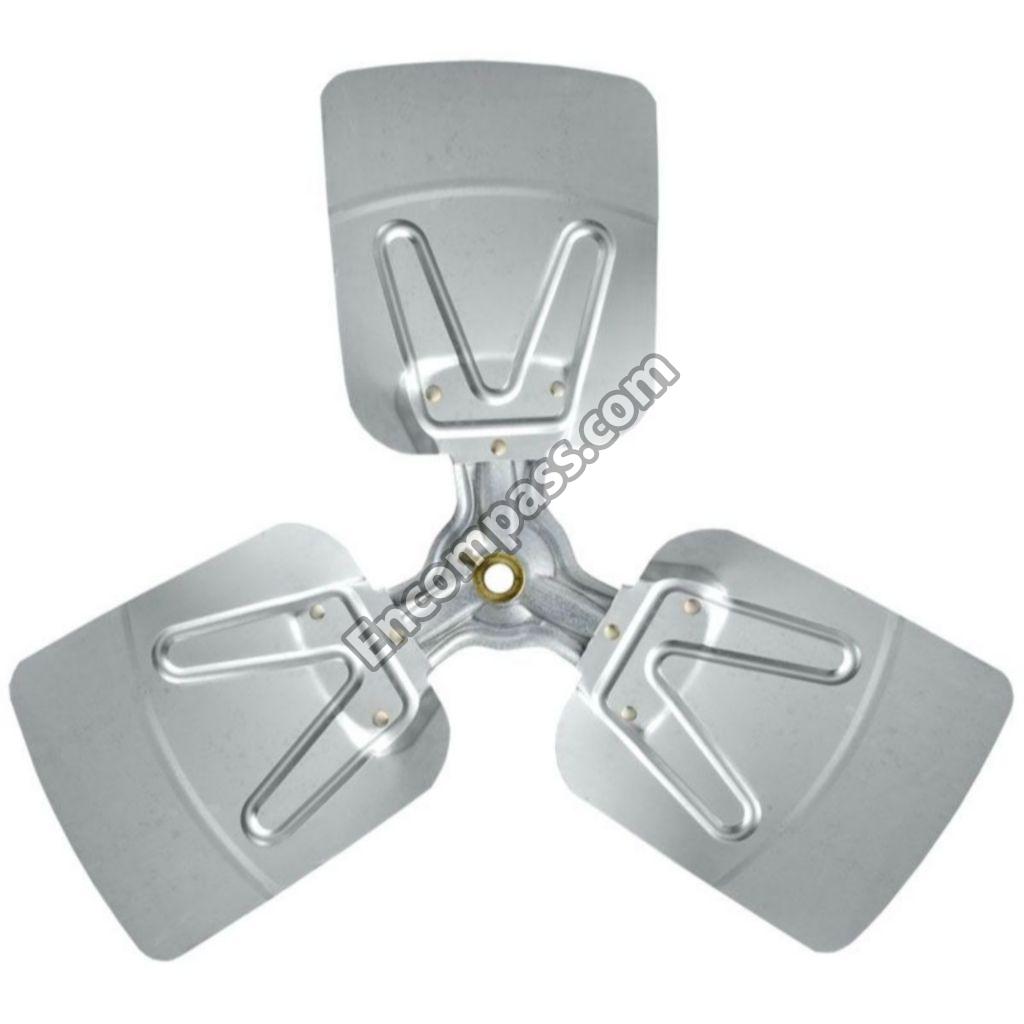

24-INCH DIA 22DEG 1/2-INCH CW 3BLD FAN |
|
|
30S FIXED ON DELAY ON MAKE RLY |
|
|
40AMP 3POLE 24V W/AUXCONTACTOR |
|
|
460/575-24V 75VA TRANSFORME |
|
|
5/8-INCH SWEATODF 600# SUCT SVCVLV |
|
|
70W 230V BELLY BAND CC HEATER |
|
|
A/R LOW AMBIENT CTL;250OP450CL |
|
|
BELT 460V 70W 6.5-INCH -7.5-INCH DIA HTR |
|
|
BULKHEAD VALVE |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
CONDENSER COIL |
|
|
DRAIN PAN ASSEMBLY |
|
|
GRILLE |
|
|
HI PRESSURE LIMIT M/R 610# |
|
|
LOW VOLTAGE MOLDED PLUG |
|
|
LOW#LIMIT OPEN50 CLOSE95 |
|
|
MOTOR MOUNT |
|
|
SUCTION LINE SERVICE VLV |
|
|
SWITCHMOUNTINGBRACKET |
|
|
VALVE CORE |
|
|
VENTURI RING |
