Model Image
Manufacturer

Rheem

Model Number

RGEA14024AJD04XAA

Description

Commercial Packaged Gas Electric

Interactive Exploded View

Parts List

Part Number Description
60-105055-01 60-105055-01 1/2-INCH HSI/DSI GAS VALVE
60-106207-01 60-106207-01 1/2-INCH SLOW OPEN NG GAS VALVE
51-102500-10 51-102500-10 1/3HP 208-230V 825RPM 1PH MTR
51-23024-31 51-23024-31 1/4HP 208-230V 1075RPM 3SP MTR
83-CD3608-6PK 83-CD3608-6PK 1/8-INCH COPPER TUBE
46-25107-03 46-25107-03 208-240V-PRI 24V-SEC 40VA TRAN
70-101323-19 70-101323-19 22-INCHDIA 28DEG 1/2-INCH CCW 3BLD FAN
42-25101-01 42-25101-01 24V 30A 1POLE CONTACTOR
79-21491-83 79-21491-83 3/16X18-INCH RUBBER SILICONE TUBING
83-25151-41 83-25151-41 3/8-INCH 8CUIN LIQUIDLINEDRIER
47-22861-02 47-22861-02 300F M/R LIMIT SWITCH
43-25133-35 43-25133-35 35/5MFD 370V RND RUN CAPACITOR
62-22175-45 62-22175-45 45 NATURAL GAS ORIFICE
56-22114-01 56-22114-01 7/8-INCH DIAMETER VINYL GROMMET
70-18631-01 70-18631-01 9-INCH DIA 7-INCH W CW 1/2-INCH WHEEL
47-102290-01 47-102290-01 A/R HIGH # LIMIT; 610OP 420CL
AS-58662-01 AS-58662-01 BLOWER ASSEMBLY
AE-64401-10 AE-64401-10 BLOWER CUT OFF
AS-58619-01 AS-58619-01 BLOWER HOUSING
61-22369-04 61-22369-04 BULKHEAD VALVE
AS-60993-02 AS-60993-02 BURNER ASSEMBLY
AE-61588-02 AE-61588-02 BURNER BRACKET
AE-58594-01 AE-58594-01 BURNER FLOOR
AE-59148-01 AE-59148-01 BURNER SHIELD
AE-58588-01 AE-58588-01 COLLECTOR BOX
AE-58599-01HT AE-58599-01HT COMBUSTION AIR INLET HOOD
45-100834-80 45-100834-80 COMPRESSOR WIRING HARNESS
62-23556-82 62-23556-82 DIRECT SPARK IGNITOR
56-23601-01 56-23601-01 DRAIN PAN FITTING GROMMET
AS-104910-01 AS-104910-01 EXHAUST HOOD ASSEMBLY
AS-58607-36 AS-58607-36 EXHAUST TRANSITION ASSEMBLY
62-23543-02 62-23543-02 FLAME SENSOR
45-25323-02 45-25323-02 FLAME SENSOR WIRE
68-23644-01 68-23644-01 GASKET - COLLECTOR BOX
70-23641-86 70-23641-86 INDUCED DRAFT BLOWER W/GASKET
68-23643-01 68-23643-01 INDUCER BLOWER GASKET
62-23599-05 62-23599-05 INTEGRATED FURNACE CONTROL
83-ADK-083S 83-ADK-083S LIQUID LINE FILTER DRIER
81-101154-01 81-101154-01 MANIFOLD
81-23593-01 81-23593-01 MANIFOLD PLUG 1/8-INCH
70-19929-02 70-19929-02 MOTOR MOUNT ARM W/GROMMET
70-19927-01 70-19927-01 MOTOR MOUNT BAND
60-103901-01 60-103901-01 NATURAL GAS VALVE
75-23684-01 75-23684-01 NOX INSERT
68-23603-01 68-23603-01 PVC TRAP
55-102045-24S 55-102045-24S R410A 1P 208/230V SCROLL
AE-58595-01 AE-58595-01 RADIATION SHIELD
43-25134-02 43-25134-02 RUN CAPAC 5 MFD 370V OVAL
42-105601-20 42-105601-20 SPSP PRESSURE SWITCH -.45WC
AS-58632-85 AS-58632-85 SS HEAT EXCHANGER ASSEMBLY
AE-58591-02 AE-58591-02 TURBULATOR

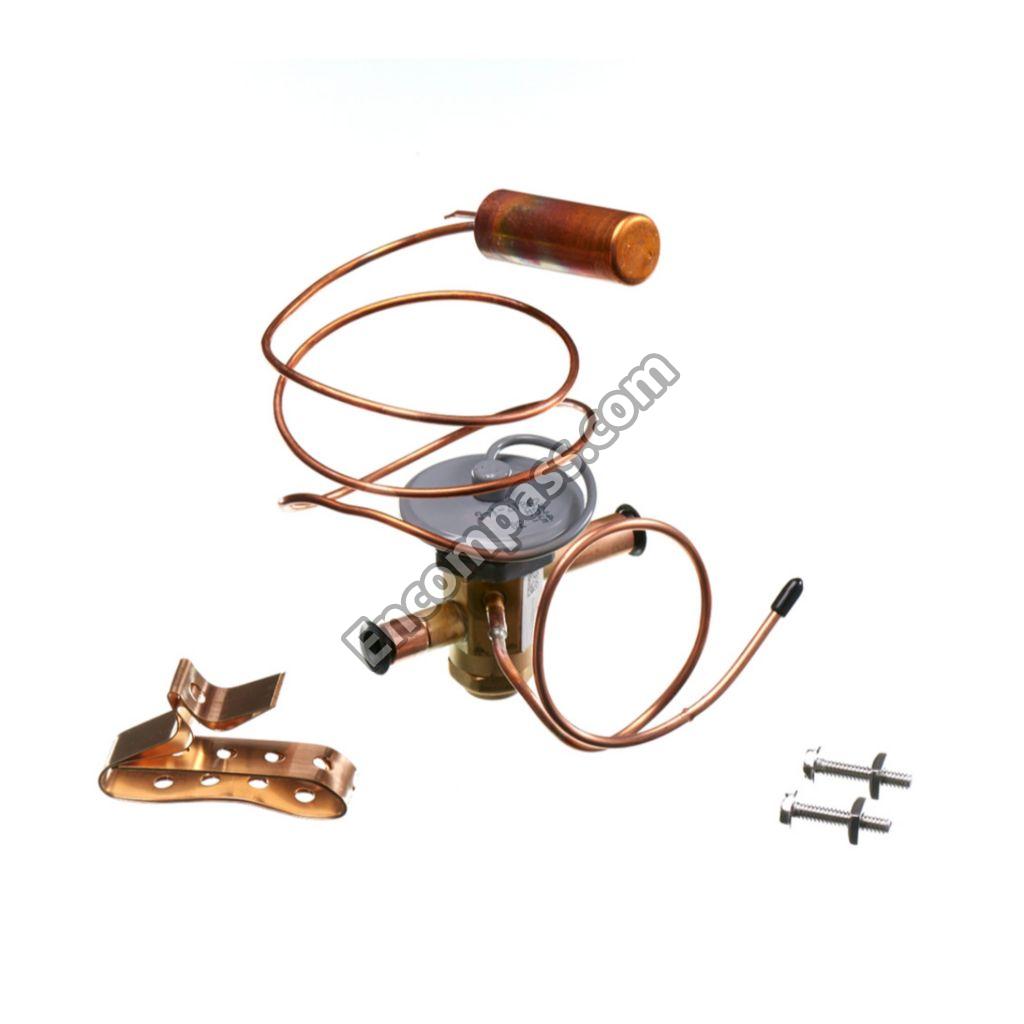

61-102211-35 61-102211-35 TXV
64-21106-02 64-21106-02 TXV BULB STRAP MOUNTING KIT
61-18551-01 61-18551-01 VALVE CORE
95-100906-08 95-100906-08 WIRE GRILLE
45-102393-82 45-102393-82 WIRE HARNESS 9PIN TO 9INSTERMS
