Model Image
Manufacturer

Rheem

Model Number

RGEA14060ADT101AA

Description

Commercial Packaged Gas Electric

Interactive Exploded View

Parts List

Part Number Description
60-105055-01 60-105055-01 1/2-INCH HSI/DSI GAS VALVE
60-106207-01 60-106207-01 1/2-INCH SLOW OPEN NG GAS VALVE
51-100998-20 51-100998-20 1/3HP 380-415-460V 1075RPM MTR
83-CD3608-6PK 83-CD3608-6PK 1/8-INCH COPPER TUBE
47-102436-07 47-102436-07 100F-OPN 80F-CLS AUTO LIMIT SW
42-101504-02 42-101504-02 2-STAGE COMFORT ALERT MODULE
42-101208-02 42-101208-02 208-230V SPST N/O RELAY
46-25107-03 46-25107-03 208-240V-PRI 24V-SEC 40VA TRAN
42-25101-01 42-25101-01 24V 30A 1POLE CONTACTOR
42-25103-01 42-25103-01 24V 32A 3POLE CONTACTOR
42-19736-02 42-19736-02 24V SPDT RELAY
42-21571-08 42-21571-08 24V SPST N/O RELAY
79-21491-83 79-21491-83 3/16X18-INCH RUBBER SILICONE TUBING
83-25151-41 83-25151-41 3/8-INCH 8CUIN LIQUIDLINEDRIER
47-22861-02 47-22861-02 300F M/R LIMIT SWITCH
70-23594-03 70-23594-03 3BLD 21 11/16-INCH DIA 27DEGCCW1/2-INCH
62-22175-45 62-22175-45 45 NATURAL GAS ORIFICE
46-102027-01 46-102027-01 460/575VPRIM 24VSEC 50VA TRANS
70-23641-92 70-23641-92 460V INDUCED DRAFT BLWR W/GSKT
AS-60993-05 AS-60993-05 5TUBE BURNER ASSEMBLY
43-25134-03 43-25134-03 7.5MFD 370V OVAL RUN CAPACITOR
56-22114-01 56-22114-01 7/8-INCH DIAMETER VINYL GROMMET
43-17075-04 43-17075-04 88/106MFD 330V RND START CAPAC
47-102290-01 47-102290-01 A/R HIGH # LIMIT; 610OP 420CL
61-22369-04 61-22369-04 BULKHEAD VALVE
AE-61588-02 AE-61588-02 BURNER BRACKET
AE-58594-01 AE-58594-01 BURNER FLOOR
AE-58588-01 AE-58588-01 COLLECTOR BOX
AE-58599-01HT AE-58599-01HT COMBUSTION AIR INLET HOOD
42-101504-03 42-101504-03 COMFORT ALERT MODULE
56-18518-06 56-18518-06 COMPRESSOR MOUNTING GROMMET
45-100834-80 45-100834-80 COMPRESSOR WIRING HARNESS
AS-104395-03 AS-104395-03 CONDENSER COIL
62-23556-82 62-23556-82 DIRECT SPARK IGNITOR
56-23601-01 56-23601-01 DRAIN PAN FITTING GROMMET
AS-104910-01 AS-104910-01 EXHAUST HOOD ASSEMBLY
AS-58607-36 AS-58607-36 EXHAUST TRANSITION ASSEMBLY
62-23543-02 62-23543-02 FLAME SENSOR
45-25323-02 45-25323-02 FLAME SENSOR WIRE
68-23644-01 68-23644-01 GASKET - COLLECTOR BOX
AS-58632-88 AS-58632-88 HEAT EXCHANGER ASSEMBLY SS
70-23641-86 70-23641-86 INDUCED DRAFT BLOWER W/GASKET
68-23643-01 68-23643-01 INDUCER BLOWER GASKET
62-23599-05 62-23599-05 INTEGRATED FURNACE CONTROL
83-ADK-083S 83-ADK-083S LIQUID LINE FILTER DRIER
45-101723-07 45-101723-07 LOW VOLTAGE MOLDED PLUG
47-101529-09 47-101529-09 LOW#LIMIT OPEN50 CLOSE95
81-101154-01 81-101154-01 MANIFOLD
65-104387-03 65-104387-03 MICRO CHANNEL EVAP COIL
45-101723-05 45-101723-05 MOLDED PLUG
70-19929-09 70-19929-09 MOTOR MOUNT ARM W/ GROMMET
70-19927-03 70-19927-03 MOTOR MOUNT BAND
60-103901-01 60-103901-01 NATURAL GAS VALVE
68-23603-01 68-23603-01 PVC TRAP
AE-58595-01 AE-58595-01 RADIATION SHIELD
42-105601-20 42-105601-20 SPSP PRESSURE SWITCH -.45WC
42-18282-26 42-18282-26 START RELAY
AE-58591-02 AE-58591-02 TURBULATOR
64-21106-02 64-21106-02 TXV BULB STRAP MOUNTING KIT

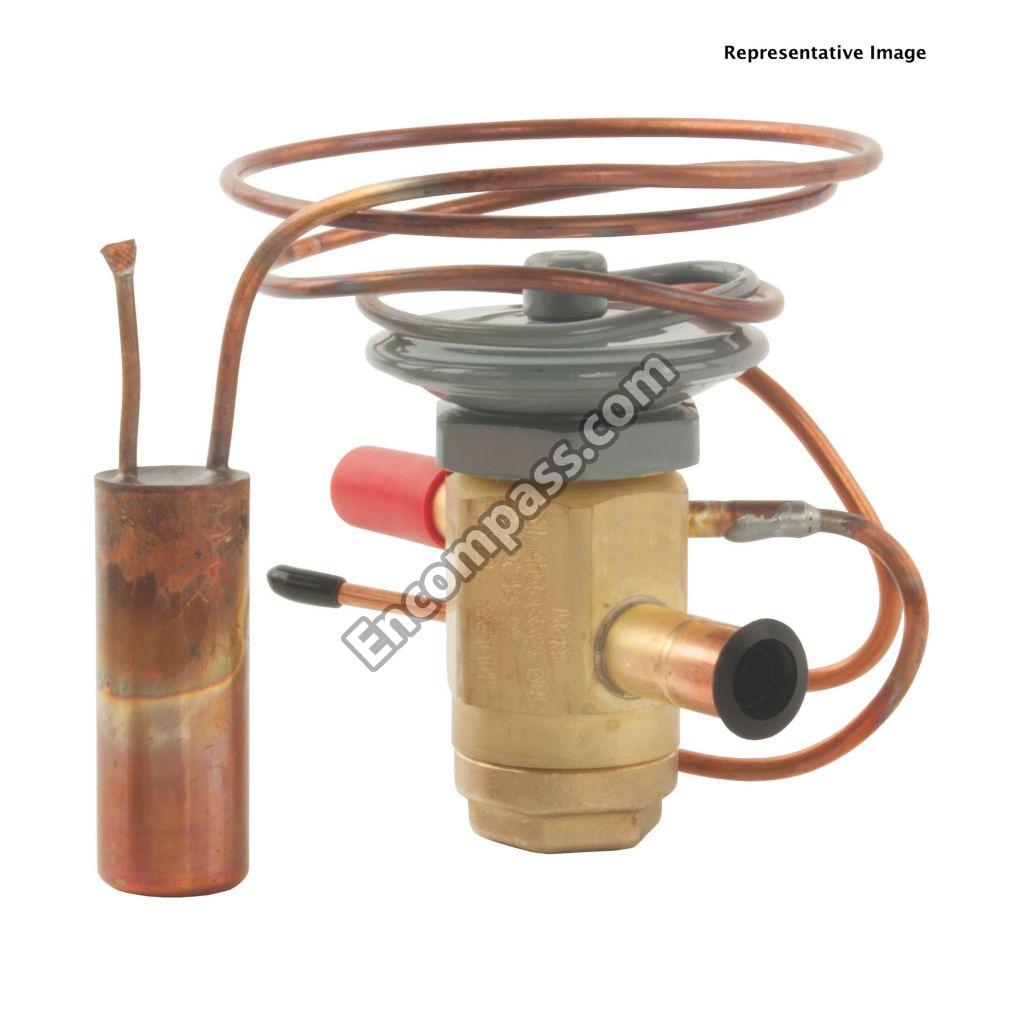

61-102211-39 61-102211-39 TXV VALVE R410A 4TON 3/8X3/8
61-18551-01 61-18551-01 VALVE CORE
95-100906-08 95-100906-08 WIRE GRILLE
45-102393-82 45-102393-82 WIRE HARNESS 9PIN TO 9INSTERMS
51-103624-00 51-103624-00 X-13 MOTOR 460V 1 HP BLANK
